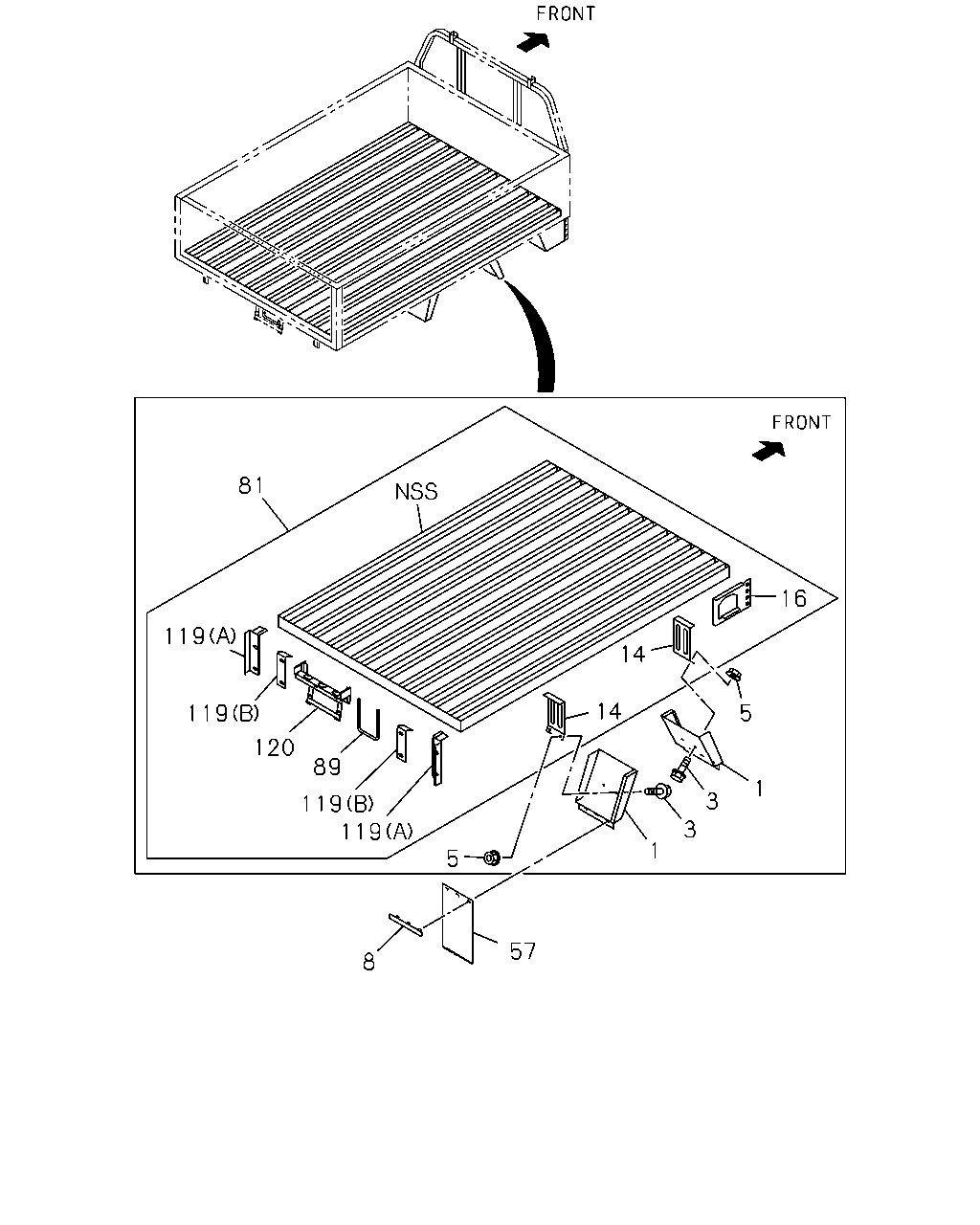

9-31 — REAR BODY; FLOOR AND FENDER (#122451) — 34 parça

81 119 119 120 89 119 119 5 57 8 1 3 3 1 5 16 14 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	FENDER; RR,RR BODY REAR BODY FLAT BED<E39> FRONT THA	8-97263-540-2	01	1	1307-1409
1	FENDER; RR,RR BODY REAR BODY FLAT BED<E39> FRONT THA	8-97263-540-2	01	1	1410-
1	FENDER; RR,RR BODY REAR BODY FLAT BED<E39> FRONT THA	8-97263-541-2	01	1	1307-1409
1	FENDER; RR,RR BODY REAR BODY FLAT BED<E39> FRONT THA	8-97263-541-2	01	1	1410-
1	FENDER; RR,RR BODY REAR BODY FLAT BED<E39> REAR THA	8-97263-542-3	01	1	1307-1409
1	FENDER; RR,RR BODY REAR BODY FLAT BED<E39> REAR THA	8-97263-542-3	01	1	1410-
1	FENDER; RR,RR BODY REAR BODY FLAT BED<E39> REAR THA	8-97263-543-3	01	1	1307-1409
1	FENDER; RR,RR BODY REAR BODY FLAT BED<E39> REAR THA	8-97263-543-3	01	1	1410-
3	BOLT; FENDER TO RR BODY REAR BODY FLAT BED<E39> THA	8-98171-948-0	16	1	1307-1409
3	BOLT; FENDER TO RR BODY REAR BODY FLAT BED<E39> THA	8-98171-948-0	16	1	1410-
5	NUT; FENDER TO BRKT REAR BODY FLAT BED<E39> THA	8-98171-951-0	08	1	1307-1409
5	NUT; FENDER TO BRKT REAR BODY FLAT BED<E39> THA	8-98171-951-0	08	1	1410-
8	HOLDER; FLAP RUBBER REAR BODY FLAT BED<E39> THA	8-97354-203-0	02	1	1307-1409
8	HOLDER; FLAP RUBBER REAR BODY FLAT BED<E39> THA	8-97354-203-0	02	1	1410-
14	SUPPORT; RR FENDER REAR BODY FLAT BED<E39> THA	8-98165-714-1	04	1	1307-1409
14	SUPPORT; RR FENDER REAR BODY FLAT BED<E39> THA	8-98165-714-1	04	1	1410-
16	CONNECTOR; GUARD FRAME REAR BODY FLAT BED<E39> THA	8-98165-804-0	01	1	1307-1409
16	CONNECTOR; GUARD FRAME REAR BODY FLAT BED<E39> THA	8-98165-804-0	01	1	1410-
16	CONNECTOR; GUARD FRAME REAR BODY FLAT BED<E39> THA	8-98165-805-0	01	1	1307-1409
16	CONNECTOR; GUARD FRAME REAR BODY FLAT BED<E39> THA	8-98165-805-0	01	1	1410-
57	RUBBER; FLAP RR REAR BODY FLAT BED<E39> THA	8-97354-206-0	02	1	1307-1409
57	RUBBER; FLAP RR REAR BODY FLAT BED<E39> THA	8-97354-206-0	02	1	1410-
81	FLOOR ASM; RR BODY REAR BODY FLAT BED<E39> THA	8-98188-953-3	01	1	1307-1409
81	FLOOR ASM; RR BODY REAR BODY FLAT BED<E39> THA	8-98188-953-3	01	1	1410-
89	STEP; RR REAR BODY FLAT BED<E39> THA	8-97262-129-0	01	1	1307-1409
89	STEP; RR REAR BODY FLAT BED<E39> THA	8-97262-129-0	01	1	1410-
119	BRACKET; COMB LAMP REAR BODY FLAT BED<E39> (A) THA	8-97263-708-0	01	1	1307-1409
119	BRACKET; COMB LAMP REAR BODY FLAT BED<E39> (A) THA	8-97263-708-0	01	1	1410-
119	BRACKET; COMB LAMP REAR BODY FLAT BED<E39> (A) THA	8-97263-709-0	01	1	1307-1409
119	BRACKET; COMB LAMP REAR BODY FLAT BED<E39> (A) THA	8-97263-709-0	01	1	1410-
119	BRACKET; COMB LAMP REAR BODY FLAT BED<E39> (B) THA	8-97322-728-0	02	1	1307-1409
119	BRACKET; COMB LAMP REAR BODY FLAT BED<E39> (B) THA	8-97322-728-0	02	1	1410-
120	BRACKET; NUMBER PLATE REAR BODY FLAT BED<E39> THA	8-98165-704-0	01	1	1307-1409
120	BRACKET; NUMBER PLATE REAR BODY FLAT BED<E39> THA	8-98165-704-0	01	1	1410-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
