Isuzu WW
▶
PICKUP
▶
TFR
▶
51485 - TFR SHORT(THAI)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-80 - WINDSHIELD WIPER AND WASHER
▶
8-80 — WINDSHIELD WIPER AND WASHER
(#122447) — 43 parça
◀

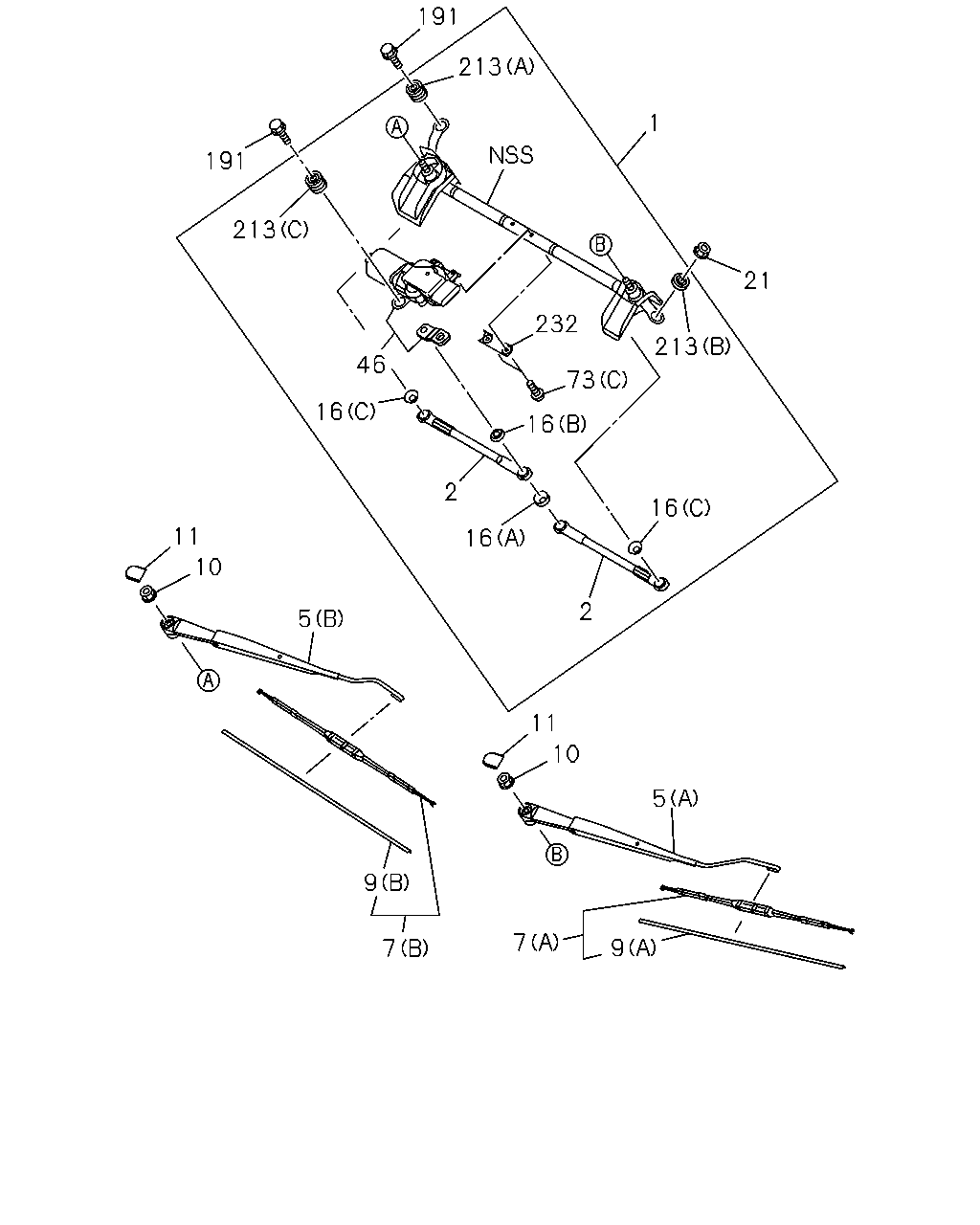

[880A] ARM AND MOTOR (24 parça)

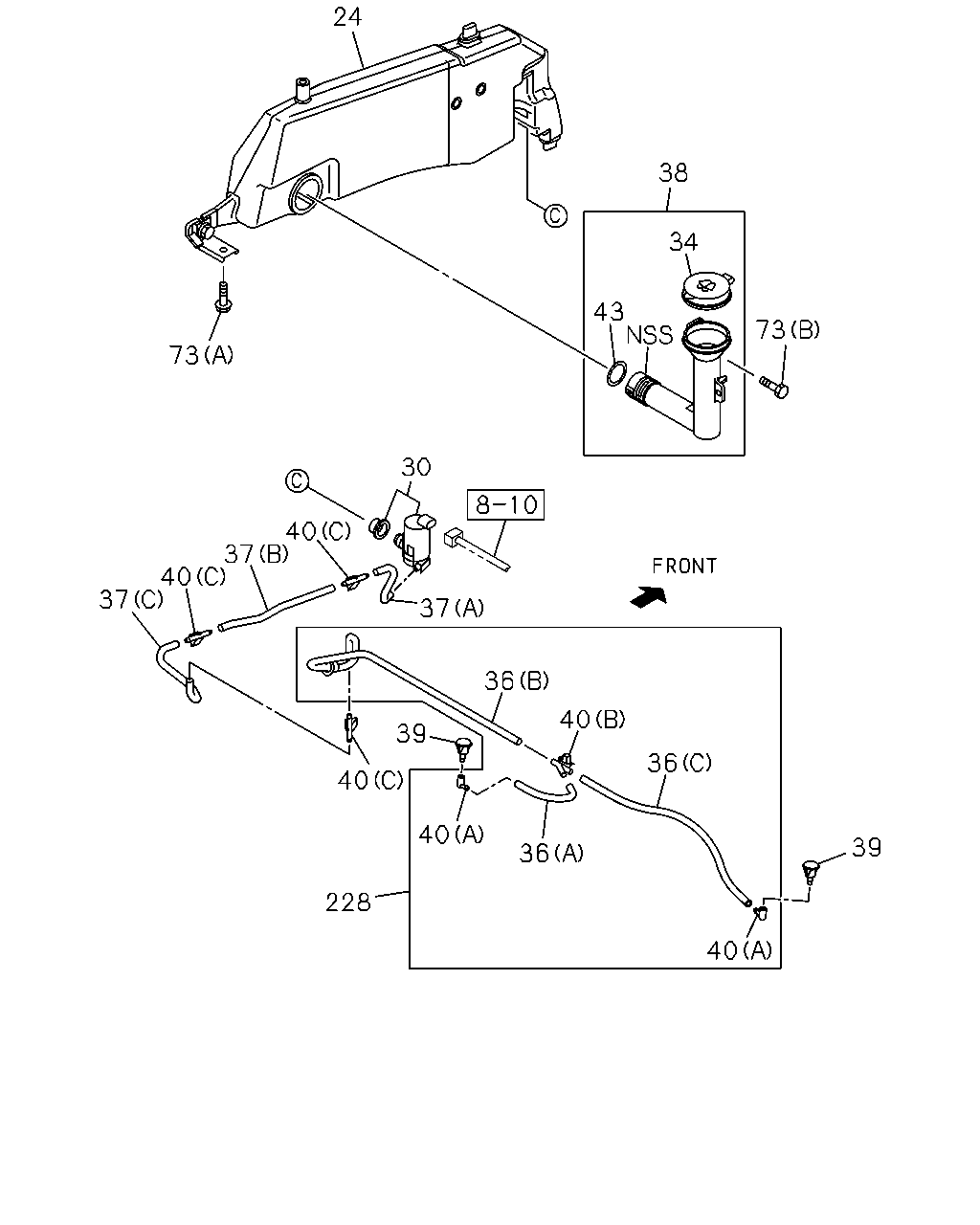

[880A] TANK AND NOZZLE (19 parça)
▶
191
1
21
213
16
2
11
10
5
9
7
7
9
5
10
11
16
2
16
73
232
46
16
213
191
213
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINK ASM; FRT WIPER
THA
8-98057-449-1
01
1
1307-
2
LINK; FRT WIPER
THA
8-98193-801-0
01
1
1307-
2
LINK; FRT WIPER
THA
8-98193-802-0
01
1
1307-
5
ARM; WIPER
(B) THA
8-98193-629-0
01
1
1307-
5
ARM; WIPER
(A) THA
8-98193-813-0
01
1
1307-
7
BLADE; WIPER
(B) L=550 THA
8-97349-900-0
01
1
1307-
7
BLADE; WIPER
(A) L=450 THA
8-98193-815-0
01
1
1307-
9
RUBBER; FRT WIPER BLADE
(B) L=550 THA
8-97349-901-0
01
1
1307-
9
RUBBER; FRT WIPER BLADE
(A) L=450 THA
8-98193-819-0
01
1
1307-
10
NUT; WIPER ARM TO WIPER PIVOT
M10 FLANGE THA
8-98049-367-0
02
1
1307-
11
COVER; WIPER ARM
THA
8-98101-104-0
02
1
1307-
16
SEAL; BALL JOINT
(A) THA
8-98193-845-0
01
1
1307-
16
SEAL; BALL JOINT
(B) THA
8-98193-846-0
01
1
1307-
16
SEAL; BALL JOINT
(C) THA
8-98193-847-0
02
1
1307-
21
NUT; WIPER LINK PIVOT
M6 W/DISHED WASHER THA
8-98049-368-0
01
1
1307-
46
MOTOR ASM; FRT WINDSHIELD WIPER
THA
8-98142-507-0
01
1
1307-
73
BOLT
(A) M6X16 FLANGE THA
8-98049-357-0
01
1
1307-
73
BOLT
(B) M6X18 TAPPING W/LK&PL WASHER THA
8-98062-140-0
01
1
1307-
73
BOLT
(C) M6X32 THA
8-98193-851-0
02
1
1307-
191
BOLT; WIPER LINK
M6X33 W/PL WASHER THA
8-98048-997-0
02
1
1307-
213
RUBBER; MTG
(A) THA
8-98193-848-0
01
1
1307-
213
RUBBER; MTG
(B) THA
8-98193-849-0
01
1
1307-
213
RUBBER; MTG
(C) THA
8-98193-850-0
01
1
1307-
232
PLATE; FIXING
THA
8-98196-564-0
01
1
1307-
24
38
73
43
34
30
37
36
40
36
39
40
36
40
39
40
228
37
40
40
37
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
TANK ASM; WASHER
THA
8-98057-455-0
01
1
1307-
30
MOTOR ASM; FRT WASHER TANK
THA
8-97314-350-0
01
1
1307-
34
CAP; WASHER TANK
THA
8-98194-286-0
01
1
1307-
36
HOSE; WASHER
(A) L=110 THA
8-98193-807-1
01
1
1307-
36
HOSE; WASHER
(B) L=630 THA
8-98193-808-1
01
1
1307-
36
HOSE; WASHER
(C) L=380 THA
8-98193-809-1
01
1
1307-
37
TUBE ASM; WASHER TANK
(A) L=130 THA
8-98193-853-0
01
1
1307-
37
TUBE ASM; WASHER TANK
(B) L=190 THA
8-98193-854-0
01
1
1307-
37
TUBE ASM; WASHER TANK
(C) L=200 THA
8-98193-855-0
01
1
1307-
38
HOSE; JOINT,TANK
THA
8-98057-456-0
01
1
1307-
39
NOZZLE; WINDSHIELD WASHER
THA
8-98067-859-3
02
1
1307-
40
JOINT; WASHER HOSE
(B) IMA
8-97855-163-0
01
1
1307-
40
JOINT; WASHER HOSE
(A) THA
8-98193-805-0
02
1
1307-
40
JOINT; WASHER HOSE
(C) THA
8-98193-811-0
03
1
1307-
43
RUBBER; GASKET,TANK
THA
8-98194-287-0
01
1
1307-
73
BOLT
(A) M6X16 FLANGE THA
8-98049-357-0
01
1
1307-
73
BOLT
(B) M6X18 TAPPING W/LK&PL WASHER THA
8-98062-140-0
01
1
1307-
73
BOLT
(C) M6X32 THA
8-98193-851-0
02
1
1307-
228
HOSE ASM; WASHER
THA
8-98057-506-1
01
1
1307-
