51485 - TFR SHORT(THAI)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-60 - HEATER UNIT; FRONT
▶

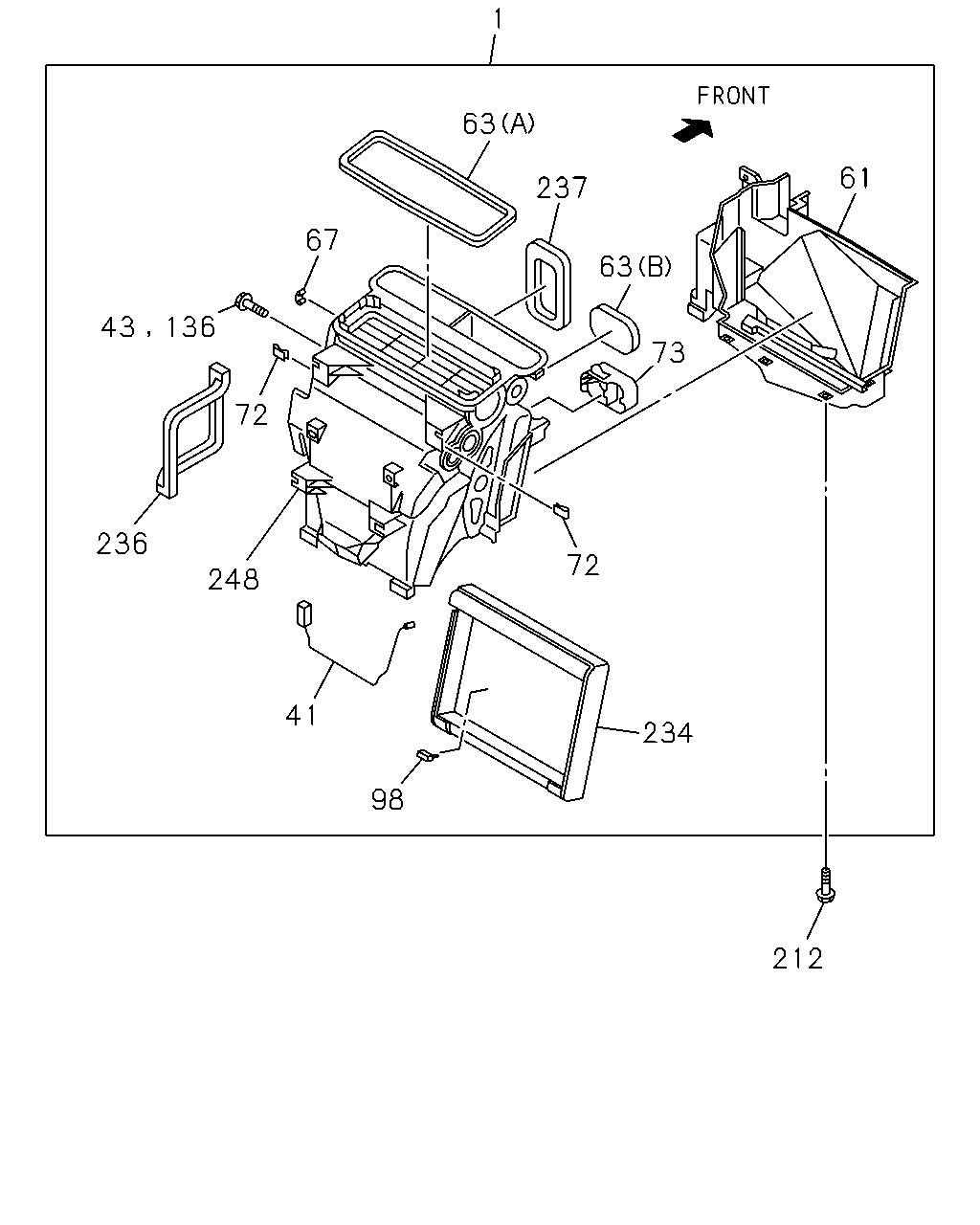

8-60 — HEATER UNIT; FRONT
(#122442) — 16 parça
212
234
98
41
248
236
43
136
72
67
63
237
1
63
73
72
61
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEATER UNIT
THA
8-98233-024-1
01
1
1307-
41
THERMOSTAT; HTR UNIT
THA
8-98157-121-0
01
1
1307-
43
SCREW; CASE,HTR UNIT
THA
8-98233-593-0
15
1
1307-
61
CASE; HTR UNIT
THA
8-98233-572-0
01
1
1307-
63
LINING; HTR UNIT
(A) THA
8-98139-358-0
01
1
1307-
63
LINING; HTR UNIT
(B) THA
8-98157-118-1
01
1
1307-
67
CLIP; HTR UNIT
THA
8-98157-123-0
01
1
1307-
72
NUT; CASE,HTR UNIT
THA
8-98139-394-1
03
1
1307-
73
PLATE; HTR UNIT
THA
8-98233-591-0
01
1
1307-
98
CLIP; HTR UNIT
THA
8-98157-122-0
01
1
1307-
136
SCREW; PLATE
THA
8-98233-593-0
02
1
1307-
212
BOLT; HTR UNIT
M6X20 FLANGE THA
0-28650-620-0
05
1
1307-
234
EVAPORATOR ASM; HEATER
THA
8-98139-376-1
01
1
1307-
236
GASKET; HEATER
THA
8-98139-357-0
01
1
1307-
237
INSULATOR; EVAPORATOR
THA
8-98139-360-1
01
1
1307-
248
CASE ASM; HTR UNIT
THA
8-98233-563-0
01
1
1307-
