Isuzu WW
▶
PICKUP
▶
TFR
▶
51485 - TFR SHORT(THAI)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-52 - PIPING; AIR CONDITIONING
▶
8-52 — PIPING; AIR CONDITIONING
(#122441) — 17 parça
◀

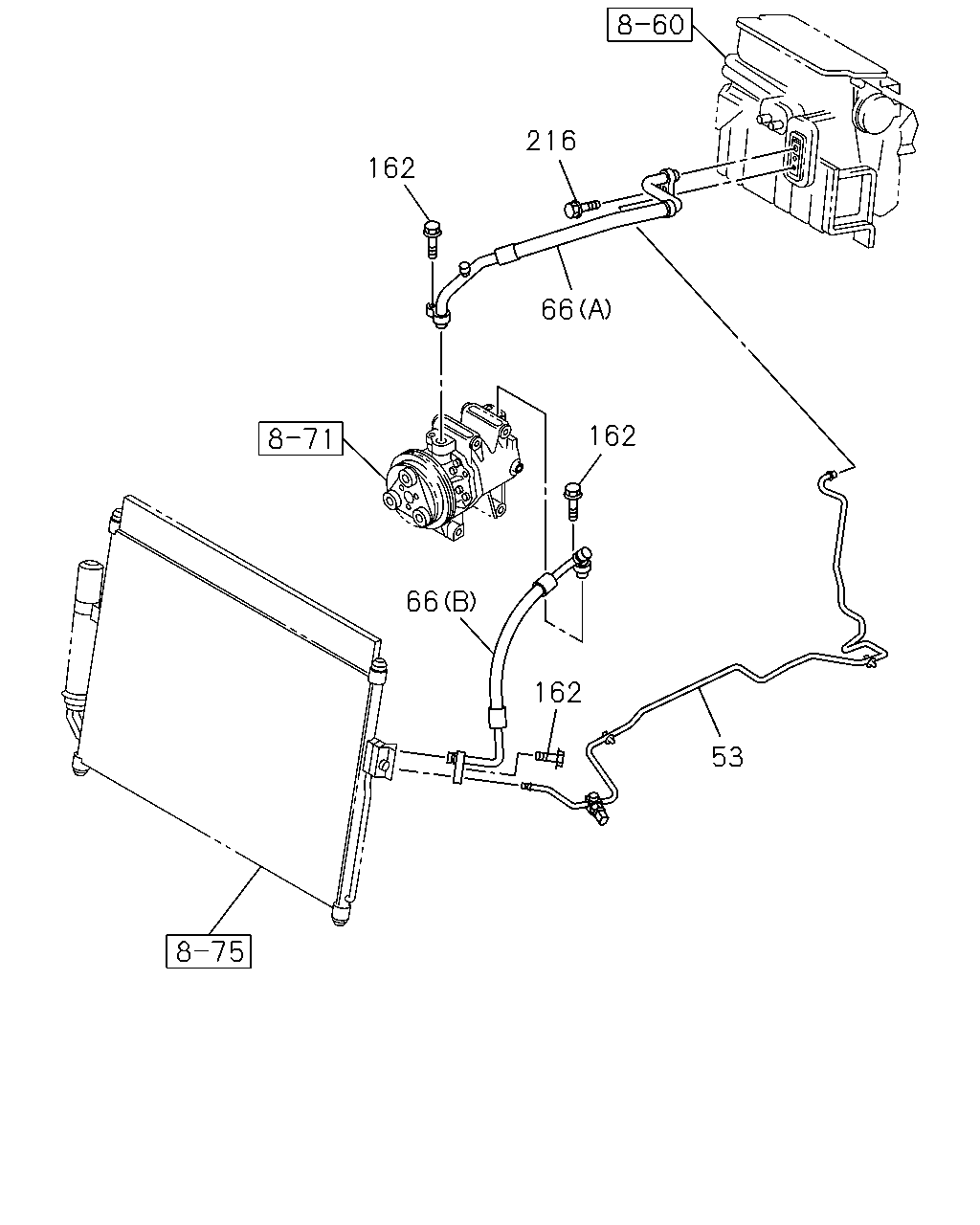

[852A] PIPING (5 parça)
[852A] COMPONENT (12 parça)
▶
216
162
66
162
66
53
162
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
53
PIPE; RECEIVER TANK TO EVAP
HIGH PRESSURE THA
8-98129-150-4
01
1
1307-
66
HOSE; FLEX,A/C
(A) LOW PRESSURE THA
8-98102-233-3
01
1
1307-
66
HOSE; FLEX,A/C
(B) HIGH PRESSURE THA
8-98129-345-1
01
1
1307-
162
BOLT; FLEX HOSE
M8X25 FLANGE THA
0-28650-825-0
03
1
1307-
216
BOLT; HOSE FIX
M6X20 FLANGE THA
0-28650-620-0
01
1
1307-
53
123
123
146
122
146
202
66
67
147
67
66
147
67
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
53
PIPE; RECEIVER TANK TO EVAP
HIGH PRESSURE THA
8-98129-150-4
01
1
1307-
66
HOSE; FLEX,A/C
(A) LOW PRESSURE THA
8-98102-233-3
01
1
1307-
66
HOSE; FLEX,A/C
(B) HIGH PRESSURE THA
8-98129-345-1
01
1
1307-
67
GASKET; FLEX HOSE
(B) THA
8-98164-687-0
01
1
1307-
67
GASKET; FLEX HOSE
(C) THA
8-98164-688-0
01
1
1307-
67
GASKET; FLEX HOSE
(A) THA
8-98193-624-0
02
1
1307-
122
GASKET
THA
8-98164-690-0
01
1
1307-
123
GASKET; RECEIVER PIPE
THA
8-98164-689-0
02
1
1307-
146
CLIP; RECEIVER PIPE
THA
8-98193-622-0
02
1
1307-
147
CAP; FLEX HOSE
(A) THA
8-98193-623-0
01
1
1307-
147
CAP; FLEX HOSE
(B) THA
8-98193-625-0
01
1
1307-
202
SWITCH; PRESSURE
THA
8-98164-691-0
01
1
1307-
