8-50 — AIR CONDITIONING SYSTEM; FRONT (#122440) — 24 parça

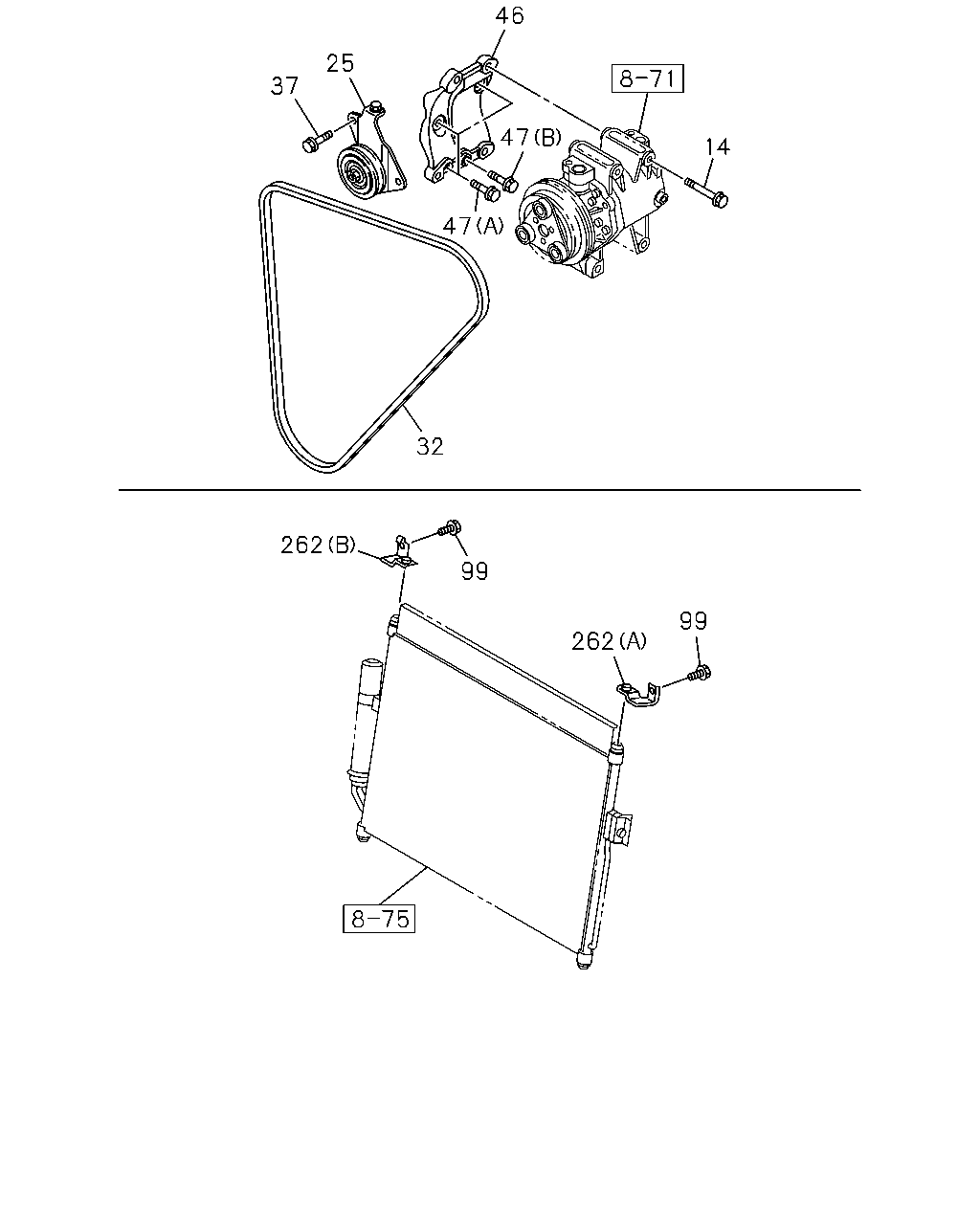

çizim 357474
37 25 46 47 47 14 32 262 99 262 99
BalonParca AdiParca NoAdetTipApplied Date
14 BOLT; CMPR
PROVISIONAL PACKAGE SPEC<BCC> M10X95 FLANGE IMA 		8-94397-027-1 04 1 1506-
14 BOLT; CMPR
M10X100 FLANGE THA 		0-28151-000-0 04 1 1307-1505
14 BOLT; CMPR
EXC. PROVISIONAL PACKAGE SPEC<BCC> M10X100 FLANGE THA 		0-28151-000-0 04 1 1506-
25 PULLEY ASM; IDLER,CMPR
PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98205-963-0 01 1 1506-
25 PULLEY ASM; IDLER,CMPR
THA 		8-98130-204-0 01 1 1307-1505
25 PULLEY ASM; IDLER,CMPR
EXC. PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98130-204-0 01 1 1506-
32 BELT; A/C CMPR
L=1445 MITSUBOSHI THA 		8-97985-121-0 01 1 1307-
32 BELT; A/C CMPR
L=1445 BANDO THA 		8-97985-122-0 01 1 1307-
37 BOLT; PULLEY BRKT
M8X16 FLANGE THA 		0-28050-816-0 02 1 1307-
46 BRACKET; CMPR
PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98226-839-0 01 1 1506-
46 BRACKET; CMPR
THA 		8-97371-258-0 01 1 1307-1505
46 BRACKET; CMPR
EXC. PROVISIONAL PACKAGE SPEC<BCC> THA 		8-97371-258-0 01 1 1506-
47 BOLT; BRKT TO BODY
EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) M8X25 FLANGE THA 		0-28650-825-0 03 1 1506-
47 BOLT; BRKT TO BODY
(A) M8X25 FLANGE THA 		0-28650-825-0 03 1 1307-1505
47 BOLT; BRKT TO BODY
PROVISIONAL PACKAGE SPEC<BCC> (A) M8X25 FLANGE THA 		0-28650-825-0 04 1 1506-
47 BOLT; BRKT TO BODY
(B) M8X35 FLANGE THA 		8-98049-562-0 01 1 1307-1505
47 BOLT; BRKT TO BODY
EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) M8X35 FLANGE THA 		8-98049-562-0 01 1 1506-
99 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 02 1 1307-
262 BRACKET; CONDENSER
(B) THA 		8-98103-644-0 01 1 1307-
262 BRACKET; CONDENSER
(A) THA 		8-98103-645-0 01 1 1307-
çizim 358476
378 211 69 199
BalonParca AdiParca NoAdetTipApplied Date
69 WASHER; PL,EVAP
ID=10.5 OD=22 IMA 		0-91614-610-0 01 1 1307-
199 NUT
M10 FLANGE THA 		0-91180-110-0 01 1 1307-
211 CLIP; HOSE
THA 		8-98173-569-0 01 1 1307-
378 HOSE; DRAIN,EVAPORATOR
THA 		8-98163-367-2 01 1 1307-
