8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#122436) — 10 parça

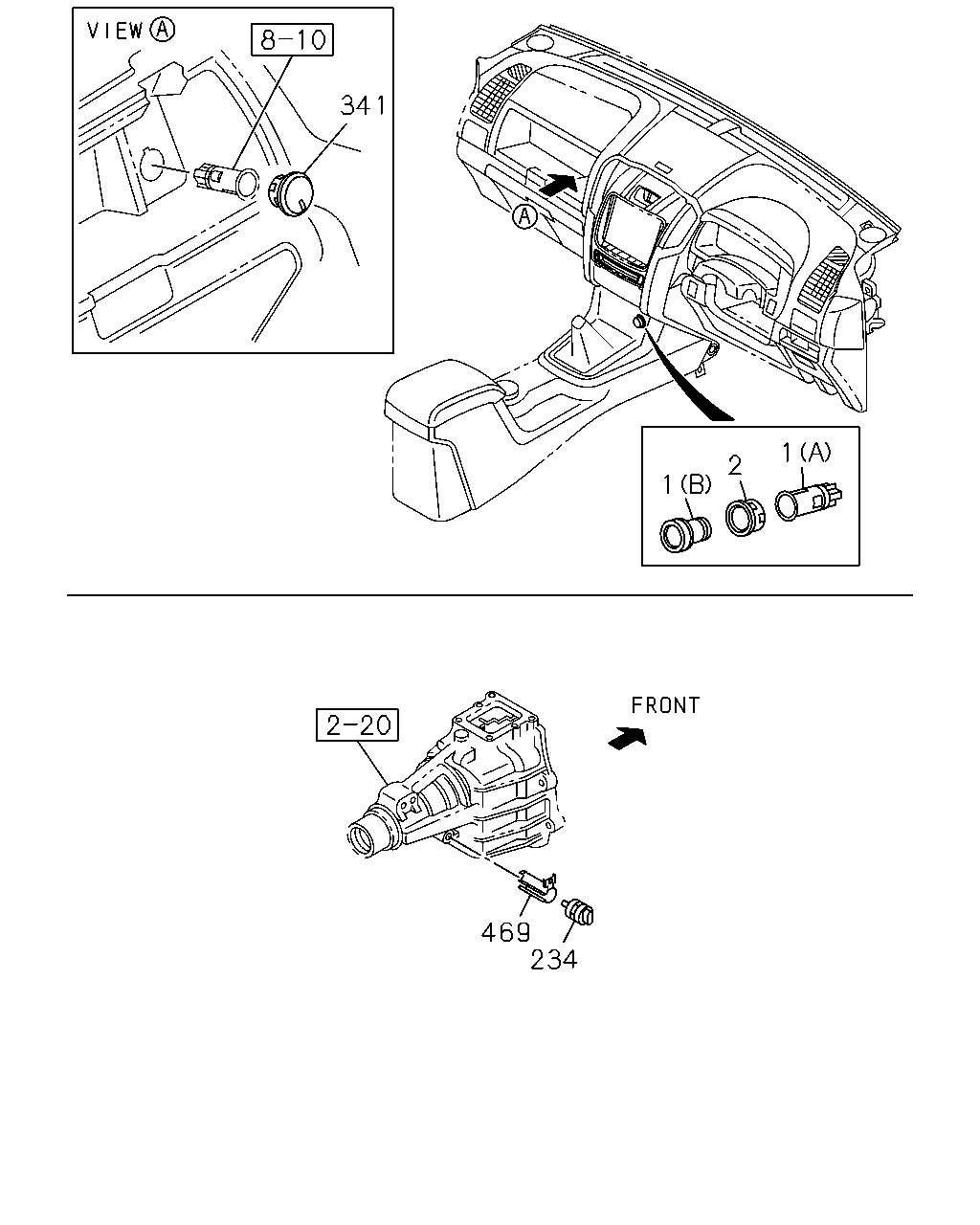

çizim 357400
341 469 234 2 1 1
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR
(A) IMA 		8-98123-114-0 01 1 1307-
1 LIGHTER; CIGAR
(B) IMA 		8-98123-117-0 01 1 1307-
2 BEZEL; CIGAR LIGHTER
IMA 		8-98123-118-0 01 1 1307-
234 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 1307-
341 COVER ASM
THA 		8-98142-409-1 01 1 1307-
469 PROTECTOR; SPEED SENSOR
IMA 		8-98119-901-0 01 1 1307-

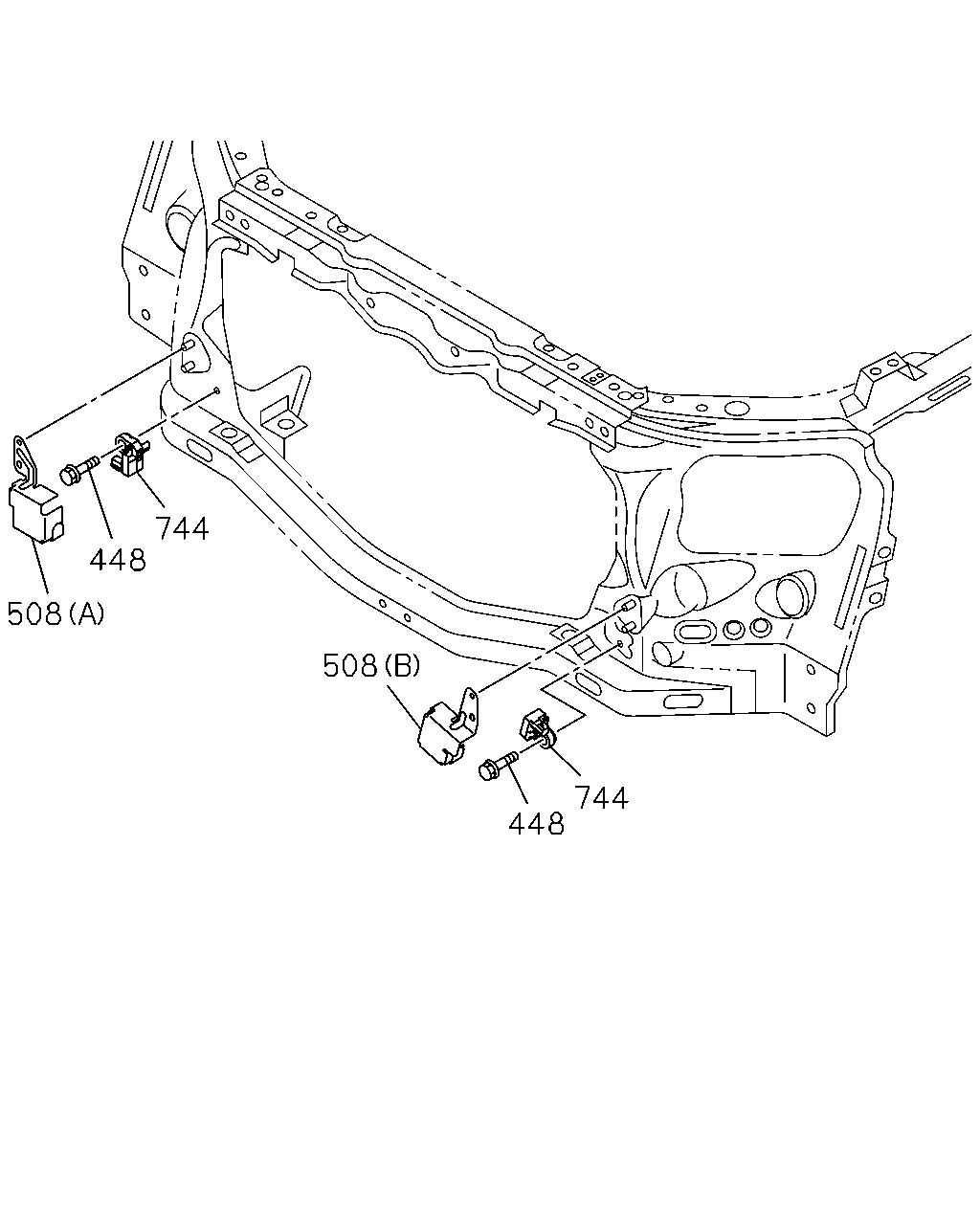

çizim 503115
508 448 744 508 448 744
BalonParca AdiParca NoAdetTipApplied Date
448 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> M6X25 FLANGE THA 		0-28650-625-0 02 1 1510-
508 PROTECTOR
AIR BAG DRIVER & PASSENGER<AK5> (A) THA 		8-98165-179-0 01 1 1510-
508 PROTECTOR
AIR BAG DRIVER & PASSENGER<AK5> (B) THA 		8-98165-180-0 01 1 1510-
744 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98059-533-2 02 1 1510-
