Isuzu WW
▶
PICKUP
▶
TFR
▶
51485 - TFR SHORT(THAI)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#122432) — 83 parça
◀
[810A] HARNESS(NO.3) (9 parça)
[810A] RELAY;CAB HARNESS (9 parça)
[810A] RELAY;FRAME HARNESS (13 parça)
[810A] HARNESS(NO.1) (14 parça)
[810A] HARNESS(NO.2) (21 parça)
[810A] HARNESS(NO.4) (17 parça)
▶

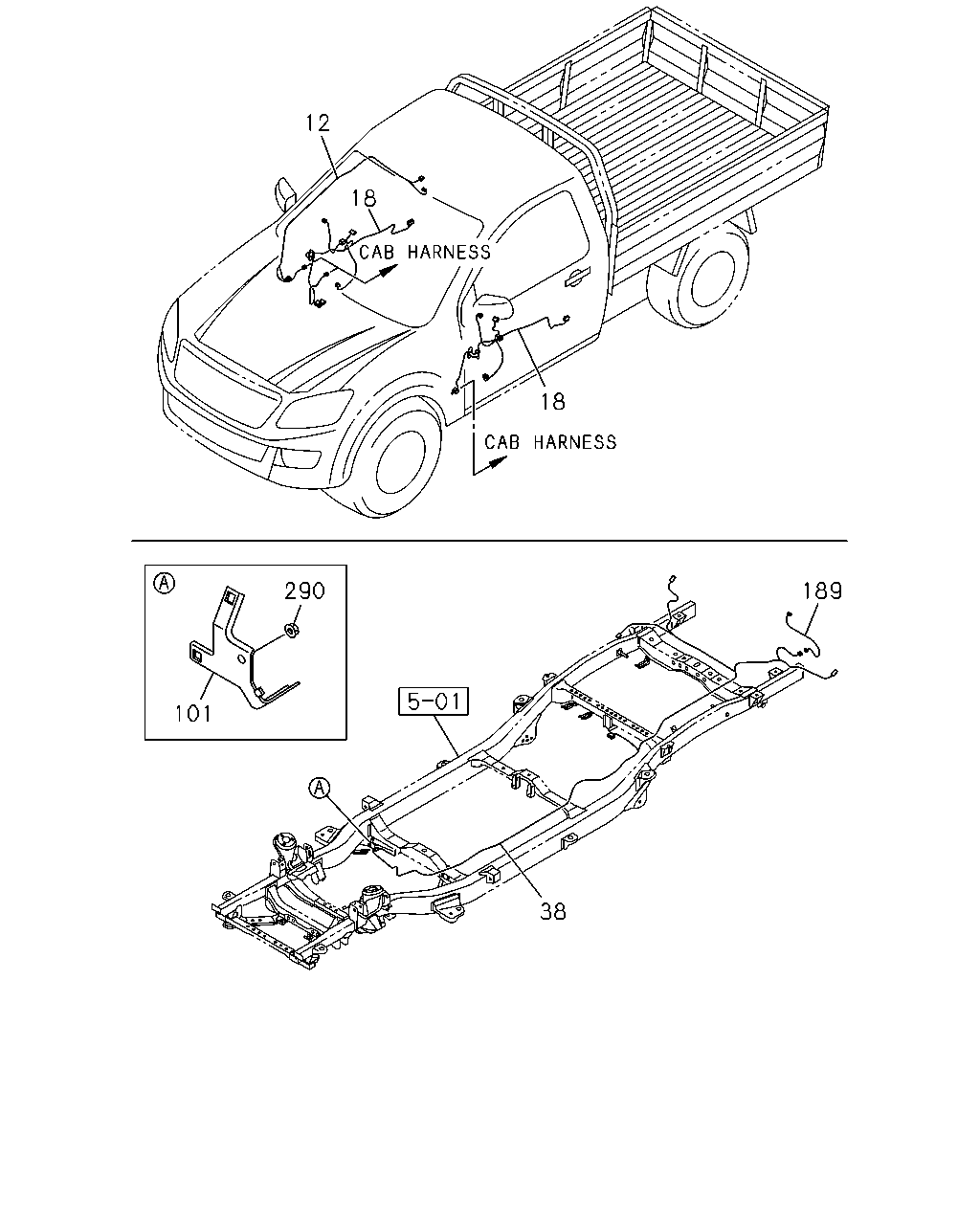

101
290
18
38
189
18
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
HARNESS; ROOF
THA
8-98159-331-0
01
1
1307-
18
HARNESS; DOOR
THA
8-98159-492-3
01
1
1307-1505
18
HARNESS; DOOR
THA
8-98159-492-3
01
1
1506-
18
HARNESS; DOOR
THA
8-98159-510-4
01
1
1307-1505
18
HARNESS; DOOR
THA
8-98159-510-4
01
1
1506-
38
HARNESS; CHAS
THA
8-98189-820-0
01
1
1307-
101
BRACKET; HARNESS CONNECTOR
THA
8-98102-999-0
01
1
1307-
189
HARNESS; EXT
THA
8-98140-863-0
01
1
1307-
290
NUT; BRKT
M6 FLANGE THA
0-91180-106-0
01
1
1307-
4
734
745
750
749
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOX ASM; FUSE,HARNESS
THA
8-98166-751-0
01
1
1307-
734
RELAY; ACC SOCKET
12V YAZAKI THA
8-97309-293-0
01
1
1307-1505
734
RELAY; ACC SOCKET
AIR BAG DRIVER & PASSENGER DELETE<AK6> 12V YAZAKI THA
8-97309-293-0
01
1
1506-
745
RELAY; HEATER
(B) 12V YAZAKI THA
8-97309-292-0
01
1
1307-
745
RELAY; HEATER
(A) 12V YAZAKI THA
8-98146-834-0
01
1
1307-
749
RELAY; POWER WINDOW
12V YAZAKI THA
8-97309-293-0
01
1
1307-1505
749
RELAY; POWER WINDOW
AIR BAG DRIVER & PASSENGER DELETE<AK6> 12V YAZAKI THA
8-97309-293-0
01
1
1506-
750
RELAY; RR DEFOGGER
12V YAZAKI THA
8-97309-293-0
01
1
1307-1505
750
RELAY; RR DEFOGGER
AIR BAG DRIVER & PASSENGER DELETE<AK6> 12V YAZAKI THA
8-97309-293-0
01
1
1506-
35
736
738
739
741
743
742
746
737
745
747
748
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
35
BOX; RELAY & FUSE
THA
8-98113-097-0
01
1
1307-
736
RELAY; STARTER CUT
12V YAZAKI THA
8-97309-292-0
01
1
1307-
737
RELAY; DIMMER
12V YAZAKI THA
8-97309-292-0
01
1
1307-
738
RELAY; HEADLAMP
12V YAZAKI THA
8-97309-293-0
01
1
1307-
739
RELAY; TAIL LAMP
12V YAZAKI THA
8-97309-293-0
01
1
1307-
741
RELAY; HORN
12V YAZAKI THA
8-97309-293-0
01
1
1307-
742
RELAY; THERMO
12V YAZAKI THA
8-97309-293-0
01
1
1307-
743
RELAY; A/C COMPRESSOR
12V YAZAKI THA
8-97309-293-0
01
1
1307-
745
RELAY; HEATER
(B) 12V YAZAKI THA
8-97309-292-0
01
1
1307-
745
RELAY; HEATER
(A) 12V YAZAKI THA
8-98146-834-0
01
1
1307-
746
RELAY; ECM,MAIN
12V YAZAKI THA
8-98146-834-0
01
1
1307-
747
RELAY; GLOW
12V YAZAKI THA
8-98146-837-0
01
1
1307-
748
RELAY; STARTER
12V YAZAKI THA
8-98146-837-0
01
1
1307-

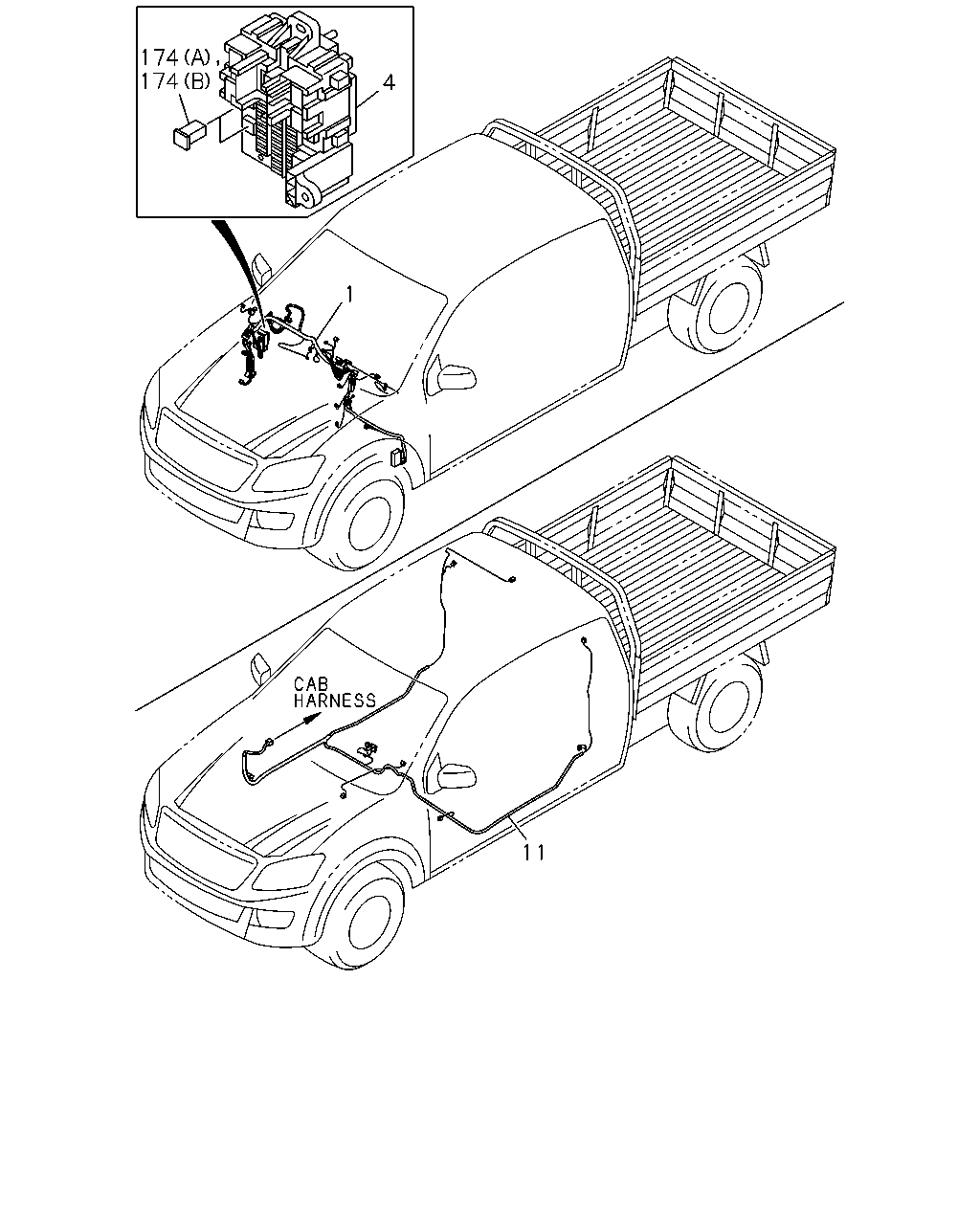

174
174
4
1
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> THA
8-98271-953-0
01
1
1506-
1
HARNESS; CAB
THA
8-98160-469-5
01
1
1307-1505
1
HARNESS; CAB
AIR BAG DRIVER & PASSENGER DELETE<AK6> THA
8-98160-469-5
01
1
1506-
4
BOX ASM; FUSE,HARNESS
THA
8-98166-751-0
01
1
1307-
11
HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> THA
8-98160-558-5
01
1
1506-
11
HARNESS; BODY
THA
8-98160-557-2
01
1
1307-1505
11
HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> THA
8-98160-557-2
01
1
1506-
174
FUSE; SLOW BLOW
(C) 120A WHITE IMA
1-82516-028-1
AR
1
1308-
174
FUSE; SLOW BLOW
(A) 20A BLUE THA
8-98079-189-0
AR
1
1307-
174
FUSE; SLOW BLOW
(B) 30A PINK THA
8-98079-191-0
AR
1
1307-
174
FUSE; SLOW BLOW
(B) 40A GREEN THA
8-98079-192-0
AR
1
1307-
174
FUSE; SLOW BLOW
(B) 50A RED THA
8-98079-193-0
AR
1
1308-
174
FUSE; SLOW BLOW
(A) 60A YELLOW THA
8-97219-407-0
AR
1
1308-
174
FUSE; SLOW BLOW
(B) 60A YELLOW THA
8-98197-288-0
AR
1
1308-

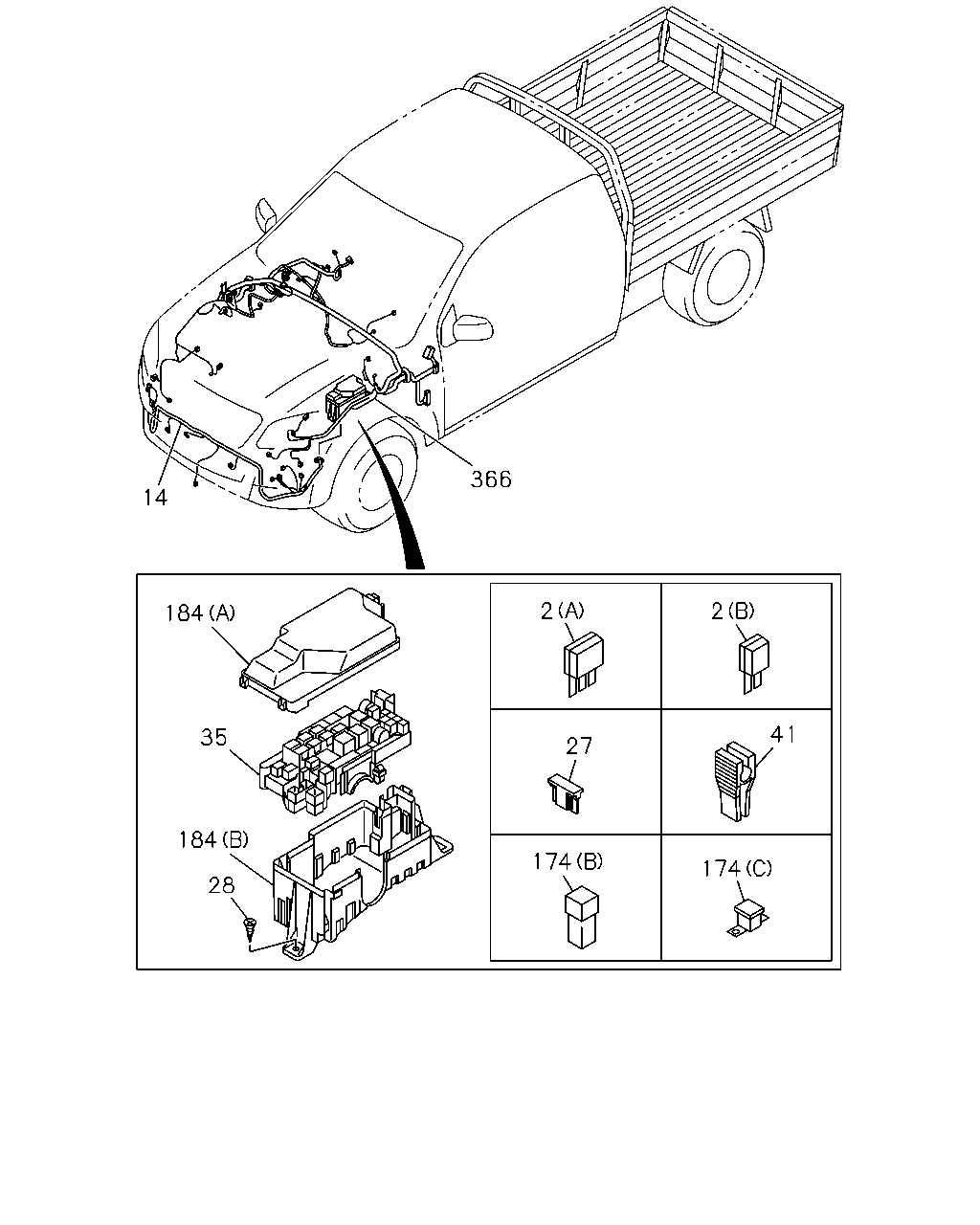

366
14
184
35
184
28
174
27
2
2
41
174
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A THA
8-94422-639-1
AR
1
1307-
2
DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A THA
8-94422-640-1
AR
1
1307-
14
HARNESS; HEADLAMP
THA
8-98159-338-1
01
1
1307-
27
FUSE UNIT
10A RED THA
8-98054-257-0
AR
1
1307-
27
FUSE UNIT
15A BLUE THA
8-98054-258-0
AR
1
1307-
27
FUSE UNIT
20A YELLOW THA
8-98054-259-0
AR
1
1307-
28
SCREW; FUSE BOX
THA
8-97249-192-0
02
1
1307-
35
BOX; RELAY & FUSE
THA
8-98113-097-0
01
1
1307-
41
PULLER; FUSE
THA
8-98054-260-0
01
1
1307-
174
FUSE; SLOW BLOW
(C) 120A WHITE IMA
1-82516-028-1
AR
1
1308-
174
FUSE; SLOW BLOW
(A) 20A BLUE THA
8-98079-189-0
AR
1
1307-
174
FUSE; SLOW BLOW
(B) 30A PINK THA
8-98079-191-0
AR
1
1307-
174
FUSE; SLOW BLOW
(B) 40A GREEN THA
8-98079-192-0
AR
1
1307-
174
FUSE; SLOW BLOW
(B) 50A RED THA
8-98079-193-0
AR
1
1308-
174
FUSE; SLOW BLOW
(A) 60A YELLOW THA
8-97219-407-0
AR
1
1308-
174
FUSE; SLOW BLOW
(B) 60A YELLOW THA
8-98197-288-0
AR
1
1308-
184
COVER; RELAY & FUSE BOX
(A) THA
8-98113-098-0
01
1
1307-
184
COVER; RELAY & FUSE BOX
(B) THA
8-98113-099-0
01
1
1307-
366
HARNESS; CABLE,ENG ROOM
AIR BAG DRIVER & PASSENGER<AK5> THA
8-98270-118-1
01
1
1506-
366
HARNESS; CABLE,ENG ROOM
THA
8-98160-549-9
01
1
1307-1505
366
HARNESS; CABLE,ENG ROOM
AIR BAG DRIVER & PASSENGER DELETE<AK6> THA
8-98160-549-9
01
1
1506-

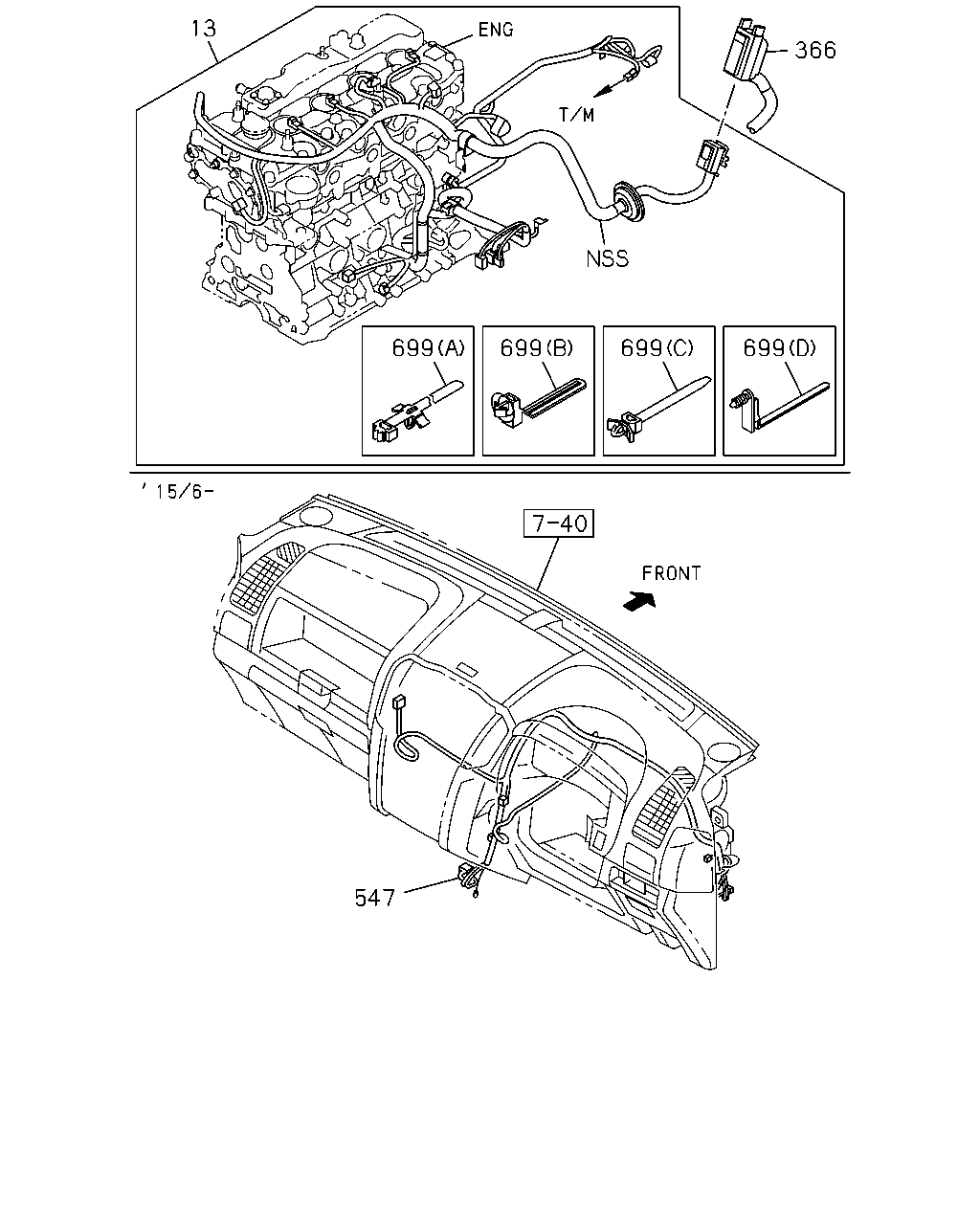

13
366
699
699
699
699
547
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
HARNESS; ENG
PROVISIONAL PACKAGE SPEC<BCC> THA
8-98206-013-3
01
1
1506-
13
HARNESS; ENG
THA
8-98224-341-2
01
1
1307-1505
13
HARNESS; ENG
EXC. PROVISIONAL PACKAGE SPEC<BCC> THA
8-98224-341-2
01
1
1506-
366
HARNESS; CABLE,ENG ROOM
AIR BAG DRIVER & PASSENGER<AK5> THA
8-98270-118-1
01
1
1506-
366
HARNESS; CABLE,ENG ROOM
THA
8-98160-549-9
01
1
1307-1505
366
HARNESS; CABLE,ENG ROOM
AIR BAG DRIVER & PASSENGER DELETE<AK6> THA
8-98160-549-9
01
1
1506-
547
HARNESS; CABLE,SRS
AIR BAG DRIVER & PASSENGER<AK5> THA
8-98258-879-1
01
1
1506-
699
CLIP; ENG HARNESS
(D) THA
8-98182-511-0
02
1
1307-1505
699
CLIP; ENG HARNESS
EXC. PROVISIONAL PACKAGE SPEC<BCC> (D) THA
8-98182-511-0
02
1
1506-
699
CLIP; ENG HARNESS
(A) L=135 IMA
8-94473-399-0
01
1
1307-1505
699
CLIP; ENG HARNESS
EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) L=135 IMA
8-94473-399-0
01
1
1506-
699
CLIP; ENG HARNESS
(B) L=155 THA
8-97173-307-0
02
1
1307-1505
699
CLIP; ENG HARNESS
EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) L=155 THA
8-97173-307-0
02
1
1506-
699
CLIP; ENG HARNESS
(B) L=140 THA
8-97378-707-0
01
1
1307-1505
699
CLIP; ENG HARNESS
EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) L=140 THA
8-97378-707-0
01
1
1506-
699
CLIP; ENG HARNESS
(C) L=146.2 IMA
8-98052-677-0
01
1
1307-1505
699
CLIP; ENG HARNESS
EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) L=146.2 IMA
8-98052-677-0
01
1
1506-
