Isuzu WW
▶
PICKUP
▶
TFR
▶
51485 - TFR SHORT(THAI)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-03 - LAMP; REAR AND REAR SIDE
▶

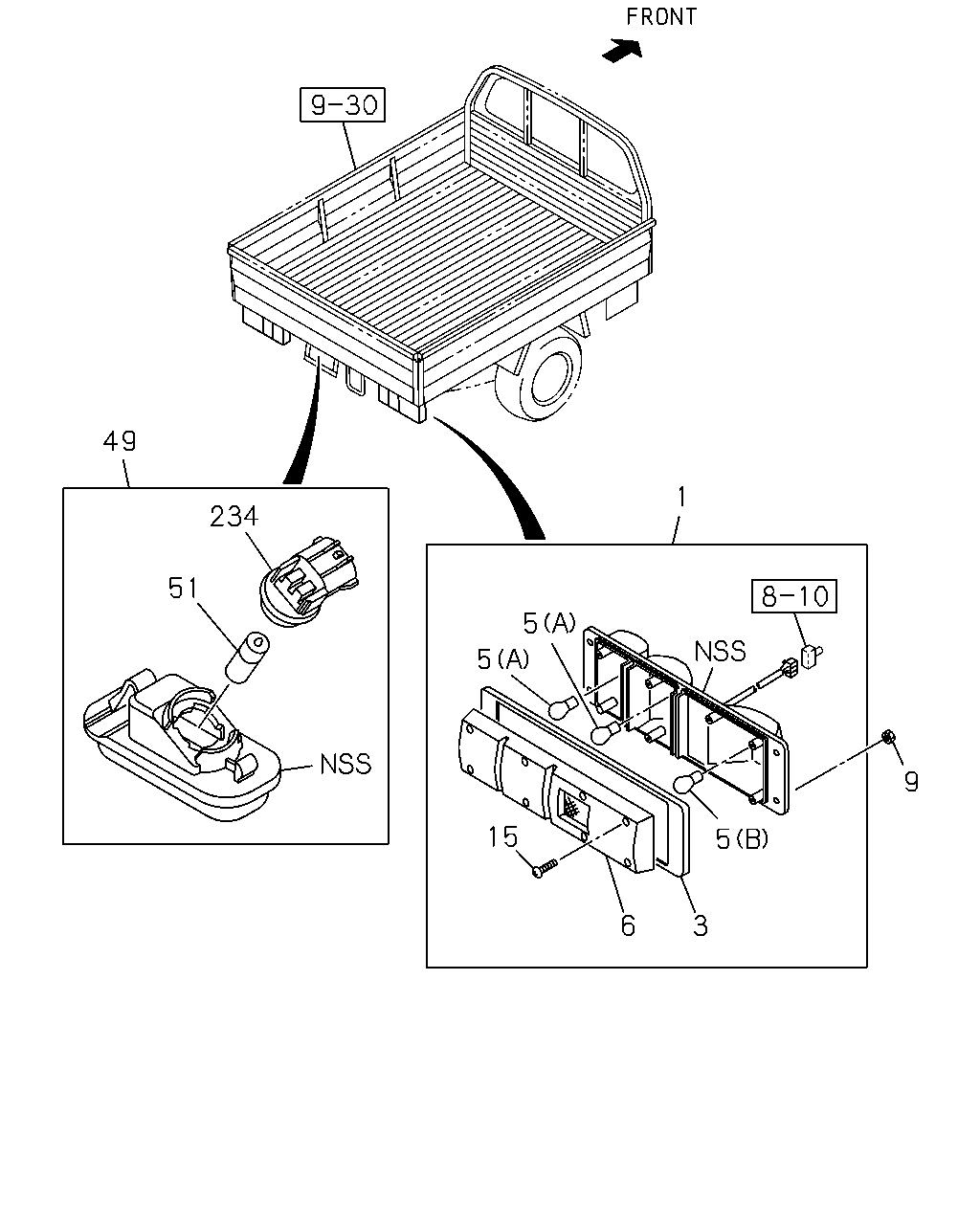

8-03 — LAMP; REAR AND REAR SIDE
(#122430) — 13 parça
49
51
5
5
15
6
3
9
5
234
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; RR COMB
IMA
8-97137-731-0
01
1
1307-
1
LAMP ASM; RR COMB
IMA
8-97137-732-0
01
1
1307-
3
GASKET; RR COMB LAMP
IMA
5-82236-001-0
01
1
1307-
3
GASKET; RR COMB LAMP
IMA
5-82236-002-0
01
1
1307-
5
BULB; RR COMB LAMP
(A) BACK-UP AND TURN SIGNAL 12V 21W THA
8-94124-074-0
04
1
1307-
5
BULB; RR COMB LAMP
(B) STOP 12V 21/5W THA
8-94125-959-0
02
1
1307-
6
LENS; RR COMB LAMP
IMA
5-82235-001-0
01
1
1307-
6
LENS; RR COMB LAMP
IMA
5-82235-002-0
01
1
1307-
9
NUT; LAMP,RR COMB
M5 FLANGE THA
8-98049-363-0
08
1
1307-
15
SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS IMA
0-71090-420-0
16
1
1307-
49
LAMP; LICENSE PLATE
THA
8-98224-482-0
02
1
1307-
51
BULB; LICENSE PLATE LAMP
12V 5W THA
8-94124-595-0
02
1
1307-
234
SOCKET ASM; LICENSE PLATE LAMP
THA
1-82119-148-0
02
1
1307-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
