Isuzu WW
▶
PICKUP
▶
TFR
▶
51485 - TFR SHORT(THAI)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-01 - LAMP; FRONT AND FRONT SIDE
▶

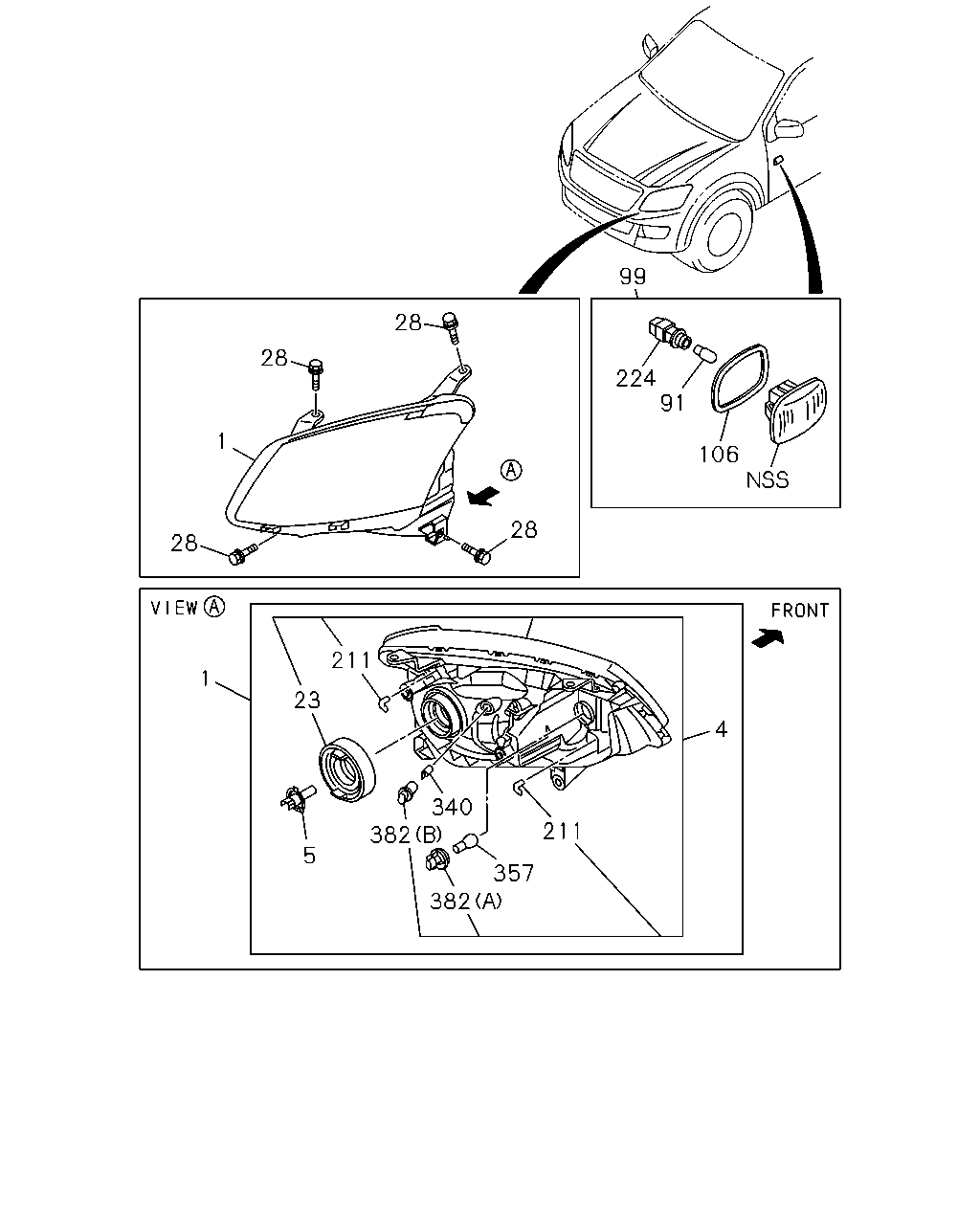

8-01 — LAMP; FRONT AND FRONT SIDE
(#122429) — 19 parça
99
28
28
1
28
28
224
91
106
1
211
23
5
382
340
211
357
382
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
THA
8-98125-391-6
01
1
1307-
1
LAMP ASM; HEAD
THA
8-98125-392-6
01
1
1307-
4
HEADLAMP UNIT
THA
8-98186-215-0
01
1
1307-
4
HEADLAMP UNIT
THA
8-98186-216-0
01
1
1307-
5
BULB; HEADLAMP
12V 55/60W THA
8-98186-377-0
02
1
1307-
23
COVER; BULB,HEADLAMP
THA
8-97332-448-0
02
1
1307-
28
BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER THA
8-98062-140-0
08
1
1307-
91
BULB; SIDE TURN SIGNAL
12V 5W THA
8-97310-952-0
02
1
1307-
99
LAMP; SIDE FLASHER
THA
8-98084-153-0
02
1
1307-
106
GASKET; SIDE TURN SIGNAL
THA
8-97333-420-0
02
1
1307-
211
TUBE; HEADLAMP
THA
8-97333-983-0
06
1
1307-1310
211
TUBE; HEADLAMP
THA
8-97333-983-0
04
1
1311-
224
SOCKET; SIDE FLASHER LAMP
THA
8-97310-953-0
02
1
1307-
340
BULB; POSITION
12V 5W THA
8-94124-595-0
02
1
1307-1405
340
BULB; POSITION
12V 5W THA
8-98257-815-0
02
1
1406-
357
BULB; TURN SIGNAL
12V 21W THA
8-97179-967-0
02
1
1307-
382
PLUG; SOCKET,HEADLAMP
(A) THA
8-97332-446-0
02
1
1307-1310
382
PLUG; SOCKET,HEADLAMP
(A) THA
8-98206-114-0
02
1
1311-
382
PLUG; SOCKET,HEADLAMP
(B) THA
8-97332-447-0
02
1
1307-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
