7-60 — SEAT BELT (#122428) — 22 parça

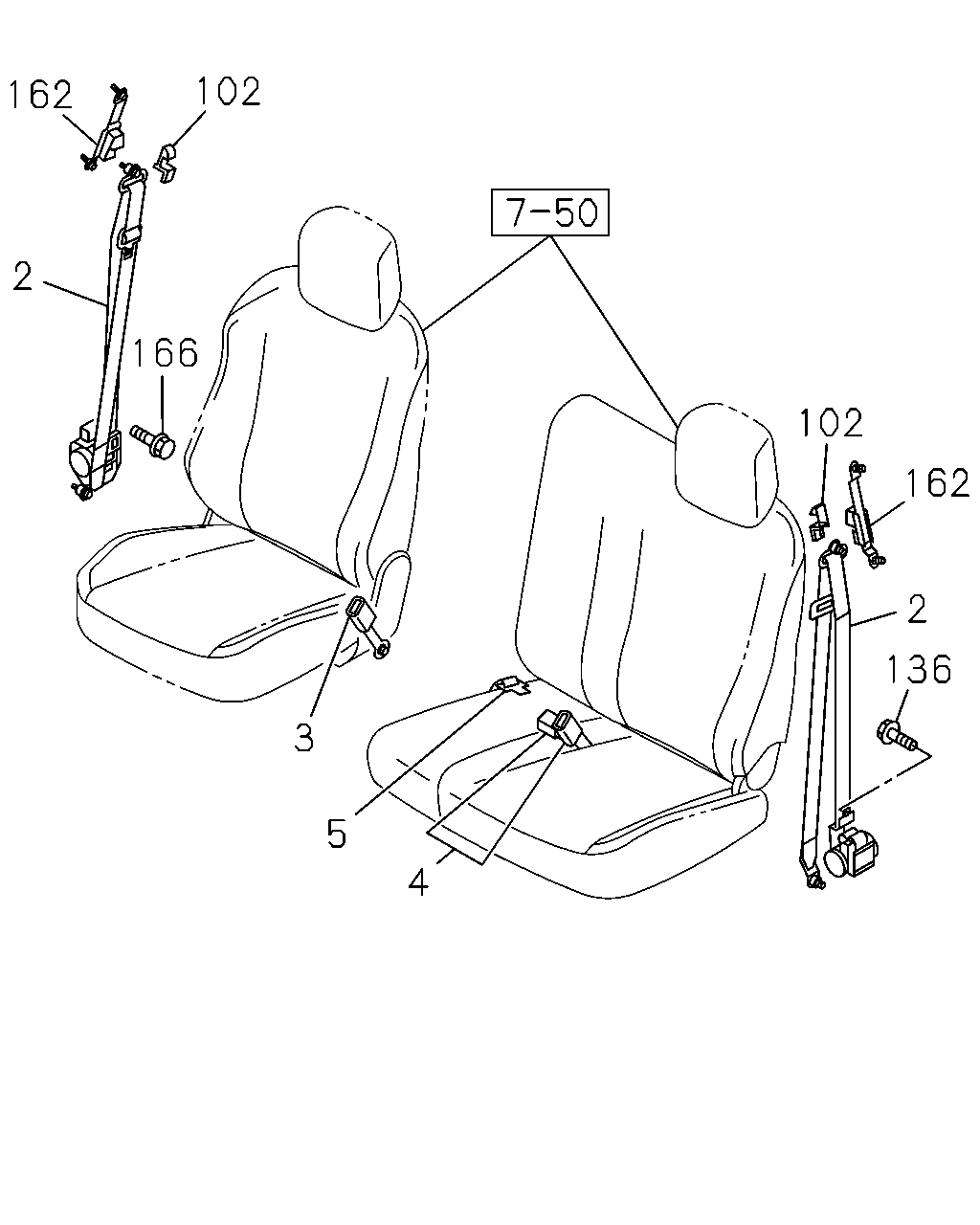

çizim 357565
162 102 2 166 3 5 4 136 2 162 102
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> PASSENGER SIDE BLACK THA 		8-97423-668-0 01 1 1506-
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> EQUIPMENT IMPACT<EPS> DRIVER SIDE BLACK THA 		8-97423-663-0 01 1 1506-
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> EXC. EQUIPMENT IMPACT<EPS> DRIVER SIDE BLACK THA 		8-97423-662-0 01 1 1506-
2 BELT; SEAT,TONGUE SIDE
DRIVER SIDE BLACK THA 		8-97423-661-0 01 1 1307-1505
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER DELETE<AK6> DRIVER SIDE BLACK THA 		8-97423-661-0 01 1 1506-1506
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. EQUIPMENT IMPACT<EPS> DRIVER SIDE BLACK THA 		8-97423-661-0 01 1 1506-
2 BELT; SEAT,TONGUE SIDE
PASSENGER SIDE BLACK THA 		8-97423-665-0 01 1 1307-1505
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER DELETE<AK6> PASSENGER SIDE BLACK THA 		8-97423-665-0 01 1 1506-
3 BELT; SEAT,BUCKLE SIDE
BLACK THA 		8-97426-632-0 01 1 1312-1505
3 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER DELETE<AK6> BLACK THA 		8-97426-632-0 01 1 1506-1506
3 BELT; SEAT,BUCKLE SIDE
BLACK THA 		8-97426-632-0 01 1 1506-
3 BELT; SEAT,BUCKLE SIDE
BLACK THA 		8-97416-837-3 01 1 1307-1311
4 BELT; PASSENGER SEAT,BUCKLE SIDE
BLACK THA 		8-97417-107-1 01 1 1307-
5 BELT; CENTER SEAT,BUCKLE SIDE
BLACK THA 		8-97423-671-0 01 1 1307-
102 COVER; SHOULDER ANCHOR
BLACK THA 		8-97416-646-2 02 1 1307-
136 BOLT; SEAT BELT
M6X16 FLANGE THA 		0-28650-616-0 01 1 1307-1505
136 BOLT; SEAT BELT
AIR BAG DRIVER & PASSENGER DELETE<AK6> M6X16 FLANGE THA 		0-28650-616-0 01 1 1506-1506
136 BOLT; SEAT BELT
M6X16 FLANGE THA 		0-28650-616-0 01 1 1506-
162 ADJUSTER; SEAT BELT
BLACK THA 		8-97416-645-1 02 1 1307-
166 BOLT; SEAT BELT ANCHOR
M6X16 FLANGE THA 		0-28650-616-0 01 1 1307-1505
166 BOLT; SEAT BELT ANCHOR
AIR BAG DRIVER & PASSENGER DELETE<AK6> M6X16 FLANGE THA 		0-28650-616-0 01 1 1506-1506
166 BOLT; SEAT BELT ANCHOR
M6X16 FLANGE THA 		0-28650-616-0 01 1 1506-
