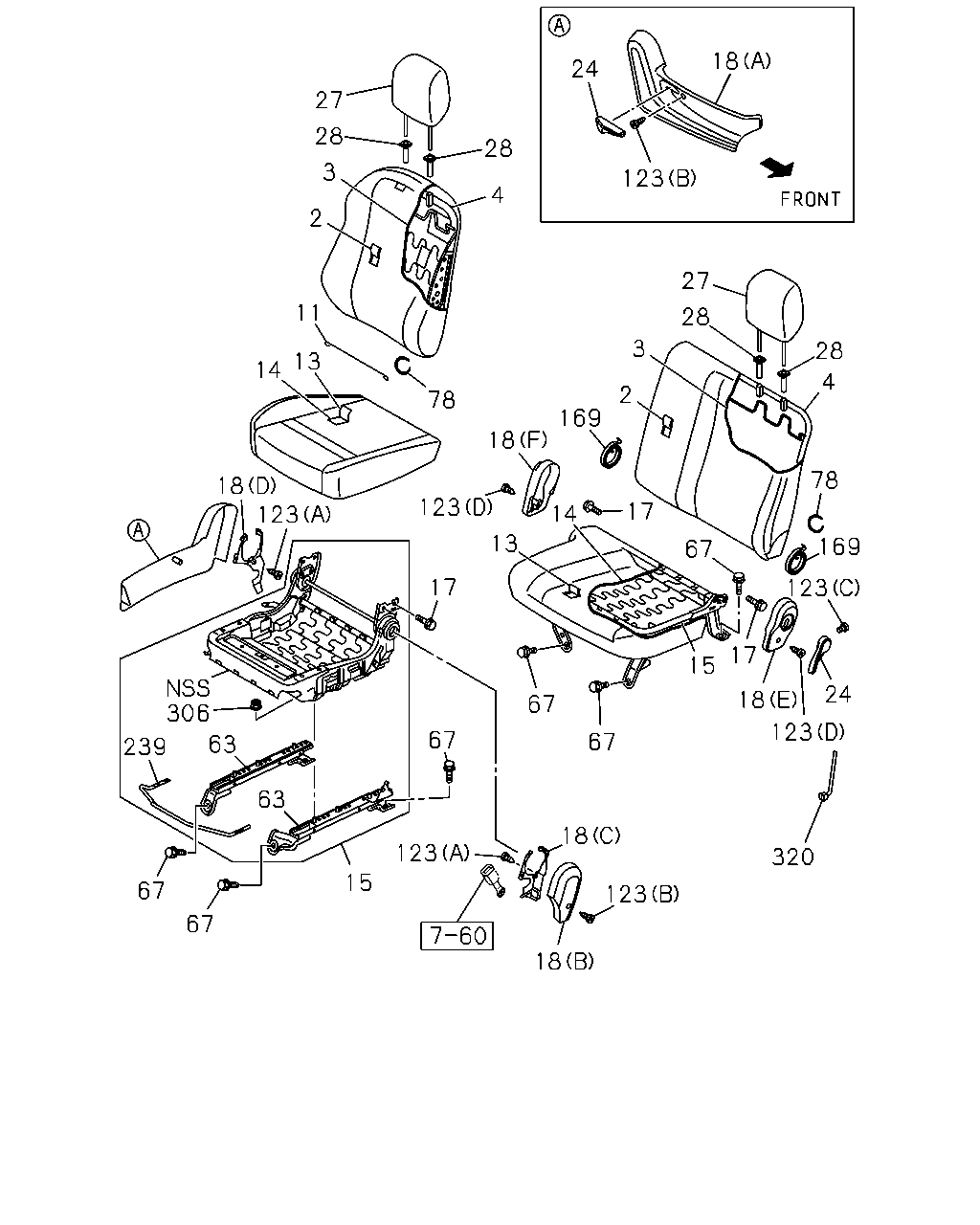

7-50 — FRONT SEAT (#122427) — 127 parça

27 3 28 2 11 13 14 78 4 28 24 18 123 27 28 3 2 169 18 123 17 123 18 239 63 306 63 15 67 67 67 15 67 17 14 13 17 18 123 24 320 123 18 18 123 67 67 78 4 28 169 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	COVER; TRIM,FRT SEAT,BACK LIGHT GRAY THA	8-97423-166-0	01	1	1307-1505
2	COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER & PASSENGER DELETE<AK6> LIGHT GRAY THA	8-97423-166-0	01	1	1506-1506
2	COVER; TRIM,FRT SEAT,BACK LIGHT GRAY THA	8-97423-166-0	01	1	1506-
2	COVER; TRIM,FRT SEAT,BACK LIGHT GRAY THA	8-97423-177-0	01	1	1307-1311
2	COVER; TRIM,FRT SEAT,BACK LIGHT GRAY THA	8-97423-177-0	01	1	1312-1505
2	COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER & PASSENGER DELETE<AK6> LIGHT GRAY THA	8-97423-177-0	01	1	1506-1506
2	COVER; TRIM,FRT SEAT,BACK LIGHT GRAY THA	8-97423-177-0	01	1	1506-
3	PAD; FRT SEAT BACK THA	8-98187-524-0	01	1	1307-1311
3	PAD; FRT SEAT BACK THA	8-98187-524-0	01	1	1312-1505
3	PAD; FRT SEAT BACK AIR BAG DRIVER & PASSENGER DELETE<AK6> THA	8-98187-524-0	01	1	1506-1506
3	PAD; FRT SEAT BACK THA	8-98187-524-0	01	1	1506-
3	PAD; FRT SEAT BACK THA	8-98187-531-0	01	1	1307-1505
3	PAD; FRT SEAT BACK AIR BAG DRIVER & PASSENGER DELETE<AK6> THA	8-98187-531-0	01	1	1506-1506
3	PAD; FRT SEAT BACK THA	8-98187-531-0	01	1	1506-
4	FRAME ASM; FRT SEAT THA	8-98187-533-0	01	1	1307-1311
4	FRAME ASM; FRT SEAT THA	8-98187-533-0	01	1	1312-1505
4	FRAME ASM; FRT SEAT AIR BAG DRIVER & PASSENGER DELETE<AK6> THA	8-98187-533-0	01	1	1506-1506
4	FRAME ASM; FRT SEAT THA	8-98187-533-0	01	1	1506-
4	FRAME ASM; FRT SEAT THA	8-98187-535-1	01	1	1307-1505
4	FRAME ASM; FRT SEAT AIR BAG DRIVER & PASSENGER DELETE<AK6> THA	8-98187-535-1	01	1	1506-1506
4	FRAME ASM; FRT SEAT THA	8-98187-535-1	01	1	1506-
11	WIRE; SEAT BACK THA	8-98220-094-0	01	1	1307-1311
11	WIRE; SEAT BACK THA	8-98220-094-0	01	1	1312-1505
11	WIRE; SEAT BACK AIR BAG DRIVER & PASSENGER DELETE<AK6> THA	8-98220-094-0	01	1	1506-1506
11	WIRE; SEAT BACK THA	8-98220-094-0	01	1	1506-
13	COVER; TRIM,FRT SEAT,CUSHION LIGHT GRAY THA	8-97423-167-1	01	1	1307-1505
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER DELETE<AK6> LIGHT GRAY THA	8-97423-167-1	01	1	1506-1506
13	COVER; TRIM,FRT SEAT,CUSHION LIGHT GRAY THA	8-97423-167-1	01	1	1506-
13	COVER; TRIM,FRT SEAT,CUSHION LIGHT GRAY THA	8-97423-188-0	01	1	1307-1311
13	COVER; TRIM,FRT SEAT,CUSHION LIGHT GRAY THA	8-97423-188-0	01	1	1312-1505
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER DELETE<AK6> LIGHT GRAY THA	8-97423-188-0	01	1	1506-1506
13	COVER; TRIM,FRT SEAT,CUSHION LIGHT GRAY THA	8-97423-188-0	01	1	1506-
14	PAD; FRT SEAT CUSHION THA	8-98187-557-0	01	1	1307-1311
14	PAD; FRT SEAT CUSHION THA	8-98187-557-0	01	1	1312-1505
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER DELETE<AK6> THA	8-98187-557-0	01	1	1506-1506
14	PAD; FRT SEAT CUSHION THA	8-98187-557-0	01	1	1506-
14	PAD; FRT SEAT CUSHION THA	8-98187-565-0	01	1	1307-1505
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER DELETE<AK6> THA	8-98187-565-0	01	1	1506-1506
14	PAD; FRT SEAT CUSHION THA	8-98187-565-0	01	1	1506-
15	FRAME; CUSHION,FRT SEAT THA	8-98187-567-1	01	1	1307-1311
15	FRAME; CUSHION,FRT SEAT THA	8-98187-567-2	01	1	1312-1505
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER DELETE<AK6> THA	8-98187-567-2	01	1	1506-1506
15	FRAME; CUSHION,FRT SEAT THA	8-98187-567-2	01	1	1506-
15	FRAME; CUSHION,FRT SEAT THA	8-98187-573-0	01	1	1307-1505
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER DELETE<AK6> THA	8-98187-573-0	01	1	1506-1506
15	FRAME; CUSHION,FRT SEAT THA	8-98187-573-0	01	1	1506-
17	BOLT; RECLINING THA	8-98220-045-0	08	1	1307-1505
17	BOLT; RECLINING AIR BAG DRIVER & PASSENGER DELETE<AK6> THA	8-98220-045-0	08	1	1506-1506
17	BOLT; RECLINING THA	8-98220-045-0	08	1	1506-
18	COVER; RECLINING (A) BLACK THA	8-97424-090-0	01	1	1307-1311
18	COVER; RECLINING (A) BLACK THA	8-97424-090-0	01	1	1312-1505
18	COVER; RECLINING AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) BLACK THA	8-97424-090-0	01	1	1506-1506
18	COVER; RECLINING (A) BLACK THA	8-97424-090-0	01	1	1506-
18	COVER; RECLINING (B) BLACK THA	8-97424-579-0	01	1	1307-1311
18	COVER; RECLINING (B) BLACK THA	8-97424-579-0	01	1	1312-1505
18	COVER; RECLINING AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) BLACK THA	8-97424-579-0	01	1	1506-1506
18	COVER; RECLINING (B) BLACK THA	8-97424-579-0	01	1	1506-
18	COVER; RECLINING (D) BLACK THA	8-97424-582-0	01	1	1307-1311
18	COVER; RECLINING (D) BLACK THA	8-97424-582-0	01	1	1312-1505
18	COVER; RECLINING AIR BAG DRIVER & PASSENGER DELETE<AK6> (D) BLACK THA	8-97424-582-0	01	1	1506-1506
18	COVER; RECLINING (D) BLACK THA	8-97424-582-0	01	1	1506-
18	COVER; RECLINING (C) BLACK THA	8-97424-585-0	01	1	1307-1311
18	COVER; RECLINING (C) BLACK THA	8-97424-585-0	01	1	1312-1505
18	COVER; RECLINING AIR BAG DRIVER & PASSENGER DELETE<AK6> (C) BLACK THA	8-97424-585-0	01	1	1506-1506
18	COVER; RECLINING (C) BLACK THA	8-97424-585-0	01	1	1506-
18	COVER; RECLINING (F) BLACK THA	8-97424-678-0	01	1	1307-1505
18	COVER; RECLINING AIR BAG DRIVER & PASSENGER DELETE<AK6> (F) BLACK THA	8-97424-678-0	01	1	1506-1506
18	COVER; RECLINING (F) BLACK THA	8-97424-678-0	01	1	1506-
18	COVER; RECLINING (E) BLACK THA	8-97424-679-0	01	1	1307-1505
18	COVER; RECLINING AIR BAG DRIVER & PASSENGER DELETE<AK6> (E) BLACK THA	8-97424-679-0	01	1	1506-1506
18	COVER; RECLINING (E) BLACK THA	8-97424-679-0	01	1	1506-
24	KNOB; RECLINING,FRT,SEAT BLACK THA	8-97424-591-0	01	1	1307-1311
24	KNOB; RECLINING,FRT,SEAT BLACK THA	8-97424-591-0	01	1	1312-1505
24	KNOB; RECLINING,FRT,SEAT AIR BAG DRIVER & PASSENGER DELETE<AK6> BLACK THA	8-97424-591-0	01	1	1506-1506
24	KNOB; RECLINING,FRT,SEAT BLACK THA	8-97424-591-0	01	1	1506-
24	KNOB; RECLINING,FRT,SEAT BLACK THA	8-97424-680-0	01	1	1307-1505
24	KNOB; RECLINING,FRT,SEAT AIR BAG DRIVER & PASSENGER DELETE<AK6> BLACK THA	8-97424-680-0	01	1	1506-1506
24	KNOB; RECLINING,FRT,SEAT BLACK THA	8-97424-680-0	01	1	1506-
27	REST; HD,FRT SEAT LIGHT GRAY THA	8-97424-519-0	02	1	1307-1505
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER DELETE<AK6> LIGHT GRAY THA	8-97424-519-0	02	1	1506-1506
27	REST; HD,FRT SEAT LIGHT GRAY THA	8-97424-519-0	02	1	1506-
28	HOLDER; GUIDE,HD REST LOCK BLACK THA	8-97424-499-0	02	1	1307-1505
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER DELETE<AK6> BLACK THA	8-97424-499-0	02	1	1506-1506
28	HOLDER; GUIDE,HD REST BLACK THA	8-97424-499-0	02	1	1506-
28	HOLDER; GUIDE,HD REST FREE BLACK THA	8-97424-500-0	02	1	1307-1505
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER DELETE<AK6> BLACK THA	8-97424-500-0	02	1	1506-1506
28	HOLDER; GUIDE,HD REST BLACK THA	8-97424-500-0	02	1	1506-
63	ADJUSTER; SEAT SLIDE OUTER THA	8-98224-186-0	01	1	1307-1311
63	ADJUSTER; SEAT SLIDE OUTER THA	8-98224-186-1	01	1	1312-1505
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER DELETE<AK6> THA	8-98224-186-1	01	1	1506-1506
63	ADJUSTER; SEAT SLIDE THA	8-98224-186-1	01	1	1506-
63	ADJUSTER; SEAT SLIDE INNER THA	8-98224-187-0	01	1	1307-1311
63	ADJUSTER; SEAT SLIDE INNER THA	8-98224-187-1	01	1	1312-1505
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER DELETE<AK6> THA	8-98224-187-1	01	1	1506-1506
63	ADJUSTER; SEAT SLIDE THA	8-98224-187-1	01	1	1506-
67	BOLT; FRT SEAT TO BODY M12X27.5 W/PL WASHER THA	8-98050-319-0	08	1	1307-
78	RING; SNAP THA	8-98220-068-0	26	1	1307-1505
78	RING; SNAP AIR BAG DRIVER & PASSENGER DELETE<AK6> THA	8-98220-068-0	26	1	1506-1506
78	RING; SNAP THA	8-98220-068-0	26	1	1506-
123	SCREW; COVER,RECLINING (C) M6X20 THA	8-98220-083-0	01	1	1307-1505
123	SCREW; COVER,RECLINING AIR BAG DRIVER & PASSENGER DELETE<AK6> (C) M6X20 THA	8-98220-083-0	01	1	1506-1506
123	SCREW; COVER,RECLINING (C) M6X20 THA	8-98220-083-0	01	1	1506-
123	SCREW; COVER,RECLINING (D) M4X18 THA	8-98220-084-0	02	1	1307-1505
123	SCREW; COVER,RECLINING AIR BAG DRIVER & PASSENGER DELETE<AK6> (D) M4X18 THA	8-98220-084-0	02	1	1506-1506
123	SCREW; COVER,RECLINING (D) M4X18 THA	8-98220-084-0	02	1	1506-
123	SCREW; COVER,RECLINING (A) M4X8 THA	8-98220-085-0	02	1	1307-1311
123	SCREW; COVER,RECLINING (A) M4X8 THA	8-98220-085-0	02	1	1312-1505
123	SCREW; COVER,RECLINING AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) M4X8 THA	8-98220-085-0	02	1	1506-1506
123	SCREW; COVER,RECLINING (A) M4X8 THA	8-98220-085-0	02	1	1506-
123	SCREW; COVER,RECLINING (B) M4X10 THA	8-98220-086-0	03	1	1307-1311
123	SCREW; COVER,RECLINING (B) M4X10 THA	8-98220-086-0	03	1	1312-1505
123	SCREW; COVER,RECLINING AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) M4X10 THA	8-98220-086-0	03	1	1506-1506
123	SCREW; COVER,RECLINING (B) M4X10 THA	8-98220-086-0	03	1	1506-
169	SPRING; LOCK,SEAT BACK THA	8-98220-090-0	02	1	1307-1406
239	HANDLE; SIDE SUPPORT,FRT SEAT THA	8-98220-104-0	01	1	1307-1311
239	HANDLE; SIDE SUPPORT,FRT SEAT THA	8-98220-104-0	01	1	1312-1505
239	HANDLE; SIDE SUPPORT,FRT SEAT AIR BAG DRIVER & PASSENGER DELETE<AK6> THA	8-98220-104-0	01	1	1506-1506
239	HANDLE; SIDE SUPPORT,FRT SEAT THA	8-98220-104-0	01	1	1506-
306	NUT; SEAT ADJ M8 FLANGE THA	8-98220-087-0	07	1	1307-1311
306	NUT; SEAT ADJ M8 FLANGE THA	8-98220-087-0	07	1	1312-1505
306	NUT; SEAT ADJ AIR BAG DRIVER & PASSENGER DELETE<AK6> M8 FLANGE THA	8-98220-087-0	07	1	1506-1506
306	NUT; SEAT ADJ M8 FLANGE THA	8-98220-087-0	07	1	1506-
320	CLIP; BAND,SEAT THA	8-98220-048-0	01	1	1307-1311
320	CLIP; BAND,SEAT THA	8-98220-048-0	01	1	1312-1403
320	CLIP; BAND,SEAT THA	8-98220-048-0	02	1	1404-1505
320	CLIP; BAND,SEAT AIR BAG DRIVER & PASSENGER DELETE<AK6> THA	8-98220-048-0	02	1	1506-1506
320	CLIP; BAND,SEAT THA	8-98220-048-0	02	1	1506-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
