◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51485 - TFR SHORT(THAI) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#122423) — 129 parça

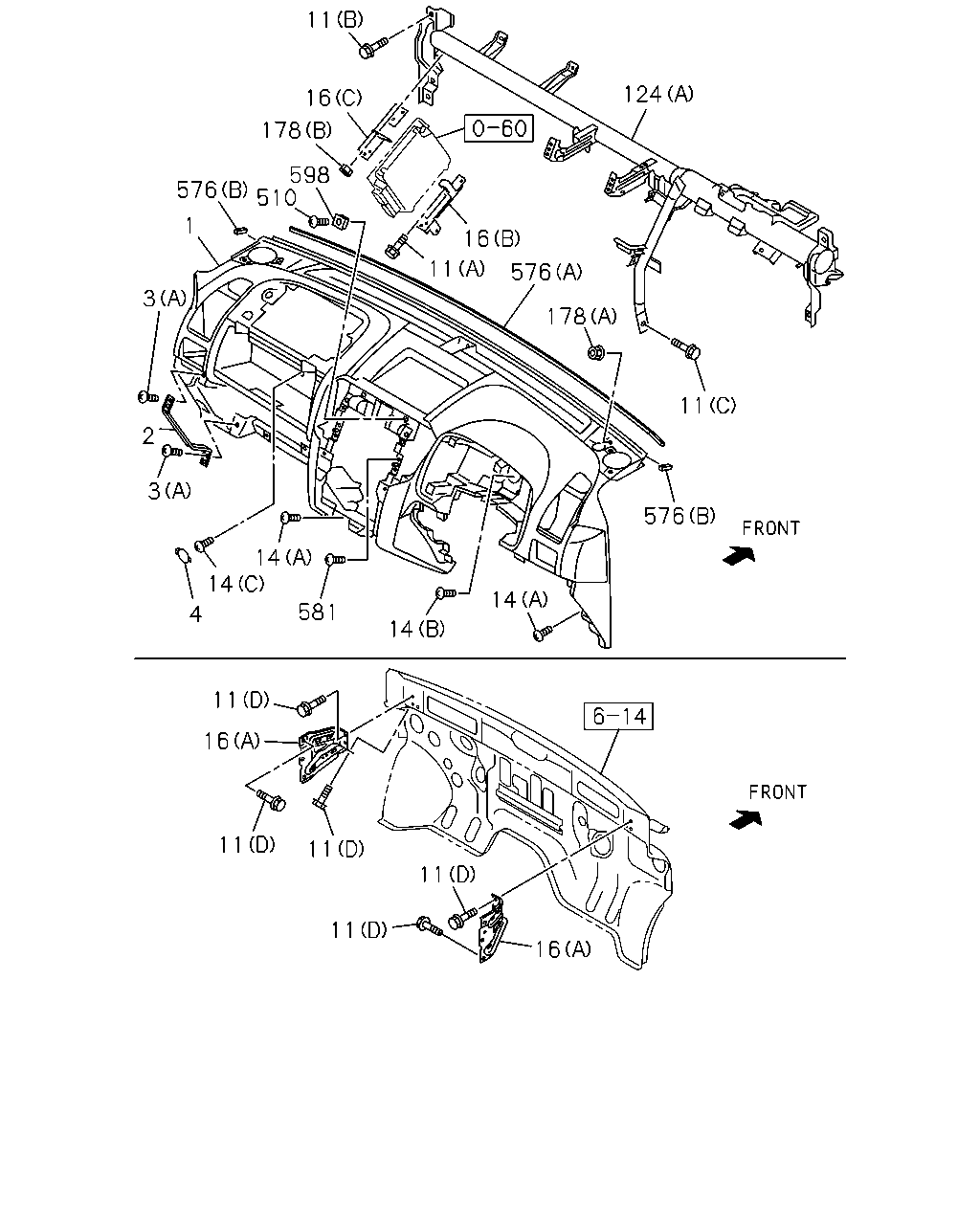

çizim 357294
11 16 178 598 576 1 3 2 3 4 14 14 581 14 14 11 16 576 124 11 178 576 11 11 11 11 11 16 16 510
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
BLACK THA 		8-97423-070-0 01 1 1307-1505
1 PANEL; INST
AIR BAG DRIVER & PASSENGER DELETE<AK6> BLACK THA 		8-97423-070-0 01 1 1506-1506
1 PANEL; INST
BLACK THA 		8-97423-070-0 01 1 1506-
2 REINFORCEMENT; INST PNL,LWR
THA 		8-98232-644-1 01 1 1307-1505
2 REINFORCEMENT; INST PNL,LWR
AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98232-644-1 01 1 1506-1506
2 REINFORCEMENT; INST PNL,LWR
THA 		8-98232-644-1 01 1 1506-
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER<AK5> (A) M5X16 THA 		8-98246-739-0 32 1 1506-
3 SCREW; BINDER HD
(B) M5X16 THA 		8-98197-847-0 02 1 1307-1505
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) M5X16 THA 		8-98197-847-0 02 1 1506-1506
3 SCREW; BINDER HD
(B) M5X16 THA 		8-98197-847-0 02 1 1506-
3 SCREW; BINDER HD
(A) M5X16 THA 		8-98246-739-0 36 1 1307-1505
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) M5X16 THA 		8-98246-739-0 36 1 1506-
4 COVER; INST PNL
BLACK THA 		8-97416-610-0 01 1 1307-
11 BOLT; INST PNL
(B) M8X25 FLANGE THA 		0-28450-825-0 04 1 1307-1505
11 BOLT; INST PNL
AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) M8X25 FLANGE THA 		0-28450-825-0 04 1 1506-1506
11 BOLT; INST PNL
(B) M8X25 FLANGE THA 		0-28450-825-0 04 1 1506-
11 BOLT; INST PNL
(A) M6X20 FLANGE THA 		0-28650-620-0 01 1 1307-
11 BOLT; INST PNL
(C) M6X30 W/LK&PL WASHER THA 		8-98057-965-0 01 1 1307-1505
11 BOLT; INST PNL
AIR BAG DRIVER & PASSENGER DELETE<AK6> (C) M6X30 W/LK&PL WASHER THA 		8-98057-965-0 01 1 1506-1506
11 BOLT; INST PNL
(C) M6X30 W/LK&PL WASHER THA 		8-98057-965-0 01 1 1506-
11 BOLT; INST PNL
(D) M8X32.5 W/PL WASHER THA 		8-98136-077-0 12 1 1307-
14 SCREW; INST PNL
(A) M5X16 THA 		8-98167-220-0 03 1 1307-1505
14 SCREW; INST PNL
AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) M5X16 THA 		8-98167-220-0 03 1 1506-1506
14 SCREW; INST PNL
(A) M5X16 THA 		8-98167-220-0 03 1 1506-
14 SCREW; INST PNL
(A) M5X16 THA 		8-98167-220-0 04 1 1307-
14 SCREW; INST PNL
(B) M5X16 TAPPING THA 		8-98167-449-0 06 1 1307-1505
14 SCREW; INST PNL
AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) M5X16 TAPPING THA 		8-98167-449-0 06 1 1506-1506
14 SCREW; INST PNL
(B) M5X16 TAPPING THA 		8-98167-449-0 06 1 1506-
14 SCREW; INST PNL
(C) M5X14 TAPPING THA 		8-98184-363-0 01 1 1307-1505
14 SCREW; INST PNL
AIR BAG DRIVER & PASSENGER DELETE<AK6> (C) M5X14 TAPPING THA 		8-98184-363-0 01 1 1506-1506
14 SCREW; INST PNL
(C) M5X14 TAPPING THA 		8-98184-363-0 01 1 1506-
16 BRACKET; INST PNL
PROVISIONAL PACKAGE SPEC<BCC> (B) THA 		8-98222-757-1 01 1 1506-
16 BRACKET; INST PNL
PROVISIONAL PACKAGE SPEC<BCC> (C) THA 		8-98229-117-1 01 1 1506-
16 BRACKET; INST PNL
(A) THA 		8-98104-144-3 01 1 1307-1505
16 BRACKET; INST PNL
(A) THA 		8-98288-529-0 01 1 1506-
16 BRACKET; INST PNL
(A) THA 		8-98108-670-2 01 1 1307-
16 BRACKET; INST PNL
(C) THA 		8-98119-428-2 01 1 1307-1505
16 BRACKET; INST PNL
EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) THA 		8-98119-428-2 01 1 1506-
16 BRACKET; INST PNL
(B) THA 		8-98119-431-2 01 1 1307-1505
16 BRACKET; INST PNL
EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) THA 		8-98119-431-2 01 1 1506-
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER<AK5> (A) THA 		8-98064-644-4 01 1 1506-
124 REINFORCEMENT; INST PNL,UPR
(B) THA 		8-98232-645-0 01 1 1307-1505
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) THA 		8-98232-645-0 01 1 1506-1506
124 REINFORCEMENT; INST PNL,UPR
(B) THA 		8-98232-645-0 01 1 1506-
124 REINFORCEMENT; INST PNL,UPR
(A) THA 		8-98064-646-4 01 1 1307-1505
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) THA 		8-98064-646-4 01 1 1506-
178 NUT; INST PANEL
(B) M6 FLANGE THA 		0-91180-106-0 02 1 1307-
178 NUT; INST PANEL
(A) M6 FLANGE IMA 		8-98055-704-0 03 1 1307-1505
178 NUT; INST PANEL
AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) M6 FLANGE IMA 		8-98055-704-0 03 1 1506-1506
178 NUT; INST PANEL
(A) M6 FLANGE IMA 		8-98055-704-0 03 1 1506-
510 SCREW; CENTER CLUSTER
M5X16 TAPPING THA 		8-98167-449-0 02 1 1307-
576 CUSHION
(A) THA 		8-98232-668-0 01 1 1307-1505
576 CUSHION
AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) THA 		8-98232-668-0 01 1 1506-1506
576 CUSHION
(A) THA 		8-98232-668-0 01 1 1506-
576 CUSHION
(B) THA 		8-98232-669-0 02 1 1307-1505
576 CUSHION
AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) THA 		8-98232-669-0 02 1 1506-1506
576 CUSHION
(B) THA 		8-98232-669-0 02 1 1506-
581 SCREW
M5X16 TAPPING THA 		8-98167-449-0 04 1 1307-
598 GROMMET; SCREW
THA 		8-98164-685-0 15 1 1307-1505
598 GROMMET; SCREW
AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98164-685-0 15 1 1506-1506
598 GROMMET; SCREW
THA 		8-98164-685-0 15 1 1506-

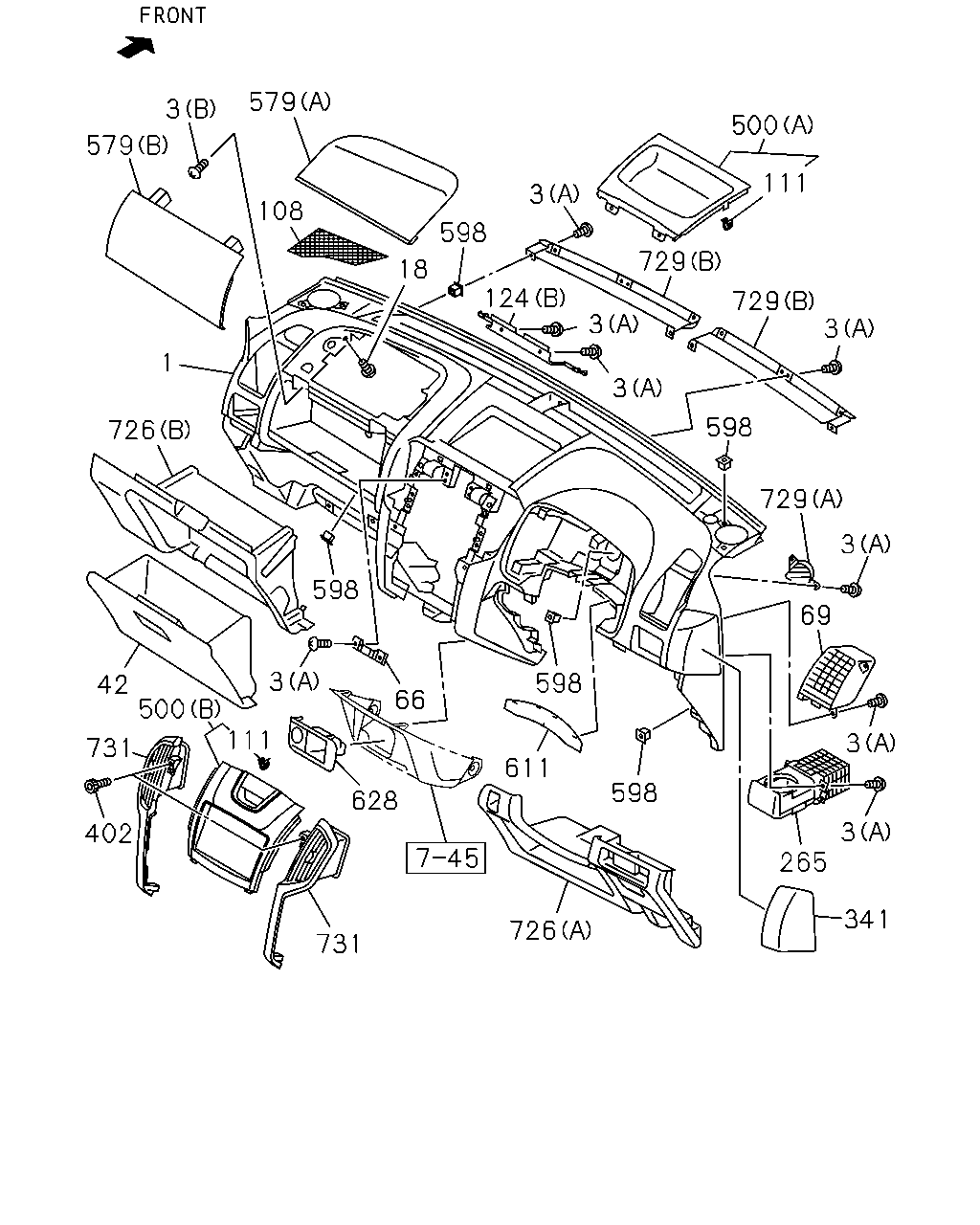

çizim 357826
3 579 579 108 1 726 18 598 3 500 111 729 124 3 3 729 3 598 729 3 69 3 3 265 341 598 726 731 611 598 66 628 111 402 731 42 500 3 598
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
BLACK THA 		8-97423-070-0 01 1 1307-1505
1 PANEL; INST
AIR BAG DRIVER & PASSENGER DELETE<AK6> BLACK THA 		8-97423-070-0 01 1 1506-1506
1 PANEL; INST
BLACK THA 		8-97423-070-0 01 1 1506-
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER<AK5> (A) M5X16 THA 		8-98246-739-0 32 1 1506-
3 SCREW; BINDER HD
(B) M5X16 THA 		8-98197-847-0 02 1 1307-1505
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) M5X16 THA 		8-98197-847-0 02 1 1506-1506
3 SCREW; BINDER HD
(B) M5X16 THA 		8-98197-847-0 02 1 1506-
3 SCREW; BINDER HD
(A) M5X16 THA 		8-98246-739-0 36 1 1307-1505
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) M5X16 THA 		8-98246-739-0 36 1 1506-
18 BOLT; BRKT
AIR BAG DRIVER & PASSENGER<AK5> M8X40 FLANGE THA 		0-28650-840-0 02 1 1506-
42 BOX; GLOVE,INST PNL
BLACK THA 		8-97416-629-2 01 1 1307-
66 REINFORCEMENT; INST PANEL
THA 		8-98187-112-0 01 1 1307-1505
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98187-112-0 01 1 1506-1506
69 GRILLE; SIDE,AIR OUTLET
BLACK THA 		8-97423-071-2 01 1 1307-1505
69 GRILLE; SIDE,AIR OUTLET
AIR BAG DRIVER & PASSENGER DELETE<AK6> BLACK THA 		8-97423-071-2 01 1 1506-1506
69 GRILLE; SIDE,AIR OUTLET
BLACK THA 		8-97423-071-2 01 1 1506-
69 GRILLE; SIDE,AIR OUTLET
BLACK THA 		8-97423-072-2 01 1 1307-1505
69 GRILLE; SIDE,AIR OUTLET
AIR BAG DRIVER & PASSENGER DELETE<AK6> BLACK THA 		8-97423-072-2 01 1 1506-1506
69 GRILLE; SIDE,AIR OUTLET
BLACK THA 		8-97423-072-2 01 1 1506-
108 GRILLE; INST PNL
BLACK THA 		8-97416-625-2 01 1 1307-
108 GRILLE; INST PNL
BLACK THA 		8-97416-626-2 01 1 1307-
111 CLIP; CLUSTER PANEL,GRILLE
THA 		8-98164-677-0 02 1 1307-
111 CLIP; CLUSTER PANEL,GRILLE
THA 		8-98164-677-0 04 1 1307-
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER<AK5> (A) THA 		8-98064-644-4 01 1 1506-
124 REINFORCEMENT; INST PNL,UPR
(B) THA 		8-98232-645-0 01 1 1307-1505
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) THA 		8-98232-645-0 01 1 1506-1506
124 REINFORCEMENT; INST PNL,UPR
(B) THA 		8-98232-645-0 01 1 1506-
124 REINFORCEMENT; INST PNL,UPR
(A) THA 		8-98064-646-4 01 1 1307-1505
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) THA 		8-98064-646-4 01 1 1506-
265 HOLDER; CUP
BLACK THA 		8-97423-073-0 01 1 1307-1505
265 HOLDER; CUP
AIR BAG DRIVER & PASSENGER DELETE<AK6> BLACK THA 		8-97423-073-0 01 1 1506-1506
265 HOLDER; CUP
BLACK THA 		8-97423-073-0 01 1 1506-
265 HOLDER; CUP
BLACK THA 		8-97423-074-0 01 1 1307-1505
265 HOLDER; CUP
AIR BAG DRIVER & PASSENGER DELETE<AK6> BLACK THA 		8-97423-074-0 01 1 1506-1506
265 HOLDER; CUP
BLACK THA 		8-97423-074-0 01 1 1506-
341 LID; FUSE BOX
BLACK THA 		8-97416-611-3 01 1 1307-
341 LID; FUSE BOX
BLACK THA 		8-97416-612-3 01 1 1307-
402 SCREW; VENT GRILLE,INST
M5X16 TAPPING THA 		8-98167-449-0 02 1 1307-
500 CLUSTER; INST CENTER
(A) BLACK THA 		8-97416-622-4 01 1 1307-
500 CLUSTER; INST CENTER
(B) BLACK THA 		8-97416-624-2 01 1 1307-
579 COVER; INST PNL
(B) BLACK THA 		8-97423-075-4 01 1 1307-1505
579 COVER; INST PNL
AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) BLACK THA 		8-97423-075-4 01 1 1506-1506
579 COVER; INST PNL
(B) BLACK THA 		8-97423-075-4 01 1 1506-
579 COVER; INST PNL
(A) BLACK THA 		8-97423-078-0 01 1 1307-1505
579 COVER; INST PNL
AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) BLACK THA 		8-97423-078-0 01 1 1506-
598 GROMMET; SCREW
THA 		8-98164-685-0 15 1 1307-1505
598 GROMMET; SCREW
AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98164-685-0 15 1 1506-1506
598 GROMMET; SCREW
THA 		8-98164-685-0 15 1 1506-
611 SHEET
THA 		8-98187-119-0 01 1 1307-1505
611 SHEET
AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98187-119-0 01 1 1506-1506
611 SHEET
THA 		8-98187-119-0 01 1 1506-
628 BEZEL; INST LWR
BLACK THA 		8-97416-618-2 01 1 1307-
726 PANEL; INST LW
(B) BLACK THA 		8-97416-635-4 01 1 1307-
726 PANEL; INST LW
(A) BLACK THA 		8-97423-423-0 01 1 1307-
729 COVER; GRILLE
(A) BLACK THA 		8-97423-079-0 01 1 1307-1505
729 COVER; GRILLE
AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) BLACK THA 		8-97423-079-0 01 1 1506-1506
729 COVER; GRILLE
(A) BLACK THA 		8-97423-079-0 01 1 1506-
729 COVER; GRILLE
(A) BLACK THA 		8-97423-080-0 01 1 1307-1505
729 COVER; GRILLE
AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) BLACK THA 		8-97423-080-0 01 1 1506-1506
729 COVER; GRILLE
(A) BLACK THA 		8-97423-080-0 01 1 1506-
729 COVER; GRILLE
(B) BLACK THA 		8-97423-081-0 01 1 1307-1505
729 COVER; GRILLE
AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) BLACK THA 		8-97423-081-0 01 1 1506-1506
729 COVER; GRILLE
(B) BLACK THA 		8-97423-081-0 01 1 1506-
729 COVER; GRILLE
(B) BLACK THA 		8-97423-082-0 01 1 1307-1505
729 COVER; GRILLE
AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) BLACK THA 		8-97423-082-0 01 1 1506-1506
729 COVER; GRILLE
(B) BLACK THA 		8-97423-082-0 01 1 1506-
731 GRILLE; VENTILATOR
BLACK THA 		8-97416-639-4 01 1 1307-
731 GRILLE; VENTILATOR
BLACK THA 		8-97416-640-4 01 1 1307-
