Isuzu WW
▶
PICKUP
▶
TFR
▶
51485 - TFR SHORT(THAI)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-30 - LOCK CYLINDER SET
▶
7-30 — LOCK CYLINDER SET
(#122422) — 12 parça
◀

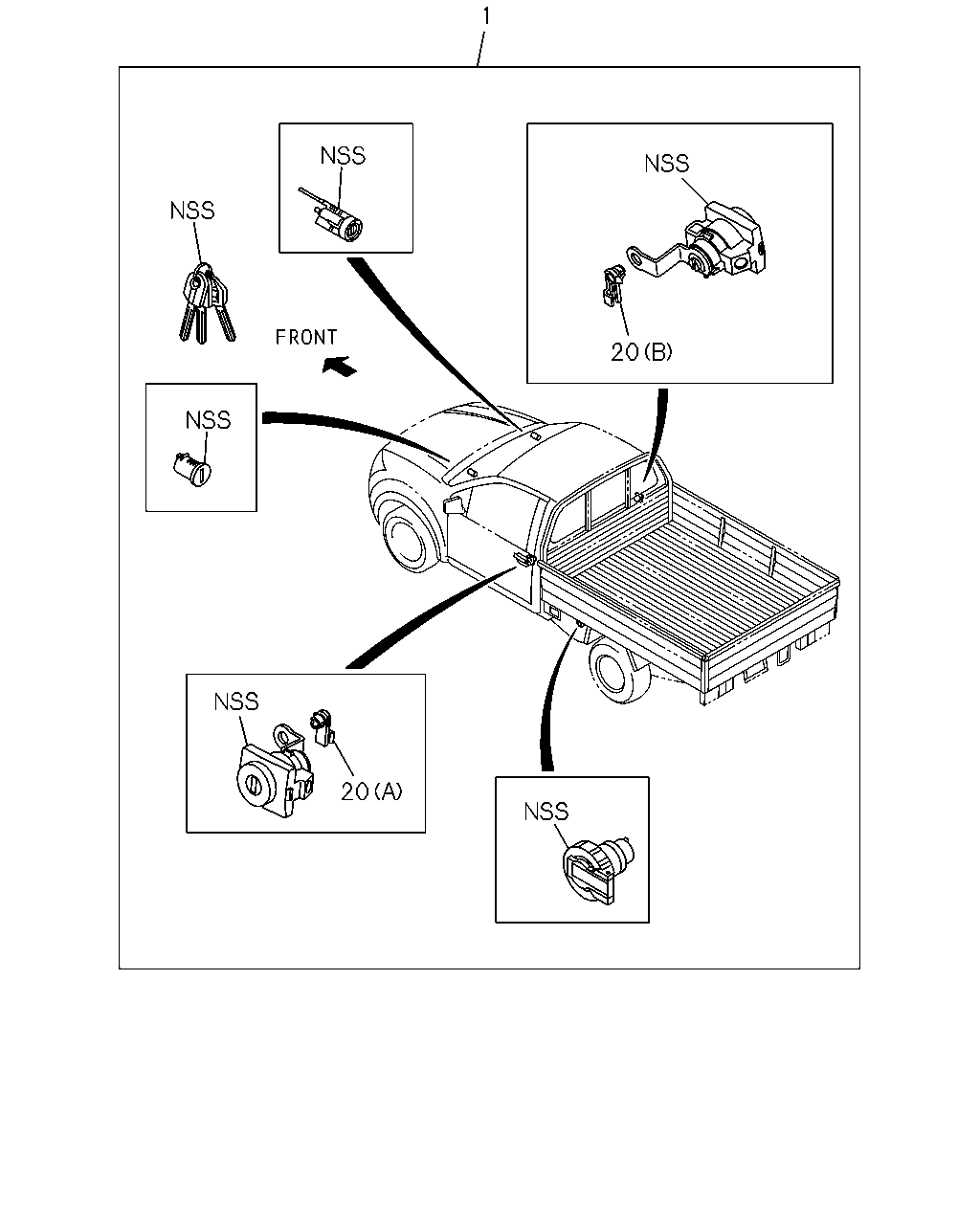

[730A] NO.1 (9 parça)

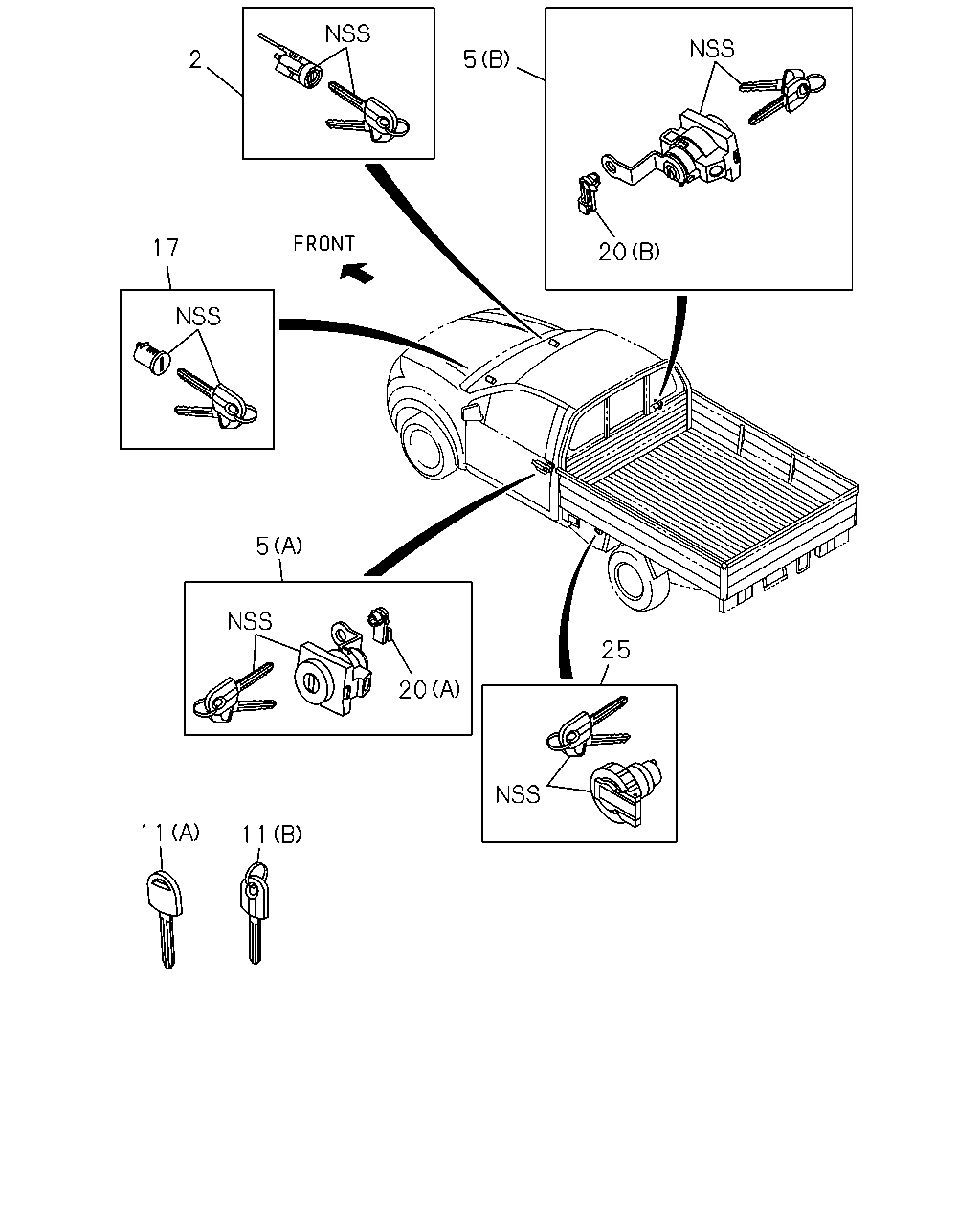

[730A] NO.2 (3 parça)
▶
2
5
17
5
25
20
11
11
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BARREL ASM; W/KEY,STRG LOCK
THA
8-98193-733-0
01
1
1307-
5
CYLINDER ASM; DOOR LOCK
(B) THA
8-98193-736-0
01
1
1307-
5
CYLINDER ASM; DOOR LOCK
(A) THA
8-98193-737-0
01
1
1307-
11
KEY; BLANK
(A) THA
8-97350-352-0
AR
1
1307-
11
KEY; BLANK
(B) IMMOBILIZER THA
8-98007-939-1
AR
1
1307-
17
CYLINDER ASM; W/KEY,GLOVE BOX LOCK
THA
8-98193-735-0
01
1
1307-
20
SNAP; DOOR LOCK CYL
(A) YELLOW THA
8-97350-043-0
01
1
1307-
20
SNAP; DOOR LOCK CYL
(B) WHITE THA
8-97350-044-0
01
1
1307-
25
CAP; FUEL TANK,W/KEY
THA
8-98060-587-0
01
1
1307-
1
20
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER SET; CAR LOCK
THA
8-98103-064-0
01
1
1307-
20
SNAP; DOOR LOCK CYL
(A) YELLOW THA
8-97350-043-0
01
1
1307-
20
SNAP; DOOR LOCK CYL
(B) WHITE THA
8-97350-044-0
01
1
1307-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
