7-10 — CAUTION PLATE AND LABEL (#122420) — 12 parça

çizim 356666

8 214 135 16

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	8	LABEL; FUSE AIR BAG DRIVER & PASSENGER<AK5> (A) THA	8-98232-351-1	01	1	1506-
	8	LABEL; FUSE (A) THA	8-98166-841-2	01	1	1307-1505
	8	LABEL; FUSE AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) THA	8-98166-841-2	01	1	1506-
	8	LABEL; FUSE (B) THA	8-98167-403-2	01	1	1307-
	16	PLATE; CAUTION,SIR AIR BAG DRIVER & PASSENGER<AK5> THA	8-97378-569-0	01	1	1506-
	135	PLATE; CAUTION,ENGINE THA	8-98199-210-0	01	1	1307-
	214	LABEL; JACK THA	8-97942-649-0	01	1	1307-

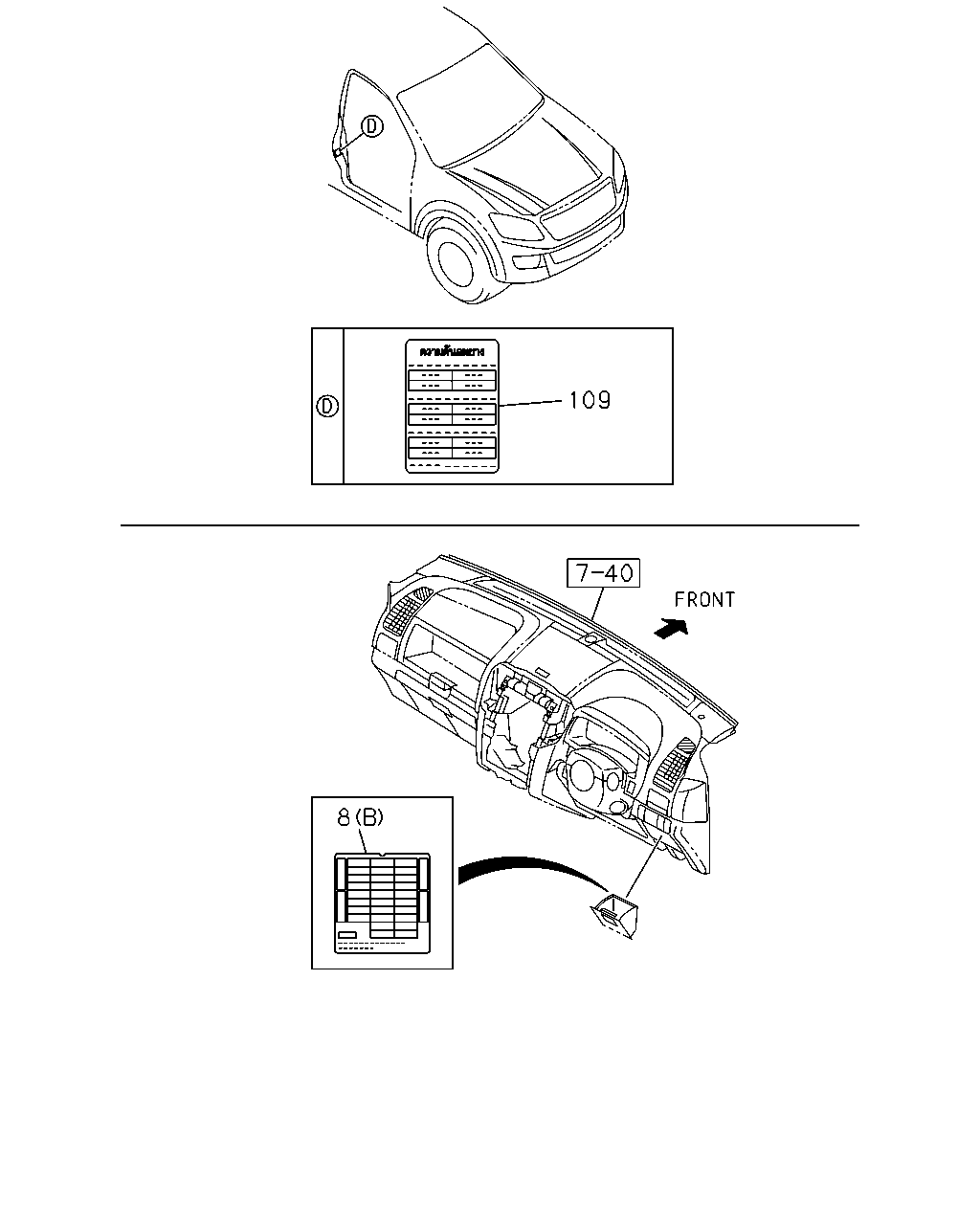

çizim 356706

109 8

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	8	LABEL; FUSE AIR BAG DRIVER & PASSENGER<AK5> (A) THA	8-98232-351-1	01	1	1506-
	8	LABEL; FUSE (A) THA	8-98166-841-2	01	1	1307-1505
	8	LABEL; FUSE AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) THA	8-98166-841-2	01	1	1506-
	8	LABEL; FUSE (B) THA	8-98167-403-2	01	1	1307-
	109	PLATE; CAUTION,TIRE PLACARD THA	8-98100-748-0	01	1	1307-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
