◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51485 - TFR SHORT(THAI) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶

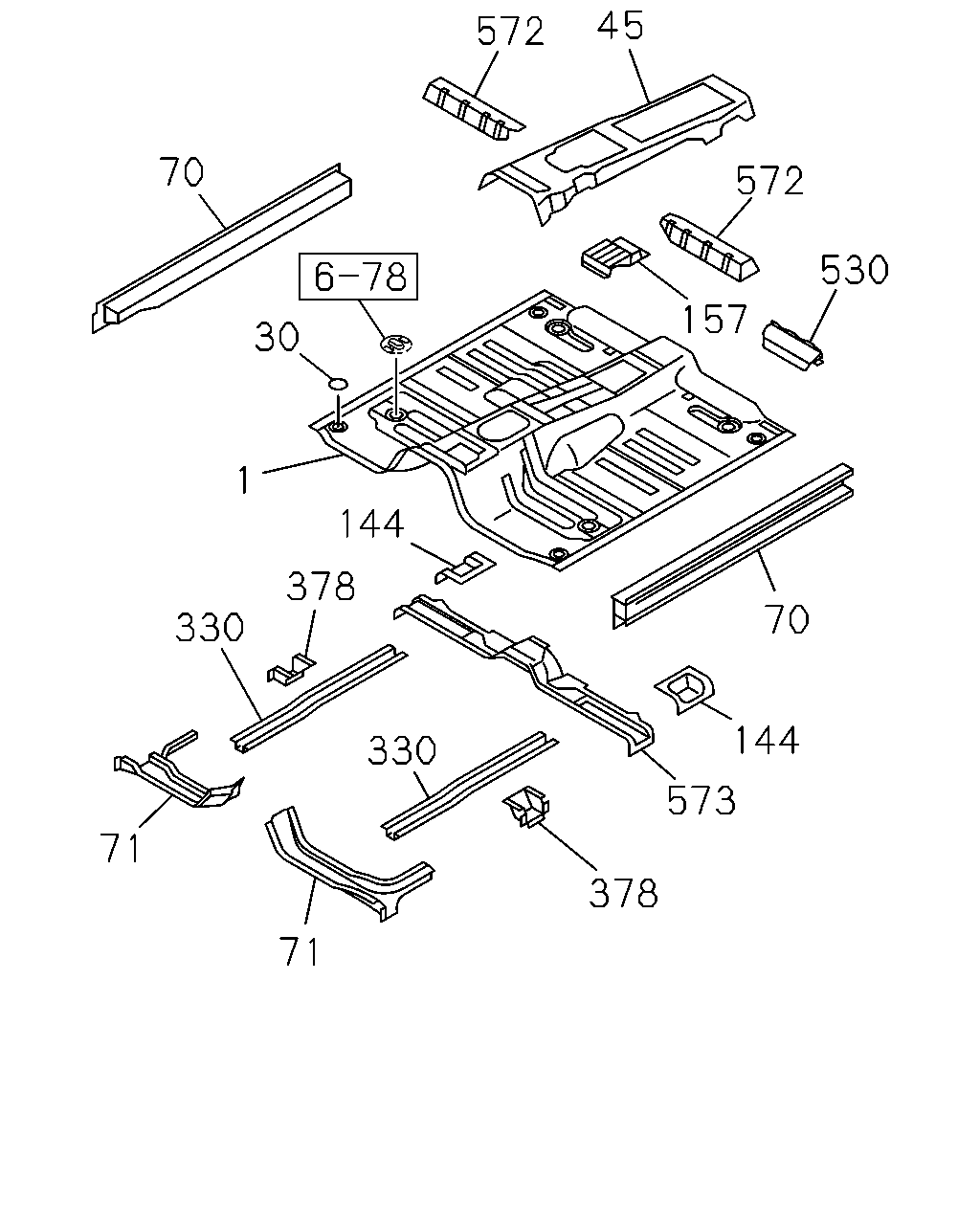

6-70 — FLOOR PANEL (#122411) — 44 parça
çizim 356919
572 45 572 530 157 70 144 573 378 71 71 330 330 378 144 1 30 70
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR
THA 		8-98209-852-0 01 1 1307-1505
1 PANEL; FLOOR
EQUIPMENT IMPACT<EPS> THA 		8-98209-852-0 01 1 1506-1506
1 PANEL; FLOOR
THA 		8-98209-852-0 01 1 1507-
30 GROMMET; CAB MTG RAIL
OD=59 T=9 THA 		8-98202-803-0 04 1 1307-
45 REINFORCEMENT; TUNNEL,FRT
THA 		8-98104-200-5 01 1 1307-1505
45 REINFORCEMENT; TUNNEL,FRT
EQUIPMENT IMPACT<EPS> THA 		8-98104-200-5 01 1 1506-1506
45 REINFORCEMENT; TUNNEL,FRT
THA 		8-98104-200-5 01 1 1507-
70 PANEL; ROCKER INNER
THA 		8-98103-893-3 01 1 1307-1505
70 PANEL; ROCKER INNER
EQUIPMENT IMPACT<EPS> THA 		8-98162-991-1 01 1 1506-
70 PANEL; ROCKER INNER
EXC. EQUIPMENT IMPACT<EPS> THA 		8-98103-893-3 01 1 1506-
70 PANEL; ROCKER INNER
THA 		8-98103-907-3 01 1 1307-1505
70 PANEL; ROCKER INNER
EQUIPMENT IMPACT<EPS> THA 		8-98162-996-1 01 1 1506-
70 PANEL; ROCKER INNER
EXC. EQUIPMENT IMPACT<EPS> THA 		8-98103-907-3 01 1 1506-
71 BRACKET; CAB MTG,CENTER
THA 		8-98101-984-5 01 1 1307-1505
71 BRACKET; CAB MTG,CENTER
EQUIPMENT IMPACT<EPS> THA 		8-98101-984-5 01 1 1506-1506
71 BRACKET; CAB MTG,CENTER
THA 		8-98101-984-5 01 1 1507-
71 BRACKET; CAB MTG,CENTER
THA 		8-98101-985-7 01 1 1307-1505
71 BRACKET; CAB MTG,CENTER
EQUIPMENT IMPACT<EPS> THA 		8-98101-985-8 01 1 1506-1506
71 BRACKET; CAB MTG,CENTER
THA 		8-98101-985-8 01 1 1507-
144 BRACKET; MTG,RR
THA 		8-98100-940-2 01 1 1307-1505
144 BRACKET; MTG,RR
EQUIPMENT IMPACT<EPS> THA 		8-98100-940-3 01 1 1506-1506
144 BRACKET; MTG,RR
THA 		8-98100-940-3 01 1 1507-
144 BRACKET; MTG,RR
THA 		8-98104-737-3 01 1 1307-1505
144 BRACKET; MTG,RR
EQUIPMENT IMPACT<EPS> THA 		8-98104-737-4 01 1 1506-1506
144 BRACKET; MTG,RR
THA 		8-98104-737-4 01 1 1507-
157 BRACKET; TOOL BOX LID
THA 		8-98115-434-6 01 1 1307-1505
157 BRACKET; TOOL BOX LID
EQUIPMENT IMPACT<EPS> THA 		8-98115-434-6 01 1 1506-1506
157 BRACKET; TOOL BOX LID
THA 		8-98115-434-6 01 1 1507-
330 REINFORCEMENT; FLOOR
THA 		8-98100-938-0 02 1 1307-1505
330 REINFORCEMENT; FLOOR
EQUIPMENT IMPACT<EPS> THA 		8-98100-938-0 02 1 1506-1506
330 REINFORCEMENT; FLOOR
THA 		8-98100-938-0 02 1 1507-
378 GASSET; LWR
THA 		8-98101-037-0 02 1 1307-1505
378 GASSET; LWR
EQUIPMENT IMPACT<EPS> THA 		8-98101-037-0 02 1 1506-1506
378 GASSET; LWR
THA 		8-98101-037-0 02 1 1507-
530 BRACKET; COVER
THA 		8-98188-931-1 01 1 1307-
572 SILL; FLOOR,FRT
THA 		8-98101-019-3 01 1 1307-1505
572 SILL; FLOOR,FRT
EQUIPMENT IMPACT<EPS> THA 		8-98101-019-3 01 1 1506-1506
572 SILL; FLOOR,FRT
THA 		8-98101-019-3 01 1 1507-
572 SILL; FLOOR,FRT
THA 		8-98101-020-3 01 1 1307-1505
572 SILL; FLOOR,FRT
EQUIPMENT IMPACT<EPS> THA 		8-98101-020-3 01 1 1506-1506
572 SILL; FLOOR,FRT
THA 		8-98101-020-3 01 1 1507-
573 SILL; FLOOR,RR
THA 		8-98103-925-4 01 1 1307-1505
573 SILL; FLOOR,RR
EQUIPMENT IMPACT<EPS> THA 		8-98103-925-4 01 1 1506-1506
573 SILL; FLOOR,RR
THA 		8-98103-925-4 01 1 1507-
