6-47 — MUD GUARD AND INSULATOR (#122408) — 28 parça

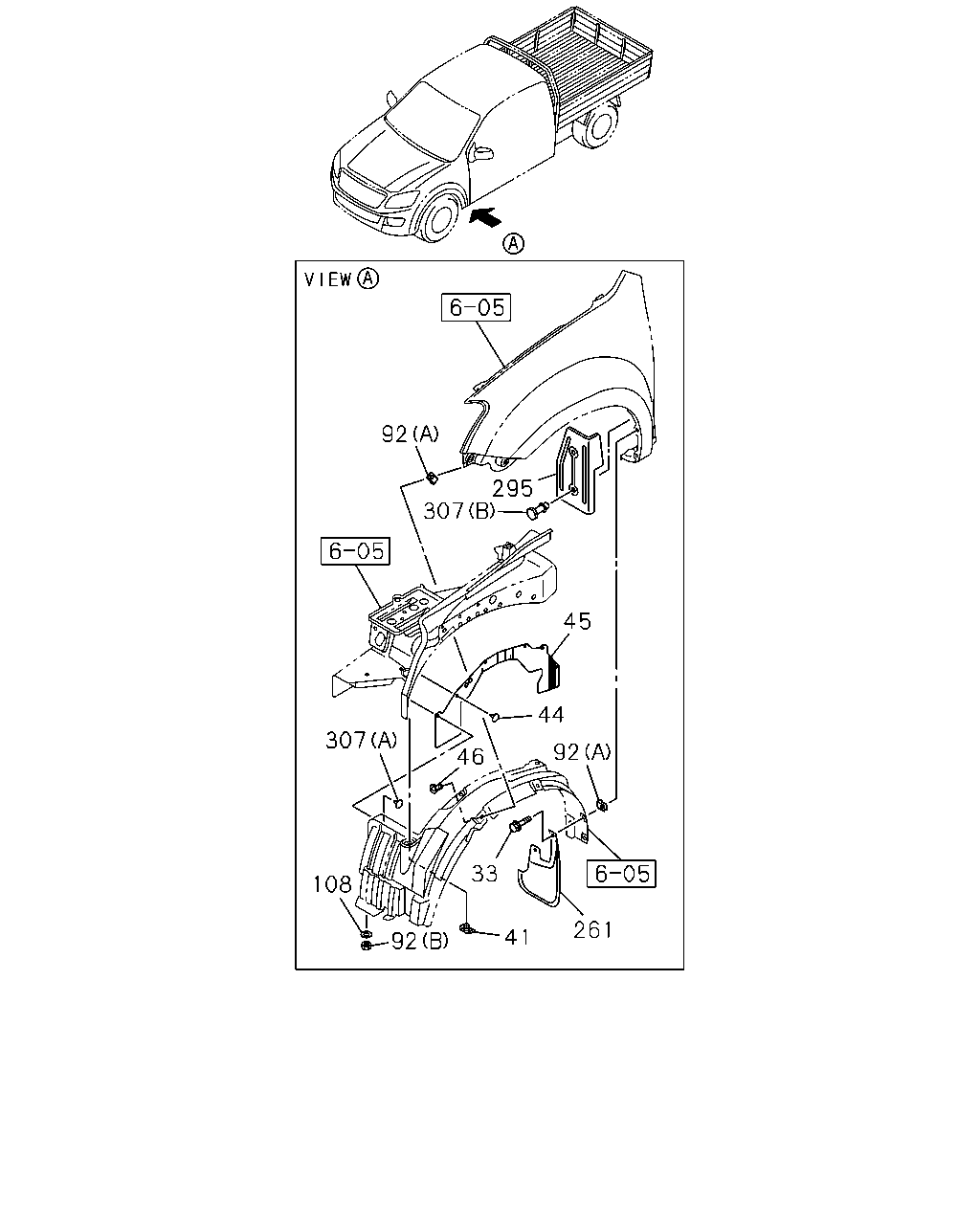

çizim 358663
295 307 92 307 46 44 92 45 33 108 92 41 261
BalonParca AdiParca NoAdetTipApplied Date
33 BOLT; MUD COVER
FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 06 1 1307-1505
33 BOLT; MUD COVER
M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 06 1 1506-
41 RIVET; INNER LINER
THA 		8-94221-150-0 12 1 1307-
44 CLIP; ANCHOR
OD=22 L=10.7 THA 		8-94215-211-0 10 1 1307-
45 COVER; MUD,FENDER SKIRT
THA 		8-98077-267-1 01 1 1307-
45 COVER; MUD,FENDER SKIRT
THA 		8-98077-269-0 01 1 1307-
46 SCREW; INNER LINER
M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 04 1 1307-
92 NUT; MUD COVER
FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> (A) THA 		8-97125-519-0 06 1 1307-1505
92 NUT; MUD COVER
(A) THA 		8-97125-519-0 06 1 1506-
92 NUT; MUD COVER
(A) THA 		8-97125-519-0 04 1 1307-
92 NUT; MUD COVER
(B) M6 CAP NUT THA 		8-98049-850-0 02 1 1307-
108 WASHER; PL,PANEL TO FRAME
ID=6.5 OD=18 T=1.6 THA 		8-98049-851-0 02 1 1307-
261 RUBBER; FRT,MUD GUARD
EQUIPMENT IMPACT<EPS> FORMED MUD FLAP FRT & RR<Q8H> THA 		8-98184-707-0 01 1 1506-
261 RUBBER; FRT,MUD GUARD
EQUIPMENT IMPACT<EPS> FORMED MUD FLAP FRT & RR<Q8H> THA 		8-98184-708-0 01 1 1506-
261 RUBBER; FRT,MUD GUARD
EQUIPMENT IMPACT<EPS> FORMED MUD FLAP EXTEND FRT & RR<Q8J> THA 		8-98184-704-1 01 1 1506-
261 RUBBER; FRT,MUD GUARD
EQUIPMENT IMPACT<EPS> FORMED MUD FLAP EXTEND FRT & RR<Q8J> THA 		8-98184-705-1 01 1 1506-
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> THA 		8-98119-229-0 01 1 1307-1505
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> EXC. EQUIPMENT IMPACT<EPS> THA 		8-98119-229-0 01 1 1506-
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> THA 		8-98119-230-0 01 1 1307-1505
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> EXC. EQUIPMENT IMPACT<EPS> THA 		8-98119-230-0 01 1 1506-
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP EXTEND FRT & RR<Q8J> THA 		8-98077-271-1 01 1 1307-1505
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. EQUIPMENT IMPACT<EPS> THA 		8-98077-271-1 01 1 1506-
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP EXTEND FRT & RR<Q8J> THA 		8-98077-273-1 01 1 1307-1505
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. EQUIPMENT IMPACT<EPS> THA 		8-98077-273-1 01 1 1506-
295 COVER; WHEEL HOUSE
EQUIPMENT IMPACT<EPS> THA 		8-98187-396-1 01 1 1506-
295 COVER; WHEEL HOUSE
EQUIPMENT IMPACT<EPS> THA 		8-98187-397-1 01 1 1506-
307 RETAINER
EQUIPMENT IMPACT<EPS> (B) IMA 		8-97372-006-0 04 1 1506-
307 RETAINER
(A) THA 		8-98050-462-0 02 1 1307-
