Isuzu WW
▶
PICKUP
▶
TFR
▶
51485 - TFR SHORT(THAI)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-43 - SIDE TRIM
▶

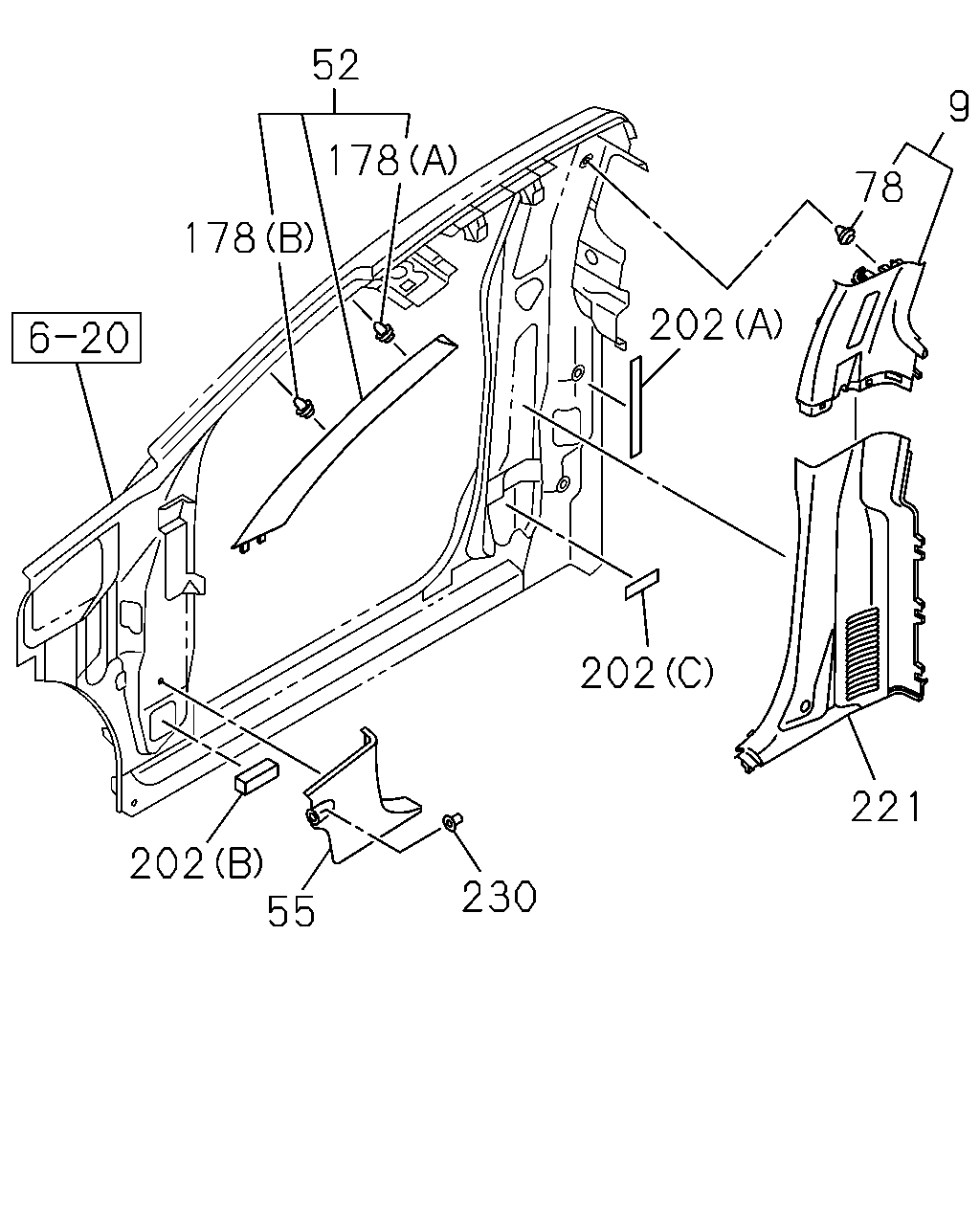

6-43 — SIDE TRIM
(#122406) — 15 parça
221
202
202
78
9
52
178
178
202
55
230
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
TRIM; SIDE PANEL,UPR
BLACK THA
8-97417-118-1
01
1
1307-
9
TRIM; SIDE PANEL,UPR
BLACK THA
8-97417-120-1
01
1
1307-
52
COVER; TRIM,FRT PILLAR
GRAY THA
8-97416-677-2
01
1
1307-
52
COVER; TRIM,FRT PILLAR
GRAY THA
8-97416-678-2
01
1
1307-
55
PAD; TRIM,DASH SIDE
BLACK THA
8-97416-673-3
01
1
1307-
55
PAD; TRIM,DASH SIDE
BLACK THA
8-97424-004-0
01
1
1307-
78
CLIP; TRIM PAD,SIDE PANEL
THA
8-97351-983-0
08
1
1307-
178
CLIP; TRIM COVER
(B) THA
8-98139-052-0
02
1
1307-
178
CLIP; TRIM COVER
(A) THA
8-98166-326-0
02
1
1307-
202
SEAL; CENTER PILLAR
(C) THA
8-97350-306-0
02
1
1307-
202
SEAL; CENTER PILLAR
(B) THA
8-97362-561-0
02
1
1307-
202
SEAL; CENTER PILLAR
(A) THA
8-98179-381-3
02
1
1307-
221
TRIM; SIDE PANEL,LOWER
BLACK THA
8-97417-114-3
01
1
1307-
221
TRIM; SIDE PANEL,LOWER
BLACK THA
8-97417-116-3
01
1
1307-
230
RETAINER; TRIM
BLACK THA
8-97416-808-0
02
1
1307-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
