◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51485 - TFR SHORT(THAI) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#122405) — 37 parça

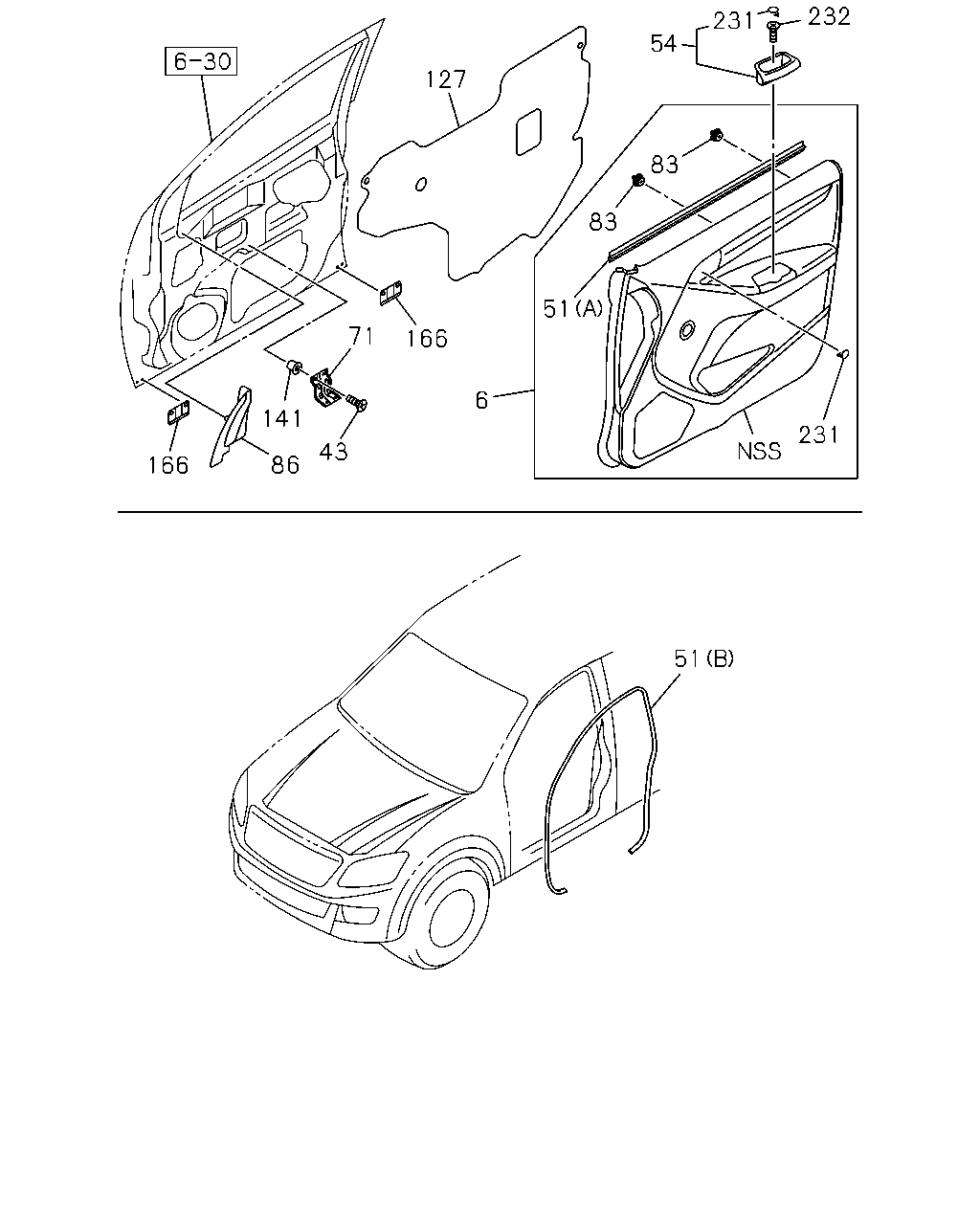

çizim 355030
127 231 232 54 83 83 51 231 6 166 71 141 166 43 86 51
BalonParca AdiParca NoAdetTipApplied Date
6 TRIM; DOOR,UPR
BLACK THA 		8-97416-740-7 01 1 1307-1505
6 TRIM; DOOR,UPR
AIR BAG DRIVER & PASSENGER DELETE<AK6> BLACK THA 		8-97416-740-7 01 1 1506-1506
6 TRIM; DOOR,UPR
BLACK THA 		8-97416-740-7 01 1 1506-
6 TRIM; DOOR,UPR
BLACK THA 		8-97416-742-7 01 1 1307-1505
6 TRIM; DOOR,UPR
AIR BAG DRIVER & PASSENGER DELETE<AK6> BLACK THA 		8-97416-742-7 01 1 1506-1506
6 TRIM; DOOR,UPR
BLACK THA 		8-97416-742-7 01 1 1506-
43 SCREW; DOOR POCKET
M5X14 TAPPING THA 		8-98184-363-0 04 1 1307-
51 WEATHERSTRIP; FRONT DOOR
(B) THA 		8-98201-892-0 02 1 1307-
51 WEATHERSTRIP; FRONT DOOR
(A) THA 		8-98109-544-3 01 1 1307-1505
51 WEATHERSTRIP; FRONT DOOR
AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) THA 		8-98109-544-3 01 1 1506-1506
51 WEATHERSTRIP; FRONT DOOR
(A) THA 		8-98109-544-3 01 1 1506-
51 WEATHERSTRIP; FRONT DOOR
(A) THA 		8-98109-545-3 01 1 1307-1505
51 WEATHERSTRIP; FRONT DOOR
AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) THA 		8-98109-545-3 01 1 1506-1506
51 WEATHERSTRIP; FRONT DOOR
(A) THA 		8-98109-545-3 01 1 1506-
54 BOX; FRT DOOR
BLACK THA 		8-97416-752-5 01 1 1307-
54 BOX; FRT DOOR
BLACK THA 		8-97416-753-5 01 1 1307-
71 BRACKET; ARM REST
THA 		8-98102-216-4 02 1 1307-
83 CLIP; DOOR TRIM
THA 		8-98160-729-0 18 1 1307-1505
83 CLIP; DOOR TRIM
AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98160-729-0 18 1 1506-1506
83 CLIP; DOOR TRIM
THA 		8-98160-729-0 18 1 1506-
86 COVER ASM; DOOR POCKET
BLACK THA 		8-97416-748-3 01 1 1307-
86 COVER ASM; DOOR POCKET
BLACK THA 		8-97416-749-3 01 1 1307-
127 SEAL; DOOR INNER
THA 		8-98103-523-1 01 1 1307-1505
127 SEAL; DOOR INNER
AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98103-523-1 01 1 1506-1509
127 SEAL; DOOR INNER
THA 		8-98103-523-1 01 1 1510-
127 SEAL; DOOR INNER
THA 		8-98103-524-1 01 1 1307-1505
127 SEAL; DOOR INNER
AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98103-524-1 01 1 1506-1509
127 SEAL; DOOR INNER
THA 		8-98103-524-1 01 1 1510-
141 GROMMET; SCREW,LWR COVER
THA 		8-94152-494-0 04 1 1307-
166 PLUG; HOLE
THA 		8-98197-448-0 04 1 1307-
231 COVER; HOLDER,BOLT
BLACK THA 		8-97416-610-0 02 1 1307-1505
231 COVER; HOLDER,BOLT
BLACK THA 		8-97416-610-0 02 1 1307-1505
231 COVER; HOLDER,BOLT
BLACK THA 		8-97416-610-0 02 1 1506-1506
231 COVER; HOLDER,BOLT
AIR BAG DRIVER & PASSENGER DELETE<AK6> BLACK THA 		8-97416-610-0 02 1 1506-1506
231 COVER; HOLDER,BOLT
BLACK THA 		8-97416-610-0 02 1 1506-
231 COVER; HOLDER,BOLT
BLACK THA 		8-97416-610-0 02 1 1506-
232 BOLT; DOOR TRIM
M5X14 TAPPING THA 		8-98184-363-0 02 1 1307-
