◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51485 - TFR SHORT(THAI) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-32 - FRONT DOOR LOCK AND HANDLE ▶
6-32 — FRONT DOOR LOCK AND HANDLE (#122404) — 27 parça

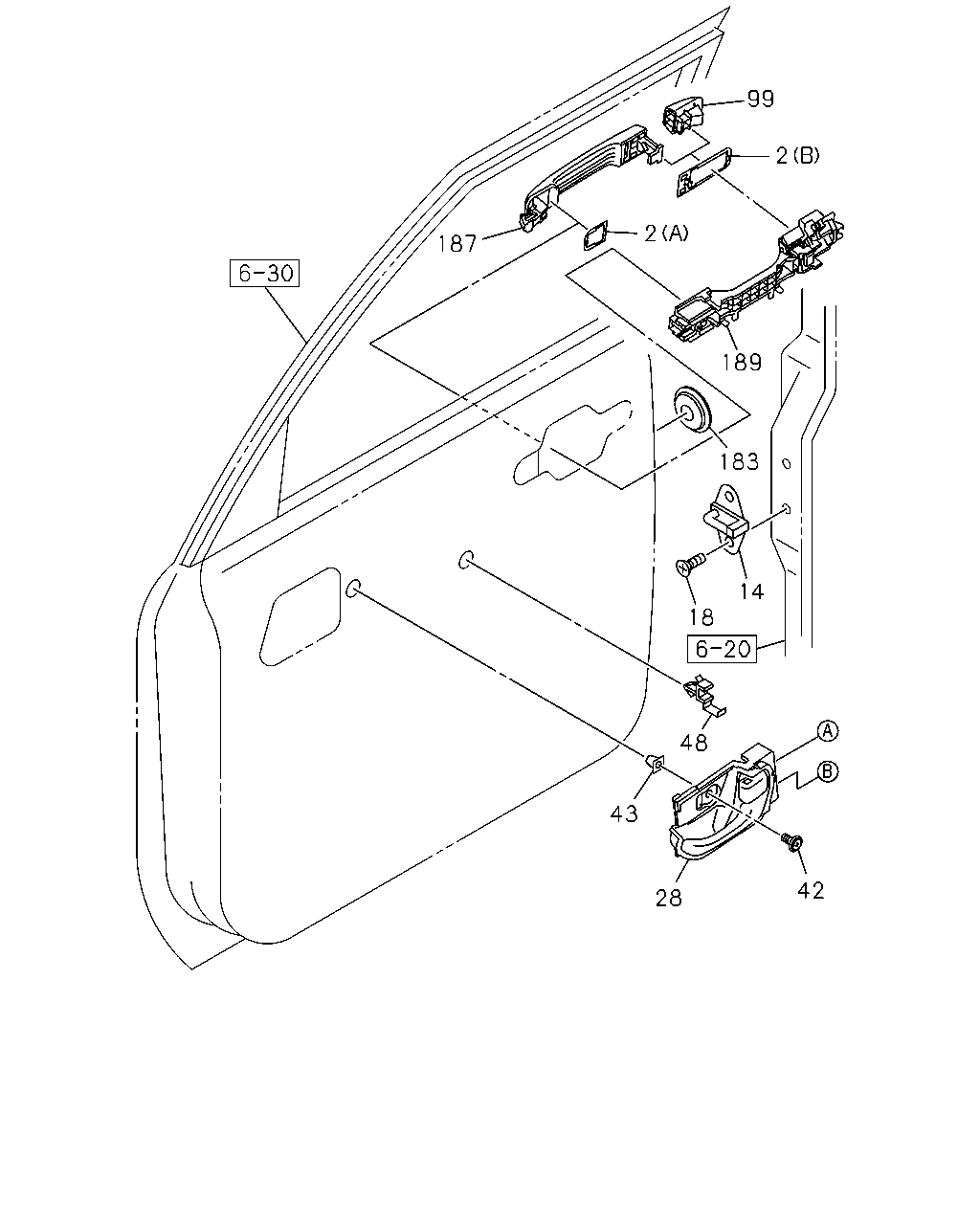

çizim 356654
14 18 183 189 2 2 99 187 48 43 28 42
BalonParca AdiParca NoAdetTipApplied Date
2 GASKET; OUTSIDE HANDLE,DOOR
(A) THA 		8-98176-466-0 02 1 1307-
2 GASKET; OUTSIDE HANDLE,DOOR
(B) THA 		8-98176-467-2 02 1 1307-
14 STRIKER; FRT DOOR
THA 		8-98012-203-0 02 1 1307-
18 SCREW; DOOR STRIKER
M8X35 THA 		8-98049-360-0 04 1 1307-
28 BEZEL; INSIDE LEVER,FRT DOOR
BLACK THA 		8-97416-726-4 01 1 1307-
28 BEZEL; INSIDE LEVER,FRT DOOR
BLACK THA 		8-97416-728-4 01 1 1307-
42 SCREW; TAPPING,INSIDE LEVER
M5X14 TAPPING THA 		8-98184-363-0 02 1 1307-
43 GROMMET; SCREW,INSIDE LEVER,DOOR
THA 		8-94152-494-0 02 1 1307-
48 ANTIRATTLER; DOOR LINK
THA 		8-97251-932-0 02 1 1307-
99 COVER; HOLE DOOR LOCK
THA 		8-98176-460-1 02 1 1307-
183 GROMMET
OD=26 THA 		8-94141-484-0 02 1 1307-
187 GRIP; FRT DOOR
THA 		8-98176-456-0 02 1 1307-
189 BRACKET; GRIP,DOOR
THA 		8-98176-469-4 01 1 1307-
189 BRACKET; GRIP,DOOR
THA 		8-98176-471-4 01 1 1307-
çizim 358943
8 36 12 51 176 175 175
BalonParca AdiParca NoAdetTipApplied Date
8 LOCK; DOOR,FRT DOOR
THA 		8-98231-759-0 01 1 1307-
8 LOCK; DOOR,FRT DOOR
THA 		8-98231-760-0 01 1 1307-
12 SCREW; DOOR LK
M6X14.5 THA 		8-98004-342-0 06 1 1307-
36 LINK; DOOR LOCK,OUTSIDE
THA 		8-98193-692-0 01 1 1307-
36 LINK; DOOR LOCK,OUTSIDE
THA 		8-98193-693-0 01 1 1307-
51 SNAP; FRT DOOR LOCK CONT ROD
THA 		8-97349-985-0 01 1 1307-
51 SNAP; FRT DOOR LOCK CONT ROD
THA 		8-97349-986-0 01 1 1307-
175 CABLE ASM; LOCK CONTROL
(A) THA 		8-98193-688-0 01 1 1307-
175 CABLE ASM; LOCK CONTROL
(B) THA 		8-98193-689-0 01 1 1307-
175 CABLE ASM; LOCK CONTROL
(A) THA 		8-98193-690-0 01 1 1307-
175 CABLE ASM; LOCK CONTROL
(B) THA 		8-98193-691-0 01 1 1307-
176 COVER; DOOR LOCK
THA 		8-97349-991-0 01 1 1307-
176 COVER; DOOR LOCK
THA 		8-97349-992-0 01 1 1307-
