Isuzu WW
▶
PICKUP
▶
TFR
▶
51485 - TFR SHORT(THAI)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-30 - FRONT DOOR AND HINGE
▶

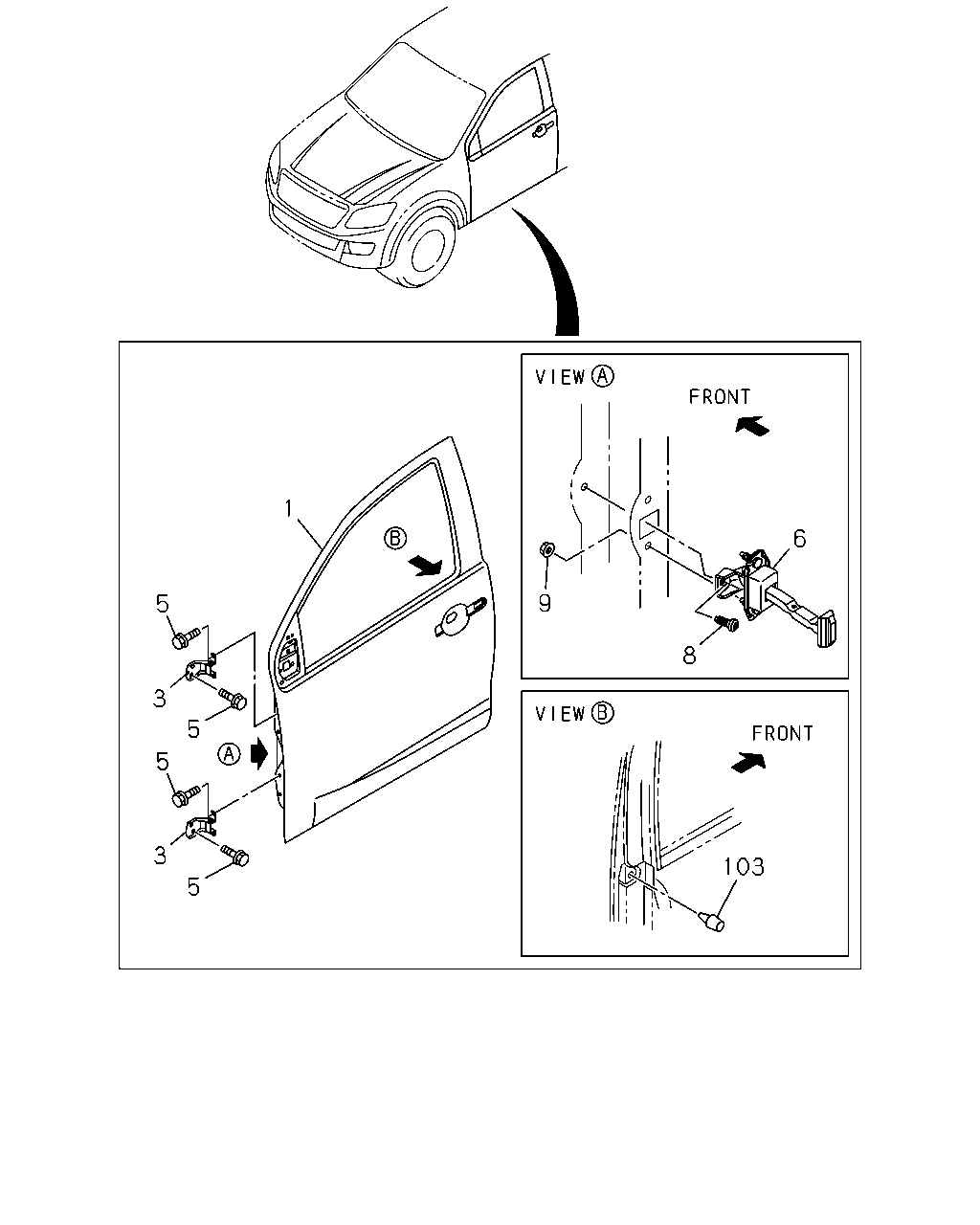

6-30 — FRONT DOOR AND HINGE
(#122402) — 17 parça
1
5
3
5
5
3
5
8
6
9
103
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DOOR ASM; FRT,WO/TRIM
THA
8-98268-842-0
01
1
1407-
1
DOOR ASM; FRT,WO/TRIM
THA
8-98268-843-0
01
1
1407-
1
DOOR ASM; FRT,WO/TRIM
THA
8-98162-202-2
01
1
1307-1312
1
DOOR ASM; FRT,WO/TRIM
THA
8-98162-203-2
01
1
1307-1312
3
HINGE; DOOR FRT
THA
8-98105-296-0
02
1
1407-
3
HINGE; DOOR FRT
THA
8-98105-297-0
02
1
1407-
3
HINGE; DOOR FRT
UPR RH & LWR LH THA
8-98105-296-0
02
1
1307-1312
3
HINGE; DOOR FRT
LWR RH & UPR LH THA
8-98105-297-0
02
1
1307-1312
5
BOLT; HINGE
M8X23 FLANGE THA
8-98005-842-0
08
1
1307-1312
5
BOLT; HINGE
M8X23 FLANGE THA
8-98005-842-0
08
1
1307-1312
5
BOLT; HINGE
M8X23 FLANGE THA
8-98005-842-0
08
1
1401-1406
5
BOLT; HINGE
M8X23 FLANGE THA
8-98005-842-0
08
1
1407-
5
BOLT; HINGE
M8X23 FLANGE THA
8-98005-842-0
08
1
1407-
6
ARM; CHECK,FRT DOOR
THA
8-98103-030-5
02
1
1307-
8
BOLT; CHECK ARM
M8X23 THA
8-98166-694-0
02
1
1307-
9
NUT; CHECK ARM
M6 FLANGE THA
8-98049-362-0
04
1
1307-
103
PROTECTOR; FRT DOOR
THA
8-98202-864-0
04
1
1307-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
