6-20 — SIDE PANEL AND STEP (#122401) — 31 parça

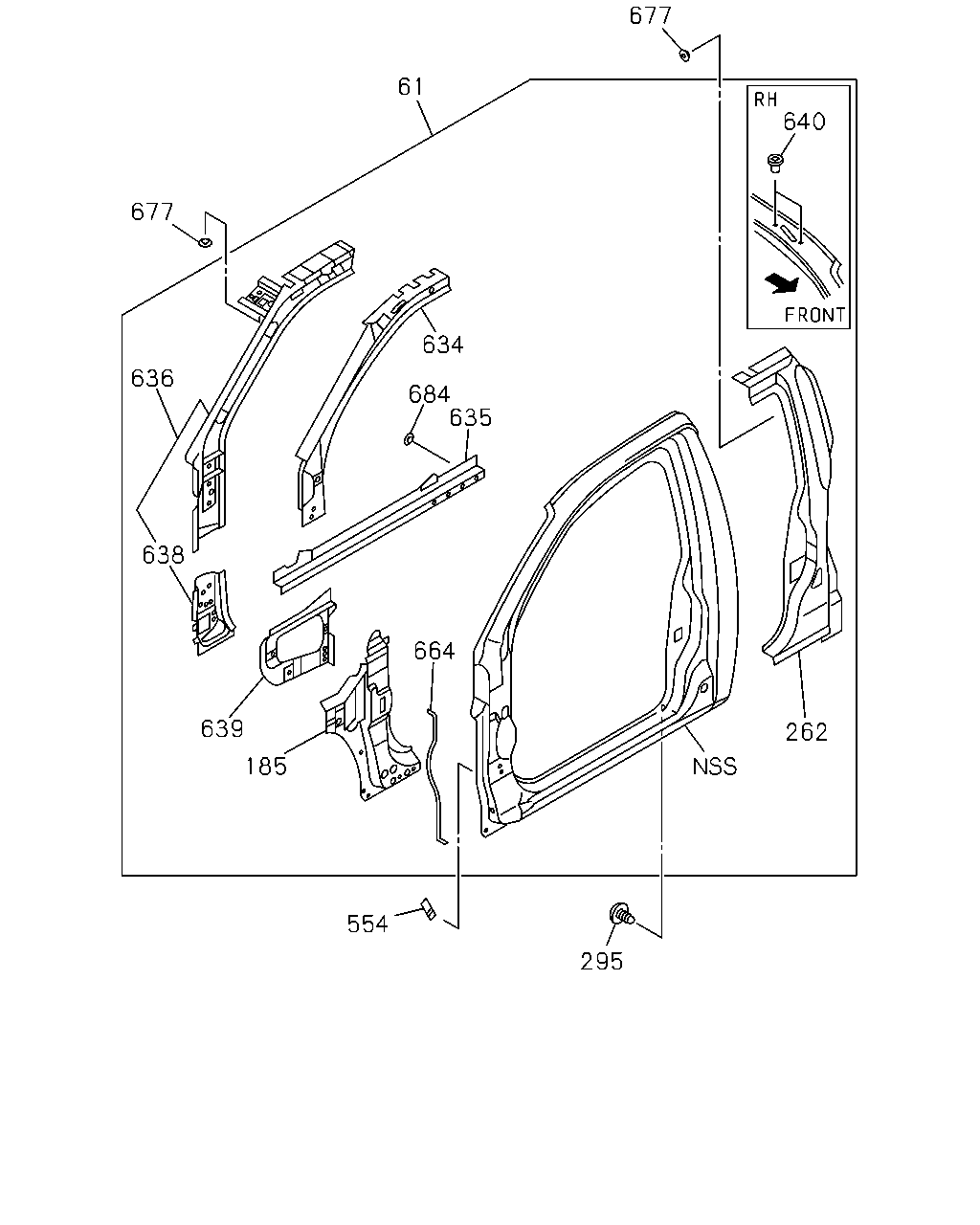

çizim 356649
677 640 61 677 634 684 635 636 638 639 185 554 295 262 664
BalonParca AdiParca NoAdetTipApplied Date
61 PANEL; SIDE OUTER
EQUIPMENT IMPACT<EPS> THA 		8-98103-242-6 01 1 1506-
61 PANEL; SIDE OUTER
EQUIPMENT IMPACT<EPS> THA 		8-98103-245-6 01 1 1506-
61 PANEL; SIDE OUTER
THA 		8-98160-817-5 01 1 1307-1505
61 PANEL; SIDE OUTER
EXC. EQUIPMENT IMPACT<EPS> THA 		8-98160-817-5 01 1 1506-
61 PANEL; SIDE OUTER
THA 		8-98160-830-5 01 1 1307-1505
61 PANEL; SIDE OUTER
EXC. EQUIPMENT IMPACT<EPS> THA 		8-98160-830-5 01 1 1506-
185 REINFORCEMENT; SIDE INNER LWR
THA 		8-98104-094-2 01 1 1307-
185 REINFORCEMENT; SIDE INNER LWR
THA 		8-98104-095-2 01 1 1307-
262 PANEL; PILLAR
THA 		8-98104-375-9 01 1 1307-1404
262 PANEL; PILLAR
THA 		8-98269-897-0 01 1 1405-
262 PANEL; PILLAR
THA 		8-98192-993-1 01 1 1307-
295 CLIP; BODY SIDE STEP
OD=18 THA 		8-94269-290-0 04 1 1307-
554 SEAL; INNER BODY
115X25 THA 		8-98178-886-0 02 1 1307-1505
634 REINFORCEMENT; BODY SIDE INNER
THA 		8-98104-071-2 01 1 1307-
634 REINFORCEMENT; BODY SIDE INNER
THA 		8-98104-072-2 01 1 1307-
635 REINFORCEMENT; ROCKER
EQUIPMENT IMPACT<EPS> THA 		8-98104-503-2 01 1 1506-
635 REINFORCEMENT; ROCKER
EQUIPMENT IMPACT<EPS> THA 		8-98104-504-2 01 1 1506-
635 REINFORCEMENT; ROCKER
THA 		8-98161-043-1 01 1 1307-1505
635 REINFORCEMENT; ROCKER
EXC. EQUIPMENT IMPACT<EPS> THA 		8-98161-043-1 01 1 1506-
635 REINFORCEMENT; ROCKER
THA 		8-98161-047-1 01 1 1307-1505
635 REINFORCEMENT; ROCKER
EXC. EQUIPMENT IMPACT<EPS> THA 		8-98161-047-1 01 1 1506-
636 PANEL; FRONT PILLAR INNER
THA 		8-98161-087-7 01 1 1307-
636 PANEL; FRONT PILLAR INNER
THA 		8-98161-090-7 01 1 1307-
638 PANEL; DASH SIDE INNER
THA 		8-98104-640-5 01 1 1307-
638 PANEL; DASH SIDE INNER
THA 		8-98104-641-5 01 1 1307-
639 REINFORCEMENT; COWL SIDE
THA 		8-98104-055-0 01 1 1307-
639 REINFORCEMENT; COWL SIDE
THA 		8-98185-421-0 01 1 1307-
640 POP NUT
M5 POP NUT THA 		8-97249-574-0 02 1 1307-
664 SEAL; TAPE
THA 		8-98193-408-2 02 1 1307-
677 RIVET; PANEL
THA 		8-98057-864-0 16 1 1307-
684 FASTENER
THA 		8-98057-864-0 14 1 1307-
