1-56 — EXHAUST BRAKE SYSTEM (#1224) — 54 parça

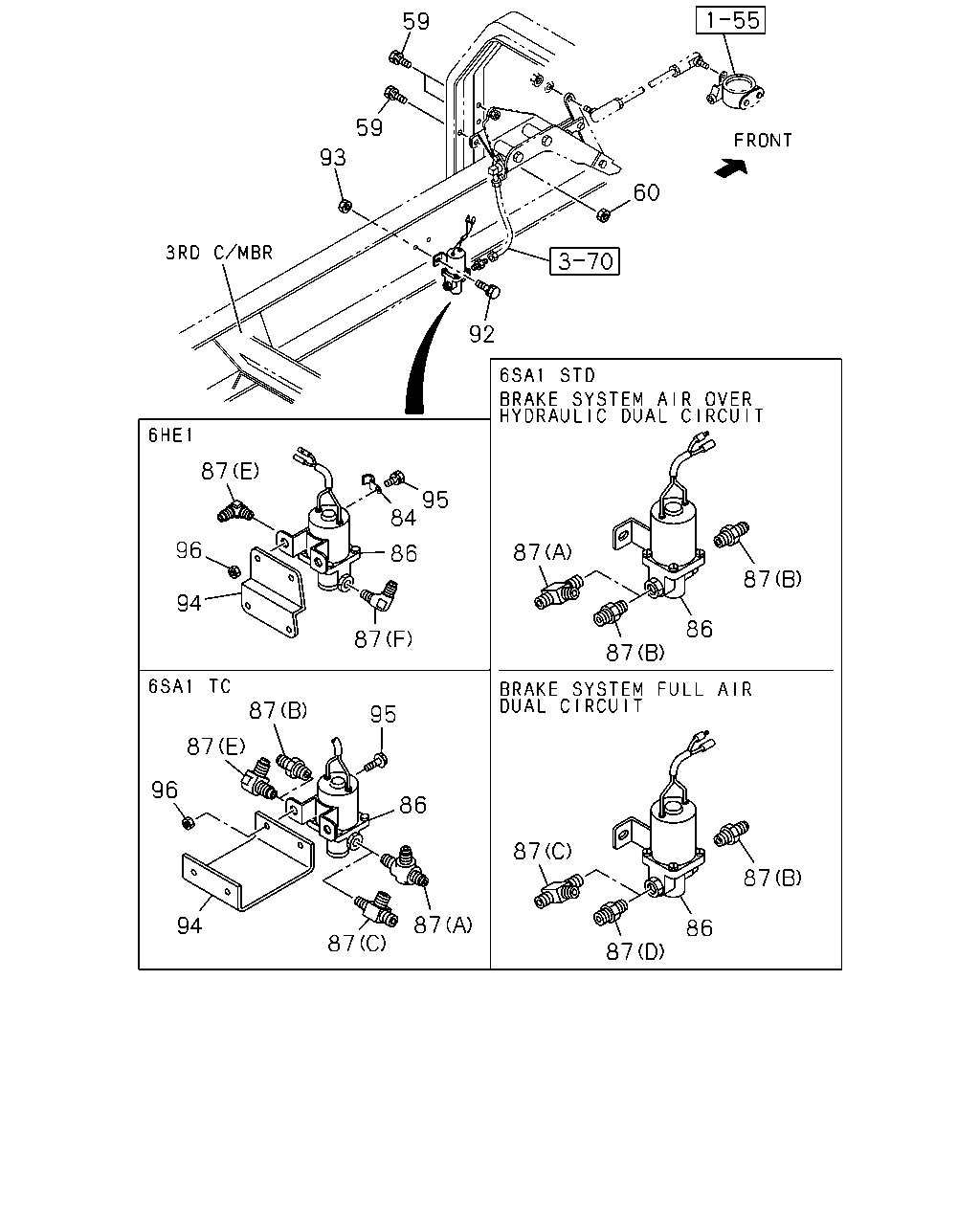

59 59 93 60 92 87 95 84 96 87 86 87 94 86 87 87 87 95 87 96 86 87 87 87 94 87 86 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
59	BOLT; CONT BOX TO BRKT EXHAUST BRAKE<NF8> M8X25 FLANGE	0-28080-825-0	03	1	9202-9205	●
59	BOLT; CONT BOX TO BRKT EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28080-820-0	03	1	9206-	●	●
60	NUT; CONT BOX EXHAUST BRAKE<NF8> M8	9-09110-408-0	01	1	9202-	●	●
84	CLIP; HARNESS EXHAUST BRAKE<NF8> ID=11 L=30	1-09700-511-0	01	1	9202-9207			●
84	CLIP; HARNESS EXHAUST BRAKE<NF8>	8-94332-786-0	01	1	9208-			●
86	VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8>	1-82563-196-0	01	1	9202-	●	●	●
87	CONNECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9202-	●
87	CONNECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXHAUST BRAKE<NF8> EXC. DUAL AIR GAUGE<UG2> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9202-	●
87	CONNECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXHAUST BRAKE<NF8> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9202-		●
87	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXHAUST BRAKE<NF8> PTO CONTROL<SV6> EXC. ASSISTER SHIFT CONTROL<WX8> (C)	1-09660-552-0	01	1	9202-	●
87	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXHAUST BRAKE<NF8> ASSISTER SHIFT CONTROL<WX8> (C)	1-09660-552-0	01	1	9202-	●
87	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXHAUST BRAKE<NF8> (C)	1-09660-552-0	01	1	9202-		●
87	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXHAUST BRAKE<NF8> EXC. PTO CONTROL<SV6>,ASSISTER SHIFT CONTROL<WX8> (D) 17/32" PT1/4	1-09660-573-0	01	1	9202-	●
87	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXHAUST BRAKE<NF8> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9202-	●	●
87	CONNECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXHAUST BRAKE<NF8> EXC. DUAL AIR GAUGE<UG2> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9202-	●
87	CONNECTOR EXHAUST BRAKE<NF8> (E) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9202-9302			●
87	CONNECTOR EXHAUST BRAKE<NF8> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-			●
87	CONNECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXHAUST BRAKE<NF8> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-		●
87	CONNECTOR EXHAUST BRAKE<NF8> (F) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9202-			●
92	BOLT; MAG VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXHAUST BRAKE<NF8> M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●
92	BOLT; MAG VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXHAUST BRAKE<NF8> M8X25 FLANGE	0-28080-825-0	02	1	9205-	●
92	BOLT; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXHAUST BRAKE<NF8> M8X30 FLANGE	0-28010-830-0	02	1	9202-9204	●
92	BOLT; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXHAUST BRAKE<NF8> M8X30 FLANGE	0-28080-830-0	02	1	9205-	●
92	BOLT; MAG VLV EXHAUST BRAKE<NF8> M8X30 FLANGE	0-28080-830-0	02	1	9205-		●
92	BOLT; MAG VLV EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28010-820-0	02	1	9202-9204			●
92	BOLT; MAG VLV EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28080-820-0	02	1	9205-			●
93	NUT; MAG VLV EXHAUST BRAKE<NF8> M8	9-09110-408-0	02	1	9202-	●	●	●
94	BRACKET; MAG VLV,EXH BRAKE EXHAUST BRAKE<NF8>	1-82569-104-0	01	1	9202-			●
94	BRACKET; MAG VLV,EXH BRAKE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXHAUST BRAKE<NF8>	1-82569-110-3	01	1	9305-		●
95	BOLT; BRKT,MAG VLV,EXH BRAKE EXHAUST BRAKE<NF8> M8X18	0-28010-818-0	02	1	9202-9204			●
95	BOLT; BRKT,MAG VLV,EXH BRAKE EXHAUST BRAKE<NF8> M8X18 FLANGE	0-28080-818-0	02	1	9205-9205			●
95	BOLT; BRKT,MAG VLV,EXH BRAKE EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28080-820-0	02	1	9206-			●
95	BOLT; BRKT,MAG VLV,EXH BRAKE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXHAUST BRAKE<NF8> M8X25 FLANGE	0-28080-825-0	02	1	9305-		●
96	NUT; BRKT,MAG VLV,EXH BRAKE EXHAUST BRAKE<NF8> M8	9-09110-408-0	02	1	9202-			●
96	NUT; BRKT,MAG VLV,EXH BRAKE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXHAUST BRAKE<NF8> M8	9-09110-408-0	02	1	9202-		●

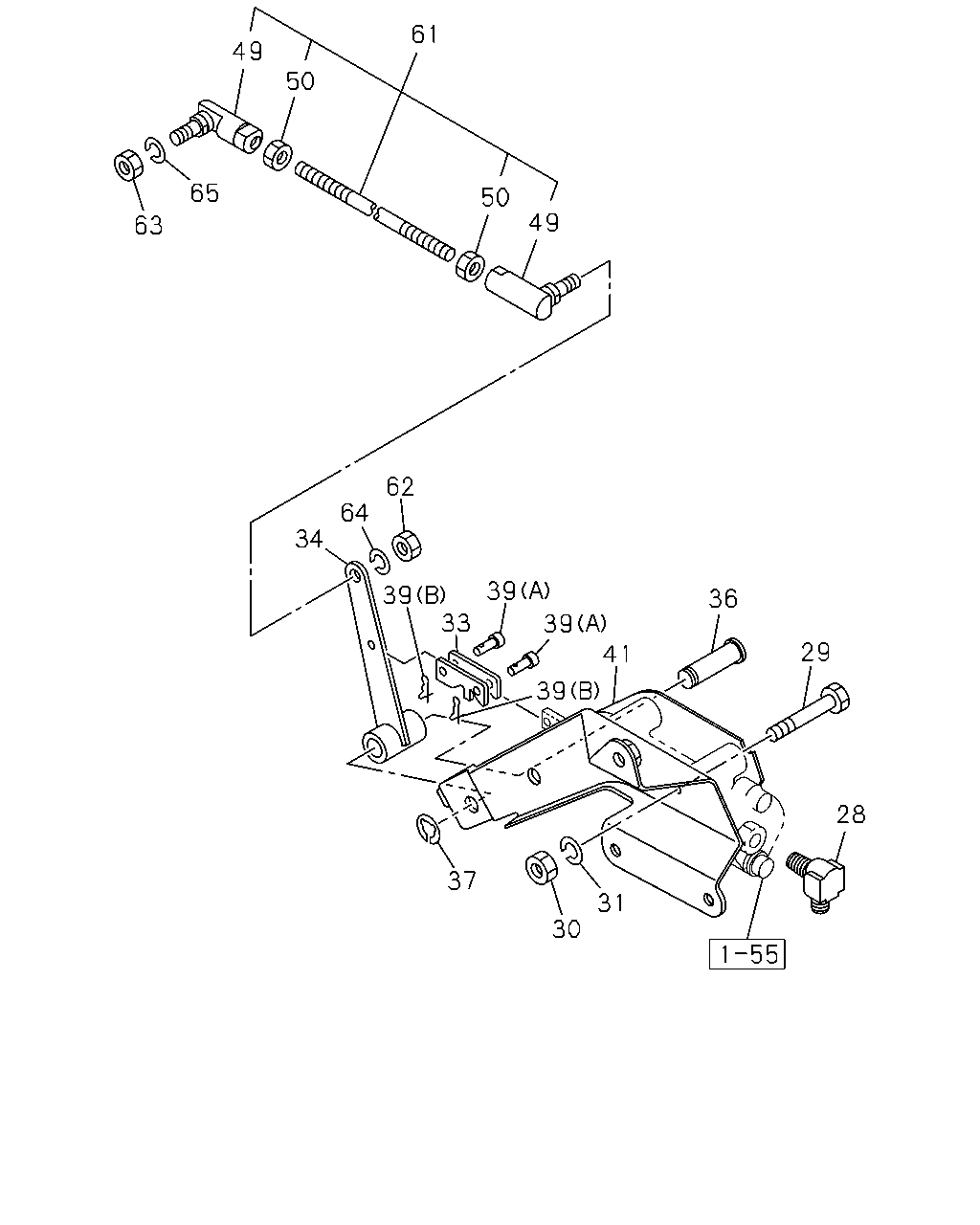

61 49 50 65 50 49 63 62 64 34 39 39 33 36 39 29 41 39 28 37 31 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
28	CONNECTOR; ELBOW,CONT CYL EXHAUST BRAKE<NF8>	1-09650-247-2	01	1	9202-	●	●
29	BOLT; CONT CYL EXHAUST BRAKE<NF8> M10X60	9-01046-060-0	02	1	9202-9204	●
29	BOLT; CONT CYL EXHAUST BRAKE<NF8> M10X60	0-10806-060-0	02	1	9205-	●	●
30	NUT; CONT CYL EXHAUST BRAKE<NF8> M10	9-09110-410-0	02	1	9202-	●	●
31	WASHER; PL,CONT CYL EXHAUST BRAKE<NF8> ID=10.2	9-09150-510-0	02	1	9202-	●	●
33	JOINT; YOKE,POWER CHAMBER EXHAUST BRAKE<NF8>	1-22199-053-0	01	1	9202-	●	●
34	LEVER; CONT BOX EXHAUST BRAKE<NF8>	1-22196-149-0	01	1	9202-	●	●
36	PIN; JOINT,CONT LEVER EXHAUST BRAKE<NF8>	9-08204-241-0	01	1	9202-	●	●
37	RING; SNAP,CONT LEVER EXHAUST BRAKE<NF8> ID=9	9-09185-409-0	01	1	9202-	●	●
39	PIN; JOINT YOKE EXHAUST BRAKE<NF8> (A)	1-22199-054-0	02	1	9202-	●	●
39	PIN; JOINT YOKE EXHAUST BRAKE<NF8> (B)	8-94157-840-0	02	1	9202-	●	●
41	BRACKET EXHAUST BRAKE<NF8>	1-22186-103-0	01	1	9202-	●	●
49	JOINT; BALL,LINK ROD EXHAUST BRAKE<NF8> RH THREAD	1-09760-009-0	02	1	9202-	●	●
50	NUT; JOINT BALL,LK EXHAUST BRAKE<NF8> M8	9-09110-408-0	02	1	9202-	●	●
61	ROD; LINK,EXH BRK EXHAUST BRAKE<NF8>	1-22190-515-0	01	1	9202-	●	●
62	NUT; LINK ROD EXHAUST BRAKE<NF8> M8	9-09110-408-0	01	1	9202-	●	●
63	NUT; LINK ROD,EXH BRK VLV EXHAUST BRAKE<NF8> M8	9-09110-408-0	01	1	9202-	●	●
64	WASHER; LK,LINK ROD EXHAUST BRAKE<NF8> ID=8.2	9-09150-508-0	01	1	9202-	●	●
65	WASHER; LK,LINK ROD,EXH BRK VLV EXHAUST BRAKE<NF8> ID=8.2	9-09150-508-0	01	1	9202-	●	●
