51485 - TFR SHORT(THAI)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-10 - ENGINE HOOD AND LOCK
▶
6-10 — ENGINE HOOD AND LOCK
(#122399) — 27 parça
◀

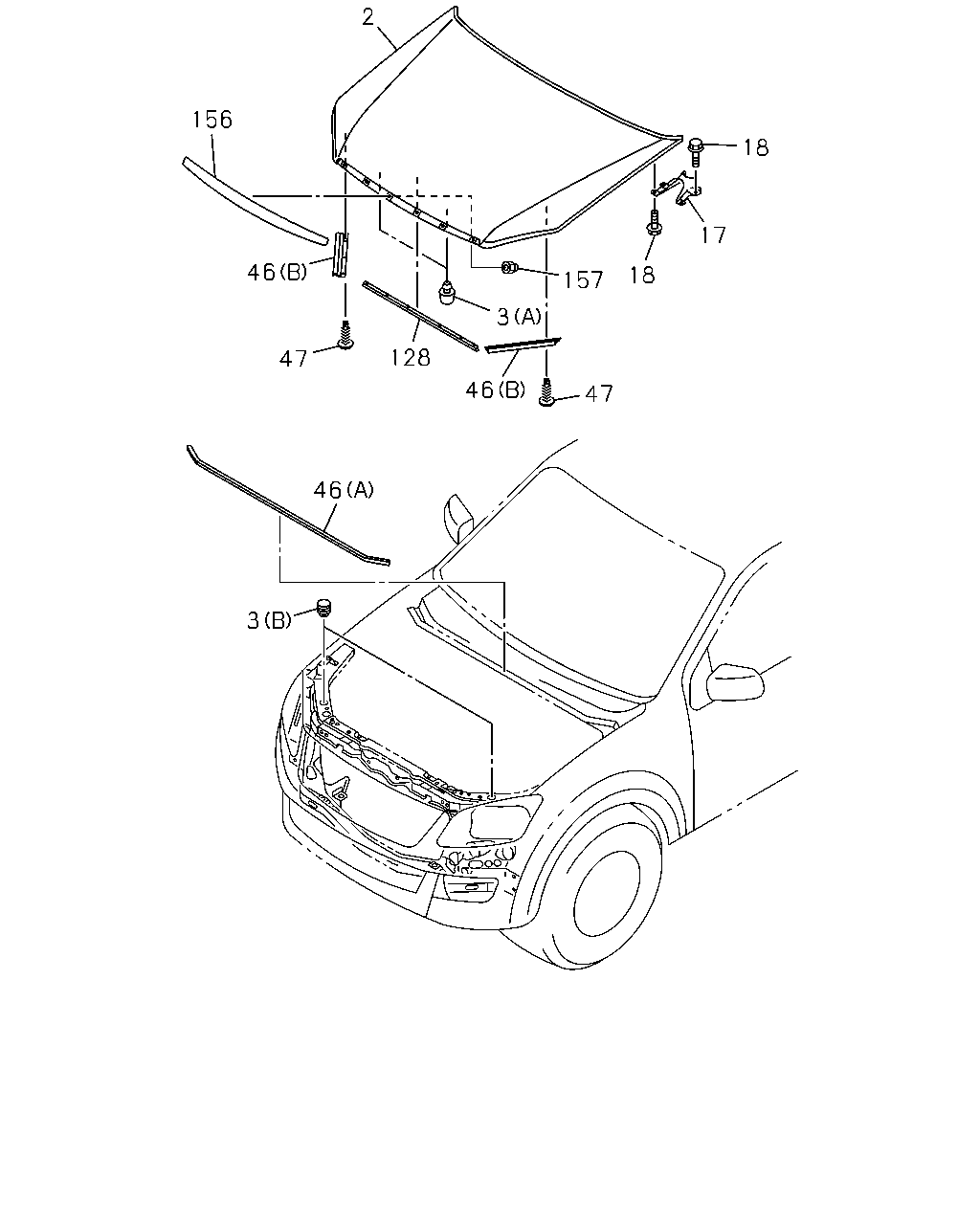

[610A] ENG HOOD (14 parça)

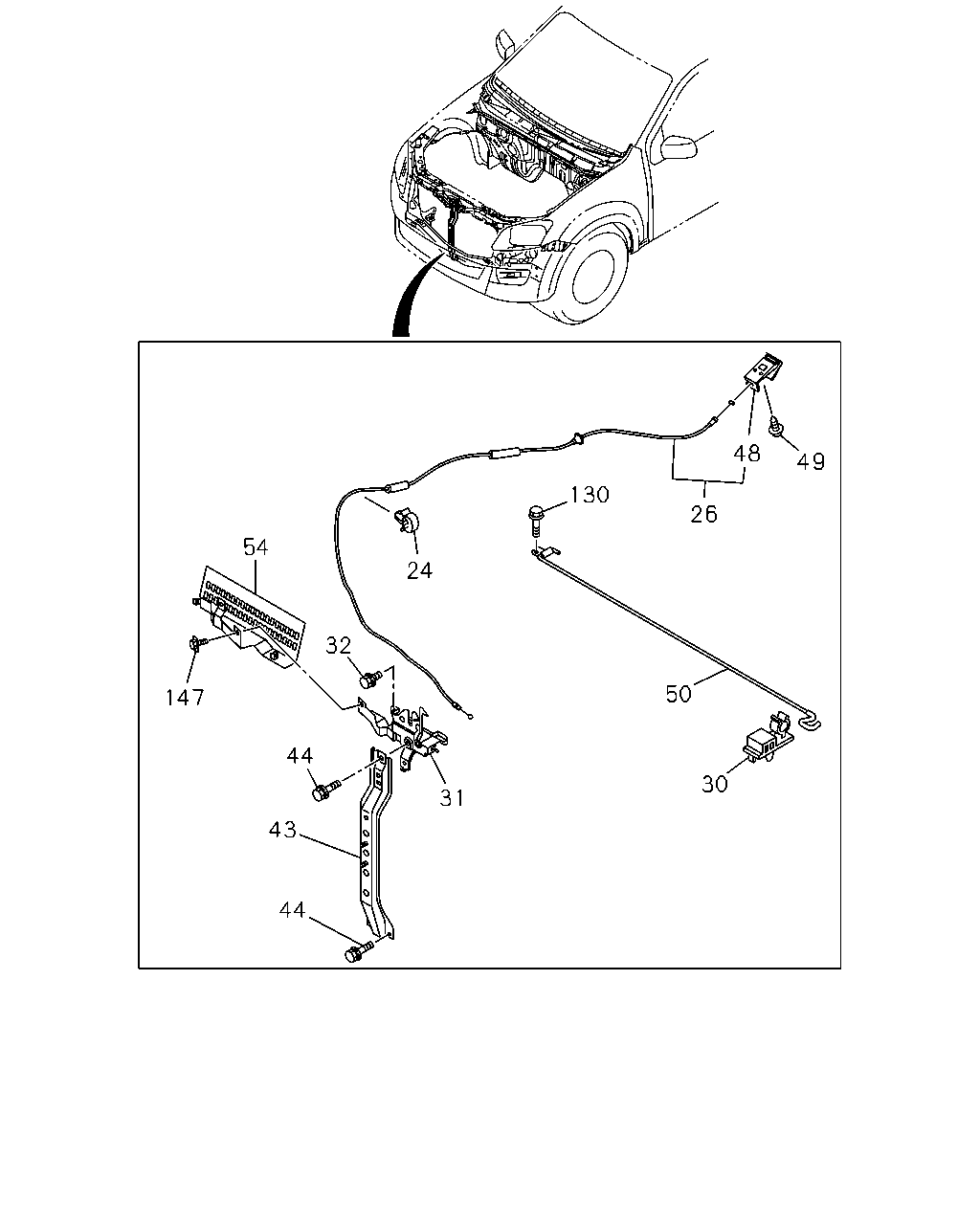

[610A] CABLE;ENG HOOD (13 parça)
▶
2
18
17
18
157
3
46
156
47
128
46
47
46
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
PANEL; ENG HOOD
THA
8-98193-817-0
01
1
1307-
3
BUFFER; ENG HOOD,FRT
(A) THA
8-94358-581-0
02
1
1307-1308
3
BUFFER; ENG HOOD,FRT
(A) THA
8-97948-266-0
02
1
1309-
3
BUFFER; ENG HOOD,FRT
(B) THA
8-98195-454-0
02
1
1307-
17
HINGE; ENG HOOD
THA
8-98104-099-2
01
1
1307-
17
HINGE; ENG HOOD
THA
8-98104-100-2
01
1
1307-
18
BOLT; HINGE
M8X16 THA
8-98056-122-0
08
1
1307-
46
SEAL; ENG HOOD
(A) THA
8-98065-805-1
01
1
1307-
46
SEAL; ENG HOOD
(B) THA
8-98160-815-1
01
1
1307-
46
SEAL; ENG HOOD
(B) THA
8-98165-802-1
01
1
1307-
47
CLIP; HOOD SEAL
OD=12 L=14.8 THA
8-94279-921-0
06
1
1307-
128
SEAL; PLATFORM
THA
8-98102-230-0
01
1
1307-
156
MOLDING; HOOD
THA
8-98181-163-3
01
1
1307-
157
NUT; MOLDING
M6 CAP NUT THA
8-98049-850-0
06
1
1307-
44
43
44
32
54
147
24
31
130
26
50
30
48
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
CLIP; CONT CABLE
THA
8-97182-405-0
03
1
1307-
26
CABLE; ENG HOOD CONT
THA
8-98071-759-1
01
1
1307-
30
CLIP; SUPPORT ROD,HOOD
THA
8-97301-356-0
01
1
1307-
31
LOCK; ENG HOOD
THA
8-98074-561-4
01
1
1307-
32
BOLT; HOOD LK
M6X20 W/PL WASHER THA
8-97370-668-0
02
1
1307-
43
STAY; ENG HOOD,FRT END
THA
8-98165-341-0
01
1
1307-
44
BOLT; STAY,HOOD
M6X20 W/PL WASHER THA
8-97370-668-0
04
1
1307-
48
LEVER; ENG HOOD
THA
8-98204-979-0
01
1
1307-
49
SCREW; LEVER,ENG HOOD OPENER
M5X16 TAPPING THA
8-98167-449-0
02
1
1307-
50
ROD; SUPPORT,ENG HOOD
THA
8-98101-948-1
01
1
1307-
54
PROTECTOR; ENG HOOD CABLE
THA
8-98160-811-2
01
1
1307-
130
BOLT; SUPPORT ROD,HOOD
M6X25 FLANGE THA
0-28650-625-0
01
1
1307-
147
CLIP; COVER
THA
8-94221-150-0
02
1
1307-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
