Isuzu WW
▶
PICKUP
▶
TFR
▶
51485 - TFR SHORT(THAI)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-01 - FRONT BUMPER
▶

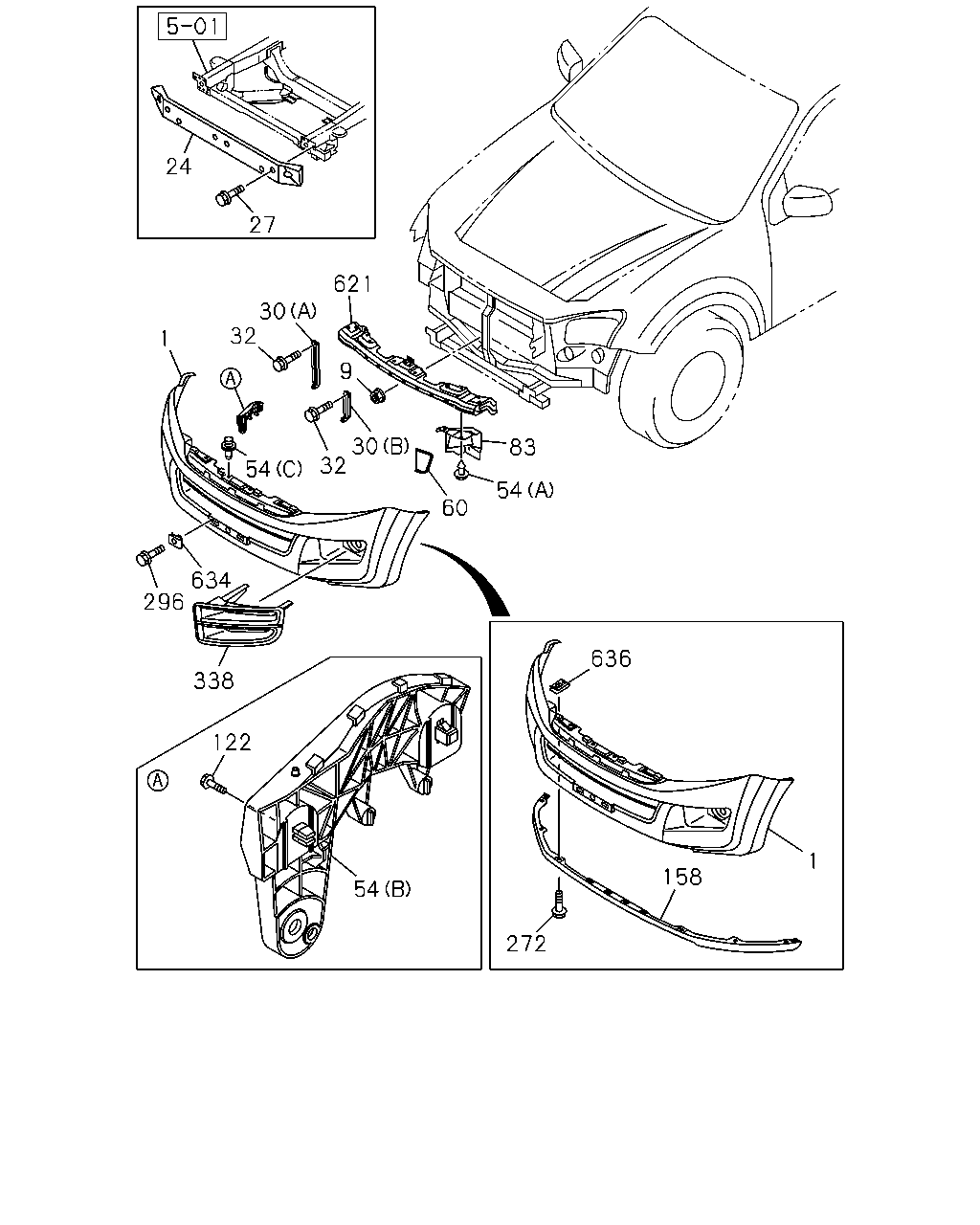

6-01 — FRONT BUMPER
(#122395) — 23 parça
24
27
621
83
54
60
30
32
54
9
30
32
1
634
296
338
122
54
272
158
636
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BUMPER ASM; FRT
THA
8-98193-444-2
01
1
1307-
9
NUT; REINF,FRT BUMPER
M6 FLANGE THA
0-91180-106-0
06
1
1307-
24
BAR; FRT BUMPER
THA
8-98165-112-1
01
1
1307-
27
BOLT; BUMPER TO BACK BAR
M10X25 FLANGE THA
0-28661-025-0
04
1
1307-
30
BRACKET; FRT BUMPER
(A) THA
8-98087-391-2
02
1
1307-
30
BRACKET; FRT BUMPER
(B) THA
8-98087-392-0
02
1
1307-
32
BOLT; BRKT,BUMPER
M6X16 FLANGE THA
0-28650-616-0
06
1
1307-
54
RETAINER; FRT BUMPER
(C) THA
8-97301-188-0
10
1
1307-
54
RETAINER; FRT BUMPER
(A) THA
8-98050-462-0
06
1
1307-
54
RETAINER; FRT BUMPER
(B) THA
8-98074-256-4
01
1
1307-
54
RETAINER; FRT BUMPER
(B) THA
8-98074-257-4
01
1
1307-
60
SPACER; FRT BUMPER
THA
8-98140-340-1
01
1
1307-
83
GUIDE; AIR,FRT BUMPER
THA
8-98139-694-0
01
1
1307-
83
GUIDE; AIR,FRT BUMPER
THA
8-98139-695-0
01
1
1307-
122
BOLT; RET,FRT BUMPER
M6X16 TAPPING W/PL WASHER THA
0-74160-616-0
02
1
1307-
158
EXTENSION; FRT BUMPER
THA
8-98099-823-1
01
1
1307-
272
BOLT; BUMPER TO EXT
M6X15 TAPPING W/PL WASHER THA
8-98164-799-0
10
1
1307-
296
BOLT; LICENSE PLATE,FRT
M6X16 FLANGE THA
0-28050-616-0
02
1
1307-
338
BEZEL; FOG LAMP
THA
8-98099-827-1
01
1
1307-
338
BEZEL; FOG LAMP
THA
8-98099-828-1
01
1
1307-
621
SUPPORT; FRT BUMPER
THA
8-98087-390-1
01
1
1307-
634
NUT; LICENCE PLATE
THA
8-98054-813-0
02
1
1307-
636
NUT; EXT,FRT BUMPER
THA
8-98072-786-0
10
1
1307-
