◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10876 - EXZ RHD FUEL TANK 200L+200L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#12239) — 34 parça
çizim 23927
25 24 435 380 328 328 497 497
BalonParca AdiParca NoAdetTipApplied Date
24 BOX; SW,CAB TILT
AUTO CAB TILT<WV2> 		1-82389-007-1 01 1 0105-
25 BOLT; SW BOX
AUTO CAB TILT<WV2> M6X16 FLANGE 		0-28080-616-0 02 1 0105-
328 NUT
M16 		9-99111-416-0 02 1 0105-
380 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 0105-
380 SEAL
EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 04 1 0105-
380 SEAL
EXC. DELUXE CAB(W14) OD=25 BLACK 		1-76798-019-0 01 1 0105-
435 GROMMET
OD=25 BLACK 		1-76798-019-0 03 1 0105-
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 0105-
497 SWITCH; CAB TILT
(B) 		1-82380-128-1 01 1 0105-

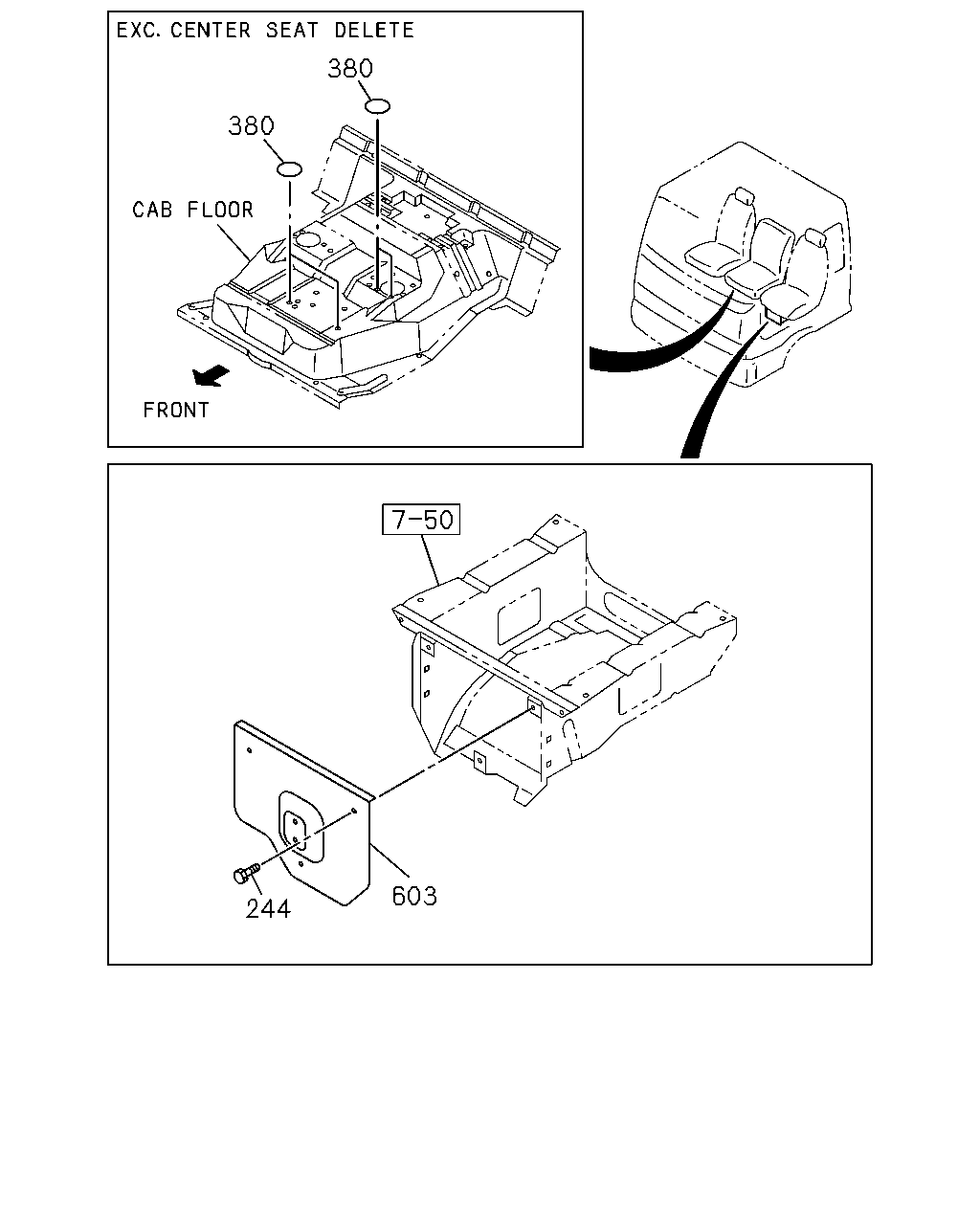

çizim 80367
380 380 603 244
BalonParca AdiParca NoAdetTipApplied Date
244 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-
380 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 0105-
380 SEAL
EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 04 1 0105-
380 SEAL
EXC. DELUXE CAB(W14) OD=25 BLACK 		1-76798-019-0 01 1 0105-
603 COVER; CONT UNIT,SEAT STAND 1-75557-489-1 01 1 0105-
çizim 81359
38 40 39 380 483 491
BalonParca AdiParca NoAdetTipApplied Date
38 BRACKET; SW,STARTER SUB 1-82699-741-0 01 1 0105-
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28680-820-0 02 1 0105-
40 NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE 		0-91150-108-0 02 1 0105-
380 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 0105-
380 SEAL
EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 04 1 0105-
380 SEAL
EXC. DELUXE CAB(W14) OD=25 BLACK 		1-76798-019-0 01 1 0105-
483 SWITCH
DELUXE CAB(W14) 		1-82440-118-0 01 1 0105-
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0105-
çizim 81469
1 303 2 486 485
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-97064-970-1 01 1 0105-0108
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0109-
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0105-
303 SCREW; CONT UNIT
MIR STAY O/S W/REMOTE<TBA> M5X14 		8-94279-325-0 01 1 0105-
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 0105-
486 CONTROL UNIT; MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-82540-046-0 01 1 0105-

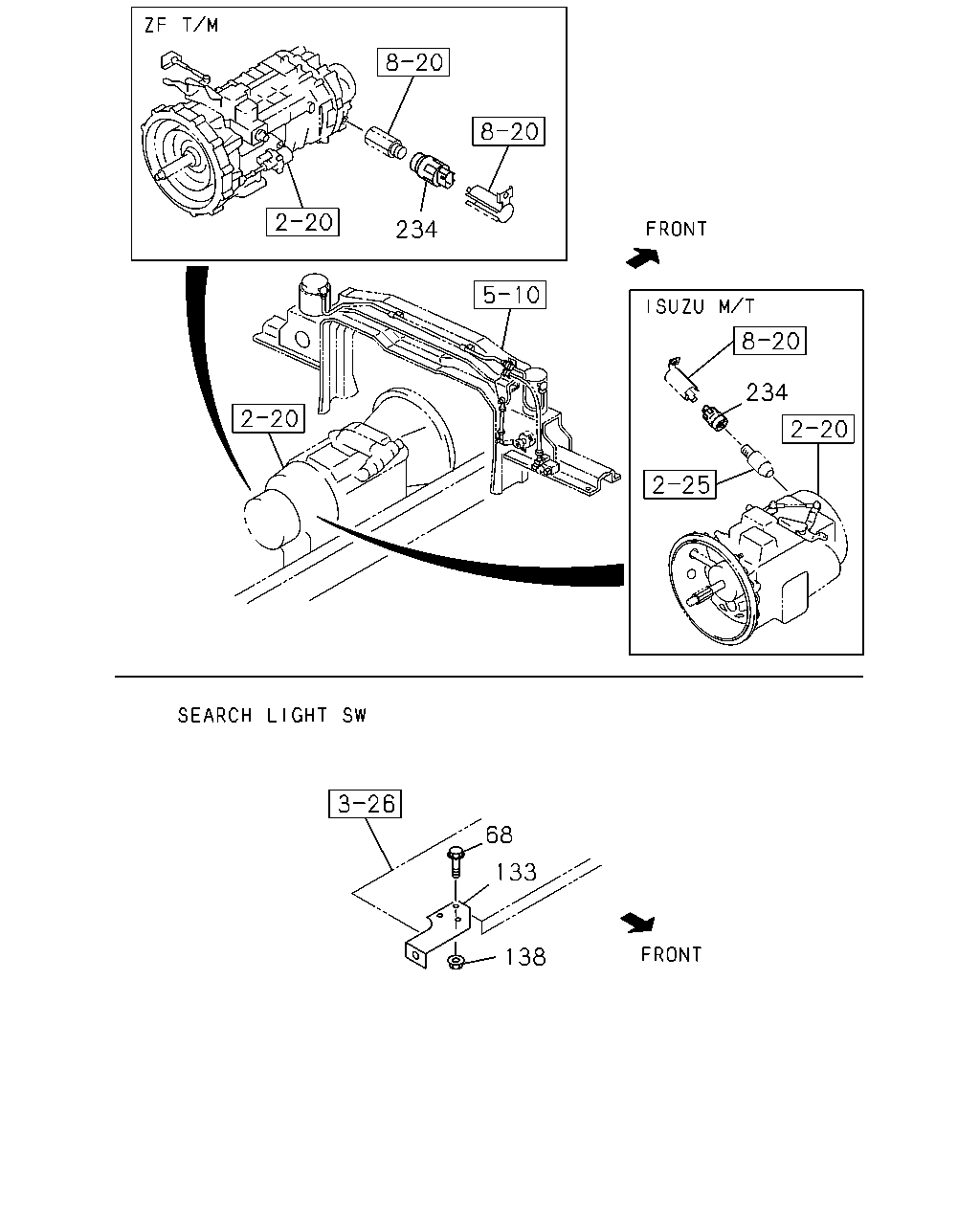

çizim 81542
234 234 68 133 138
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0105-0105
68 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0105-
133 BRACKET; SWITCH 1-82699-874-0 01 1 0105-
138 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0105-
234 SENSOR; VEHICLE SPD
ISUZU M/T<X9A>,ZF M/T<X9E> 		1-80240-001-1 01 1 0105-0202
234 SENSOR; VEHICLE SPD
ISUZU M/T<X9A>,ZF M/T<X9E> 25 PULSE ALUMINUM 		8-97328-058-0 01 1 0203-
