◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51485 - TFR SHORT(THAI) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶
4-65 — REAR LEAF SPRING (#122387) — 12 parça

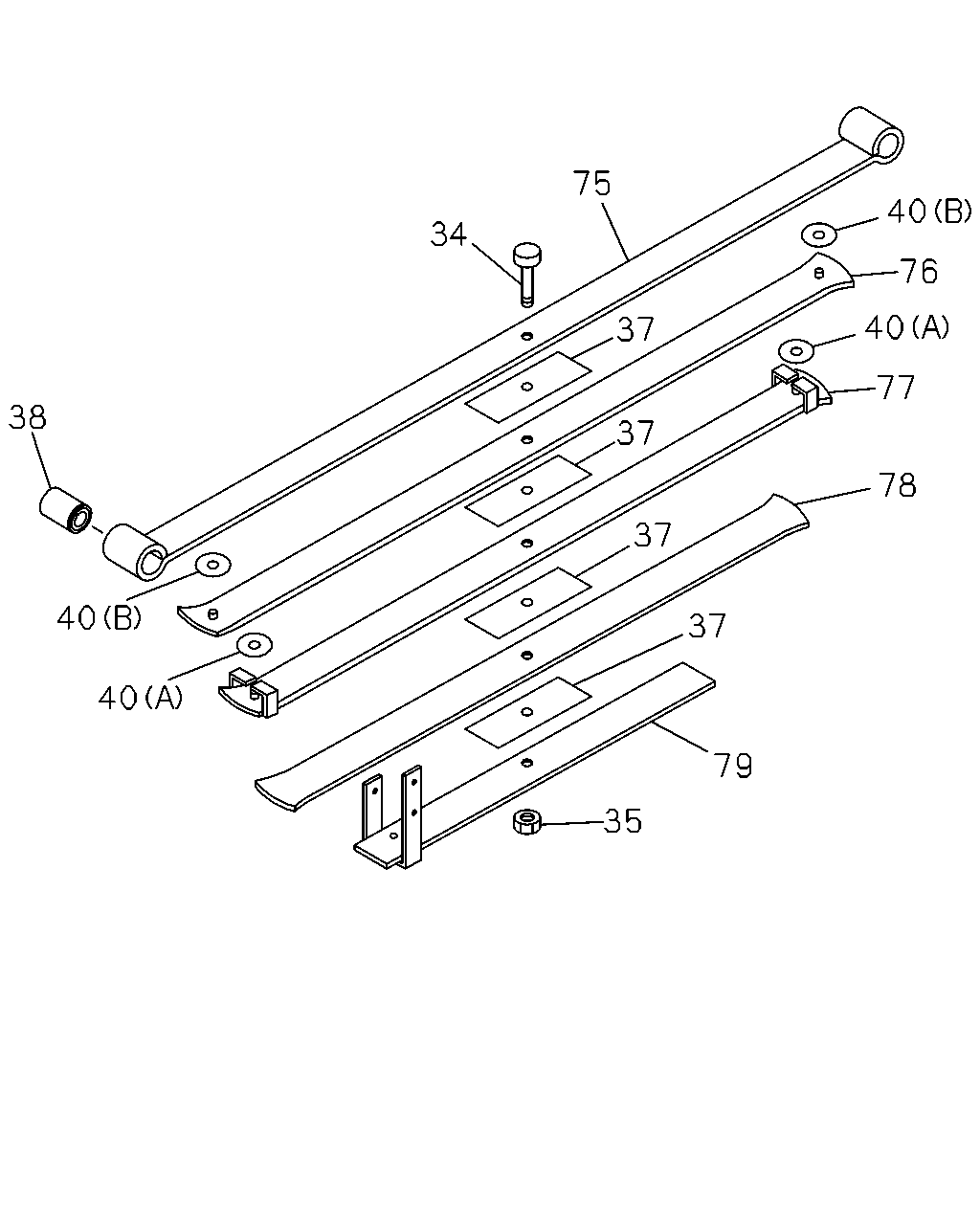

çizim 356770
35 79 78 77 40 76 40 75 34 37 37 37 37 40 40 38
BalonParca AdiParca NoAdetTipApplied Date
34 BOLT; CENTER,LEAF SPR,RR MAIN
M8X62, THA ASM PART: A = 8-98201-543-3 		8-97947-234-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M8, THA ASM PART: A = 8-98201-543-3 		8-97945-821-0 01 1 -
37 SPACER; CENTER,LEAF SPR,RR
THA ASM PART: A = 8-98201-543-3 		8-97947-195-0 04 1 -1410
37 SPACER; CENTER,LEAF SPR,RR
THA ASM PART: A = 8-98201-543-3 		8-98296-471-0 04 1 1411-
38 BUSHING; LEAF SPR,RR
THA ASM PART: A = 8-98201-543-3 		8-97947-171-0 01 1 -
40 LINER; LEAF SPR,RR
(B), THA ASM PART: A = 8-98201-543-3 		8-98218-583-0 02 1 -
40 LINER; LEAF SPR,RR
(A), THA ASM PART: A = 8-98201-543-3 		8-98218-584-0 02 1 -
75 SPRING; LEAF,NO 1,RR
THA ASM PART: A = 8-98201-543-3 		8-98210-417-0 01 1 -
76 SPRING; LEAF,NO 2,RR
THA ASM PART: A = 8-98201-543-3 		8-98210-418-1 01 1 -
77 SPRING; LEAF,NO 3,RR
THA ASM PART: A = 8-98201-543-3 		8-98210-419-1 01 1 -
78 SPRING; LEAF,NO 4,RR
THA ASM PART: A = 8-98201-543-3 		8-98210-420-1 01 1 -
79 SPRING; LEAF,NO 5,RR
THA ASM PART: A = 8-98201-543-3 		8-98210-421-2 01 1 -
