Isuzu WW
▶
PICKUP
▶
TFR
▶
51485 - TFR SHORT(THAI)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶

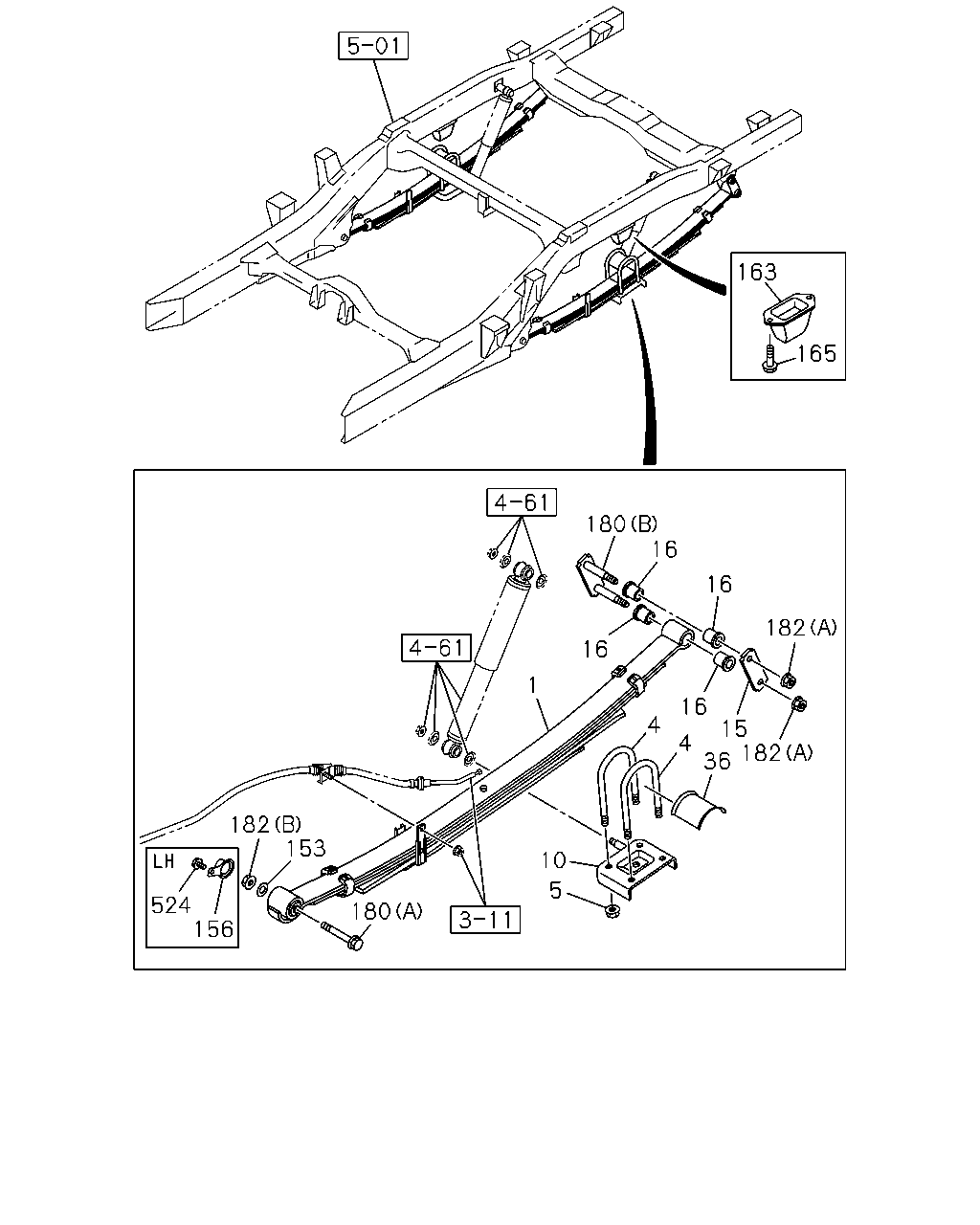

4-60 — REAR SUSPENSION
(#122385) — 17 parça
163
165
182
16
16
180
182
15
16
16
36
4
4
1
10
5
180
153
182
524
156
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF THA
8-98201-543-3
02
1
1307-
4
U-BOLT; RR SPR
L=175 THA
8-97947-045-0
04
1
1307-
5
NUT; U-BOLT,RR SPR
M14 FLANGE THA
8-97245-635-0
08
1
1307-
10
CLAMP; LWR,RR SPR
THA
8-98160-070-0
01
1
1307-
10
CLAMP; LWR,RR SPR
THA
8-98160-083-0
01
1
1307-
15
SHACKLE; RR SPR
THA
8-98005-815-0
02
1
1307-
16
BUSHING; SHACKLE,RR SPR
THA
8-97357-492-0
08
1
1307-
36
SEAT; HELPER RUBBER,RR SPR
THA
8-98005-878-0
02
1
1307-
153
WASHER; PL,SPRING PIN
ID=14.5 OD=30 THA
8-98005-921-0
02
1
1307-
156
PROTECTOR; LEAF SPRING,RR SUSP
THA
8-97947-363-0
01
1
1307-
163
RUBBER; HELPER,RR SPR
THA
8-97946-803-1
02
1
1307-
165
BOLT; HELPER RUBBER
M10X30 FLANGE THA
0-28661-030-0
04
1
1307-
180
PIN; RR SPR
(A) THA
8-97947-078-0
02
1
1307-
180
PIN; RR SPR
(B) THA
8-98005-814-0
02
1
1307-
182
NUT; PIN,RR SPR
(A) M14 FLANGE THA
0-91180-114-0
04
1
1307-
182
NUT; PIN,RR SPR
(B) M14 FLANGE THA
8-97245-651-0
02
1
1307-
524
BOLT; RR SPR
M8X20 FLANGE THA
0-28650-820-0
01
1
1307-
