8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#12238) — 40 parça

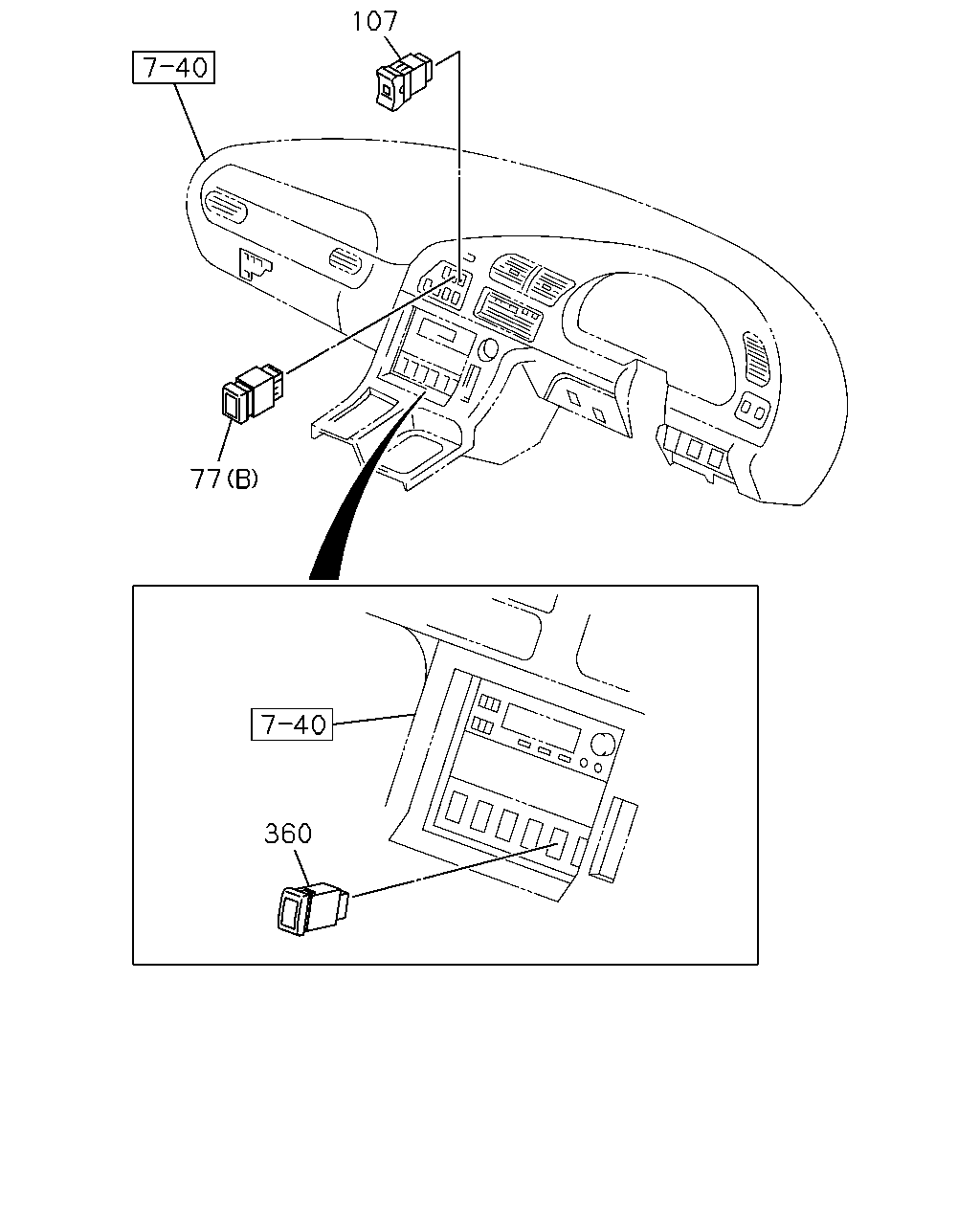

çizim 21067
107 77 360
BalonParca AdiParca NoAdetTipApplied Date
77 SWITCH; PTO
DUMP CONTROL LEVER<RC4> (A) 		1-82380-112-0 01 1 0105-
77 SWITCH; PTO
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-82340-413-0 01 1 0105-
107 SWITCH; REMOTE CONT,MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-82350-233-0 01 1 0105-
360 SWITCH ASM; DIFF LK 1-82340-677-0 01 1 0105-

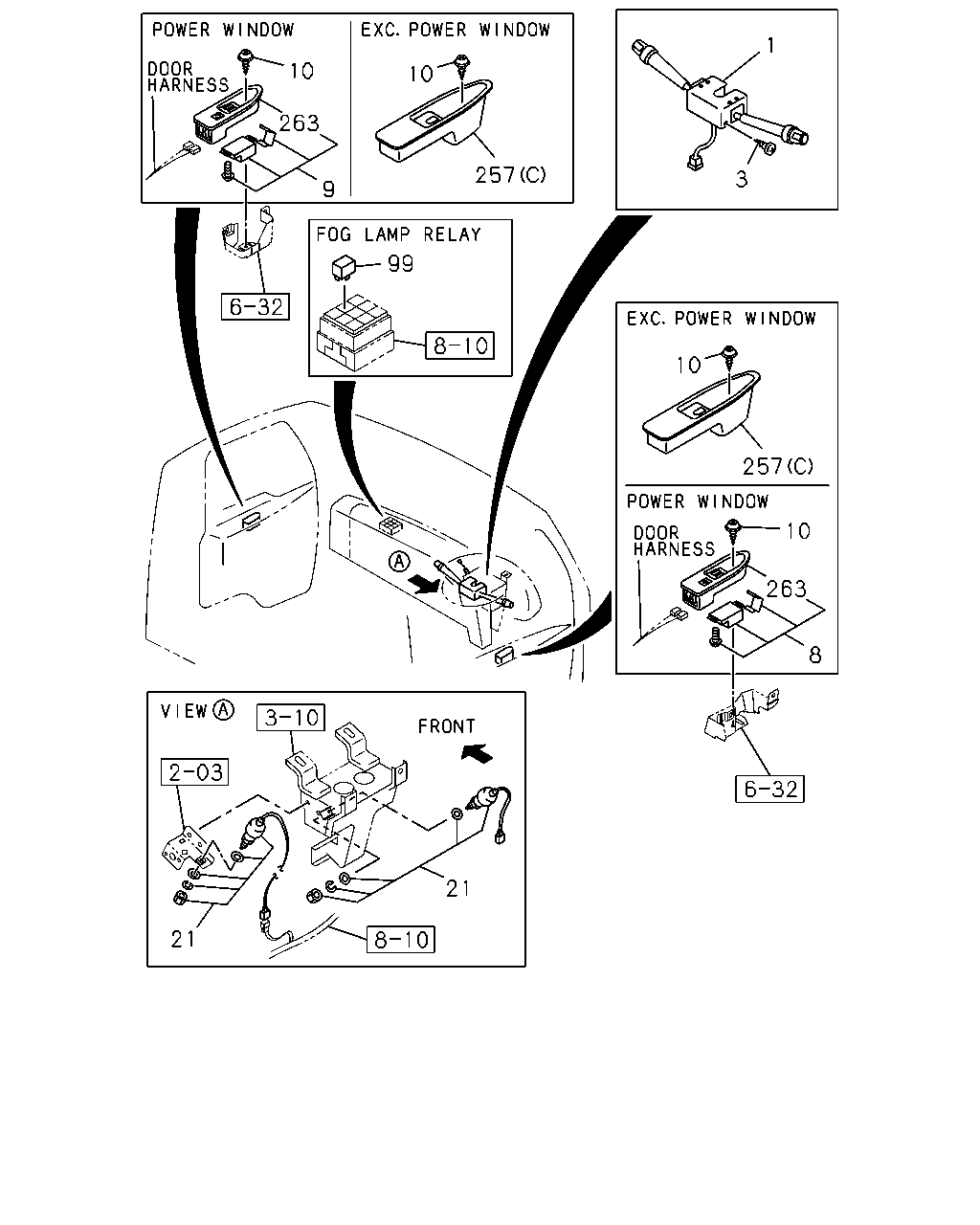

çizim 80333
1 263 10 10 257 3 99 10 257 10 263 8 21 21 9
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB 1-82360-619-0 01 1 0105-
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 0105-
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER 		1-82380-155-3 01 1 0105-
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER 		1-82380-154-3 01 1 0105-
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0105-
21 SWITCH; CLU
ZF M/T<X9E> 		1-82380-114-3 01 1 0105-
21 SWITCH; CLU 1-82380-114-3 01 1 0105-
99 RELAY; FOG LAMP
24V 12.5A JIDECO 		8-97062-815-1 01 1 0105-0111
99 RELAY; FOG LAMP
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 0105-
257 COVER; HOLE,SW
AUTO CAB TILT<WV2> (A) 		1-82389-008-0 01 1 0105-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 0105-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 0105-
263 COVER; SW
POWER WINDOW<A30> DRIVER SIDE 		1-82385-005-2 01 1 0105-
263 COVER; SW
POWER WINDOW<A30> PASSENGER SIDE 		1-82385-006-3 01 1 0105-
çizim 80631
255 258
BalonParca AdiParca NoAdetTipApplied Date
255 SWITCH; SEARCH LIGHT
INSPECTION LAMP<T95> 		1-82340-360-1 01 1 0105-
258 SWITCH; FLASHER UNIT 1-82410-137-0 01 1 0105-

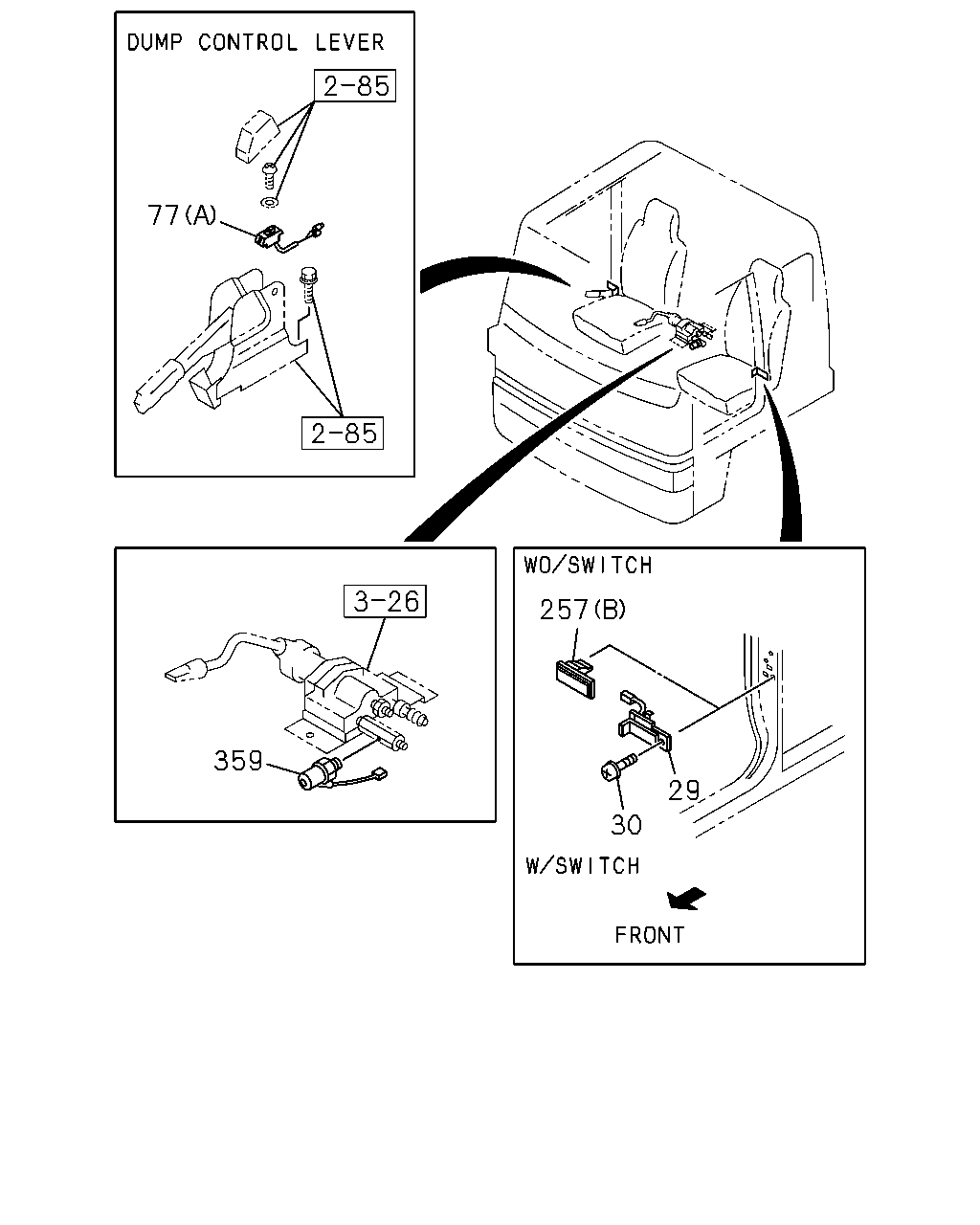

çizim 80947
77 257 359 29 30
BalonParca AdiParca NoAdetTipApplied Date
29 SWITCH; DOOR 8-97855-032-3 01 1 0105-
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 0105-
77 SWITCH; PTO
DUMP CONTROL LEVER<RC4> (A) 		1-82380-112-0 01 1 0105-
77 SWITCH; PTO
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-82340-413-0 01 1 0105-
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 0105-
257 COVER; HOLE,SW
AUTO CAB TILT<WV2> (A) 		1-82389-008-0 01 1 0105-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 0105-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 0105-
359 SWITCH; TRAILER PARKING
GREEN 		1-82410-176-0 01 1 0105-

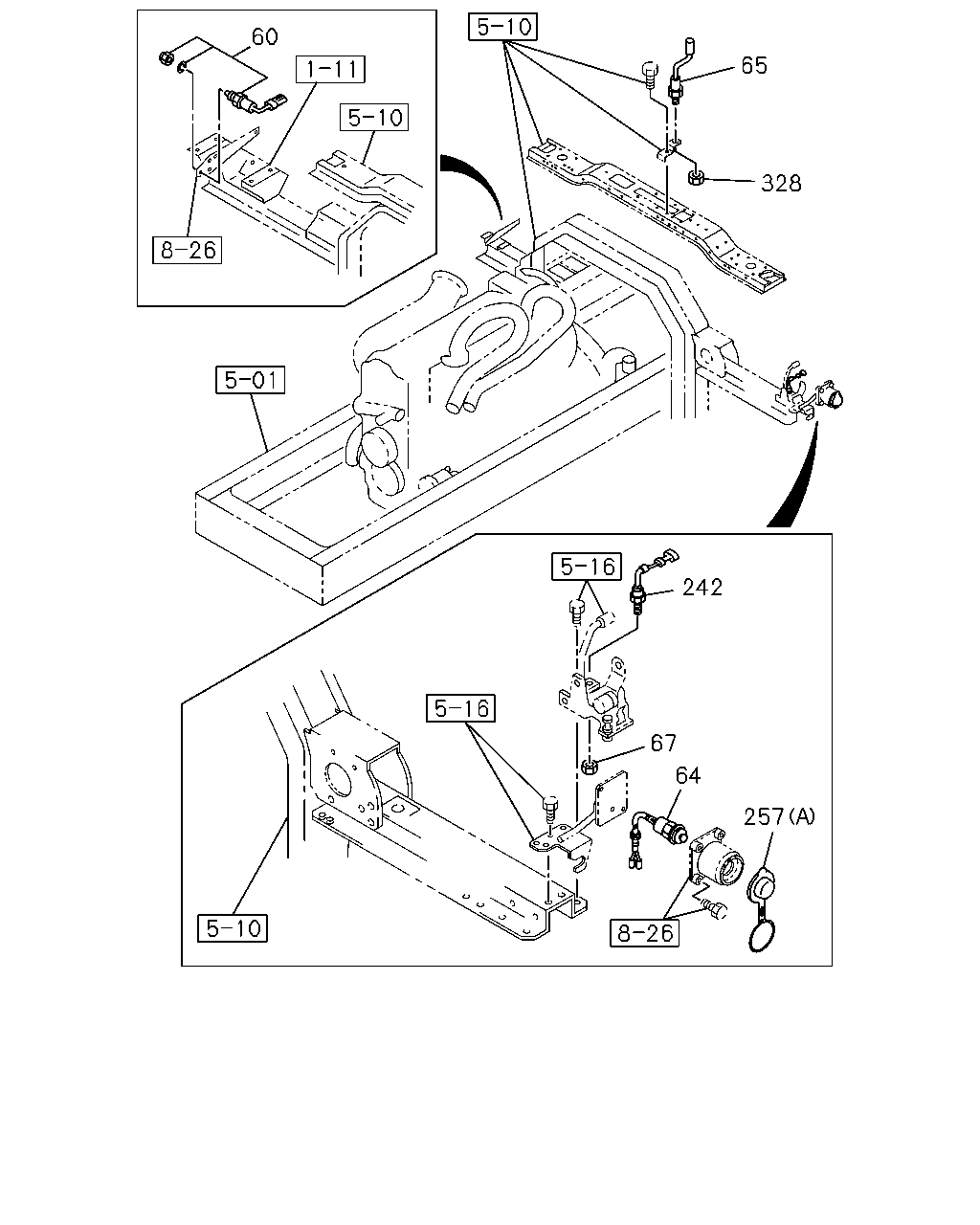

çizim 81035
60 65 328 242 67 64 257
BalonParca AdiParca NoAdetTipApplied Date
60 SWITCH; IGNITION SUB 1-82380-107-1 01 1 0105-
64 SWITCH; CAB TILT MAIN
AUTO CAB TILT<WV2> 		1-82380-108-0 01 1 0105-
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 0105-
67 NUT; SW,CAB TILT
AUTO CAB TILT<WV2> M16 H=18.5 		1-09409-013-0 01 1 0105-
242 SWITCH
AUTO CAB TILT<WV2> STAMP NO 		1-82380-126-0 01 1 0105-
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 0105-
257 COVER; HOLE,SW
AUTO CAB TILT<WV2> (A) 		1-82389-008-0 01 1 0105-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 0105-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 0105-
328 NUT; SW
M16 		9-99110-416-0 01 1 0105-
