Isuzu WW
▶
PICKUP
▶
TFR
▶
51485 - TFR SHORT(THAI)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-31 - STEERING COLUMN AND SHAFT
▶
4-31 — STEERING COLUMN AND SHAFT
(#122378) — 22 parça
◀

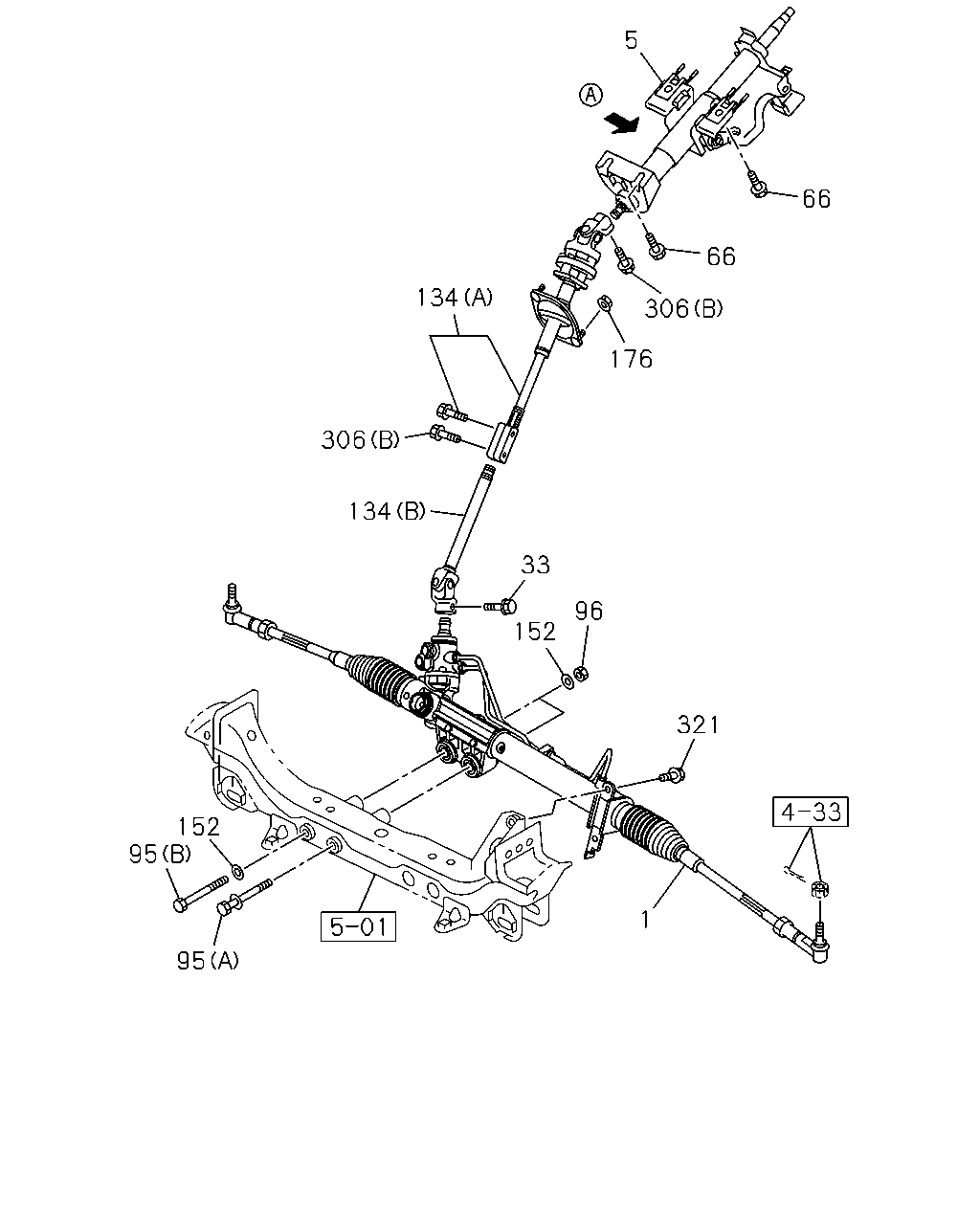

[431A] STEERING UNIT AND SHAFT (15 parça)
[431A] STEERING LOCK (7 parça)
▶
1
321
96
152
33
95
95
152
134
306
134
176
306
66
66
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. THA
8-97946-129-1
01
1
1307-
5
COLUMN; STRG
THA
8-98273-328-0
01
1
1307-
33
BOLT; STRG SHAFT TO UNIT
M8X35 FLANGE THA
8-97249-320-0
01
1
1307-
66
BOLT; STRG COLUMN
M8X25 FLANGE THA
0-28650-825-0
04
1
1307-
95
BOLT; STRG UNIT
(A) M16X214 W/PL WASHER THA
8-97947-128-2
01
1
1307-
95
BOLT; STRG UNIT
(B) M16X214 THA
8-97947-502-0
01
1
1307-
96
NUT; STRG UNIT
M16 THA
0-91110-516-0
02
1
1307-
134
SHAFT; STRG,2ND
(A) THA
8-97946-125-1
01
1
1307-
134
SHAFT; STRG,2ND
(B) THA
8-97946-135-0
01
1
1307-
152
WASHER; LK,STRG UNIT
ID=17 THA
8-97947-501-0
03
1
1307-1503
152
WASHER; LK,STRG UNIT
ID=17 THA
8-98296-670-0
03
1
1504-
176
NUT; STRG
M6 FLANGE THA
0-91180-106-0
02
1
1307-
306
BOLT; STRG SHAFT
(B) M8X35 FLANGE THA
8-97249-320-0
02
1
1307-
306
BOLT; STRG SHAFT
(A) M8X18.5 TWISTED OFF THA
8-97945-749-0
02
1
1307-
321
BOLT; BRKT,STRG
M12X30 FLANGE THA
0-28661-230-0
02
1
1307-
140
102
103
105
5
306
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
COLUMN; STRG
THA
8-98273-328-0
01
1
1307-
102
LOCK ASM; STRG
THA
8-98076-116-0
01
1
1307-
103
SWITCH; IGNITION
THA
8-98132-719-0
01
1
1307-
105
SCREW; IGN SW
THA
8-98192-449-0
02
1
1307-
140
BRACKET; STRG COWL
THA
8-98134-652-0
01
1
1307-
306
BOLT; STRG SHAFT
(B) M8X35 FLANGE THA
8-97249-320-0
02
1
1307-
306
BOLT; STRG SHAFT
(A) M8X18.5 TWISTED OFF THA
8-97945-749-0
02
1
1307-
