Isuzu WW
▶
PICKUP
▶
TFR
▶
51485 - TFR SHORT(THAI)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-30 - STEERING WHEEL AND COWL
▶

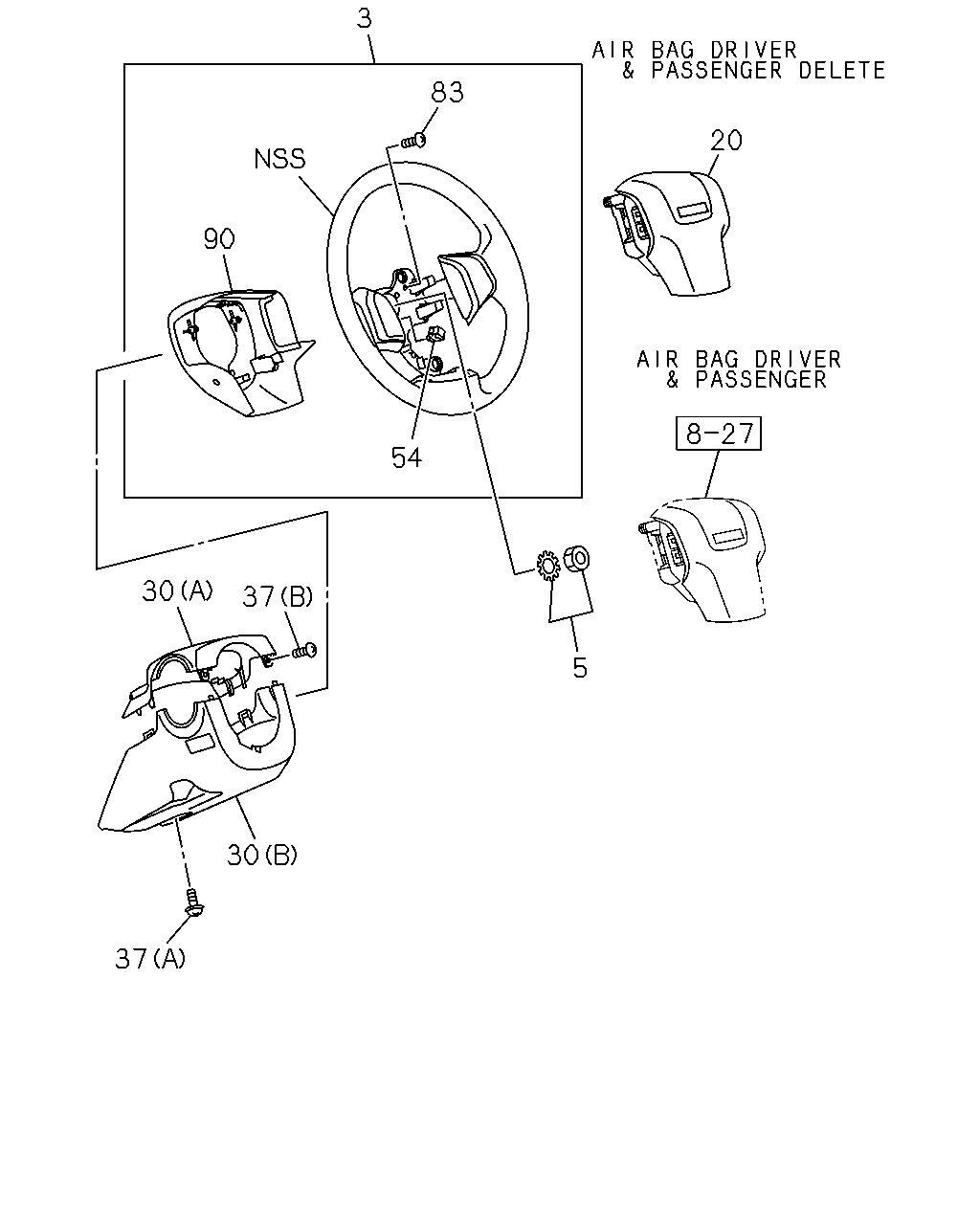

4-30 — STEERING WHEEL AND COWL
(#122377) — 17 parça
3
83
20
5
54
90
30
37
30
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
WHEEL; STRG
AIR BAG DRIVER & PASSENGER<AK5> BLACK THA
8-97416-797-3
01
1
1506-
3
WHEEL; STRG
BLACK THA
8-97416-799-3
01
1
1307-1505
3
WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE<AK6> BLACK THA
8-97416-799-3
01
1
1506-
5
NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER IMA
8-94455-487-1
01
1
1307-
20
SHROUD; PAD,STRG WHEEL
BLACK THA
8-97416-804-4
01
1
1307-1505
20
SHROUD; PAD,STRG WHEEL
AIR BAG DRIVER & PASSENGER DELETE<AK6> BLACK THA
8-97416-804-4
01
1
1506-1506
20
SHROUD; PAD,STRG WHEEL
AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. EQUIPMENT IMPACT<EPS> BLACK THA
8-97416-804-4
01
1
1506-
30
COWL; STEERING
(B) BLACK THA
8-97416-795-6
01
1
1307-
30
COWL; STEERING
(A) BLACK THA
8-97416-863-4
01
1
1307-
37
SCREW; STRG COWL UPR
(A) M4X12 W/PL WASHER THA
0-36210-412-0
01
1
1307-
37
SCREW; STRG COWL UPR
(B) M5X16 TAPPING THA
8-98167-449-0
02
1
1307-
54
CLIP; HARNESS
AIR BAG DRIVER & PASSENGER<AK5> THA
8-98165-703-0
01
1
1506-
83
SCREW; LWR COVER TO WHEEL
M4X10 TAPPING THA
0-71240-410-0
02
1
1307-1505
83
SCREW; LWR COVER TO WHEEL
M4X10 TAPPING THA
0-71240-410-0
02
1
1506-
90
COVER ASM; STRG WHEEL,LWR
AIR BAG DRIVER & PASSENGER<AK5> BLACK THA
8-97416-856-1
01
1
1506-
90
COVER ASM; STRG WHEEL,LWR
BLACK THA
8-97416-859-2
01
1
1307-1505
90
COVER ASM; STRG WHEEL,LWR
AIR BAG DRIVER & PASSENGER DELETE<AK6> BLACK THA
8-97416-859-2
01
1
1506-
