Isuzu WW
▶
PICKUP
▶
TFR
▶
51485 - TFR SHORT(THAI)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

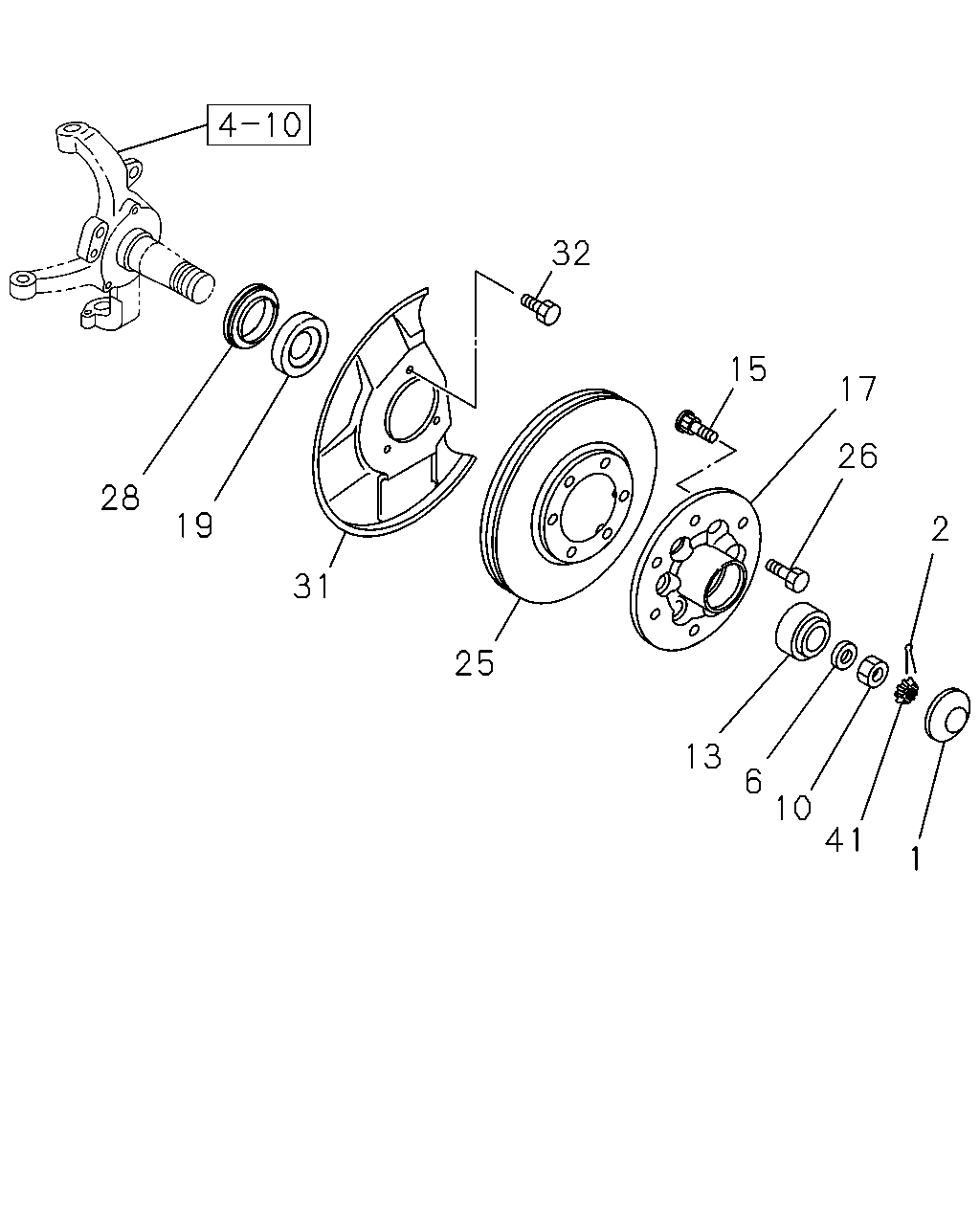

4-11 - FRONT HUB AND DRUM OR ROTOR
▶
4-11 — FRONT HUB AND DRUM OR ROTOR
(#122374) — 15 parça
17
26
2
1
41
10
6
13
25
31
19
28
32
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
IMA
8-98006-055-0
02
1
1307-
2
PIN; SPLIT,HUB TO AXLE SHAFT
OD=3.7 L=30 IMA
0-81124-030-0
02
1
1307-
6
WASHER; LK,FRT HUB
T=3.2 OD=35 IMA
8-97382-661-0
02
1
1307-
10
NUT; FRT HUB BRG
M18 IMA
8-94243-927-1
02
1
1307-
13
BEARING; HUB OUTER,FRT AXLE
NSK THA
8-94242-913-0
02
1
1307-
15
PIN; WHEEL,FRT AXLE
M12X37.5 THA
8-97944-564-1
12
1
1307-
17
HUB; FRT AXLE
THA
8-97238-417-1
02
1
1307-
19
BEARING; HUB INNER,FRT AXLE
NSK THA
8-94242-683-0
02
1
1307-
25
ROTOR; DISC BRK,FRT
THA
8-97360-677-2
02
1
1307-
26
BOLT; BRK,DISC TO HUB
M12X31.5 FLANGE THA
8-98006-065-0
12
1
1307-
28
SEAL; OIL,FRT HUB
THA
8-98036-593-0
02
1
1307-
31
COVER; DUST,FRT BRAKE
THA
8-98008-150-0
01
1
1307-
31
COVER; DUST,FRT BRAKE
THA
8-98008-151-0
01
1
1307-
32
BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER THA
8-98006-352-0
06
1
1307-
41
RETAINER; NUT,FRT HUB
IMA
8-94243-928-1
02
1
1307-
