6-70 — FLOOR PANEL (#122365) — 61 parça

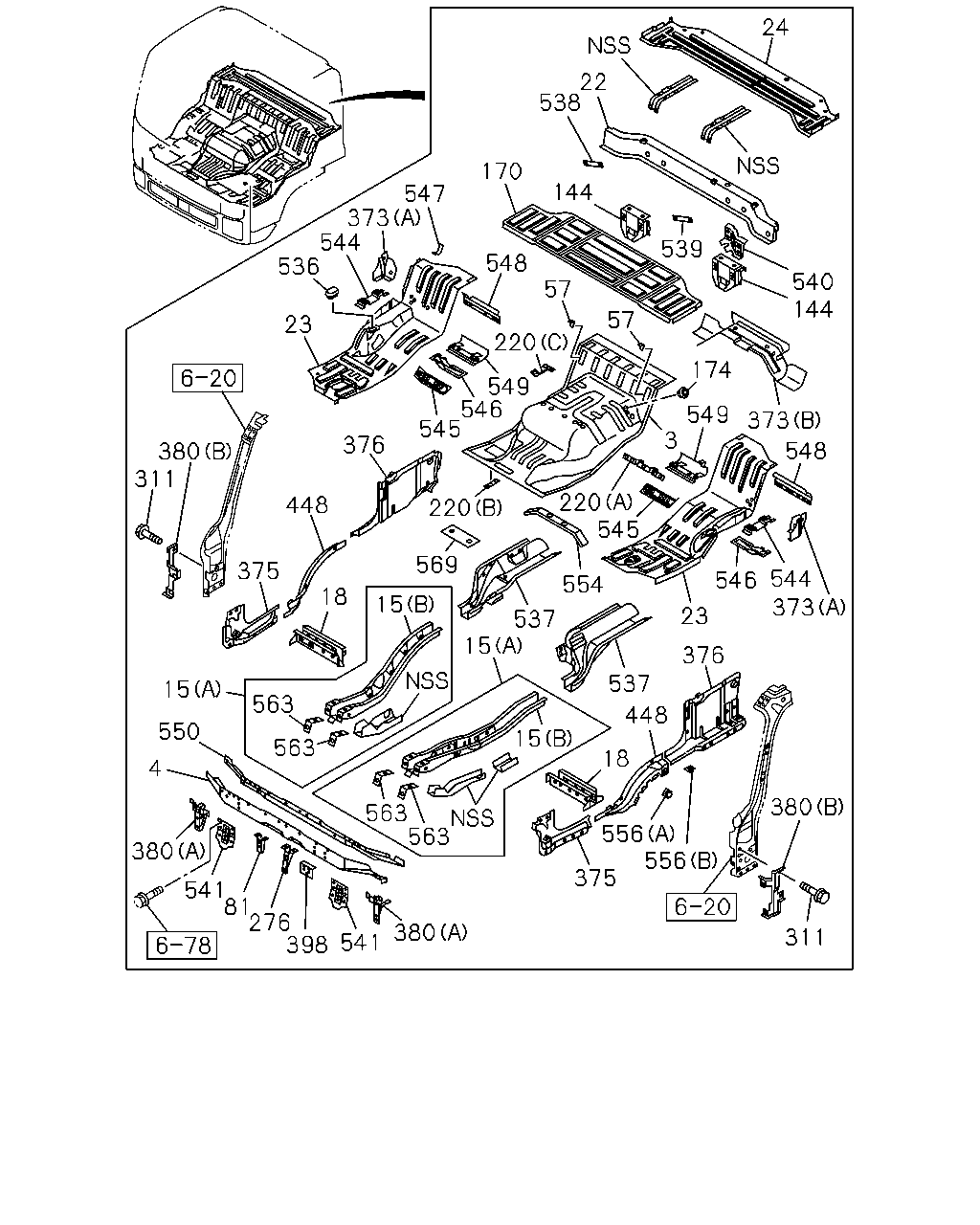

çizim 357725
24 22 538 170 144 539 540 144 174 373 548 549 3 57 57 548 547 373 544 536 23 220 549 546 545 376 380 311 448 375 18 569 220 220 545 546 544 373 23 376 537 448 18 556 556 375 380 311 563 563 15 15 537 554 15 563 563 15 550 4 380 541 81 276 398 541 380
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG
THA 		8-98167-035-0 01 1 1304-
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1304-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1304-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1304-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1304-
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1304-
18 FRAME; FLOOR,CENTER SIDE 8-97584-398-4 01 1 1304-
18 FRAME; FLOOR,CENTER SIDE 8-97584-421-4 01 1 1304-
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1304-
23 PANEL; FLOOR,SIDE 8-97584-372-7 01 1 1304-
23 PANEL; FLOOR,SIDE 8-98073-691-1 01 1 1304-
24 PANEL; BED PAN 8-97584-378-6 01 1 1304-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1304-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1304-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1304-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1304-
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1304-
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1304-
220 PATCH
(A) 		8-97588-840-4 01 1 1304-
220 PATCH
(B) 		8-97589-603-3 01 1 1304-
220 PATCH
(C) 		8-97589-627-2 01 1 1304-1306
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1304-
311 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 04 1 1304-
373 REINFORCEMENT; SEAT BELT
(B) THA 		8-97584-345-9 01 1 1304-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1304-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1304-
375 CLOSING; PILLAR 8-98044-897-3 01 1 1304-
375 CLOSING; PILLAR 8-98044-898-3 01 1 1304-
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1304-
376 CLOSING; PILLAR,LWR 8-97589-556-4 01 1 1304-
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-053-0 01 1 1304-
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-054-0 01 1 1304-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1304-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1304-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1304-1306
398 BRACKET; PIPE SUPPORT
THA 		8-97948-272-0 01 1 1307-
448 CLOSING; ROCKER 8-97589-551-2 01 1 1304-
448 CLOSING; ROCKER 8-97589-552-2 01 1 1304-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1304-
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1304-
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1304-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1304-
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1304-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1304-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1304-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1304-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1304-
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1304-
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1304-
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 1304-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1304-
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1304-
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1304-
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1304-
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1304-
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1304-
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1304-
556 BRACKET; TILT HANDLE
(A) 		8-98077-605-1 01 1 1304-
556 BRACKET; TILT HANDLE
(B) 		8-98077-606-1 01 1 1304-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1304-
569 REINFORCEMENT; FRT,ENG HOOD
THA 		8-98108-359-1 01 1 1304-
