Isuzu WW
▶
TRUCKS
▶
GVR
▶
11543 - GVR CNG(THAILAND)
▶
5 - Frame, Cab Mounting
▶

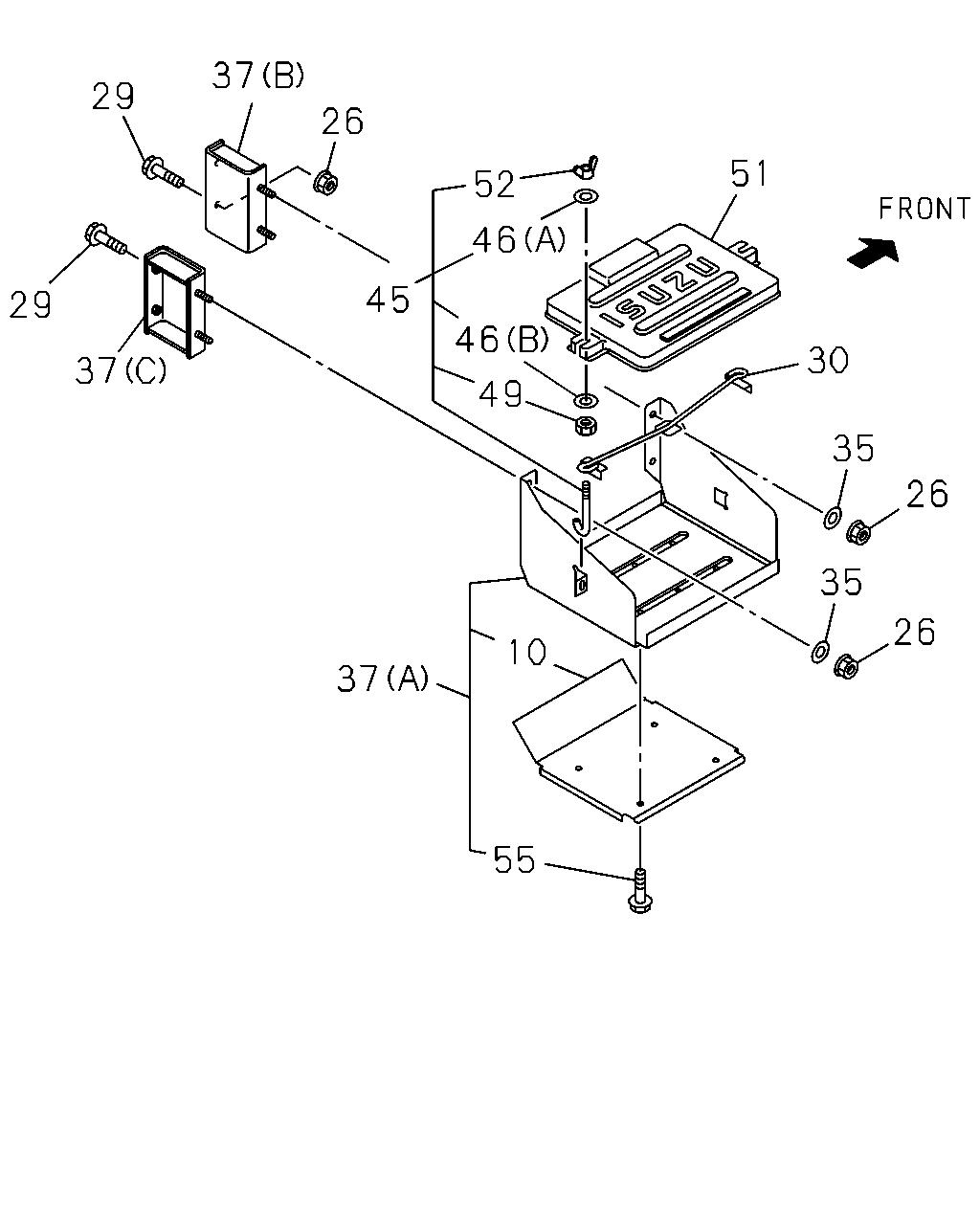

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#122350) — 18 parça
26
35
26
35
30
51
52
46
45
46
49
10
55
37
37
29
29
37
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
COVER; BATTERY
THA
8-98170-251-0
01
1
1304-
26
NUT; BRKT
M10 FLANGE THA
0-91180-210-0
02
1
1304-
26
NUT; BRKT
M10 FLANGE THA
0-91180-210-0
04
1
1304-
29
BOLT; BRKT TO FRAME
M10X40 FLANGE THA
0-28651-040-0
04
1
1304-
30
PLATE; BATTERY
THA
8-97910-232-0
01
1
1304-
35
WASHER; PL,BATTERY CARRIER
ID=10.5 OD=22
0-91614-610-0
04
1
1304-
37
BRACKET; BATTERY
(A) THA
8-97925-315-0
01
1
1304-
37
BRACKET; BATTERY
(B) THA
8-97948-024-0
01
1
1304-
37
BRACKET; BATTERY
(C)
8-98144-194-0
01
1
1304-
45
ROD; TENSION,BATTERY
THA
8-97915-640-1
02
1
1304-1305
45
ROD; TENSION,BATTERY
THA
8-97926-647-0
02
1
1306-
46
WASHER; PL,BATTERY TO CARRIER
(A) ID=8.4 OD=18
0-91610-608-0
02
1
1304-1305
46
WASHER; PL,BATTERY TO CARRIER
(A) ID=8.4 OD=18
0-91614-608-0
02
1
1306-
46
WASHER; PL,BATTERY TO CARRIER
(B) ID=8.4 OD=22 THA
0-91614-708-0
02
1
1304-
49
NUT; ROD,BATTERY
M8
0-91110-508-0
02
1
1304-
51
COVER; BATTERY
THA
8-97915-940-0
01
1
1304-
52
NUT; WING,COVER FIX
M8 WING NUT THA
0-91118-408-0
02
1
1304-
55
BOLT; HEAT PROTECTOR
M8X12 FLANGE THA
0-28050-812-0
04
1
1304-
