◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10876 - EXZ RHD FUEL TANK 200L+200L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#12235) — 331 parça

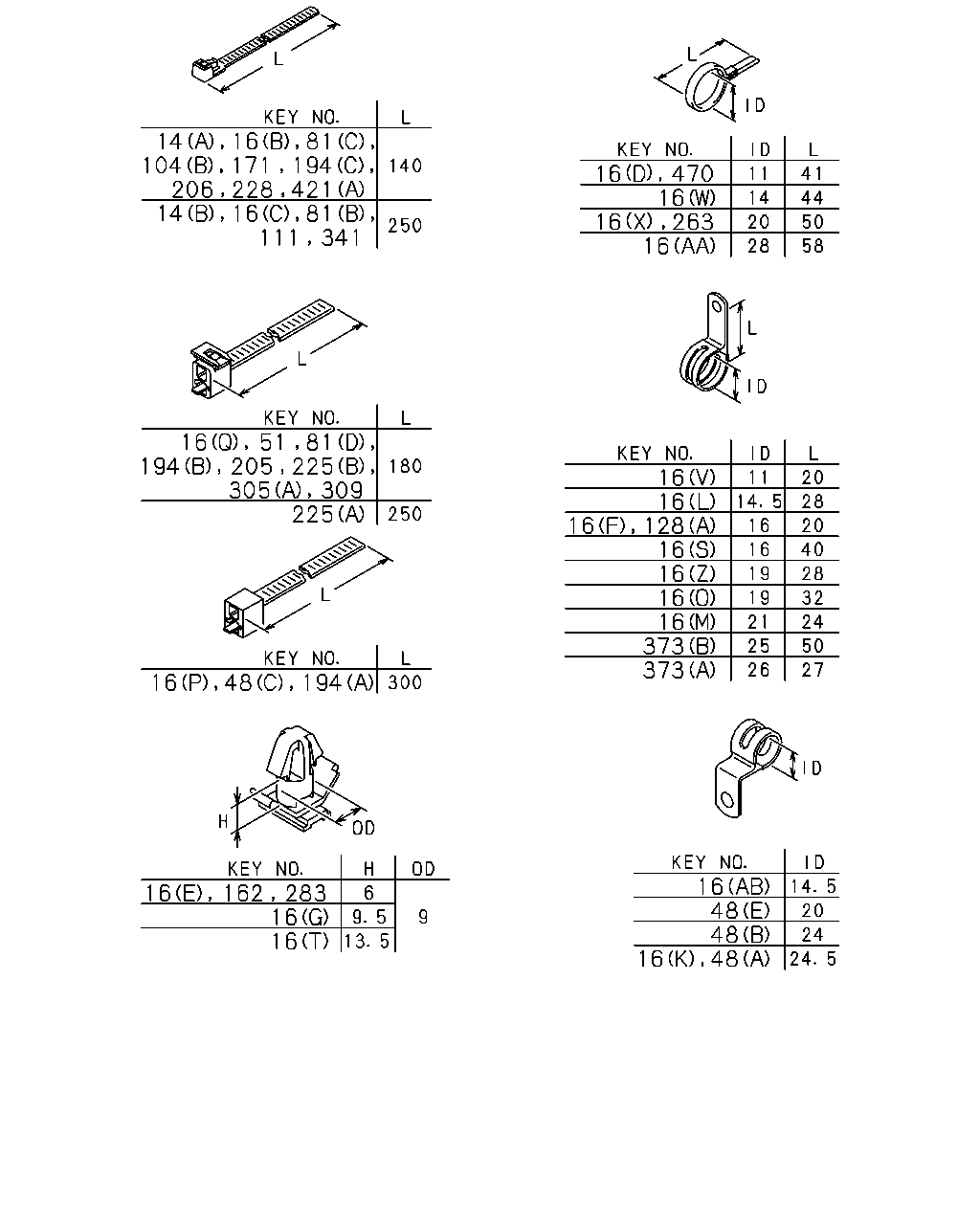

çizim 21065
14 171 194 14 111 341 16 16 225 16 16 128 16 16 16 16 373 373 16 194 16 48 48 16 16 16 16 81 104 206 228 421 16 81 16 470 16 263 16 51 81 194 205 225 305 309 16 48 162 283 16 48
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 02 1 0105-
14 CLIP; BAND,HARNESS
(A) L=140 		5-09707-031-1 04 1 0105-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 0105-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 0105-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 0105-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 0105-
16 CLIP; HARNESS
(I) ID=15 L=42 		1-09700-479-0 02 1 0105-
16 CLIP; HARNESS
(J) ID=15 L=35 		1-09700-507-0 01 1 0105-
16 CLIP; HARNESS
(K) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-0112
16 CLIP; HARNESS
(K) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0201-
16 CLIP; HARNESS
(L) ID=14.5 L=28 		1-09701-013-0 01 1 0105-
16 CLIP; HARNESS
(M) ID=21 L=24 		1-09701-201-0 02 1 0105-
16 CLIP; HARNESS
(N) ID=4.8 		1-09701-218-0 01 1 0105-0106
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 0107-0107
16 CLIP; HARNESS
(O) ID=19 L=32 		1-09701-235-0 02 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (N) ID=4.8 		1-09701-218-0 01 1 0107-
16 CLIP; HARNESS
(P) L=300 		1-09707-001-1 03 1 0105-
16 CLIP; HARNESS
(Q) L=180 		1-09707-162-1 01 1 0105-
16 CLIP; HARNESS
(Q) L=180 		1-09707-162-1 02 1 0105-
16 CLIP; HARNESS
(R) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0105-
16 CLIP; HARNESS
(R) W/SPONGE RUBBER 		1-09709-150-0 01 1 0105-
16 CLIP; HARNESS
(E) OD=9 H=6 		1-09709-178-0 06 1 0105-0106
16 CLIP; HARNESS
ZF M/T<X9E> (E) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
(T) OD=9 H=13.5 		1-09709-180-0 01 1 0105-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 0105-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0105-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0105-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0105-
16 CLIP; HARNESS
(B) L=140 		5-09707-031-1 01 1 0105-
16 CLIP; HARNESS
(B) L=140 		5-09707-031-1 01 1 0105-
16 CLIP; HARNESS
ISUZU M/T<X9A> (B) L=140 		5-09707-031-1 01 1 0105-
16 CLIP; HARNESS
(U) ID=14-20 		8-97061-603-0 01 1 0105-0106
16 CLIP; HARNESS
MJA7 M/T<X9Q>,MJA6 M/T<X9S> (E) OD=9 H=6 		1-09709-178-0 01 1 0107-
16 CLIP; HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 0107-
16 CLIP; HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 0107-
16 CLIP; HARNESS
(V) ID=11 L=20 		9-09525-035-0 01 1 0105-
16 CLIP; HARNESS
(W) ID=14 L=44 		9-09917-427-0 03 1 0105-
16 CLIP; HARNESS
(X) ID=20 L=50 		9-09917-430-0 04 1 0105-
16 CLIP; HARNESS
(X) ID=20 L=50 		9-09917-430-0 14 1 0105-0106
16 CLIP; HARNESS
(X) ID=20 L=50 		9-09917-430-0 13 1 0107-0107
16 CLIP; HARNESS
(X) ID=20 L=50 		9-09917-430-0 12 1 0108-0109
16 CLIP; HARNESS
(X) ID=20 L=50 		9-09917-430-0 13 1 0110-
16 CLIP; HARNESS
(X) ID=20 L=50 		9-09917-430-0 01 1 0105-0107
16 CLIP; HARNESS
(X) ID=20 L=50 		9-09917-430-0 01 1 0105-0107
16 CLIP; HARNESS
(X) ID=20 L=50 		9-09917-430-0 01 1 0108-
16 CLIP; HARNESS
(X) ID=20 L=50 		9-09917-430-0 03 1 0108-
16 CLIP; HARNESS
(AA) ID=28 L=58 		1-09700-400-0 01 1 0111-
16 CLIP; HARNESS
MJA7 M/T<X9Q>,MJA6 M/T<X9S> (E) OD=9 H=6 		1-09709-178-0 01 1 0105-0106
16 CLIP; HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (E) OD=9 H=6 		1-09709-178-0 04 1 0107-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (G) OD=9 H=9.5 		1-09709-179-0 01 1 0105-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (A) L=20 		1-09987-246-2 04 1 0105-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (H) ID=15 H=30 L=30 		1-09700-832-0 01 1 0105-0105
16 CLIP; HARNESS
ZF M/T<X9E> (Z) ID=19 L=28 		9-09525-856-0 01 1 0106-
16 CLIP; HARNESS
ZF M/T<X9E> (D) ID=11 L=41 		1-09700-403-0 04 1 0105-0106
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 04 1 0105-0106
16 CLIP; HARNESS
ZF M/T<X9E> (D) ID=11 L=41 		1-09700-403-0 04 1 0107-0107
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 0108-
16 CLIP; HARNESS
ZF M/T<X9E> (D) ID=11 L=41 		1-09700-403-0 02 1 0108-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 0108-
16 CLIP; HARNESS
ZF M/T<X9E> (E) OD=9 H=6 		1-09709-178-0 03 1 0105-0106
16 CLIP; HARNESS
(E) OD=9 H=6 		1-09709-178-0 03 1 0105-0106
16 CLIP; HARNESS
INSPECTION LAMP<T95> (E) OD=9 H=6 		1-09709-178-0 02 1 0107-
16 CLIP; HARNESS
(E) OD=9 H=6 		1-09709-178-0 02 1 0107-
16 CLIP; HARNESS
ZF M/T<X9E> (C) L=250 		5-09707-030-1 03 1 0105-
16 CLIP; HARNESS
ZF M/T<X9E> (F) ID=16 L=20 		9-09525-535-0 01 1 0105-0105
16 CLIP; HARNESS
(F) ID=16 L=20 		9-09525-535-0 01 1 0105-0105
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (F) ID=16 L=20 		9-09525-535-0 01 1 0106-0107
16 CLIP; HARNESS
(F) ID=16 L=20 		9-09525-535-0 01 1 0106-0107
16 CLIP; HARNESS
ISUZU M/T<X9A> (F) ID=16 L=20 		9-09525-535-0 01 1 0108-
16 CLIP; HARNESS
ZF M/T<X9E> (AB) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0206-
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (Y) L=36 		8-94224-891-1 01 1 0105-0107
16 CLIP; HARNESS
ISUZU M/T<X9A> (Y) L=36 		8-94224-891-1 01 1 0108-
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (S) ID=16 L=40 		9-09525-576-0 01 1 0105-0205
16 CLIP; HARNESS
ISUZU M/T<X9A> (S) ID=16 L=40 		9-09525-576-0 01 1 0206-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0105-0106
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0107-
48 CLIP; FRAME HARNESS
(B) ID=24 H=40 L=24 		1-09701-243-0 06 1 0105-0106
48 CLIP; FRAME HARNESS
(B) ID=24 H=40 L=24 		1-09701-243-0 03 1 0107-
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 10 1 0105-
48 CLIP; FRAME HARNESS
(B) ID=24 H=40 L=24 		1-09701-243-0 04 1 0107-
48 CLIP; FRAME HARNESS
(D) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 0107-
48 CLIP; FRAME HARNESS
(E) ID=20 H=23 L=27 		1-09700-861-0 01 1 0108-0109
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=180 		1-09707-162-1 01 1 0105-
81 CLIP; HARNESS
(B) L=250 		5-09707-030-1 01 1 0105-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) ID=7-10 		8-94472-578-0 02 1 0105-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A) ID=7-10 		8-94472-578-0 06 1 0105-
81 CLIP; HARNESS
REINFORCEMENT BUMPER<VG7> (D) L=180 		1-09707-162-1 02 1 0105-
81 CLIP; HARNESS
EXC. REINFORCEMENT BUMPER<VG7> (C) L=140 		5-09707-031-1 02 1 0105-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5 		1-09709-290-0 08 1 0105-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) L=140 		5-09707-031-1 02 1 0105-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=21 L=47.5 		8-94178-108-0 02 1 0105-
111 CLIP; STOP LAMP SW HARNESS
L=250 		5-09707-030-1 01 1 0105-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0105-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0105-
162 CLIP; SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0105-
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-1 05 1 0105-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 0105-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 03 1 0105-
194 CLIP; BAND
(B) L=180 		1-09707-162-1 02 1 0105-0106
194 CLIP; BAND
(B) L=180 		1-09707-162-1 01 1 0107-0112
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 0107-0112
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 0201-
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0105-
205 CLIP; BACK LAMP HARNESS
L=180 		1-09707-162-1 01 1 0105-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0105-
225 CLIP; AIR TANK HARNESS
(A) L=250 		1-09707-126-0 01 1 0105-
225 CLIP; AIR TANK HARNESS
(B) L=180 		1-09707-162-1 03 1 0105-
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) L=140 		5-09707-031-1 06 1 0105-
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 01 1 0105-
283 CLIP; SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0105-
305 CLIP; ENG HARNESS
(B) ID=11 H=20 L=17.5 		1-09700-562-1 07 1 0105-
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 0105-
305 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 02 1 0105-
309 CLIP; HARNESS,HAND BRAKE CABLE
L=180 		1-09707-162-1 01 1 0105-
341 CLIP; BAND,STARTER RELAY
L=250 		5-09707-030-1 03 1 0105-
373 CLIP; BAND,GEN HARNESS
(A) ID=26 L=27 		1-09701-006-0 02 1 0105-
373 CLIP; BAND,GEN HARNESS
(B) ID=25 L=50 		1-09701-019-0 01 1 0105-
421 CLIP; FLOOR HARNESS
(B) L=20 		1-09987-246-2 01 1 0105-
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) L=140 		5-09707-031-1 01 1 0105-
470 CLIP; HARNESS,LICENSE LAMP
ID=11 L=41 		1-09700-403-0 01 1 0105-
çizim 78993
1 185 178 530 503 312 342 53 53 53 329 375 334 312 312 375 342 178 178 178 178
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) ID=6 L=30 		5-09360-352-0 01 1 0105-
53 BRACKET; HARNESS
(A) 		1-82699-592-2 01 1 0105-
53 BRACKET; HARNESS
(C) 		1-82699-826-0 01 1 0105-
53 BRACKET; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-82699-916-0 01 1 0105-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 03 1 0105-
178 GROMMET; HARNESS
(C) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0105-
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0105-
178 GROMMET; HARNESS
(D) ID=32 OD=40 T=18 		1-09891-003-0 03 1 0105-
178 GROMMET; HARNESS
(E) 		1-82699-891-0 01 1 0105-
185 SLEEVE; RUBBER
ID=6 L=30 		5-09360-352-0 01 1 0105-
312 BRACKET; CLIP HARNESS
(A) 		1-82698-358-0 01 1 0105-0205
312 BRACKET; CLIP HARNESS
ZF M/T<X9E> (A) 		1-82698-358-0 01 1 0206-
312 BRACKET; CLIP HARNESS
(B) 		1-82699-348-0 01 1 0105-
312 BRACKET; CLIP HARNESS
ZF M/T<X9E> (C) 		1-82699-304-0 01 1 0106-
312 BRACKET; CLIP HARNESS
EXC. ZF M/T<X9E> (A) 		1-82698-358-0 02 1 0206-
329 BRACKET; CLIP,CABLE 1-82699-199-0 01 1 0105-
334 BRACKET 1-53458-362-0 01 1 0105-
342 BRACKET; HARNESS CAB MTG
(A) 		1-82698-358-0 01 1 0105-
342 BRACKET; HARNESS CAB MTG
(B) 		1-82699-625-0 01 1 0105-
375 BRACKET; AC GEN HARNESS CLIP
(A) 		1-47476-393-0 01 1 0105-
375 BRACKET; AC GEN HARNESS CLIP
(B) 		1-82699-199-0 01 1 0105-
503 CONNECTOR
EXC. AUTO CAB TILT<WV2> 2P MALE LIGHT GRAY 		1-82691-078-0 01 1 0105-
530 SEAL; HARNESS
180X40 		1-72498-019-0 07 1 0105-
530 SEAL; HARNESS
EXC. HIGH ROOF<S2F> 100X40 		1-72498-022-0 01 1 0105-

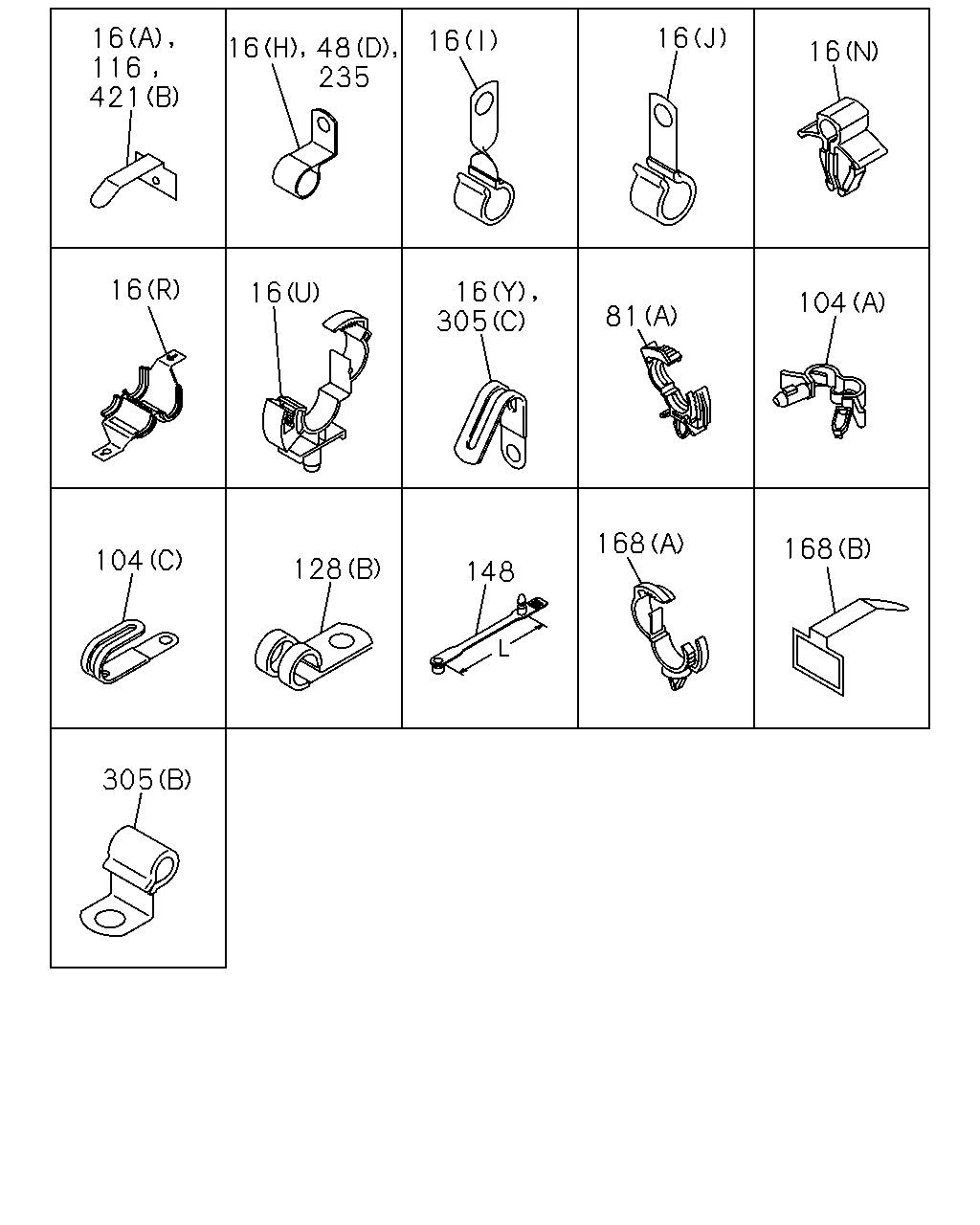

çizim 79031
16 116 421 16 16 235 16 16 16 305 16 104 81 168 104 128 148 305 168 16 48
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 0105-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 0105-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 0105-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 0105-
16 CLIP; HARNESS
(I) ID=15 L=42 		1-09700-479-0 02 1 0105-
16 CLIP; HARNESS
(J) ID=15 L=35 		1-09700-507-0 01 1 0105-
16 CLIP; HARNESS
(K) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-0112
16 CLIP; HARNESS
(K) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0201-
16 CLIP; HARNESS
(L) ID=14.5 L=28 		1-09701-013-0 01 1 0105-
16 CLIP; HARNESS
(M) ID=21 L=24 		1-09701-201-0 02 1 0105-
16 CLIP; HARNESS
(N) ID=4.8 		1-09701-218-0 01 1 0105-0106
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 0107-0107
16 CLIP; HARNESS
(O) ID=19 L=32 		1-09701-235-0 02 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (N) ID=4.8 		1-09701-218-0 01 1 0107-
16 CLIP; HARNESS
(P) L=300 		1-09707-001-1 03 1 0105-
16 CLIP; HARNESS
(Q) L=180 		1-09707-162-1 01 1 0105-
16 CLIP; HARNESS
(Q) L=180 		1-09707-162-1 02 1 0105-
16 CLIP; HARNESS
(R) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0105-
16 CLIP; HARNESS
(R) W/SPONGE RUBBER 		1-09709-150-0 01 1 0105-
16 CLIP; HARNESS
(E) OD=9 H=6 		1-09709-178-0 06 1 0105-0106
16 CLIP; HARNESS
ZF M/T<X9E> (E) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
(T) OD=9 H=13.5 		1-09709-180-0 01 1 0105-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 0105-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0105-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0105-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0105-
16 CLIP; HARNESS
(B) L=140 		5-09707-031-1 01 1 0105-
16 CLIP; HARNESS
(B) L=140 		5-09707-031-1 01 1 0105-
16 CLIP; HARNESS
ISUZU M/T<X9A> (B) L=140 		5-09707-031-1 01 1 0105-
16 CLIP; HARNESS
(U) ID=14-20 		8-97061-603-0 01 1 0105-0106
16 CLIP; HARNESS
MJA7 M/T<X9Q>,MJA6 M/T<X9S> (E) OD=9 H=6 		1-09709-178-0 01 1 0107-
16 CLIP; HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 0107-
16 CLIP; HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 0107-
16 CLIP; HARNESS
(V) ID=11 L=20 		9-09525-035-0 01 1 0105-
16 CLIP; HARNESS
(W) ID=14 L=44 		9-09917-427-0 03 1 0105-
16 CLIP; HARNESS
(X) ID=20 L=50 		9-09917-430-0 04 1 0105-
16 CLIP; HARNESS
(X) ID=20 L=50 		9-09917-430-0 14 1 0105-0106
16 CLIP; HARNESS
(X) ID=20 L=50 		9-09917-430-0 13 1 0107-0107
16 CLIP; HARNESS
(X) ID=20 L=50 		9-09917-430-0 12 1 0108-0109
16 CLIP; HARNESS
(X) ID=20 L=50 		9-09917-430-0 13 1 0110-
16 CLIP; HARNESS
(X) ID=20 L=50 		9-09917-430-0 01 1 0105-0107
16 CLIP; HARNESS
(X) ID=20 L=50 		9-09917-430-0 01 1 0105-0107
16 CLIP; HARNESS
(X) ID=20 L=50 		9-09917-430-0 01 1 0108-
16 CLIP; HARNESS
(X) ID=20 L=50 		9-09917-430-0 03 1 0108-
16 CLIP; HARNESS
(AA) ID=28 L=58 		1-09700-400-0 01 1 0111-
16 CLIP; HARNESS
MJA7 M/T<X9Q>,MJA6 M/T<X9S> (E) OD=9 H=6 		1-09709-178-0 01 1 0105-0106
16 CLIP; HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (E) OD=9 H=6 		1-09709-178-0 04 1 0107-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (G) OD=9 H=9.5 		1-09709-179-0 01 1 0105-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (A) L=20 		1-09987-246-2 04 1 0105-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (H) ID=15 H=30 L=30 		1-09700-832-0 01 1 0105-0105
16 CLIP; HARNESS
ZF M/T<X9E> (Z) ID=19 L=28 		9-09525-856-0 01 1 0106-
16 CLIP; HARNESS
ZF M/T<X9E> (D) ID=11 L=41 		1-09700-403-0 04 1 0105-0106
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 04 1 0105-0106
16 CLIP; HARNESS
ZF M/T<X9E> (D) ID=11 L=41 		1-09700-403-0 04 1 0107-0107
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 0108-
16 CLIP; HARNESS
ZF M/T<X9E> (D) ID=11 L=41 		1-09700-403-0 02 1 0108-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 0108-
16 CLIP; HARNESS
ZF M/T<X9E> (E) OD=9 H=6 		1-09709-178-0 03 1 0105-0106
16 CLIP; HARNESS
(E) OD=9 H=6 		1-09709-178-0 03 1 0105-0106
16 CLIP; HARNESS
INSPECTION LAMP<T95> (E) OD=9 H=6 		1-09709-178-0 02 1 0107-
16 CLIP; HARNESS
(E) OD=9 H=6 		1-09709-178-0 02 1 0107-
16 CLIP; HARNESS
ZF M/T<X9E> (C) L=250 		5-09707-030-1 03 1 0105-
16 CLIP; HARNESS
ZF M/T<X9E> (F) ID=16 L=20 		9-09525-535-0 01 1 0105-0105
16 CLIP; HARNESS
(F) ID=16 L=20 		9-09525-535-0 01 1 0105-0105
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (F) ID=16 L=20 		9-09525-535-0 01 1 0106-0107
16 CLIP; HARNESS
(F) ID=16 L=20 		9-09525-535-0 01 1 0106-0107
16 CLIP; HARNESS
ISUZU M/T<X9A> (F) ID=16 L=20 		9-09525-535-0 01 1 0108-
16 CLIP; HARNESS
ZF M/T<X9E> (AB) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0206-
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (Y) L=36 		8-94224-891-1 01 1 0105-0107
16 CLIP; HARNESS
ISUZU M/T<X9A> (Y) L=36 		8-94224-891-1 01 1 0108-
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (S) ID=16 L=40 		9-09525-576-0 01 1 0105-0205
16 CLIP; HARNESS
ISUZU M/T<X9A> (S) ID=16 L=40 		9-09525-576-0 01 1 0206-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0105-0106
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0107-
48 CLIP; FRAME HARNESS
(B) ID=24 H=40 L=24 		1-09701-243-0 06 1 0105-0106
48 CLIP; FRAME HARNESS
(B) ID=24 H=40 L=24 		1-09701-243-0 03 1 0107-
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 10 1 0105-
48 CLIP; FRAME HARNESS
(B) ID=24 H=40 L=24 		1-09701-243-0 04 1 0107-
48 CLIP; FRAME HARNESS
(D) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 0107-
48 CLIP; FRAME HARNESS
(E) ID=20 H=23 L=27 		1-09700-861-0 01 1 0108-0109
81 CLIP; HARNESS
(B) L=250 		5-09707-030-1 01 1 0105-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) ID=7-10 		8-94472-578-0 02 1 0105-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A) ID=7-10 		8-94472-578-0 06 1 0105-
81 CLIP; HARNESS
REINFORCEMENT BUMPER<VG7> (D) L=180 		1-09707-162-1 02 1 0105-
81 CLIP; HARNESS
EXC. REINFORCEMENT BUMPER<VG7> (C) L=140 		5-09707-031-1 02 1 0105-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5 		1-09709-290-0 08 1 0105-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) L=140 		5-09707-031-1 02 1 0105-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=21 L=47.5 		8-94178-108-0 02 1 0105-
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 05 1 0105-0112
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 		1-09987-246-2 06 1 0201-
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 		1-09987-246-2 05 1 0201-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0105-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0105-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 0105-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 06 1 0105-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 		1-09987-265-0 01 1 0105-
235 CLIP; HARNESS,SPD SENSOR,SSPS
EXC. ZF M/T<X9E> ID=13 H=29 L=30 		1-09700-001-0 01 1 0105-0106
235 CLIP; HARNESS,SPD SENSOR,SSPS
EXC. ZF M/T<X9E> ID=10 H=25 L=20 		1-09700-519-0 01 1 0107-
305 CLIP; ENG HARNESS
(B) ID=11 H=20 L=17.5 		1-09700-562-1 07 1 0105-
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 0105-
305 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 02 1 0105-
421 CLIP; FLOOR HARNESS
(B) L=20 		1-09987-246-2 01 1 0105-
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) L=140 		5-09707-031-1 01 1 0105-
çizim 81068
38 119 255 304 133 524 219 239 38 88 423 38 133 38 242 313 242 38 358 133 516 38 313 219 294 340 515 38 242 38 242
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(B) M5X8 		0-20800-508-0 01 1 0105-
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28080-820-0 01 1 0105-
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28080-820-0 01 1 0105-
38 BOLT; CLIP,HARNESS
(C) M6X16 FLANGE 		0-28680-616-0 02 1 0105-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 03 1 0105-0106
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 03 1 0107-0112
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 03 1 0107-0112
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0201-0205
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0201-0205
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 05 1 0105-0106
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28680-830-0 10 1 0105-0106
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28680-830-0 04 1 0107-0107
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28680-830-0 12 1 0108-0109
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28680-830-0 04 1 0110-
38 BOLT; CLIP,HARNESS
(E) M12X16 FLANGE 		1-09044-079-0 01 1 0105-
38 BOLT; CLIP,HARNESS
(F) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 0105-
38 BOLT; CLIP,HARNESS
(G) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0105-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28680-830-0 07 1 0107-0107
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28680-830-0 07 1 0110-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 03 1 0201-0205
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 03 1 0206-
38 BOLT; CLIP,HARNESS
ZF M/T<X9E> (A) M8X20 FLANGE 		0-28680-820-0 03 1 0206-
38 BOLT; CLIP,HARNESS
ZF M/T<X9E> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0205
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0206-
38 BOLT; CLIP,HARNESS
ISUZU M/T<X9A> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0206-
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0105-
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 0105-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 0105-0106
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0107-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 0105-0106
219 NUT
(A) M8 FLANGE 		0-91150-108-0 10 1 0107-0107
219 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 0108-0108
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0108-0110
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0111-0205
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0206-
219 NUT
ISUZU M/T<X9A>,ZF M/T<X9E> (A) M8 FLANGE 		0-91150-108-0 01 1 0206-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 13 1 0105-0106
219 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 0107-0107
219 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 0107-0107
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0108-0109
219 NUT
(A) M8 FLANGE 		0-91150-108-0 10 1 0110-
219 NUT
(B) M10 FLANGE 		0-91250-210-0 01 1 0105-0110
219 NUT
(A) M8 FLANGE 		0-91150-108-0 12 1 0108-0109
219 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 0110-
219 NUT
MJA7 M/T<X9Q>,MJA6 M/T<X9S> (B) M10 FLANGE 		0-91150-210-0 01 1 0105-0106
219 NUT
EXC. ZF M/T<X9E> (B) M10 FLANGE 		0-91150-210-0 01 1 0105-0106
219 NUT
MJA7U M/T(X6G),MJA6A M/T(X6V) (B) M10 FLANGE 		0-91150-210-0 01 1 0107-0205
219 NUT
EXC. ZF M/T<X9E> (B) M10 FLANGE 		0-91150-210-0 01 1 0107-0205
219 NUT
MJA7U M/T(X6G),MJA6A M/T(X6V) (B) M10 FLANGE 		0-91150-210-0 01 1 0206-
219 NUT
ISUZU M/T<X9A> (B) M10 FLANGE 		0-91150-210-0 01 1 0206-
219 NUT
ZF M/T<X9E> (A) M8 FLANGE 		0-91150-108-0 01 1 0105-0105
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-0105
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0106-0205
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0206-
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0105-
242 BOLT; BRKT,HARNESS
(A) M8X18 FLANGE 		0-28080-818-0 04 1 0105-
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28080-820-0 01 1 0105-
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0105-
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 02 1 0105-
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 02 1 0105-
242 BOLT; BRKT,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 0105-
242 BOLT; BRKT,HARNESS
(E) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 0105-
242 BOLT; BRKT,HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE 		0-28080-818-0 02 1 0105-
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 0105-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0105-0205
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0105-0205
294 NUT
ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 01 1 0206-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0206-
294 NUT
EXC. ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 02 1 0206-
304 BOLT; ENG HARNESS CLIP
M10X16 W/LK WASHER 		1-09033-012-0 06 1 0105-
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0205
313 BOLT; BRKT
ZF M/T<X9E> (B) M8X30 FLANGE 		0-28680-830-0 01 1 0206-
313 BOLT; BRKT
ZF M/T<X9E> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0106-
313 BOLT; BRKT
EXC. ZF M/T<X9E> (B) M8X30 FLANGE 		0-28680-830-0 02 1 0206-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0105-
358 BOLT; EARTH
AUTO CAB TILT<WV2> M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0105-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 0105-
515 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0105-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
