4-80 — ROAD WHEEL (#122346) — 50 parça

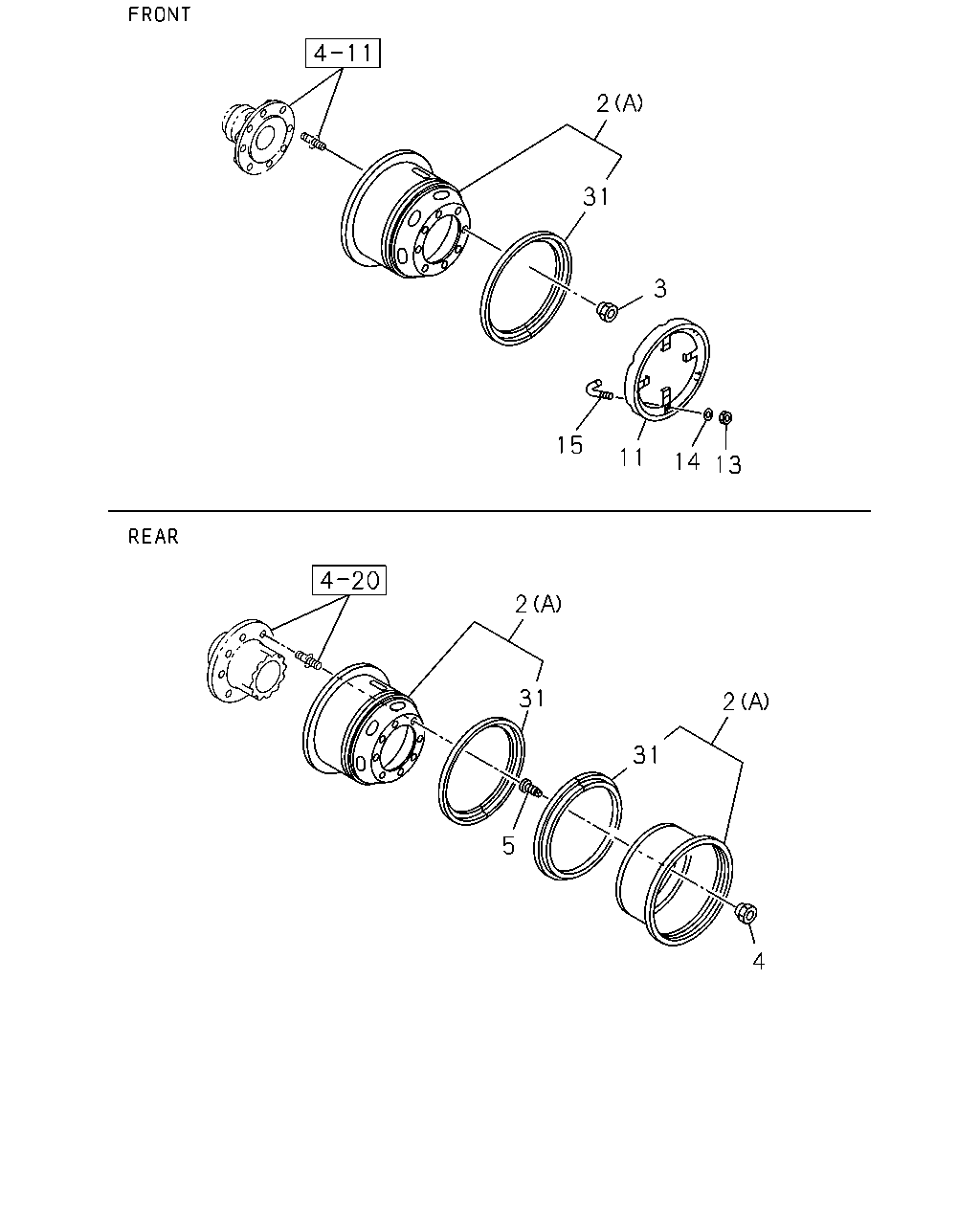

2 31 15 3 11 14 13 2 31 31 2 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) FRONT	1-42350-758-0	02	1	1304-
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) REAR	1-42350-758-0	04	1	1304-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) SPARE	1-42350-758-0	01	1	1304-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL REAR<R46> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) SPARE	1-42350-667-0	01	1	1304-
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12<Q54> (A) FRONT	1-42350-478-0	02	1	1304-
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12<Q54> (A) REAR	1-42350-478-0	04	1	1304-
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12<Q54> SPARE TIRE & DISC WHEEL REAR<R46> (A) SPARE	1-42350-478-0	01	1	1304-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (A) FRONT	1-42350-362-0	02	1	1304-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (A) REAR	1-42350-362-0	04	1	1304-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL REAR<R46> (A) SPARE	1-42350-362-0	01	1	1304-
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) FRONT	1-42350-667-0	02	1	1304-
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) REAR	1-42350-667-0	04	1	1304-
3	NUT; WHEEL,FRT AXLE M24 LH THREAD THA	8-97916-064-0	08	1	1304-
3	NUT; WHEEL,FRT AXLE M24 THA	8-97916-063-0	08	1	1304-
4	NUT; WHEEL,RR AXLE M30 LH THREAD THA	8-97916-121-0	08	1	1304-
4	NUT; WHEEL,RR AXLE M30 THA	8-97916-066-0	08	1	1304-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD THA	8-97916-676-0	08	1	1304-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD THA	8-97916-065-0	08	1	1304-
11	STEP; DISC WHEEL SIDE WHEEL 8STUD 7.00TX20 162-12<Q54> DISC WHEEL STEP<W66> THA	1-43139-028-0	02	1	1304-
13	NUT; STEP DISC WHEEL 8STUD 7.00TX20 162-12<Q54> DISC WHEEL STEP<W66> M10 THA	0-91110-510-0	06	1	1304-
14	WASHER; LK,STEP DISC WHEEL 8STUD 7.00TX20 162-12<Q54> DISC WHEEL STEP<W66> ID=10.2	0-91510-810-0	06	1	1304-
15	BOLT; STEP DISC WHEEL 8STUD 7.00TX20 162-12<Q54> DISC WHEEL STEP<W66> L=44 THA	9-43139-023-1	06	1	1304-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.00TX20 162-12<Q54> FRONT	1-42355-003-1	02	1	1304-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.00TX20 162-12<Q54> REAR	1-42355-003-1	04	1	1304-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.00TX20 162-12<Q54> SPARE TIRE & DISC WHEEL REAR<R46> SPARE	1-42355-003-1	01	1	1304-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> FRONT	1-42355-004-1	02	1	1304-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> REAR	1-42355-004-1	04	1	1304-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL REAR<R46> SPARE	1-42355-004-1	01	1	1304-

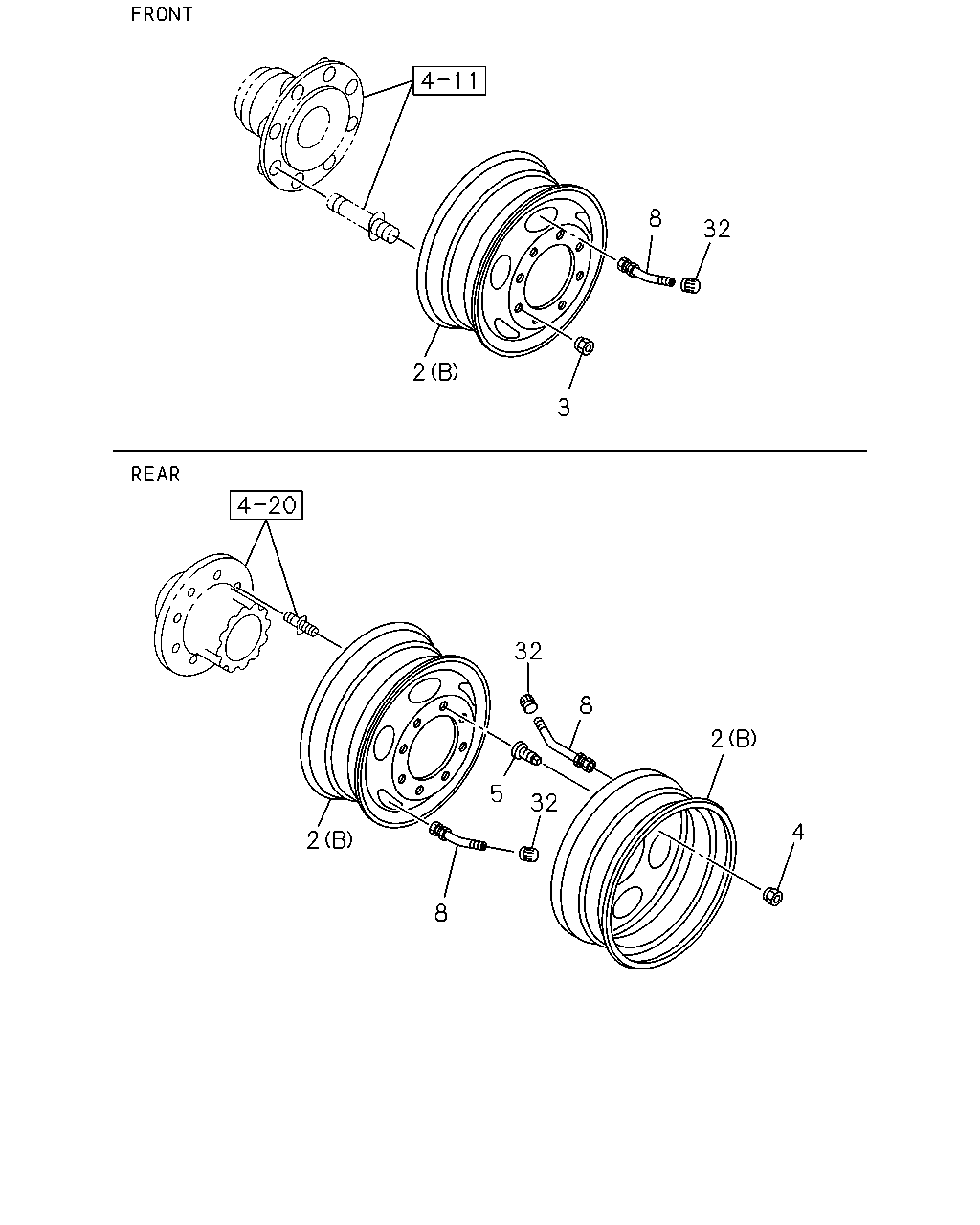

4 2 8 32 32 5 8 2 2 3 8 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) FRONT	1-42350-758-0	02	1	1304-
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) REAR	1-42350-758-0	04	1	1304-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) SPARE	1-42350-758-0	01	1	1304-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL REAR<R46> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) SPARE	1-42350-667-0	01	1	1304-
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12<Q54> (A) FRONT	1-42350-478-0	02	1	1304-
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12<Q54> (A) REAR	1-42350-478-0	04	1	1304-
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12<Q54> SPARE TIRE & DISC WHEEL REAR<R46> (A) SPARE	1-42350-478-0	01	1	1304-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (A) FRONT	1-42350-362-0	02	1	1304-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (A) REAR	1-42350-362-0	04	1	1304-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL REAR<R46> (A) SPARE	1-42350-362-0	01	1	1304-
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) FRONT	1-42350-667-0	02	1	1304-
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) REAR	1-42350-667-0	04	1	1304-
3	NUT; WHEEL,FRT AXLE M24 LH THREAD THA	8-97916-064-0	08	1	1304-
3	NUT; WHEEL,FRT AXLE M24 THA	8-97916-063-0	08	1	1304-
4	NUT; WHEEL,RR AXLE M30 LH THREAD THA	8-97916-121-0	08	1	1304-
4	NUT; WHEEL,RR AXLE M30 THA	8-97916-066-0	08	1	1304-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD THA	8-97916-676-0	08	1	1304-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD THA	8-97916-065-0	08	1	1304-
8	VALVE; TIRE DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> FRONT	1-42370-020-3	02	1	1304-
8	VALVE; TIRE DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> REAR	1-42370-020-3	04	1	1304-
8	VALVE; TIRE SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE	1-42370-020-3	01	1	1304-
32	CAP; VALVE SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>	1-42374-001-0	07	1	1304-
