Isuzu WW
▶
TRUCKS
▶
GVR
▶
11543 - GVR CNG(THAILAND)
▶
3 - Brakes, Brake System
▶
3-78 - FIXING PARTS; AIR PIPING
▶
3-78 — FIXING PARTS; AIR PIPING
(#122325) — 45 parça
◀

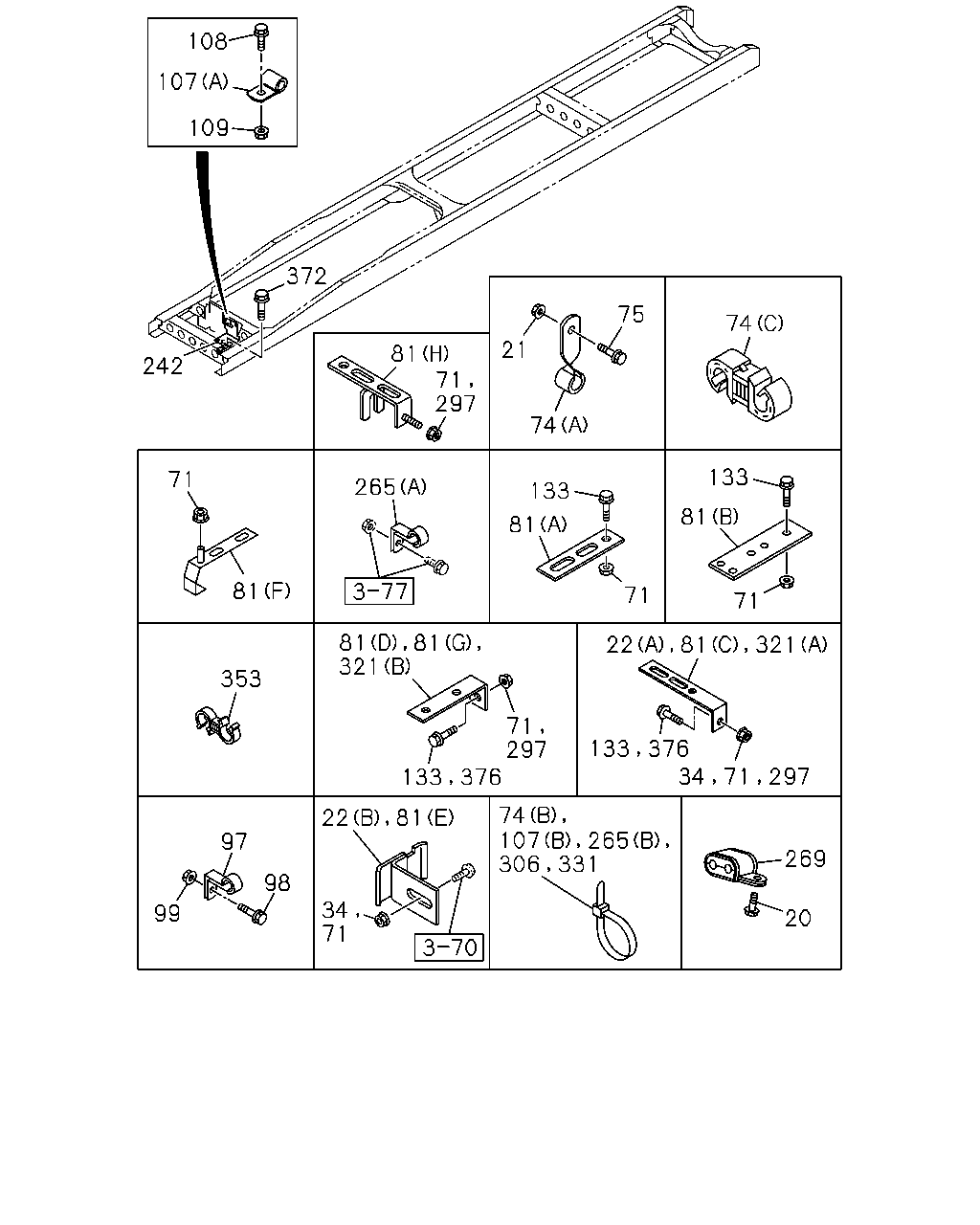

[378A] NO.2 (44 parça)
[378A] NO.1 (1 parça)
▶
108
107
109
372
242
81
71
297
21
75
74
74
133
81
71
71
81
133
265
81
71
353
81
81
321
71
297
376
133
133
376
34
71
297
22
81
321
269
20
331
265
306
107
74
81
22
34
71
98
97
99
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
20
BOLT; CLIP
M8X10 FLANGE THA
0-28050-810-0
01
1
1304-
21
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
01
1
1304-
22
BRACKET; CLIP
(A) L=150 H=30
1-47477-629-2
02
1
1304-
22
BRACKET; CLIP
(A) L=100 H=30
1-47477-645-2
01
1
1304-
22
BRACKET; CLIP
(B)
1-47479-693-0
02
1
1304-
34
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
05
1
1304-
71
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
18
1
1304-
74
CLIP; NYLON TUBE
(A) ID=25 L=54
1-09700-392-1
01
1
1304-
74
CLIP; NYLON TUBE
(B) L=350
1-09707-183-0
08
1
1304-
74
CLIP; NYLON TUBE
(C) ID=12 & 15
1-09709-281-1
01
1
1304-
75
BOLT; CLIP
M8X25 FLANGE THA
0-28650-825-0
01
1
1304-
81
BRACKET; CLIP
(A)
1-47477-514-3
02
1
1304-
81
BRACKET; CLIP
(C) L=150 H=30
1-47477-629-2
01
1
1304-
81
BRACKET; CLIP
(C) L=100 H=30
1-47477-645-2
01
1
1304-
81
BRACKET; CLIP
(C) L=225
1-47477-646-3
01
1
1304-
81
BRACKET; CLIP
(D) L=60 H=30
1-47477-716-1
03
1
1304-
81
BRACKET; CLIP
(G) L=90
1-47477-755-1
05
1
1304-
81
BRACKET; CLIP
(E)
1-47479-693-0
01
1
1304-
81
BRACKET; CLIP
(B)
8-98031-420-2
01
1
1304-
81
BRACKET; CLIP
(F)
8-98047-730-0
02
1
1304-
81
BRACKET; CLIP
(H)
8-98177-873-0
03
1
1304-
97
CLIP; AIR PIPE
ID=11 H=20 L=20
8-98033-780-0
01
1
1304-
98
BOLT; PIPE CLIP
M8X30 FLANGE THA
0-28650-830-0
01
1
1304-
99
NUT; PIPE CLIP
M8 FLANGE THA
0-91180-108-0
01
1
1304-
107
CLIP; NYLON TUBE
(A) ID=19 L=40
0-95235-876-0
01
1
1304-
107
CLIP; NYLON TUBE
(B) L=350
1-09707-183-0
46
1
1304-
108
BOLT; TUBE CLIP
M8X20 FLANGE THA
0-28650-820-0
01
1
1304-
109
NUT; TUBE CLIP
M8 FLANGE THA
0-91180-108-0
01
1
1304-
133
BOLT; BRKT
M8X20 FLANGE THA
0-28650-820-0
03
1
1304-
133
BOLT; BRKT
M8X25 FLANGE THA
0-28650-825-0
03
1
1304-
133
BOLT; BRKT
M8X30 FLANGE THA
0-28650-830-0
10
1
1304-
242
BRACKET; PIPE CLIP
8-98106-046-0
01
1
1304-
265
CLIP; NYLON TUBE
(B) L=350
1-09707-183-0
01
1
1304-
265
CLIP; NYLON TUBE
(A) ID=21 H=25.5 L=26
8-94176-806-0
01
1
1304-
269
CLIP; BAND,NYLON TUBE
ID=11X2 L=20
0-95325-035-0
01
1
1304-
297
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
02
1
1304-
306
CLIP; NYLON TUBE
L=350
1-09707-183-0
01
1
1304-
321
BRACKET; CLIP
(A) L=150 H=30
1-47477-629-2
01
1
1304-
321
BRACKET; CLIP
(B) L=60 H=30
1-47477-716-1
01
1
1304-
331
CLIP; NYLON TUBE
L=350
1-09707-183-0
01
1
1304-
353
CLIP; AIR PIPE
ID=18 & 18
8-94323-068-0
01
1
1304-
372
BOLT; CLIP BRKT
M8X25 FLANGE THA
0-28650-825-0
02
1
1304-
376
BOLT; BRKT
M8X25 FLANGE THA
0-28650-825-0
01
1
1304-
376
BOLT; BRKT
M8X30 FLANGE THA
0-28650-830-0
01
1
1304-
388
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
388
SEAL
100X40
1-72498-022-1
03
1
1304-
