◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GVR ▶ 11543 - GVR CNG(THAILAND) ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶
3-22 — AIR CONTROL PARTS (#122313) — 56 parça

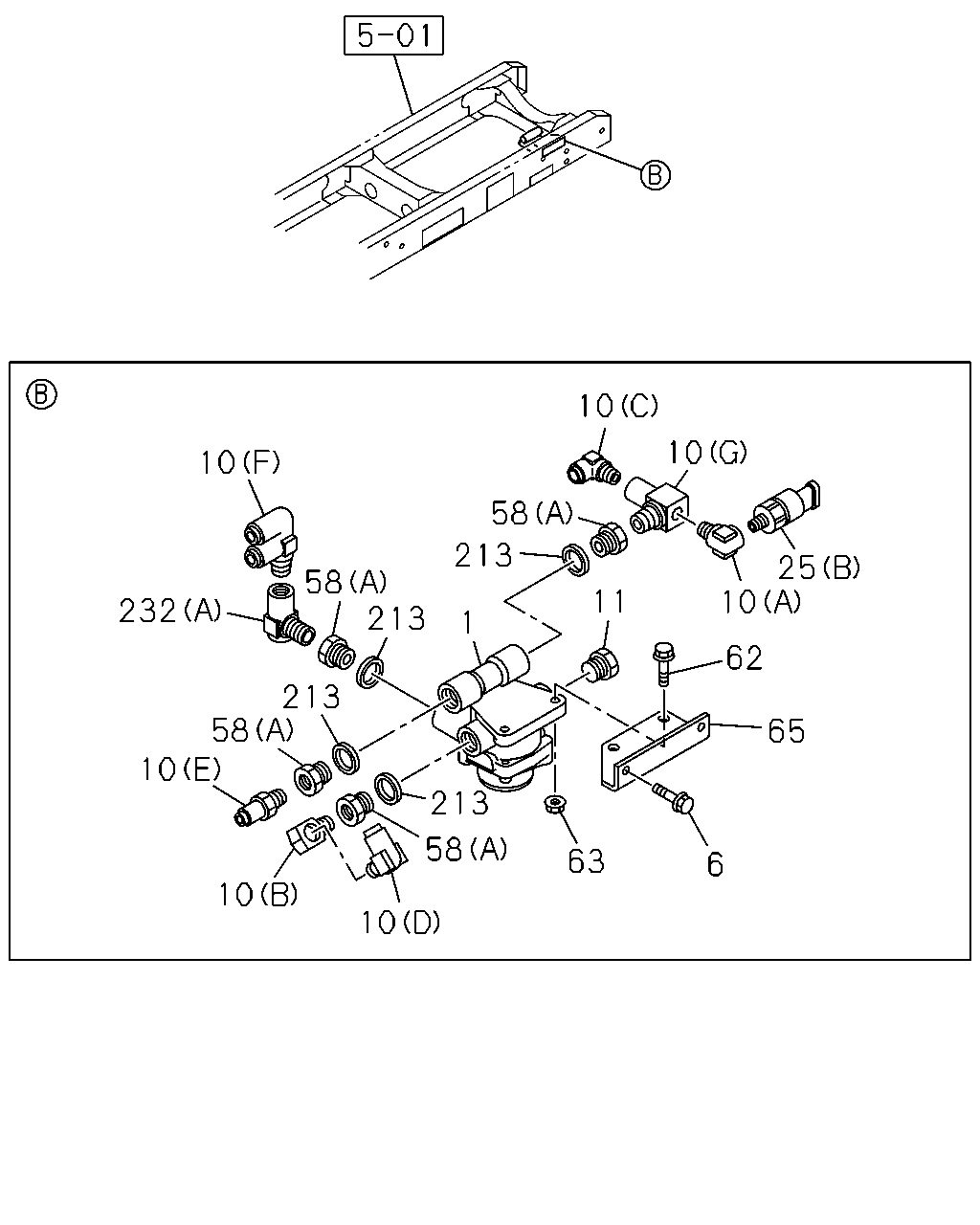

çizim 355946
65 62 25 10 10 10 6 63 213 58 10 10 10 213 213 213 58 11 1 58 58 232 10
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48240-354-1 01 1 1304-
6 BOLT; VLV
M8X35 FLANGE THA 		0-28650-835-0 02 1 1304-
10 CONNECTOR
(A) PT1/4 2WAY 		1-09660-693-0 01 1 1304-
10 CONNECTOR
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 1304-
10 CONNECTOR
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1304-
10 CONNECTOR
(D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1304-
10 CONNECTOR
(E) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1304-
10 CONNECTOR
(F) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1304-
10 CONNECTOR
(G) 		8-98166-127-0 01 1 1304-
11 PLUG 1-09661-502-0 01 1 1304-
25 SWITCH; PRESSURE
(A) STAMP 5.5 		8-97609-249-0 01 1 1304-
25 SWITCH; PRESSURE
(B) 		8-98010-856-1 01 1 1304-
58 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1304-
58 ADAPTER
(B) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1304-
58 ADAPTER
(C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1304-
58 ADAPTER
(D) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1304-
58 ADAPTER
(E) 		8-98031-238-0 01 1 1304-
58 ADAPTER
(F) 		8-98166-127-0 01 1 1304-
62 BOLT; BRKT FIX
M8X30 FLANGE THA 		0-28650-830-0 02 1 1304-
63 NUT; BRKT FIX
M8 FLANGE THA 		0-91180-108-0 02 1 1304-
65 BRACKET; RELAY VLV RR
THA 		1-47471-032-0 01 1 1304-
213 GASKET
ID=22.5 		9-09571-422-0 04 1 1304-
232 VALVE; CHECK
(A) 		1-48320-031-1 01 1 1304-
232 VALVE; CHECK
(B) 		8-98032-527-0 01 1 1304-

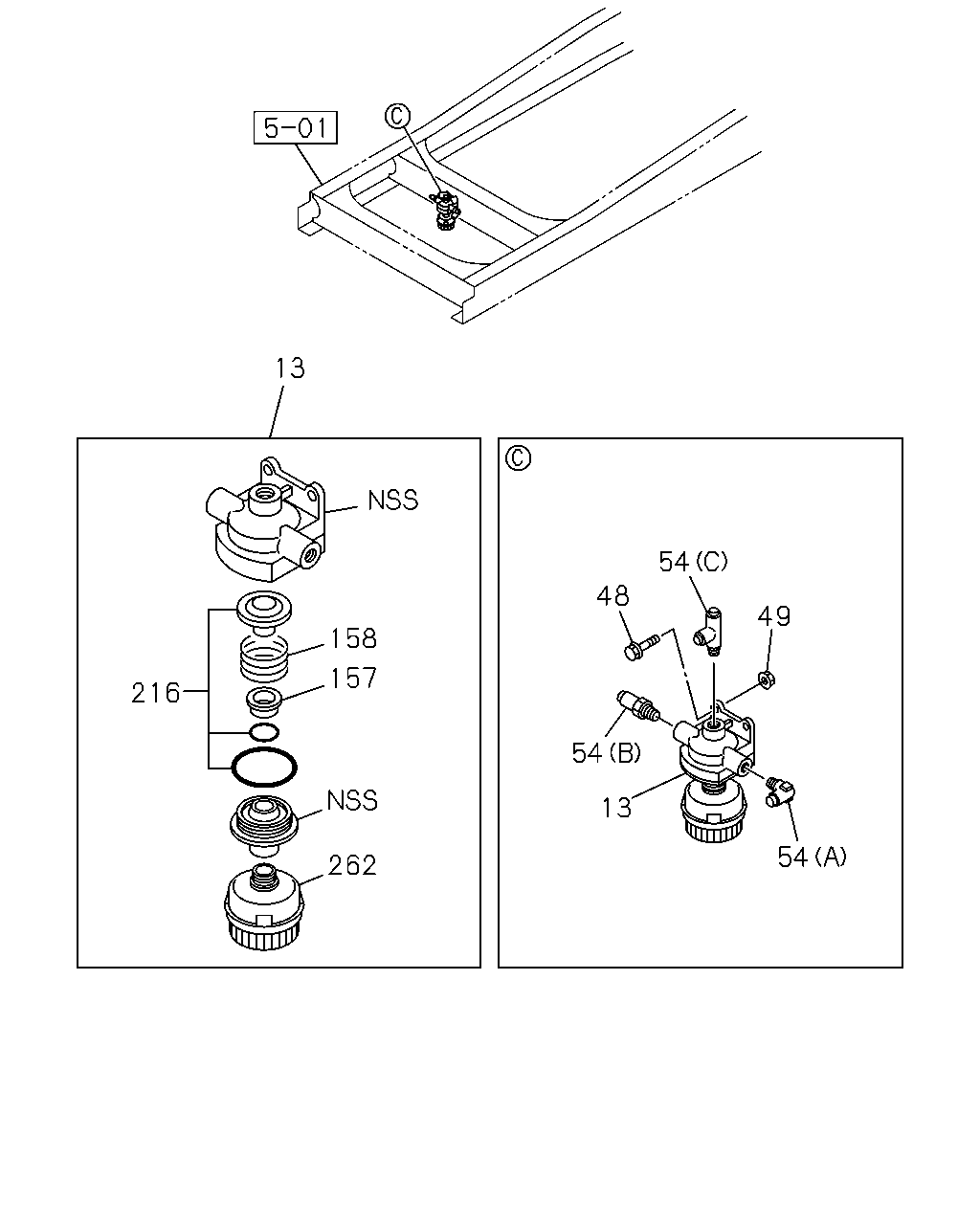

çizim 356052
13 158 157 262 216 48 54 49 54 13 54
BalonParca AdiParca NoAdetTipApplied Date
13 VALVE ASM; QUICK RELEASE 1-48410-726-1 01 1 1304-
48 BOLT; QUICK RELEASE VLV
M8X25 FLANGE THA 		0-28650-825-0 02 1 1304-
49 NUT; QUICK RELEASE VLV
M8 FLANGE THA 		0-91180-108-0 02 1 1304-
54 CONNECTOR; QUICK RELEASE VLV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1304-
54 CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1304-
54 CONNECTOR; QUICK RELEASE VLV
(C) 		1-09661-207-0 01 1 1304-
157 RETAINER; VALVE 1-48419-020-0 01 1 1304-
158 SPRING; VALVE 9-48419-003-0 01 1 1304-
216 REPAIR KIT; QUICK RELEASE VLV 1-85576-484-0 01 1 1304-
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1304-

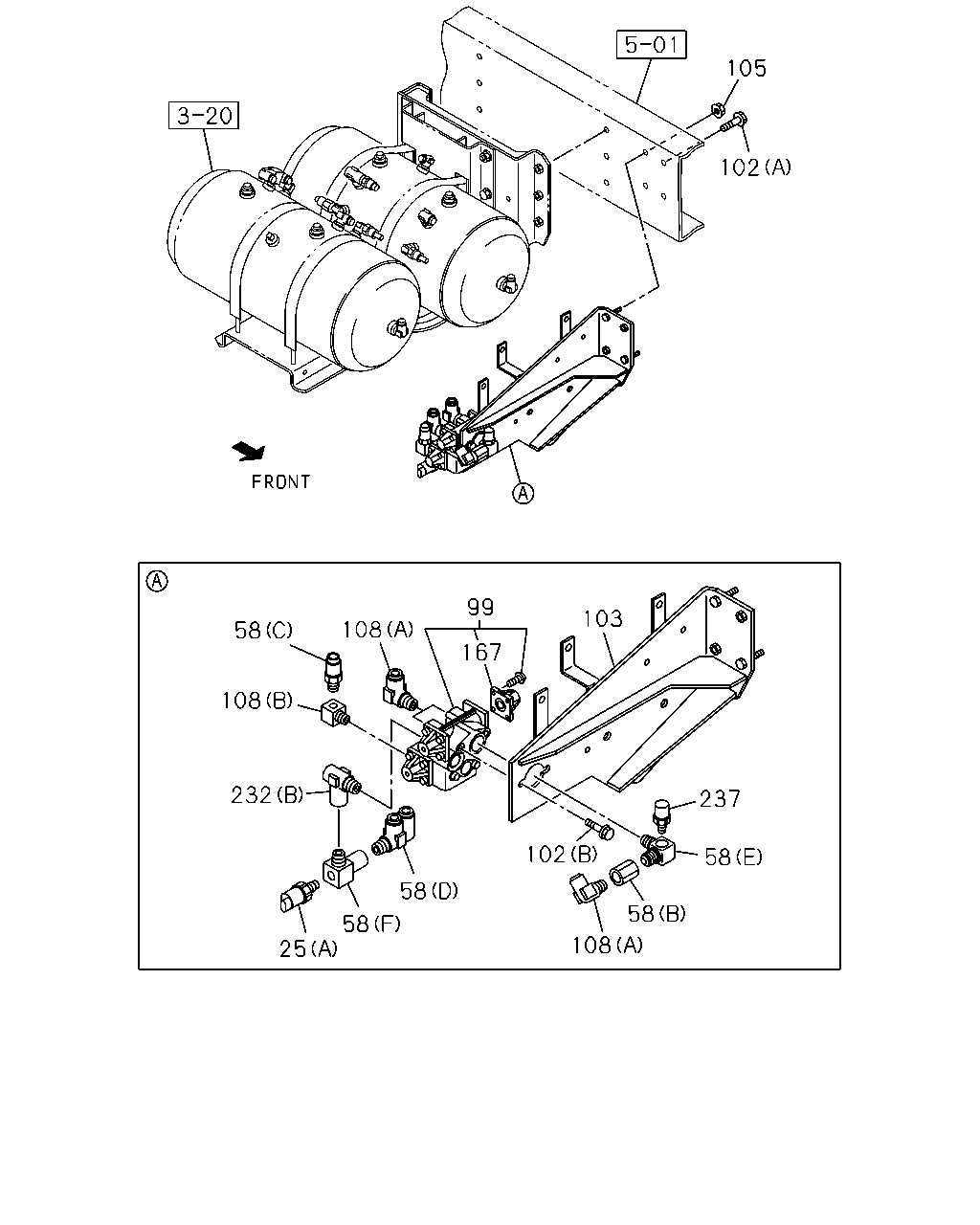

çizim 356235
105 102 58 108 232 25 58 167 99 103 237 58 58 108 102 108 58
BalonParca AdiParca NoAdetTipApplied Date
25 SWITCH; PRESSURE
(A) STAMP 5.5 		8-97609-249-0 01 1 1304-
25 SWITCH; PRESSURE
(B) 		8-98010-856-1 01 1 1304-
58 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1304-
58 ADAPTER
(B) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1304-
58 ADAPTER
(C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1304-
58 ADAPTER
(D) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1304-
58 ADAPTER
(E) 		8-98031-238-0 01 1 1304-
58 ADAPTER
(F) 		8-98166-127-0 01 1 1304-
99 VALVE; PROTECTION 1-48110-288-2 01 1 1304-
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE THA 		0-28050-816-0 02 1 1304-
102 BOLT; PROTECTION VALVE
(A) M10X35 FLANGE THA 		0-28651-035-0 02 1 1304-
103 BRACKET; PROTECTION VALVE
THA 		8-97925-395-0 01 1 1304-
105 NUT; BRKT,VALVE
M10 FLANGE THA 		0-91180-210-0 02 1 1304-
108 CONNECTOR; ELBOW
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 1304-
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1304-
167 COVER; VALVE 1-48119-625-0 04 1 1304-
232 VALVE; CHECK
(A) 		1-48320-031-1 01 1 1304-
232 VALVE; CHECK
(B) 		8-98032-527-0 01 1 1304-
237 VALVE; SAFETY 1-48320-012-2 01 1 1304-

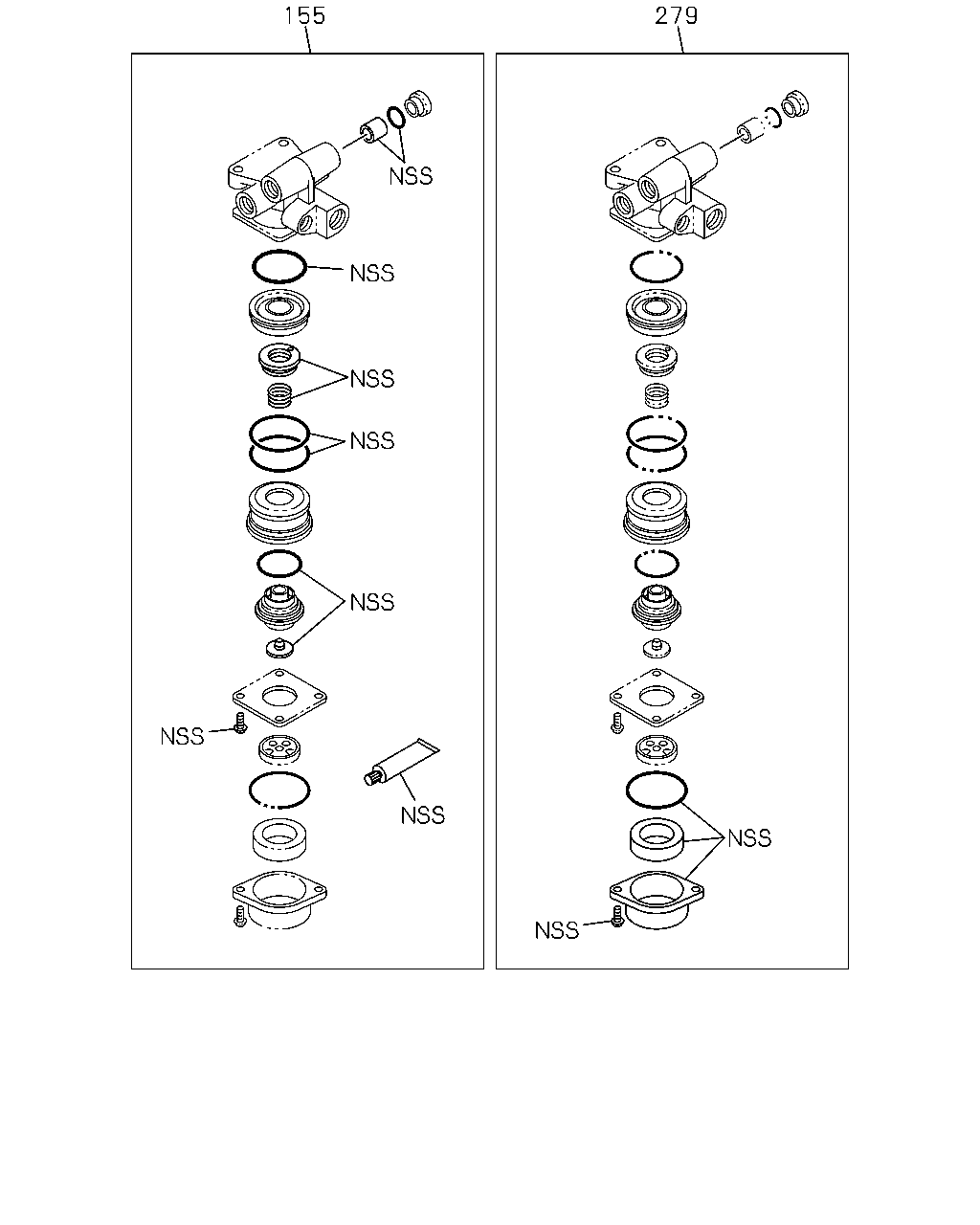

çizim 358263
279 155
BalonParca AdiParca NoAdetTipApplied Date
155 REPAIR KIT; RELAY VALVE 1-85576-408-0 01 1 1304-
279 REPAIR KIT; SILENCER 1-85576-409-0 01 1 1304-
çizim 421087
241
BalonParca AdiParca NoAdetTipApplied Date
241 REPAIR KIT; PROTECTION VALVE 1-85576-451-1 01 1 1304-
