◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10876 - EXZ RHD FUEL TANK 200L+200L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#12231) — 115 parça

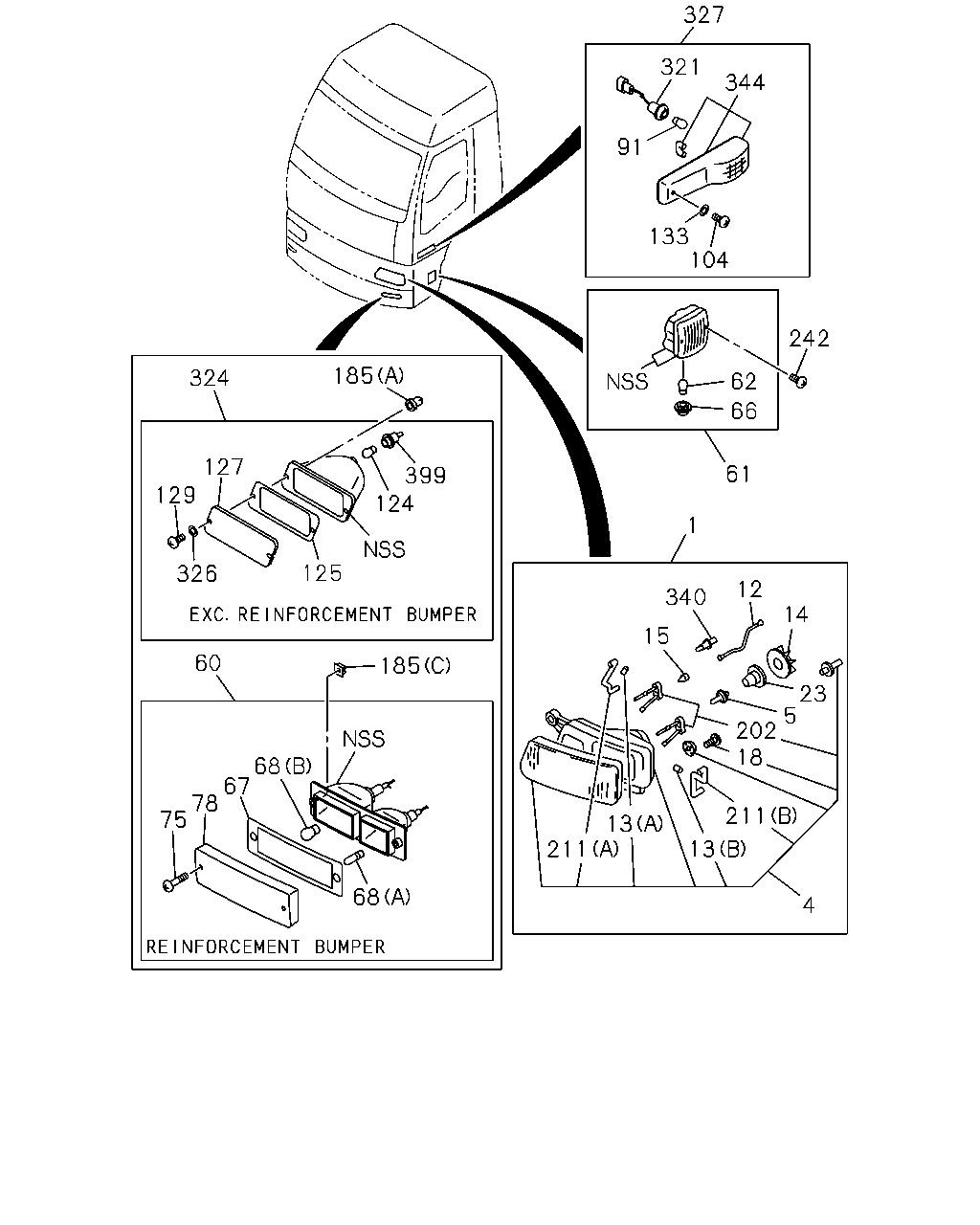

çizim 21768
327 321 344 91 133 104 242 185 324 62 66 127 61 399 124 129 1 125 326 12 340 14 15 60 185 23 5 202 18 68 67 78 75 211 13 13 211 68 4
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD 1-82110-396-2 01 1 0105-
1 LAMP ASM; HEAD 1-82110-395-2 01 1 0105-
4 HEADLAMP UNIT
24V 75/70W 		1-82119-129-0 01 1 0105-
4 HEADLAMP UNIT
24V 75/70W 		1-82119-128-0 01 1 0105-
5 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0105-
12 HARNESS; HEADLAMP 1-82118-012-0 02 1 0105-
13 CLIP; HEADLAMP
(A) 		1-82119-084-0 04 1 0105-
13 CLIP; HEADLAMP
(B) 		8-94381-588-0 14 1 0105-
14 CAP; BULB,LAMP 1-86830-148-0 02 1 0105-
15 BULB; FOG LAMP
24V 55W 		1-82194-079-0 02 1 0105-
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 0105-
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 0105-
60 LAMP ASM; FRT COMB
REINFORCEMENT BUMPER<VG7> 		1-86830-273-0 01 1 0105-
60 LAMP ASM; FRT COMB
REINFORCEMENT BUMPER<VG7> 		1-86830-272-0 01 1 0105-
61 LAMP ASM; CORNERING
CORNERING LAMP<TDS> 24V 30W 		1-86830-188-2 01 1 0105-
61 LAMP ASM; CORNERING
CORNERING LAMP<TDS> 24V 30W 		1-86830-187-2 01 1 0105-
62 BULB; CORNERING LAMP
CORNERING LAMP<TDS> 24V 30W 		8-97010-179-0 01 1 0105-
62 BULB; CORNERING LAMP
CORNERING LAMP<TDS> 24V 30W 		8-97010-179-0 01 1 0105-
66 HARNESS; CORNERING LAMP
CORNERING LAMP<TDS> 		1-86830-146-0 01 1 0105-
66 HARNESS; CORNERING LAMP
CORNERING LAMP<TDS> 		1-86830-146-0 01 1 0105-
67 GASKET; FRT COMB LAMP
REINFORCEMENT BUMPER<VG7> 		8-94149-259-0 02 1 0105-
68 BULB; FRT COMB LAMP
REINFORCEMENT BUMPER<VG7> (A) 24V 5W 		1-82194-089-0 02 1 0105-
68 BULB; FRT COMB LAMP
REINFORCEMENT BUMPER<VG7> (B) 24V 21W 		1-82194-090-0 02 1 0105-
75 SCREW; FRT COMB LAMP
REINFORCEMENT BUMPER<VG7> 		0-91190-435-0 04 1 0105-
78 LENS ASM; FRT COMB
REINFORCEMENT BUMPER<VG7> 		8-94151-265-0 01 1 0105-
78 LENS ASM; FRT COMB
REINFORCEMENT BUMPER<VG7> 		8-94151-264-0 01 1 0105-
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 0105-
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0105-
124 BULB; FRT TURN SIGNAL
EXC. REINFORCEMENT BUMPER<VG7> 24V 21W 		1-82194-036-0 02 1 0105-
125 GASKET; FRT TURN SIGNAL
EXC. REINFORCEMENT BUMPER<VG7> 		1-82216-033-0 02 1 0105-
127 LENS; FRT TURN SIGNAL
EXC. REINFORCEMENT BUMPER<VG7> ORANGE 		1-82215-065-0 01 1 0105-
127 LENS; FRT TURN SIGNAL
EXC. REINFORCEMENT BUMPER<VG7> ORANGE 		1-82215-064-0 01 1 0105-
129 SCREW; FRT TURN SIGNAL
EXC. REINFORCEMENT BUMPER<VG7> 		1-82219-026-0 04 1 0105-
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 0105-0206
185 GROMMET; SCREW
(B) M5 SCREW GROMMET 		1-09983-131-0 12 1 0105-
185 GROMMET; SCREW
EXC. FRONT SPOILER<VP1> (A) D=9X9 L=8 M6 		8-94222-314-0 04 1 0105-
185 GROMMET; SCREW
REINFORCEMENT BUMPER<VG7> (C) M4 		5-09470-002-0 04 1 0105-
202 GEAR UNIT; HEADLAMP 1-86830-139-0 04 1 0105-
211 TUBE; HEADLAMP
(A) 		1-86830-329-0 01 1 0105-0105
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0105-
211 TUBE; HEADLAMP
(A) 		1-86830-328-0 01 1 0105-0105
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0105-
242 SCREW; CORNERING LAMP
CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS 		0-71190-420-0 04 1 0105-
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0105-
324 LAMP; FRT FLASHER
EXC. REINFORCEMENT BUMPER<VG7> 		1-82210-203-1 01 1 0105-
324 LAMP; FRT FLASHER
EXC. REINFORCEMENT BUMPER<VG7> 		1-82210-202-1 01 1 0105-
326 WASHER; PL,FRT TURN SIGNAL
EXC. REINFORCEMENT BUMPER<VG7> 		1-82216-032-0 04 1 0105-
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 0105-
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 0105-
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 0105-
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0105-
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0105-
399 SOCKET; TURN SIGNAL
EXC. REINFORCEMENT BUMPER<VG7> 		1-82219-034-0 02 1 0105-

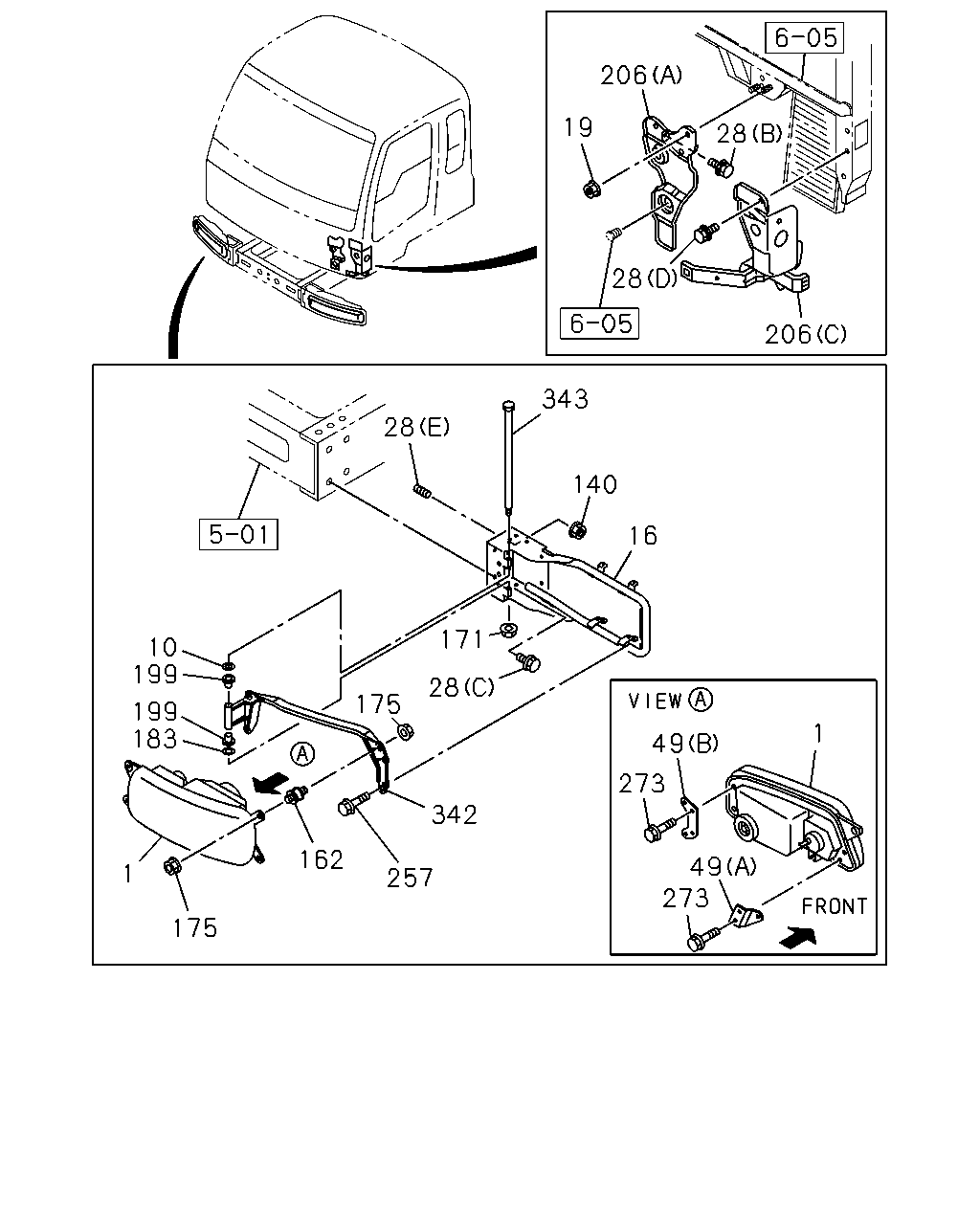

çizim 79891
206 19 28 28 206 343 28 140 16 171 10 199 199 183 28 175 1 49 273 342 49 273 162 1 257 175
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD 1-82110-396-2 01 1 0105-
1 LAMP ASM; HEAD 1-82110-395-2 01 1 0105-
10 WASHER; PL,HEADLAMP RIM
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> ID=8.4 		9-09160-508-0 02 1 0105-
16 BRACKET; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> 		1-82117-116-1 02 1 0105-0206
16 BRACKET; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> 		1-82117-155-2 02 1 0207-
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0105-
28 BOLT; HEADLAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0105-
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (D) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0105-
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X35 FLANGE 		0-28081-035-0 06 1 0105-0105
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X30 FLANGE 		0-28681-030-0 06 1 0106-
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (E) M10X35 L=50 		5-09300-050-0 02 1 0105-
28 BOLT; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0105-
49 BRACKET; LAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) 		1-82117-100-0 02 1 0105-
49 BRACKET; LAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) 		1-82117-102-0 01 1 0105-
49 BRACKET; LAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) 		1-82117-101-0 01 1 0105-
140 NUT
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M10 FLANGE 		0-91150-210-0 02 1 0105-
162 RUBBER; CUSHION UPR
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> 		1-82117-086-0 08 1 0105-
171 NUT
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M6 FLANGE 		0-91150-106-0 02 1 0105-
175 NUT; BRKT CUSHION RUBBER
BUMPER W/HEADLAMPS<SLB> M8 FLANGE 		0-91150-108-0 16 1 0105-
183 WASHER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> ID=8.5 		9-09855-333-0 02 1 0105-
199 BUSHING
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> 		5-15549-001-1 04 1 0105-
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 0105-
206 HOLDER; HEADLAMP
(A) 		1-65671-569-5 01 1 0105-
206 HOLDER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) 		1-65671-762-3 01 1 0105-
206 HOLDER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) 		1-65671-761-3 01 1 0105-
206 HOLDER; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-65671-574-3 01 1 0105-
206 HOLDER; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-65671-573-3 01 1 0105-
257 BOLT; BRKT HD LAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X20 FLANGE 		0-28080-820-0 04 1 0105-
273 BOLT; BRKT
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M6X16 FLANGE 		0-28680-616-0 08 1 0105-
342 HINGE; LAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> 		1-82117-087-2 01 1 0105-
342 HINGE; LAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> 		1-82117-088-2 01 1 0105-
343 SHAFT; HINGE
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> 		1-82119-096-1 02 1 0105-
çizim 81313
174 256 84 83 325 325 185 328 185 325
BalonParca AdiParca NoAdetTipApplied Date
83 LENS; MARKER LAMP
HIGH ROOF<S2F> 		1-86830-321-0 03 1 0105-
84 GASKET; MARKER LAMP
HIGH ROOF<S2F> 		1-86830-153-0 03 1 0105-
174 BOLT
M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0105-
185 GROMMET; SCREW
(B) M5 SCREW GROMMET 		1-09983-131-0 12 1 0105-
185 GROMMET; SCREW
EXC. FRONT SPOILER<VP1> (A) D=9X9 L=8 M6 		8-94222-314-0 04 1 0105-
185 GROMMET; SCREW
REINFORCEMENT BUMPER<VG7> (C) M4 		5-09470-002-0 04 1 0105-
256 LAMP; MARKER
HIGH ROOF<S2F> 		1-82210-230-0 03 1 0105-
325 SCREW; SPD INDICATOR LAMP
M5X14 TAPPING 		9-07066-514-0 12 1 0105-
325 SCREW; SPD INDICATOR LAMP
HIGH ROOF<S2F> M5X20 TAPPING 		0-71090-520-0 18 1 0105-
328 COVER; LAMP
EXC. HIGH ROOF<S2F> 		1-76217-122-1 03 1 0105-

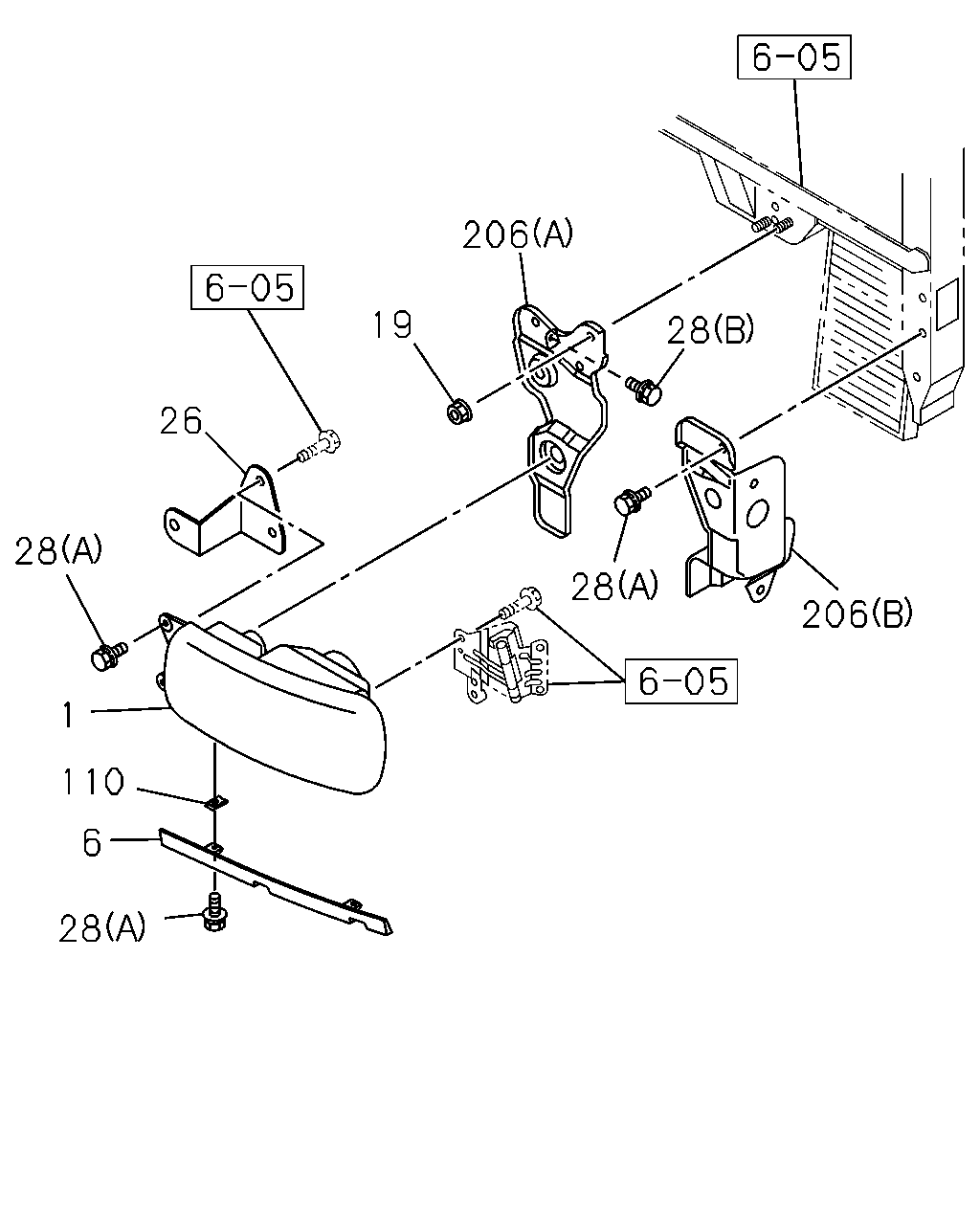

çizim 81575
206 19 28 26 28 28 206 1 110 6 28
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD 1-82110-396-2 01 1 0105-
1 LAMP ASM; HEAD 1-82110-395-2 01 1 0105-
6 RIM; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-71107-024-0 01 1 0105-
6 RIM; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-71107-023-0 01 1 0105-
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0105-
26 BRACKET ASM; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-085-0 01 1 0105-
26 BRACKET ASM; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-084-0 01 1 0105-
28 BOLT; HEADLAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0105-
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (D) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0105-
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X35 FLANGE 		0-28081-035-0 06 1 0105-0105
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X30 FLANGE 		0-28681-030-0 06 1 0106-
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (E) M10X35 L=50 		5-09300-050-0 02 1 0105-
28 BOLT; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0105-
110 CLIP; RIM,HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-213-0 04 1 0105-
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 0105-
206 HOLDER; HEADLAMP
(A) 		1-65671-569-5 01 1 0105-
206 HOLDER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) 		1-65671-762-3 01 1 0105-
206 HOLDER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) 		1-65671-761-3 01 1 0105-
206 HOLDER; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-65671-574-3 01 1 0105-
206 HOLDER; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-65671-573-3 01 1 0105-
