2-30 — GEAR SHIFTER AND QUADRANT BOX (#122304) — 182 parça
çizim 355003

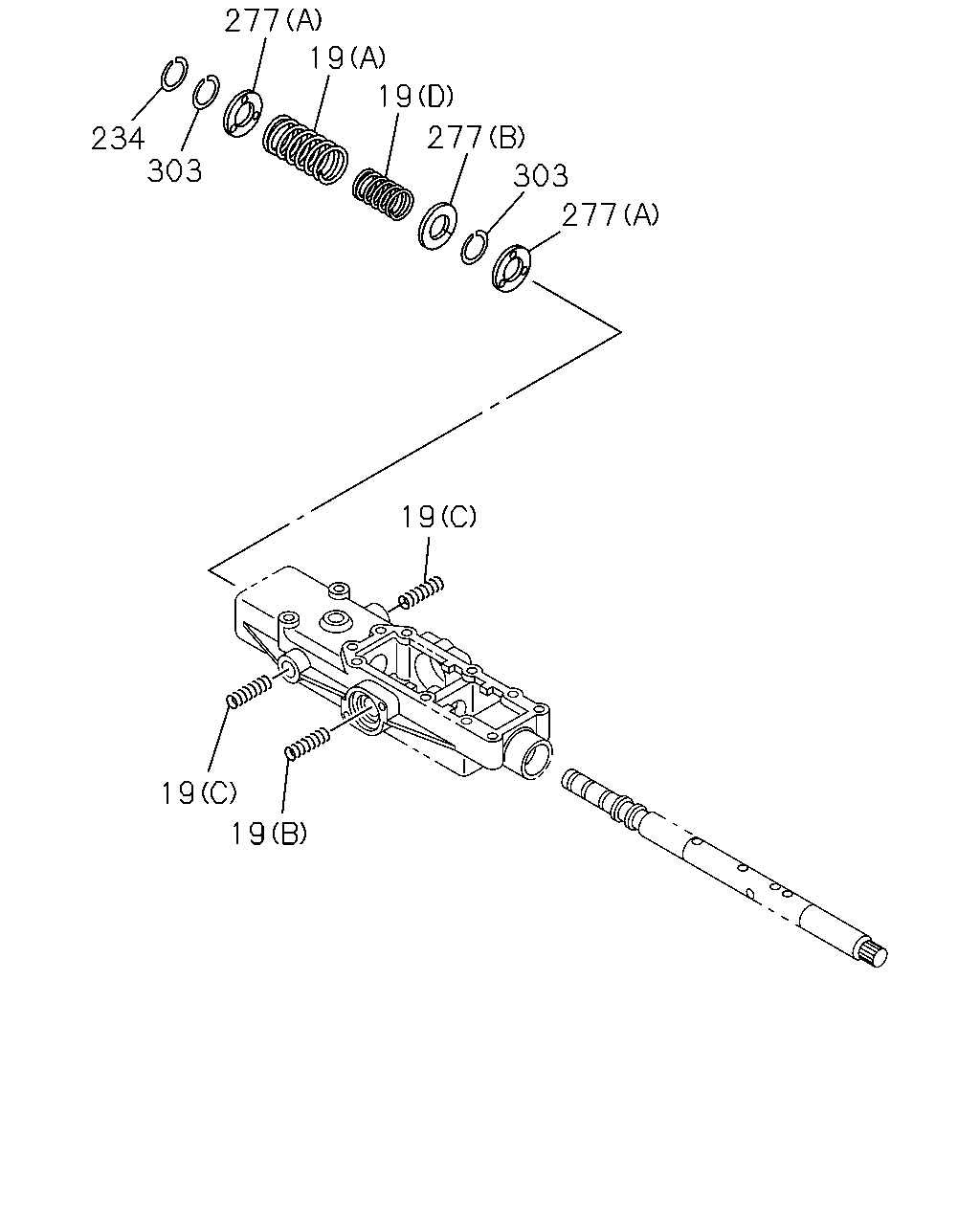

277 19 19 277 303 277 234 303 19 19 19
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) IMA 		1-33539-027-0 01 1 1304-
19 SPRING; COIL COMP
(C) IMA 		1-33539-030-0 02 1 1304-
19 SPRING; COIL COMP
(D) IMA 		1-33539-104-0 01 1 1304-
19 SPRING; COIL COMP
(B) IMA 		1-33549-221-0 01 1 1304-
234 RING; SNAP
IMA 		1-44519-224-0 01 1 1304-
277 PLATE; SPRING SEAT
(A) 		1-33539-039-0 02 1 1304-1305
277 PLATE; SPRING SEAT
(A) IMA 		1-33539-107-0 02 1 1306-
277 PLATE; SPRING SEAT
(B) 		1-33539-042-0 01 1 1304-1305
303 RING; SNAP,SHAFT
IMA 		1-33539-040-0 02 1 1304-
çizim 355664

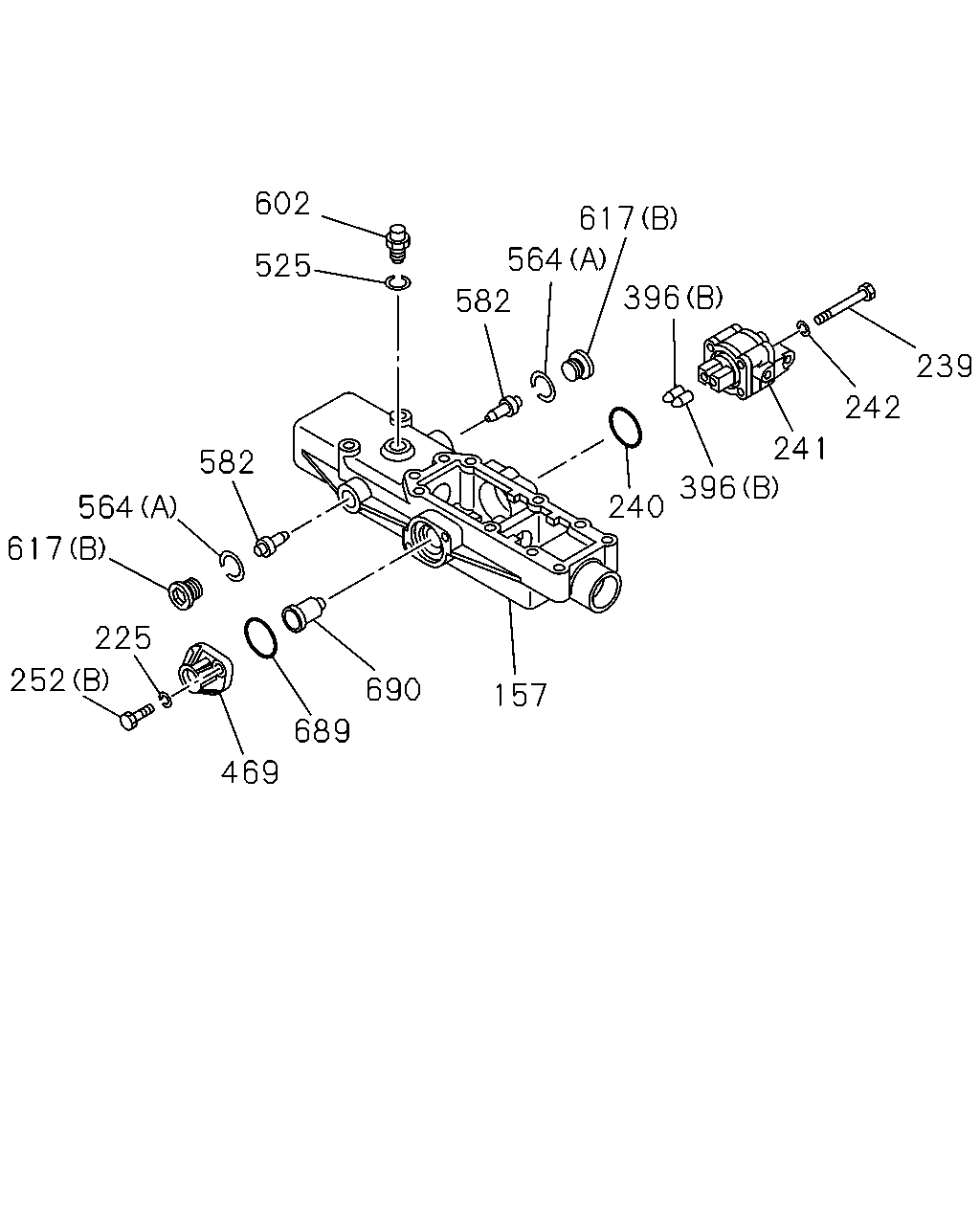

602 525 582 564 617 396 239 242 241 396 240 157 690 689 469 252 225 617 564 582
BalonParca AdiParca NoAdetTipApplied Date
157 BOX; QUAD,TRANS
IMA 		1-33549-570-0 01 1 1304-
225 WASHER; LK,QUAD BOX 1-33549-159-0 14 1 1304-1305
225 WASHER; LK,QUAD BOX
IMA 		1-33549-583-0 14 1 1306-
239 BOLT; CUT OFF VALVE 1-33549-302-0 04 1 1304-1305
239 BOLT; CUT OFF VALVE
IMA 		1-33549-585-0 04 1 1306-
240 GASKET; CUT OFF VALVE
IMA 		1-33549-198-0 01 1 1304-
241 VALVE; CUT OFF
IMA 		1-33549-495-0 01 1 1304-
242 WASHER; CUT OFF VALVE 1-33549-159-0 04 1 1304-1305
242 WASHER; CUT OFF VALVE
IMA 		1-33549-583-0 04 1 1306-
252 BOLT; SIDE COVER
(A) 		1-33119-296-0 04 1 1304-1305
252 BOLT; SIDE COVER
(A) M8X20 IMA 		1-33549-591-0 04 1 1306-
252 BOLT; SIDE COVER
(B) M8X30 		1-33549-172-0 02 1 1304-1305
252 BOLT; SIDE COVER
(B) M8X30 IMA 		1-33549-581-0 02 1 1306-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-073-0 01 1 1304-1305
396 PLUNGER; SHIFT ROD
(A) IMA 		1-33519-189-0 01 1 1306-
396 PLUNGER; SHIFT ROD
(B) IMA 		1-33529-085-0 02 1 1304-
469 COVER; SPRING,QUAD BOX
IMA 		1-33549-216-0 01 1 1304-
525 RING; DETENT
IMA 		1-33119-286-0 01 1 1304-
564 SEAL; RING
(A) IMA 		1-33119-249-0 02 1 1304-
564 SEAL; RING
(B) 		1-33549-444-0 01 1 1304-1305
564 SEAL; RING
(B) IMA 		1-33549-578-0 01 1 1306-
582 BOLT; SPRING GUIDE
IMA 		1-33549-487-0 02 1 1304-
602 PLUNGER; DETENT 1-33119-285-0 01 1 1304-1305
602 PLUNGER; DETENT
IMA 		1-33119-618-0 01 1 1306-
617 PLUG
(B) 		1-33119-171-0 02 1 1304-1305
617 PLUG
(B) IMA 		1-33119-619-0 02 1 1306-
617 PLUG
(A) 		1-34129-061-0 01 1 1304-1305
617 PLUG
(A) IMA 		1-33539-109-0 01 1 1306-
689 GASKET; COVER
IMA 		1-33542-063-0 01 1 1304-
690 PIN; STOP
IMA 		1-33549-496-0 01 1 1304-
çizim 355732

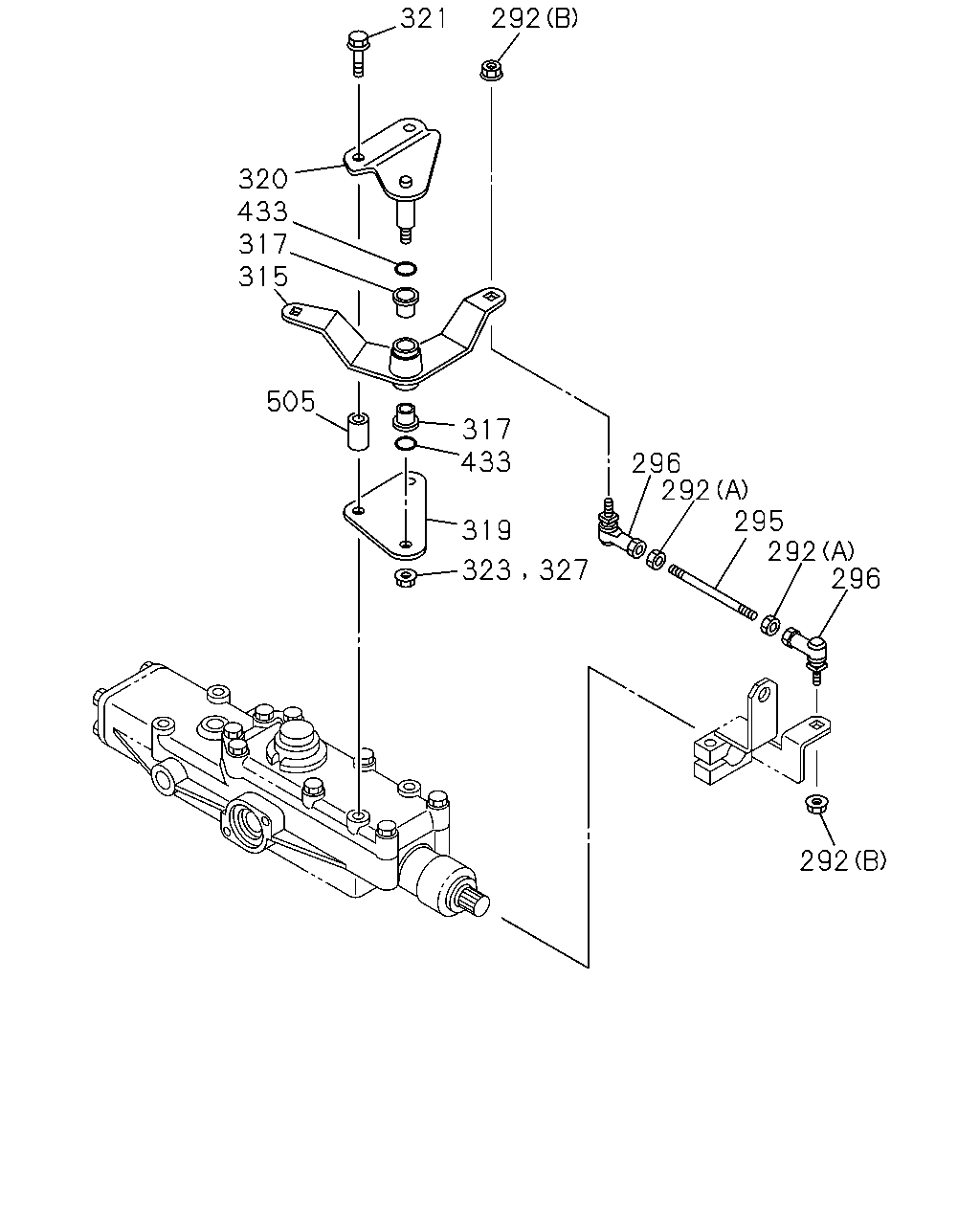

292 296 292 295 292 296 327 323 319 433 317 505 315 317 433 320 321 292
BalonParca AdiParca NoAdetTipApplied Date
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 1304-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1304-
295 ROD; LINK,RELAY LEVER
M8 L=50 		9-08400-805-0 01 1 1304-
296 ROD END 1-09760-108-0 02 1 1304-
315 LEVER; SELECT 8-98085-738-0 01 1 1304-
317 BUSHING; LEVER 1-09330-119-0 02 1 1304-
319 BRACKET; SELECT LEVER 8-98085-740-0 01 1 1304-
320 SHAFT; LEVER 8-98085-739-0 01 1 1304-
321 BOLT; BRKT,RELAY LEVER
M8X130 FLANGE 		0-28065-813-0 02 1 1304-
323 NUT; LK,SELECT LEVER
M10 FLANGE THA 		0-91180-110-0 01 1 1304-
327 NUT; BRKT,RELAY LEVER
M10 FLANGE THA 		0-91180-110-0 01 1 1304-
433 GASKET; BUSHING 1-09623-594-0 02 1 1304-
505 SPACER; BRKT
L=24.5 		1-33659-186-1 02 1 1304-
çizim 355863

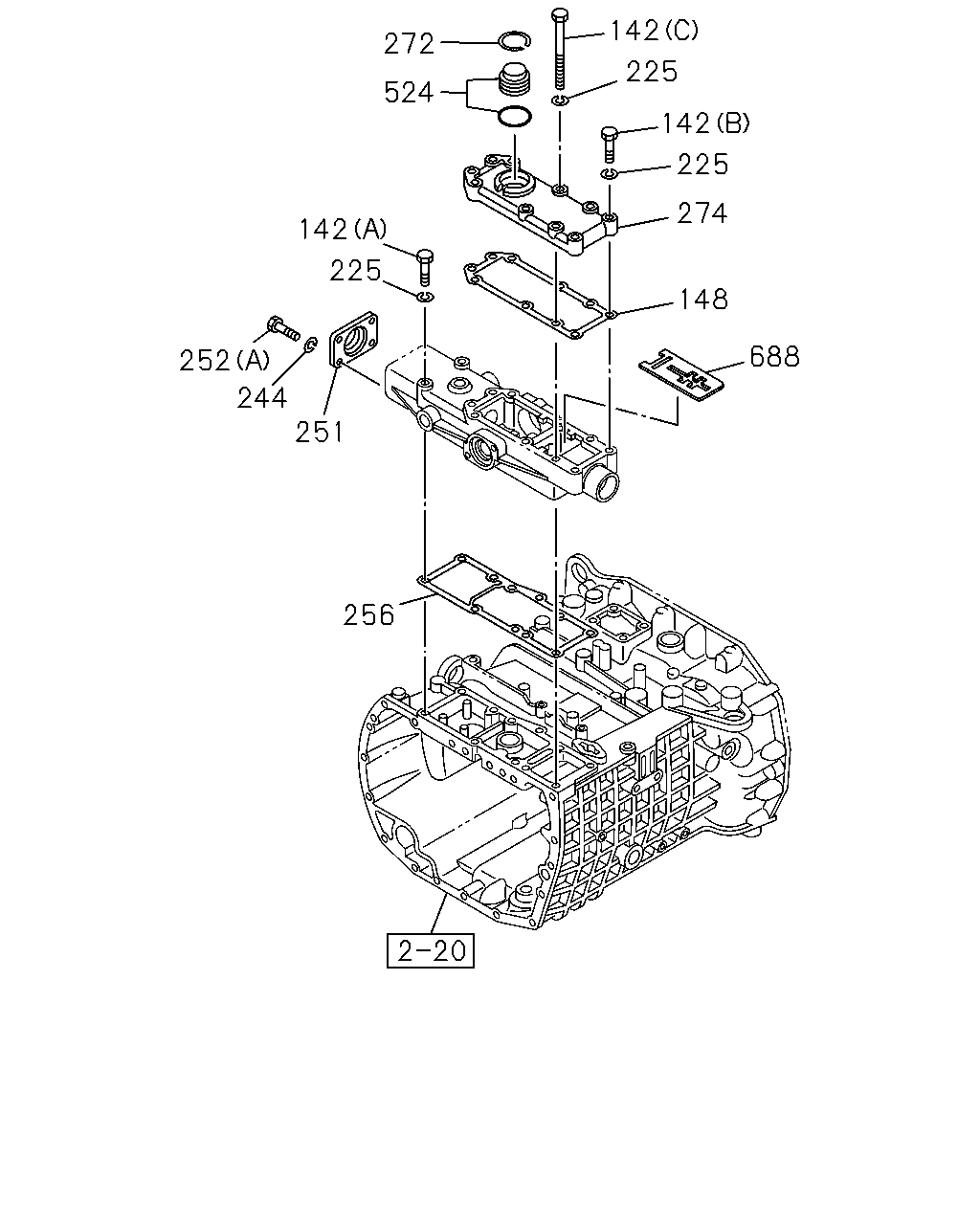

688 148 274 225 142 225 142 272 524 142 225 251 244 252 256
BalonParca AdiParca NoAdetTipApplied Date
142 BOLT; QUAD BOX
(A) M8X75 		1-09089-015-0 02 1 1304-1305
142 BOLT; QUAD BOX
(C) M8X100 IMA 		1-33549-582-0 06 1 1306-
142 BOLT; QUAD BOX
(C) 		1-33549-486-0 06 1 1304-1305
142 BOLT; QUAD BOX
(A) M8X75 IMA 		1-33549-584-0 02 1 1306-
142 BOLT; QUAD BOX
(B) 		1-34129-116-0 04 1 1304-1305
142 BOLT; QUAD BOX
(B) M8X40 IMA 		1-33549-587-0 04 1 1306-
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). IMA 		1-33542-064-0 01 1 1304-
225 WASHER; LK,QUAD BOX 1-33549-159-0 14 1 1304-1305
225 WASHER; LK,QUAD BOX
IMA 		1-33549-583-0 14 1 1306-
244 WASHER; LK,COVER 1-33549-159-0 04 1 1304-1305
244 WASHER; LK,COVER
IMA 		1-33549-583-0 04 1 1306-
251 COVER; SIDE 1-33549-478-0 01 1 1304-1305
251 COVER; SIDE
IMA 		1-33549-590-0 01 1 1306-
252 BOLT; SIDE COVER
(A) 		1-33119-296-0 04 1 1304-1305
252 BOLT; SIDE COVER
(A) M8X20 IMA 		1-33549-591-0 04 1 1306-
252 BOLT; SIDE COVER
(B) M8X30 		1-33549-172-0 02 1 1304-1305
252 BOLT; SIDE COVER
(B) M8X30 IMA 		1-33549-581-0 02 1 1306-
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). IMA 		1-33542-065-0 01 1 1304-
272 RING; SNAP,QUAD BOX
IMA 		1-44519-217-0 01 1 1304-
274 COVER; SHAFT,QUAD BOX 1-33549-571-0 01 1 1304-1305
274 COVER; SHAFT,QUAD BOX
IMA 		1-33549-579-0 01 1 1306-
524 DETENT; QUAD BOX
IMA 		1-33549-501-0 01 1 1304-
688 SHIFT; INTERLOCK
IMA 		1-33549-572-0 01 1 1304-
çizim 356035

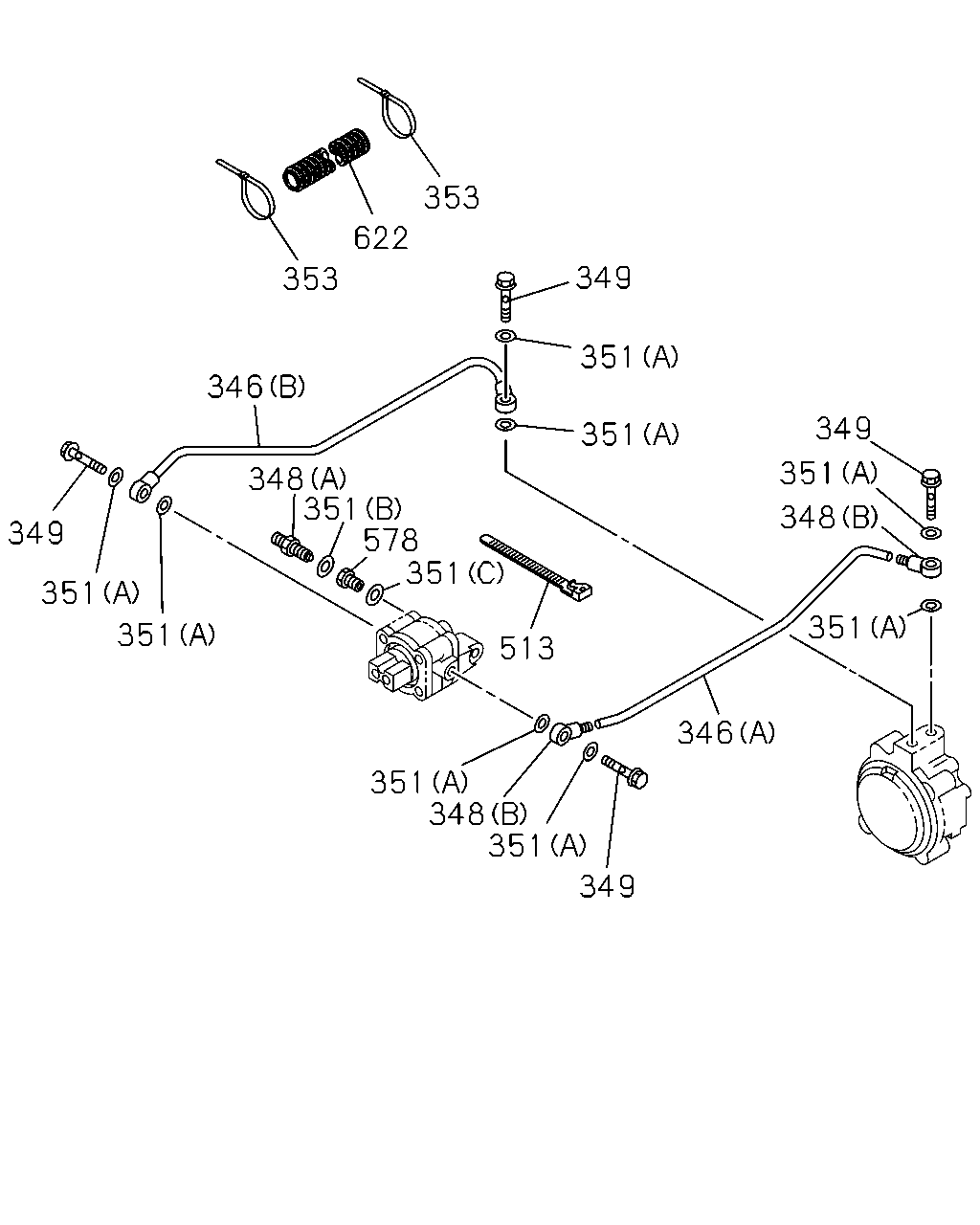

349 351 348 351 346 349 351 348 351 351 351 349 346 348 351 578 351 513 351 351 349 353 622 353
BalonParca AdiParca NoAdetTipApplied Date
346 HOSE; AIR
(A) 		1-33549-400-0 01 1 1304-1305
346 HOSE; AIR
(A) IMA 		1-33549-618-0 01 1 1306-
346 HOSE; AIR
(B) 		1-33549-443-0 01 1 1304-1305
346 HOSE; AIR
(B) IMA 		1-33549-598-0 01 1 1306-
348 CONNECTOR; AIR HOSE
(A) M12 STRAIGHT 		1-09654-246-0 01 1 1304-
348 CONNECTOR; AIR HOSE
(B) 		1-33549-139-0 04 1 1304-1305
348 CONNECTOR; AIR HOSE
(B) IMA 		1-33549-593-0 04 1 1306-
349 BOLT; EYE,AIR HOSE 1-33549-573-0 04 1 1304-1305
349 BOLT; EYE,AIR HOSE
M14 IMA 		1-33549-592-0 04 1 1306-
351 GASKET; CONNECTOR
(B) ID=12.2 		1-09630-084-0 01 1 1304-1312
351 GASKET; CONNECTOR
(B) ID=12.2 		8-98251-344-0 01 1 1401-
351 GASKET; CONNECTOR
(A) 		1-33549-444-0 08 1 1304-1305
351 GASKET; CONNECTOR
(A) IMA 		1-33549-578-0 08 1 1306-
351 GASKET; CONNECTOR
(C) IMA 		1-33549-554-0 01 1 1304-
353 CLIP; AIR HOSE
IMA 		1-33549-475-0 02 1 1304-
513 CLIP; BAND
L=250 		5-09707-030-1 05 1 1304-
578 CONNECTOR
IMA 		1-33549-553-0 01 1 1304-
622 TUBE; CORRUGATE
L=100 ID=22 L=350 		1-83129-017-0 01 1 1304-
çizim 356168
165 289 165 165 271 90 430 298 569 332 48 42 264 265 90 304
BalonParca AdiParca NoAdetTipApplied Date
42 CAP; QUAD BOX 1-33549-111-0 01 1 1304-1305
42 CAP; QUAD BOX
IMA 		1-33549-589-0 01 1 1306-
48 LEVER; 4TH,SHIFT 8-98085-725-0 01 1 1304-
90 RING; SNAP,SHIFT ROD
IMA 		1-33549-494-0 02 1 1304-
165 LEVER; SHIFT
(C) IMA 		1-33549-488-0 01 1 1304-
165 LEVER; SHIFT
(B) IMA 		1-33549-489-0 01 1 1304-
165 LEVER; SHIFT
(A) 		1-33549-490-0 01 1 1304-1305
165 LEVER; SHIFT
(A) IMA 		1-33549-603-0 01 1 1306-
264 SEAL; DUST,SHAFT
IMA 		1-33549-119-0 01 1 1304-
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). IMA 		1-33549-118-0 01 1 1304-
271 BUSHING; QUAD BOX
IMA 		1-33549-124-0 01 1 1304-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). IMA 		1-33549-491-0 01 1 1304-
298 SHAFT; SHIFT LEVER
IMA 		1-33522-205-0 01 1 1304-
304 BLOCK; SHIFT SHAFT
IMA 		1-33549-492-0 01 1 1304-
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE THA 		0-28650-840-0 01 1 1304-
430 PIN; SPR,SHIFT ROD
IMA 		1-33549-493-0 01 1 1304-
569 PIN; QUADRANT BOX
IMA 		1-33529-128-0 02 1 1304-
çizim 356507

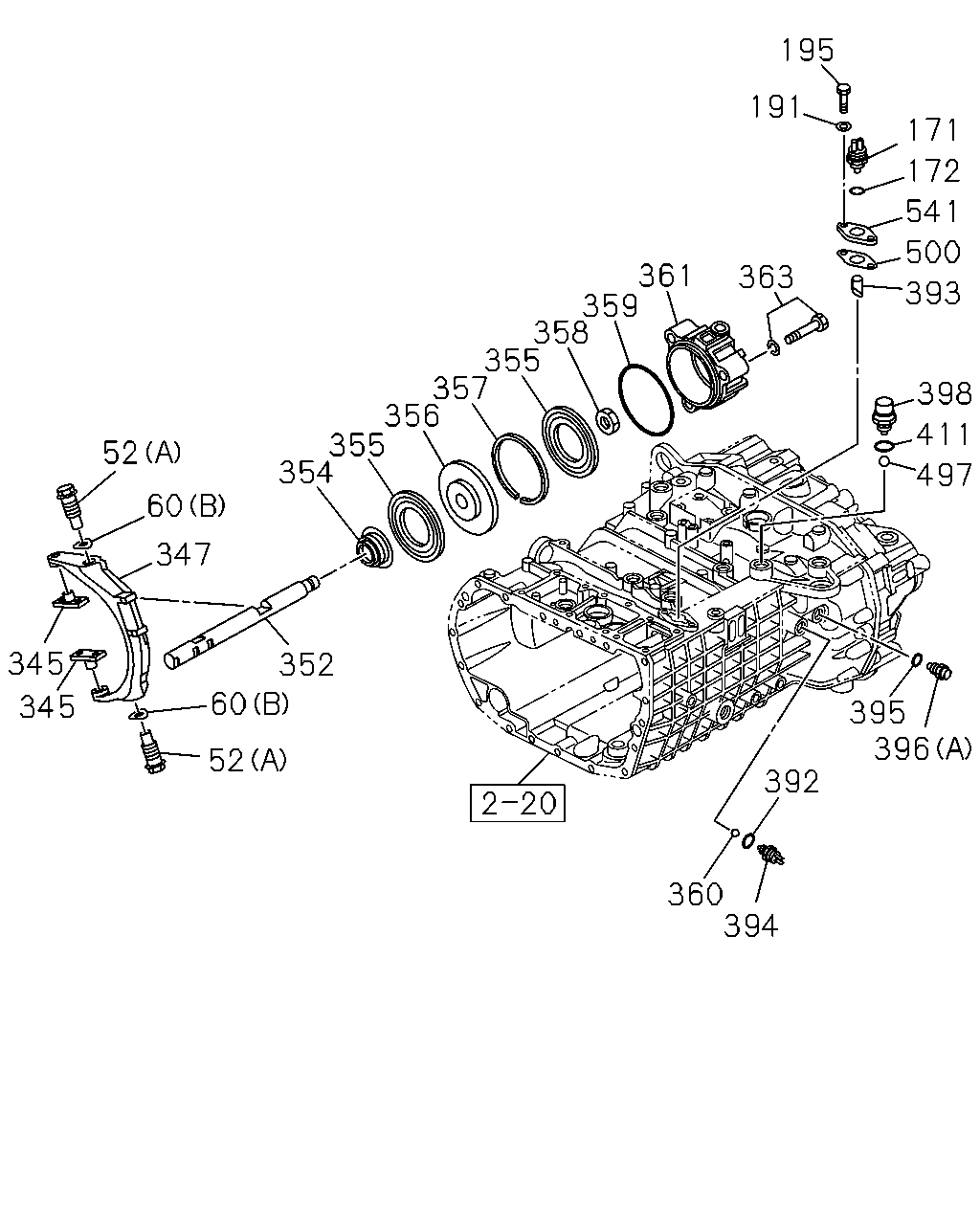

195 191 171 172 541 500 393 398 411 497 395 396 392 360 394 52 60 352 345 345 347 60 52 354 355 356 357 355 358 359 361 363
BalonParca AdiParca NoAdetTipApplied Date
52 BOLT; SHIFT ARM
(A) 		1-33519-058-0 02 1 1304-1305
52 BOLT; SHIFT ARM
(A) IMA 		1-33519-196-0 02 1 1306-
52 BOLT; SHIFT ARM
(B) 		1-33519-084-0 07 1 1304-1305
52 BOLT; SHIFT ARM
(B) IMA 		1-33519-190-0 07 1 1306-
60 WASHER; LK
(B) 		1-33519-059-0 02 1 1304-1305
60 WASHER; LK
(A) 		1-33519-085-0 07 1 1304-1305
171 SWITCH; NEUTRAL 1-33119-587-0 01 1 1304-1305
171 SWITCH; NEUTRAL
IMA 		1-33119-627-0 01 1 1306-
172 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). IMA 		1-33119-249-0 01 1 1304-
191 WASHER; LK 1-36129-007-0 02 1 1304-1305
191 WASHER; LK
IMA 		1-33549-583-0 02 1 1306-
195 BOLT 1-33119-301-0 02 1 1304-1305
195 BOLT
IMA 		1-33119-593-0 02 1 1306-
345 BLOCK; SHIFT,RANGE CHANGE
IMA 		1-33519-095-0 02 1 1304-
347 ARM; SHIFT,RANGE CHANGE
IMA 		1-33511-529-0 01 1 1304-
352 ROD; SHIFT,RANGE CHANGE
IMA 		1-33531-495-0 01 1 1304-1305
352 ROD; SHIFT,RANGE CHANGE
IMA 		1-33531-047-0 01 1 1306-
354 SEAL; AIR CYL
IMA 		1-33519-045-0 01 1 1304-
355 CUP; PISTON,AIR CYL 1-33519-088-0 02 1 1304-1305
356 PISTON; AIR CYL 1-33519-087-0 01 1 1304-1305
356 PISTON; AIR CYL
IMA 		1-33519-197-0 01 1 1306-
357 RING; GUIDE,AIR CYL 1-33519-090-0 01 1 1304-1305
358 NUT; SHIFT ROD 1-33519-049-0 01 1 1304-1305
358 NUT; SHIFT ROD
IMA 		1-33519-188-0 01 1 1306-
359 GASKET; AIR CYL
IMA 		1-33519-093-0 01 1 1304-
360 BALL; AIR CYL
IMA 		1-33119-252-0 01 1 1304-
361 CYLINDER; AIR,SHIFT
IMA 		1-33519-092-0 01 1 1304-
363 BOLT; AIR CYL
M10X70 		1-33119-522-0 03 1 1304-1305
363 BOLT; AIR CYL
M10X70 IMA 		1-33119-616-0 03 1 1306-
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). IMA 		1-33119-249-0 01 1 1304-
393 PIN; SW
IMA 		1-33119-298-0 01 1 1304-
394 SWITCH; RANGE CHANGE 1-33119-587-0 01 1 1304-1305
394 SWITCH; RANGE CHANGE
IMA 		1-33119-627-0 01 1 1306-
395 GASKET; PLUNGER
IMA 		1-33519-171-0 01 1 1304-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-073-0 01 1 1304-1305
396 PLUNGER; SHIFT ROD
(A) IMA 		1-33519-189-0 01 1 1306-
396 PLUNGER; SHIFT ROD
(B) IMA 		1-33529-085-0 02 1 1304-
398 SWITCH; REV LAMP
IMA 		1-38119-062-0 01 1 1304-
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). IMA 		1-33119-249-0 01 1 1304-
497 BALL; SWITCH
IMA 		1-33119-252-0 01 1 1304-
500 GASKET; SW
IMA 		1-33119-299-0 01 1 1304-
541 PLATE; SWITCH
IMA 		1-33119-300-0 01 1 1304-
çizim 358520

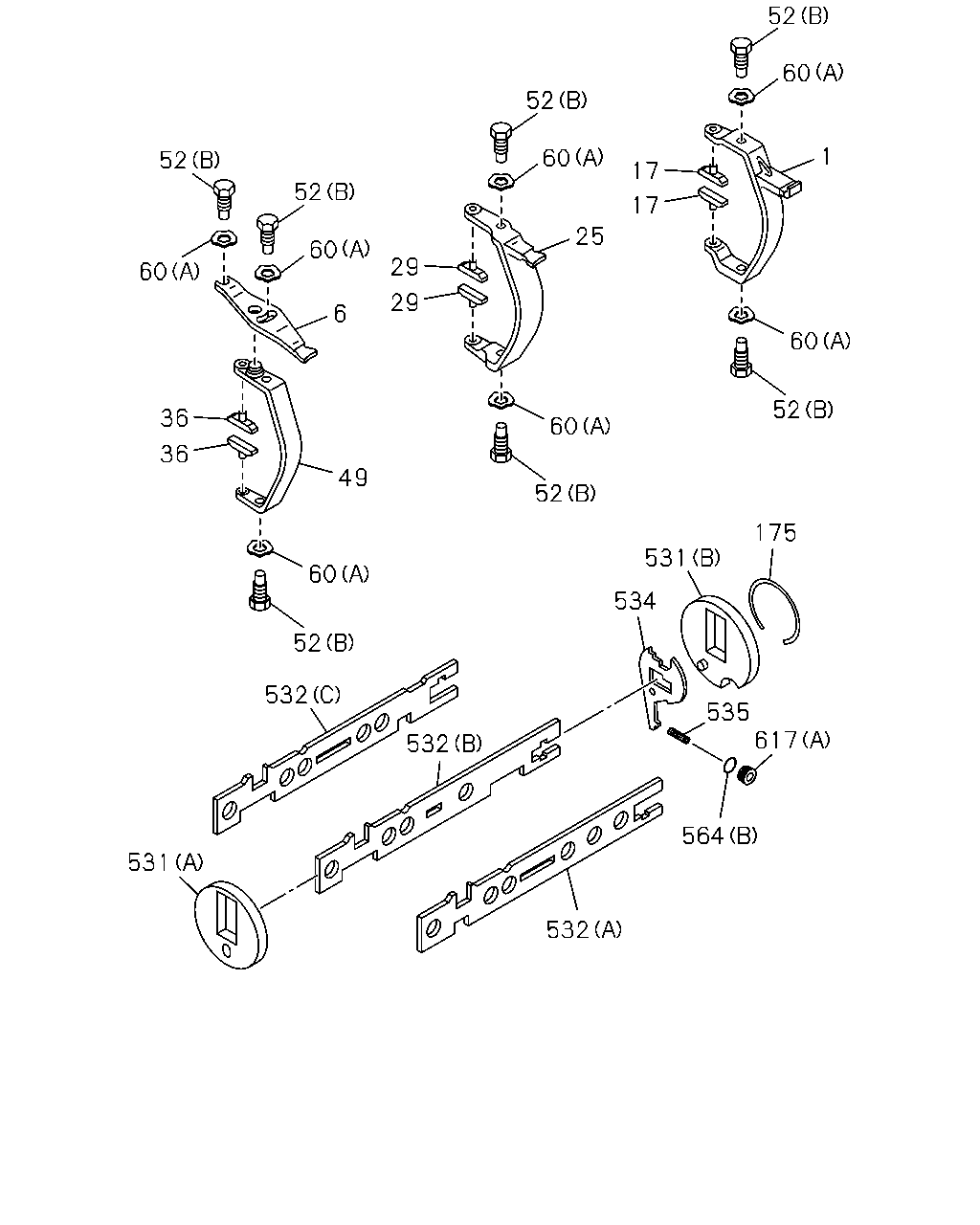

52 60 1 17 17 60 52 175 531 534 535 617 564 532 532 532 52 60 49 29 29 60 52 25 60 52 52 60 6 60 52 36 36 531
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV
IMA 		1-33511-657-0 01 1 1304-
6 LEVER; RELAY
IMA 		1-33511-658-0 01 1 1304-
17 BLOCK; SHIFT,1ST & REV
IMA 		1-33519-172-0 02 1 1304-
25 ARM; SHIFT,2ND & 3RD
IMA 		1-33511-642-0 01 1 1304-
29 BLOCK; SHIFT,2ND & 3RD
IMA 		1-33519-081-0 02 1 1304-
36 BLOCK; SHIFT,4TH & 5TH
IMA 		1-33519-170-0 02 1 1304-
49 ARM; SHIFT,4TH & 5TH
IMA 		1-33511-640-0 01 1 1304-
52 BOLT; SHIFT ARM
(A) 		1-33519-058-0 02 1 1304-1305
52 BOLT; SHIFT ARM
(A) IMA 		1-33519-196-0 02 1 1306-
52 BOLT; SHIFT ARM
(B) 		1-33519-084-0 07 1 1304-1305
52 BOLT; SHIFT ARM
(B) IMA 		1-33519-190-0 07 1 1306-
60 WASHER; LK
(B) 		1-33519-059-0 02 1 1304-1305
60 WASHER; LK
(A) 		1-33519-085-0 07 1 1304-1305
175 RING; STOPPER,SHIFT LEVER
IMA 		1-33539-103-0 01 1 1304-
531 PLATE; BEARING
(A) IMA 		1-33539-044-0 01 1 1304-
531 PLATE; BEARING
(B) IMA 		1-33539-047-0 01 1 1304-
532 PLATE; SHIFT FORK
(A) IMA 		1-33531-492-0 01 1 1304-
532 PLATE; SHIFT FORK
(B) IMA 		1-33531-493-0 01 1 1304-
532 PLATE; SHIFT FORK
(C) IMA 		1-33531-494-0 01 1 1304-
534 LEVER; LOCK,SHIFT PLATE
IMA 		1-33539-087-0 01 1 1304-
535 SPRING; LEVER
IMA 		1-33539-049-0 01 1 1304-
564 SEAL; RING
(A) IMA 		1-33119-249-0 02 1 1304-
564 SEAL; RING
(B) 		1-33549-444-0 01 1 1304-1305
564 SEAL; RING
(B) IMA 		1-33549-578-0 01 1 1306-
617 PLUG
(B) 		1-33119-171-0 02 1 1304-1305
617 PLUG
(B) IMA 		1-33119-619-0 02 1 1306-
617 PLUG
(A) 		1-34129-061-0 01 1 1304-1305
617 PLUG
(A) IMA 		1-33539-109-0 01 1 1306-

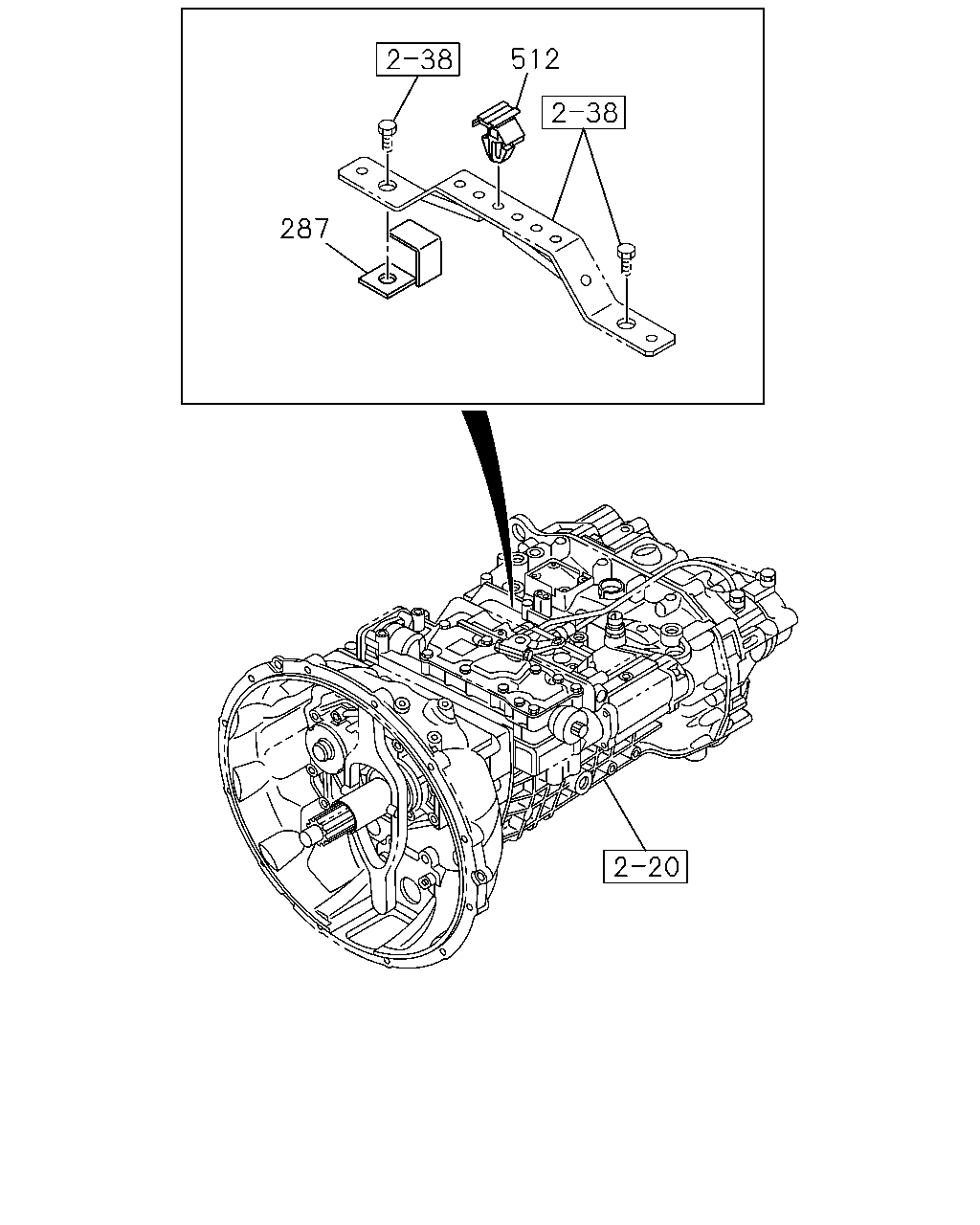

çizim 358837
512 287
BalonParca AdiParca NoAdetTipApplied Date
287 COVER; AIR BREATHER 1-34141-026-0 01 1 1304-
512 CLIP; PIPE
OD=9 H=6 		1-09709-178-0 04 1 1304-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
