1-40 — FUEL TANK (#122291) — 187 parça

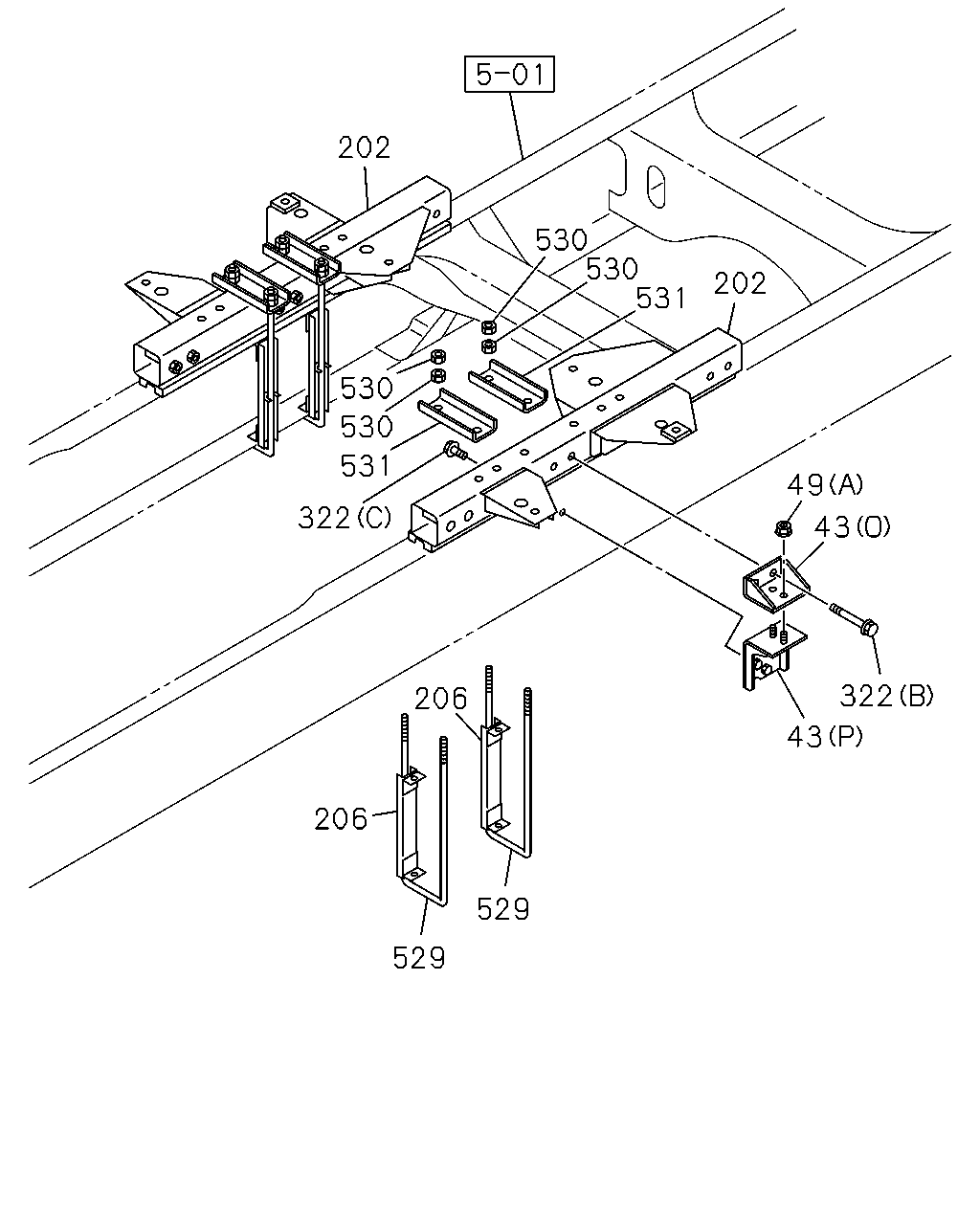

çizim 355555
202 530 530 531 322 206 206 529 529 49 43 322 43 202 531 530 530
BalonParca AdiParca NoAdetTipApplied Date
43 BRACKET; FUEL TANK
(A) THA 		8-98127-371-2 02 1 1304-
43 BRACKET; FUEL TANK
(B) THA 		8-98149-110-0 01 1 1304-
43 BRACKET; FUEL TANK
(C) THA 		8-98149-111-0 01 1 1304-
43 BRACKET; FUEL TANK
(D) THA 		8-98149-112-0 01 1 1304-
43 BRACKET; FUEL TANK
(E) THA 		8-98150-188-2 01 1 1304-
43 BRACKET; FUEL TANK
(F) THA 		8-98150-189-2 01 1 1304-
43 BRACKET; FUEL TANK
(G) THA 		8-98150-190-1 01 1 1304-
43 BRACKET; FUEL TANK
(H) THA 		8-98150-191-1 01 1 1304-
43 BRACKET; FUEL TANK
(O) THA 		8-98163-025-0 02 1 1304-
43 BRACKET; FUEL TANK
(P) THA 		8-98163-087-0 02 1 1304-
43 BRACKET; FUEL TANK
(R) THA 		8-98167-058-0 02 1 1304-
43 BRACKET; FUEL TANK
(J) THA 		8-98150-198-2 03 1 1304-
43 BRACKET; FUEL TANK
(L) THA 		8-98150-200-2 01 1 1304-
43 BRACKET; FUEL TANK
(M) THA 		8-98151-864-0 01 1 1304-
43 BRACKET; FUEL TANK
(S) THA 		8-98167-059-0 01 1 1304-
43 BRACKET; FUEL TANK
(I) THA 		8-98150-197-2 03 1 1304-
43 BRACKET; FUEL TANK
(K) THA 		8-98150-199-2 01 1 1304-
43 BRACKET; FUEL TANK
(N) THA 		8-98151-865-0 01 1 1304-
43 BRACKET; FUEL TANK
(Q) THA 		8-98167-057-0 01 1 1304-
49 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 16 1 1304-
49 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-210-0 08 1 1304-
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 36 1 1304-
202 MEMBER; FUEL TANK
THA 		8-97639-129-0 01 1 1304-
202 MEMBER; FUEL TANK
THA 		8-97639-128-0 01 1 1304-
206 SLEEPER; FUEL TANK
THA 		8-98127-414-2 04 1 1304-
322 BOLT; BRKT FIX
(A) M8X80 FLANGE 		0-28060-880-0 08 1 1304-
322 BOLT; BRKT FIX
(B) M12X100 FLANGE 		0-28061-200-0 10 1 1304-
322 BOLT; BRKT FIX
(C) M12X35 FLANGE 		0-28061-235-0 06 1 1304-
322 BOLT; BRKT FIX
(D) M12X40 FLANGE THA 		0-28061-240-0 10 1 1304-
322 BOLT; BRKT FIX
(E) M12X90 FLANGE 		0-28061-290-0 18 1 1304-
322 BOLT; BRKT FIX
(F) M8X25 FLANGE THA 		0-28650-825-0 08 1 1304-
529 U-BOLT
THA 		8-98127-768-2 04 1 1304-
530 NUT; U-BOLT
M14 THA 		0-91110-514-0 16 1 1304-
531 PLATE; U-BOLT
THA 		8-98131-512-1 04 1 1304-

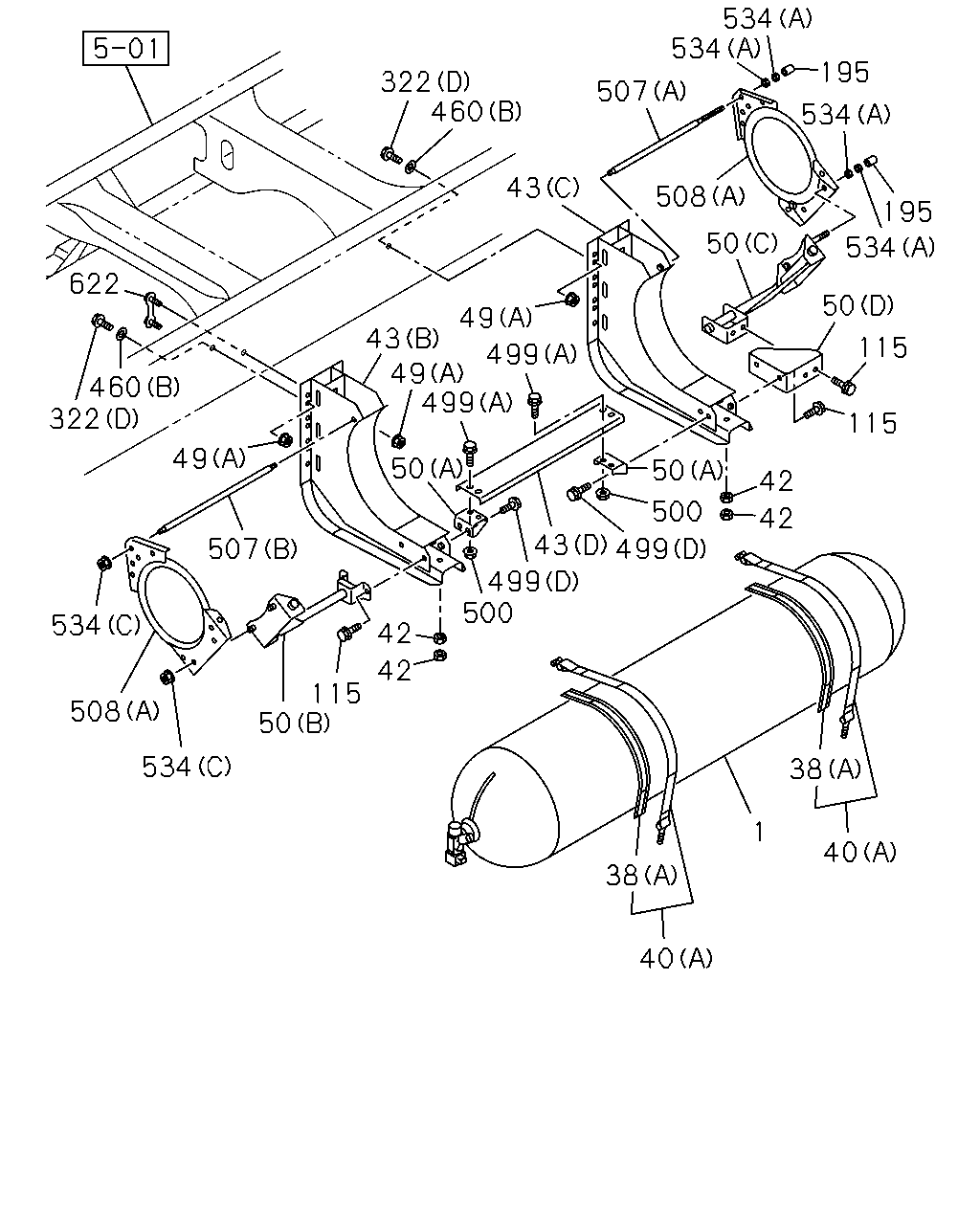

çizim 358326
622 460 322 49 534 508 534 50 115 42 42 500 499 43 499 500 50 42 42 115 115 50 534 195 534 195 534 534 507 43 460 322 508 50 499 49 43 499 50 49 507 38 40 38 40 1
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; FUEL
OD=356 L=1660 140L THA 		8-98238-965-0 05 1 1304-
38 INSULATION; SUPPORT BELT
(A) L=540 THA 		1-22553-014-2 02 1 1304-
38 INSULATION; SUPPORT BELT
(B) L=650 THA 		1-22553-022-1 08 1 1304-
40 BELT; SUPPORT,FUEL TANK
(B) THA 		8-98127-865-3 08 1 1304-
40 BELT; SUPPORT,FUEL TANK
(A) THA 		8-98149-118-0 02 1 1304-
42 NUT; SUPPORT BELT
M10 THA 		0-91110-510-0 20 1 1304-
43 BRACKET; FUEL TANK
(A) THA 		8-98127-371-2 02 1 1304-
43 BRACKET; FUEL TANK
(B) THA 		8-98149-110-0 01 1 1304-
43 BRACKET; FUEL TANK
(C) THA 		8-98149-111-0 01 1 1304-
43 BRACKET; FUEL TANK
(D) THA 		8-98149-112-0 01 1 1304-
43 BRACKET; FUEL TANK
(E) THA 		8-98150-188-2 01 1 1304-
43 BRACKET; FUEL TANK
(F) THA 		8-98150-189-2 01 1 1304-
43 BRACKET; FUEL TANK
(G) THA 		8-98150-190-1 01 1 1304-
43 BRACKET; FUEL TANK
(H) THA 		8-98150-191-1 01 1 1304-
43 BRACKET; FUEL TANK
(O) THA 		8-98163-025-0 02 1 1304-
43 BRACKET; FUEL TANK
(P) THA 		8-98163-087-0 02 1 1304-
43 BRACKET; FUEL TANK
(R) THA 		8-98167-058-0 02 1 1304-
43 BRACKET; FUEL TANK
(J) THA 		8-98150-198-2 03 1 1304-
43 BRACKET; FUEL TANK
(L) THA 		8-98150-200-2 01 1 1304-
43 BRACKET; FUEL TANK
(M) THA 		8-98151-864-0 01 1 1304-
43 BRACKET; FUEL TANK
(S) THA 		8-98167-059-0 01 1 1304-
43 BRACKET; FUEL TANK
(I) THA 		8-98150-197-2 03 1 1304-
43 BRACKET; FUEL TANK
(K) THA 		8-98150-199-2 01 1 1304-
43 BRACKET; FUEL TANK
(N) THA 		8-98151-865-0 01 1 1304-
43 BRACKET; FUEL TANK
(Q) THA 		8-98167-057-0 01 1 1304-
49 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 16 1 1304-
49 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-210-0 08 1 1304-
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 36 1 1304-
50 BRACKET; SUPPORT,FUEL BRKT
(A) THA 		8-98149-113-0 02 1 1304-
50 BRACKET; SUPPORT,FUEL BRKT
(B) THA 		8-98149-114-0 01 1 1304-
50 BRACKET; SUPPORT,FUEL BRKT
(C) THA 		8-98149-115-0 01 1 1304-
50 BRACKET; SUPPORT,FUEL BRKT
(D) THA 		8-98149-459-0 01 1 1304-
115 BOLT; BRKT
M10X25 FLANGE THA 		0-28051-025-0 06 1 1304-
195 RUBBER; CUSHION,TANK CARRIER
ID=9.0 		8-94207-303-0 03 1 1304-
322 BOLT; BRKT FIX
(A) M8X80 FLANGE 		0-28060-880-0 08 1 1304-
322 BOLT; BRKT FIX
(B) M12X100 FLANGE 		0-28061-200-0 10 1 1304-
322 BOLT; BRKT FIX
(C) M12X35 FLANGE 		0-28061-235-0 06 1 1304-
322 BOLT; BRKT FIX
(D) M12X40 FLANGE THA 		0-28061-240-0 10 1 1304-
322 BOLT; BRKT FIX
(E) M12X90 FLANGE 		0-28061-290-0 18 1 1304-
322 BOLT; BRKT FIX
(F) M8X25 FLANGE THA 		0-28650-825-0 08 1 1304-
460 WASHER; PL,BRKT
(A) ID=12.5 OD=26 		0-91610-612-0 12 1 1304-
460 WASHER; PL,BRKT
(B) ID=12.5 OD=32 		0-91614-712-0 10 1 1304-
499 BOLT; STAY
(A) M10X20 FLANGE THA 		0-28051-020-0 04 1 1304-
499 BOLT; STAY
(D) M10X25 FLANGE THA 		0-28051-025-0 04 1 1304-
499 BOLT; STAY
(B) M12X30 FLANGE 		0-28061-230-0 08 1 1304-
499 BOLT; STAY
(B) M12X30 FLANGE THA 		0-28661-230-0 26 1 1304-
499 BOLT; STAY
(C) 		0-28866-414-0 08 1 1304-
500 NUT; STAY
M10 FLANGE THA 		0-91180-110-0 04 1 1304-
507 ROD
(A) THA 		8-97633-886-0 01 1 1304-
507 ROD
(B) THA 		8-98126-511-0 01 1 1304-
508 STOPPER
(A) THA 		8-97925-339-0 02 1 1304-
508 STOPPER
(C) THA 		8-98141-160-0 04 1 1304-
508 STOPPER
(B) THA 		8-98127-457-0 04 1 1304-
534 NUT; STOPPER
(A) M10 THA 		0-91110-510-0 06 1 1304-
534 NUT; STOPPER
(B) M8 FLANGE THA 		0-91180-108-0 32 1 1304-
534 NUT; STOPPER
(C) M10 FLANGE THA 		0-91180-110-0 03 1 1304-
622 STUD; BRACKET
THA 		8-97633-027-0 01 1 1304-

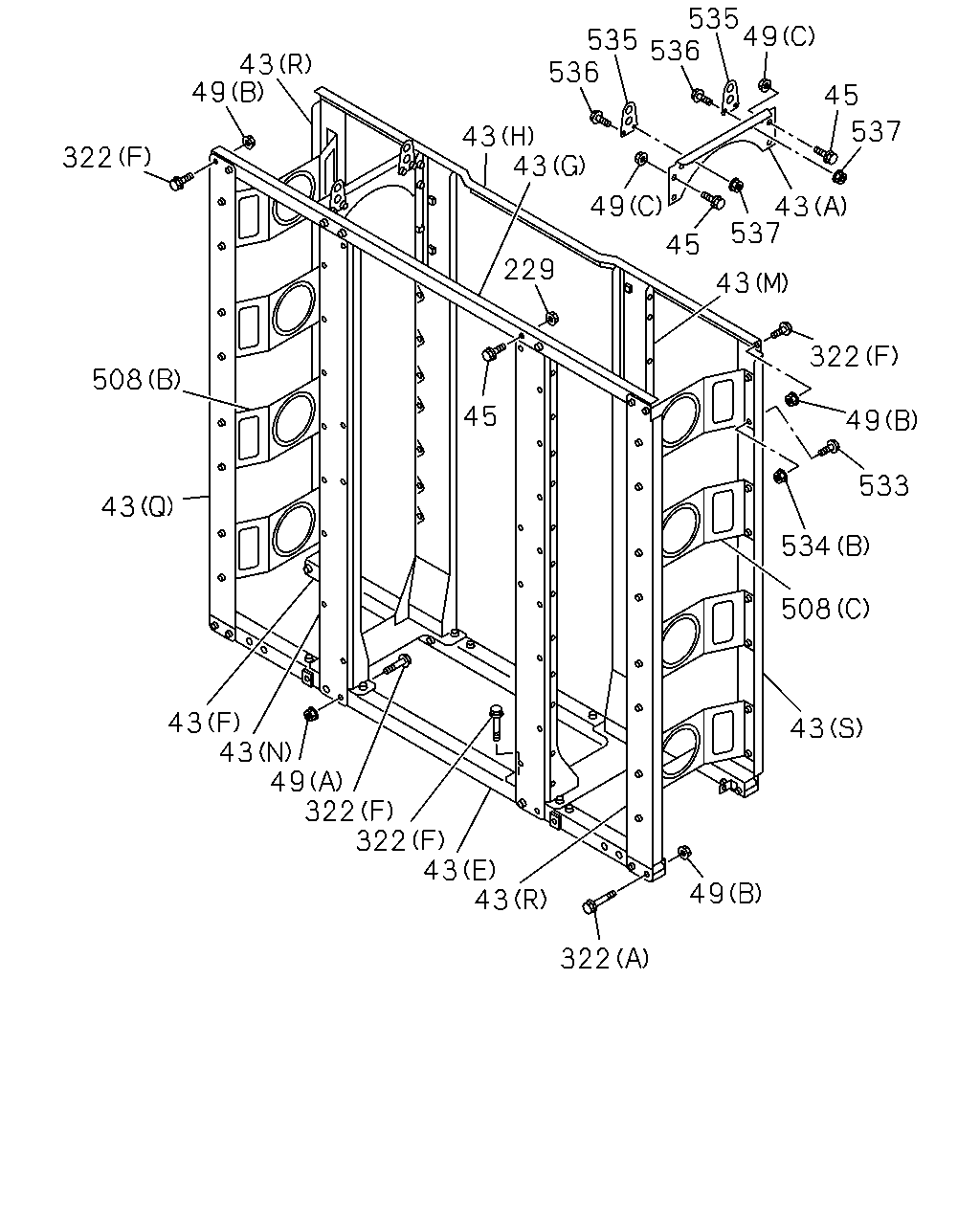

çizim 358827
43 49 322 508 43 43 43 49 322 322 43 43 322 49 43 508 534 533 49 322 43 229 43 49 45 537 43 537 45 49 535 536 535 536 43 45
BalonParca AdiParca NoAdetTipApplied Date
43 BRACKET; FUEL TANK
(A) THA 		8-98127-371-2 02 1 1304-
43 BRACKET; FUEL TANK
(B) THA 		8-98149-110-0 01 1 1304-
43 BRACKET; FUEL TANK
(C) THA 		8-98149-111-0 01 1 1304-
43 BRACKET; FUEL TANK
(D) THA 		8-98149-112-0 01 1 1304-
43 BRACKET; FUEL TANK
(E) THA 		8-98150-188-2 01 1 1304-
43 BRACKET; FUEL TANK
(F) THA 		8-98150-189-2 01 1 1304-
43 BRACKET; FUEL TANK
(G) THA 		8-98150-190-1 01 1 1304-
43 BRACKET; FUEL TANK
(H) THA 		8-98150-191-1 01 1 1304-
43 BRACKET; FUEL TANK
(O) THA 		8-98163-025-0 02 1 1304-
43 BRACKET; FUEL TANK
(P) THA 		8-98163-087-0 02 1 1304-
43 BRACKET; FUEL TANK
(R) THA 		8-98167-058-0 02 1 1304-
43 BRACKET; FUEL TANK
(J) THA 		8-98150-198-2 03 1 1304-
43 BRACKET; FUEL TANK
(L) THA 		8-98150-200-2 01 1 1304-
43 BRACKET; FUEL TANK
(M) THA 		8-98151-864-0 01 1 1304-
43 BRACKET; FUEL TANK
(S) THA 		8-98167-059-0 01 1 1304-
43 BRACKET; FUEL TANK
(I) THA 		8-98150-197-2 03 1 1304-
43 BRACKET; FUEL TANK
(K) THA 		8-98150-199-2 01 1 1304-
43 BRACKET; FUEL TANK
(N) THA 		8-98151-865-0 01 1 1304-
43 BRACKET; FUEL TANK
(Q) THA 		8-98167-057-0 01 1 1304-
45 BOLT; BRKT,FUEL TANK
M10X25 FLANGE THA 		0-28661-025-0 60 1 1304-
49 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 16 1 1304-
49 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-210-0 08 1 1304-
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 36 1 1304-
229 NUT; BRKT,FUEL TANK
M10 FLANGE THA 		0-91180-210-0 08 1 1304-
322 BOLT; BRKT FIX
(A) M8X80 FLANGE 		0-28060-880-0 08 1 1304-
322 BOLT; BRKT FIX
(B) M12X100 FLANGE 		0-28061-200-0 10 1 1304-
322 BOLT; BRKT FIX
(C) M12X35 FLANGE 		0-28061-235-0 06 1 1304-
322 BOLT; BRKT FIX
(D) M12X40 FLANGE THA 		0-28061-240-0 10 1 1304-
322 BOLT; BRKT FIX
(E) M12X90 FLANGE 		0-28061-290-0 18 1 1304-
322 BOLT; BRKT FIX
(F) M8X25 FLANGE THA 		0-28650-825-0 08 1 1304-
508 STOPPER
(A) THA 		8-97925-339-0 02 1 1304-
508 STOPPER
(C) THA 		8-98141-160-0 04 1 1304-
508 STOPPER
(B) THA 		8-98127-457-0 04 1 1304-
533 BOLT; STOPPER
M8X16 FLANGE THA 		0-28050-816-0 32 1 1304-
534 NUT; STOPPER
(A) M10 THA 		0-91110-510-0 06 1 1304-
534 NUT; STOPPER
(B) M8 FLANGE THA 		0-91180-108-0 32 1 1304-
534 NUT; STOPPER
(C) M10 FLANGE THA 		0-91180-110-0 03 1 1304-
535 HANGER 8-94399-403-1 04 1 1304-
536 BOLT; HANGER
M10X25 FLANGE THA 		0-28661-025-0 08 1 1304-
537 NUT; HANGER
M10 FLANGE THA 		0-91180-210-0 08 1 1304-

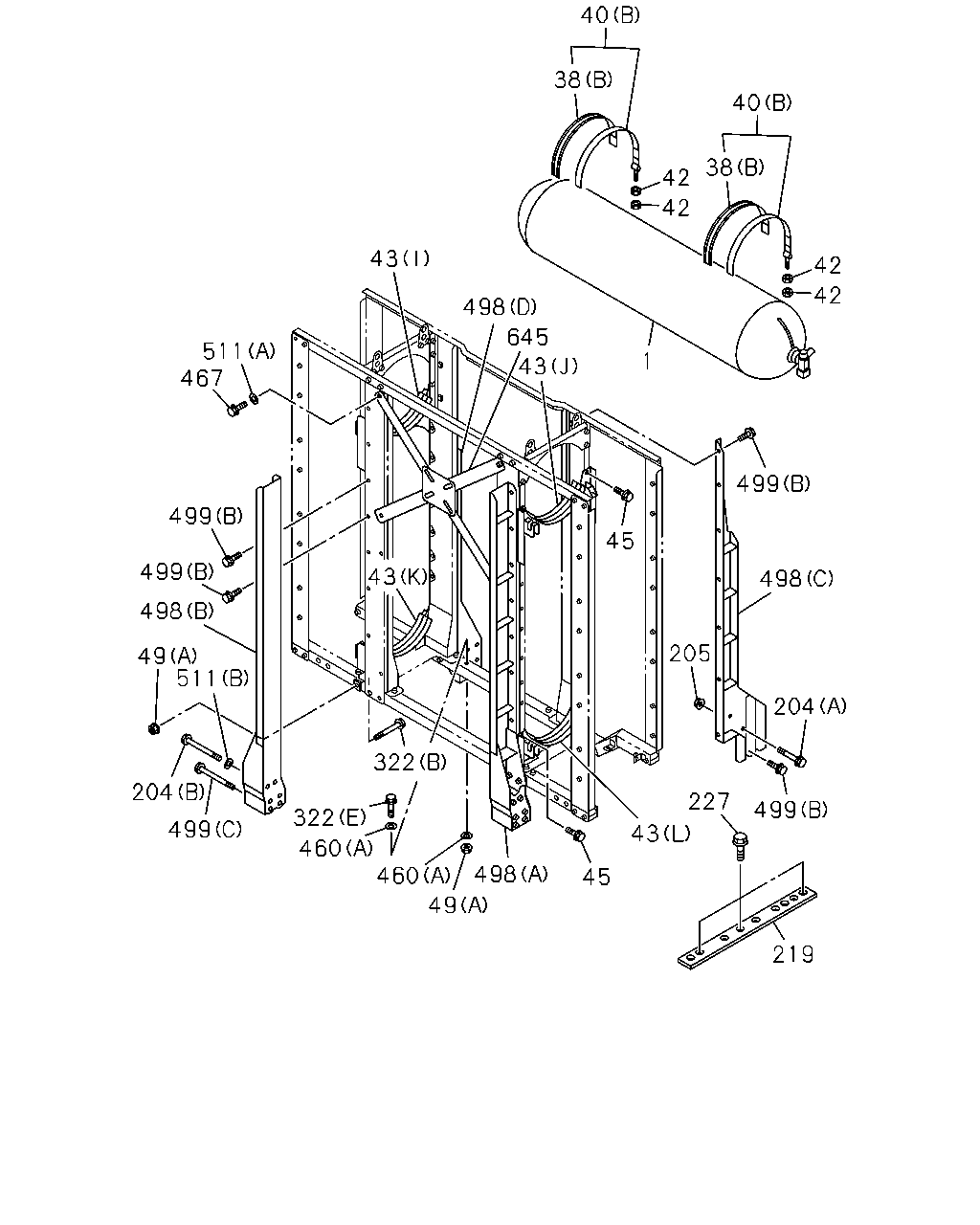

çizim 358860
40 38 40 42 42 38 42 42 43 498 645 43 499 498 204 499 227 43 45 498 49 460 45 43 322 460 322 499 204 511 498 499 499 467 511 219 1 205 49
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; FUEL
OD=356 L=1660 140L THA 		8-98238-965-0 05 1 1304-
38 INSULATION; SUPPORT BELT
(A) L=540 THA 		1-22553-014-2 02 1 1304-
38 INSULATION; SUPPORT BELT
(B) L=650 THA 		1-22553-022-1 08 1 1304-
40 BELT; SUPPORT,FUEL TANK
(B) THA 		8-98127-865-3 08 1 1304-
40 BELT; SUPPORT,FUEL TANK
(A) THA 		8-98149-118-0 02 1 1304-
42 NUT; SUPPORT BELT
M10 THA 		0-91110-510-0 20 1 1304-
43 BRACKET; FUEL TANK
(A) THA 		8-98127-371-2 02 1 1304-
43 BRACKET; FUEL TANK
(B) THA 		8-98149-110-0 01 1 1304-
43 BRACKET; FUEL TANK
(C) THA 		8-98149-111-0 01 1 1304-
43 BRACKET; FUEL TANK
(D) THA 		8-98149-112-0 01 1 1304-
43 BRACKET; FUEL TANK
(E) THA 		8-98150-188-2 01 1 1304-
43 BRACKET; FUEL TANK
(F) THA 		8-98150-189-2 01 1 1304-
43 BRACKET; FUEL TANK
(G) THA 		8-98150-190-1 01 1 1304-
43 BRACKET; FUEL TANK
(H) THA 		8-98150-191-1 01 1 1304-
43 BRACKET; FUEL TANK
(O) THA 		8-98163-025-0 02 1 1304-
43 BRACKET; FUEL TANK
(P) THA 		8-98163-087-0 02 1 1304-
43 BRACKET; FUEL TANK
(R) THA 		8-98167-058-0 02 1 1304-
43 BRACKET; FUEL TANK
(J) THA 		8-98150-198-2 03 1 1304-
43 BRACKET; FUEL TANK
(L) THA 		8-98150-200-2 01 1 1304-
43 BRACKET; FUEL TANK
(M) THA 		8-98151-864-0 01 1 1304-
43 BRACKET; FUEL TANK
(S) THA 		8-98167-059-0 01 1 1304-
43 BRACKET; FUEL TANK
(I) THA 		8-98150-197-2 03 1 1304-
43 BRACKET; FUEL TANK
(K) THA 		8-98150-199-2 01 1 1304-
43 BRACKET; FUEL TANK
(N) THA 		8-98151-865-0 01 1 1304-
43 BRACKET; FUEL TANK
(Q) THA 		8-98167-057-0 01 1 1304-
45 BOLT; BRKT,FUEL TANK
M10X25 FLANGE THA 		0-28661-025-0 60 1 1304-
49 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 16 1 1304-
49 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-210-0 08 1 1304-
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 36 1 1304-
204 BOLT; MEMBER
(A) M12X100 FLANGE 		0-28061-200-0 04 1 1304-
204 BOLT; MEMBER
(B) 		8-97636-031-0 04 1 1304-
205 NUT; MEMBER
M12 FLANGE THA 		0-91180-212-0 04 1 1304-
219 SPACER; FRAME TO BRKT 8-97639-127-0 01 1 1304-
219 SPACER; FRAME TO BRKT 8-97639-126-0 01 1 1304-
227 BOLT; SPACER,FUEL TANK
M6X12 FLANGE 		8-97329-610-0 06 1 1304-
322 BOLT; BRKT FIX
(A) M8X80 FLANGE 		0-28060-880-0 08 1 1304-
322 BOLT; BRKT FIX
(B) M12X100 FLANGE 		0-28061-200-0 10 1 1304-
322 BOLT; BRKT FIX
(C) M12X35 FLANGE 		0-28061-235-0 06 1 1304-
322 BOLT; BRKT FIX
(D) M12X40 FLANGE THA 		0-28061-240-0 10 1 1304-
322 BOLT; BRKT FIX
(E) M12X90 FLANGE 		0-28061-290-0 18 1 1304-
322 BOLT; BRKT FIX
(F) M8X25 FLANGE THA 		0-28650-825-0 08 1 1304-
460 WASHER; PL,BRKT
(A) ID=12.5 OD=26 		0-91610-612-0 12 1 1304-
460 WASHER; PL,BRKT
(B) ID=12.5 OD=32 		0-91614-712-0 10 1 1304-
467 BOLT 8-98171-904-0 16 1 1304-
498 STAY; BRKT
(A) THA 		8-98163-026-0 01 1 1304-
498 STAY; BRKT
(C) THA 		8-98163-028-0 01 1 1304-
498 STAY; BRKT
(B) THA 		8-98163-027-0 01 1 1304-
498 STAY; BRKT
(D) THA 		8-98163-029-0 01 1 1304-
499 BOLT; STAY
(A) M10X20 FLANGE THA 		0-28051-020-0 04 1 1304-
499 BOLT; STAY
(D) M10X25 FLANGE THA 		0-28051-025-0 04 1 1304-
499 BOLT; STAY
(B) M12X30 FLANGE 		0-28061-230-0 08 1 1304-
499 BOLT; STAY
(B) M12X30 FLANGE THA 		0-28661-230-0 26 1 1304-
499 BOLT; STAY
(C) 		0-28866-414-0 08 1 1304-
511 WASHER
(A) ID=12.5 		1-09503-186-0 16 1 1304-
511 WASHER
(B) ID=15 		8-98010-627-1 04 1 1304-
645 BRACE
THA 		8-98150-371-0 04 1 1304-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
