0-36 — TURBOCHARGER SYSTEM
(#122270) — 48 parça
◀

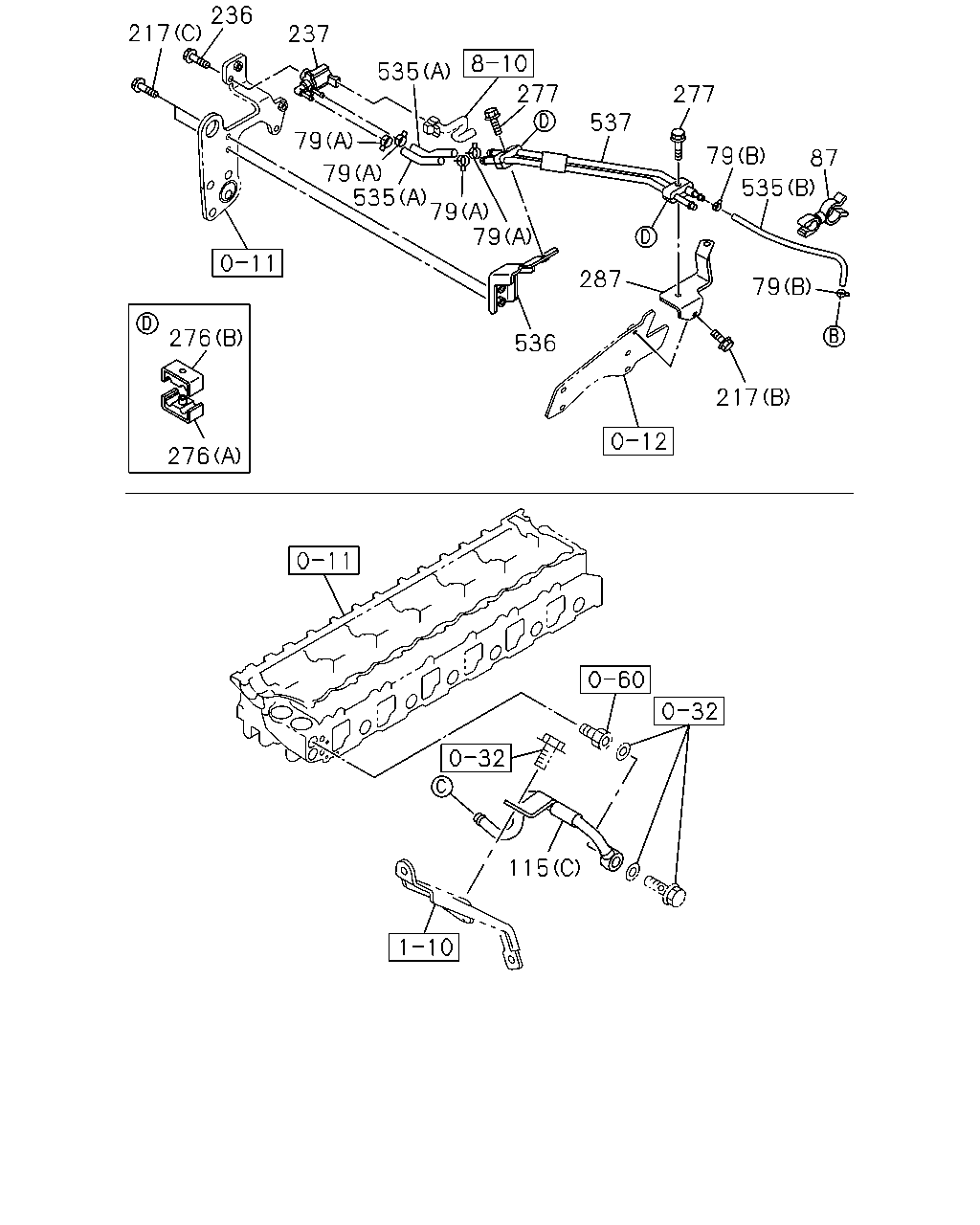

[036A] PIPING;TURBOCHARGER AIR (19 parça)

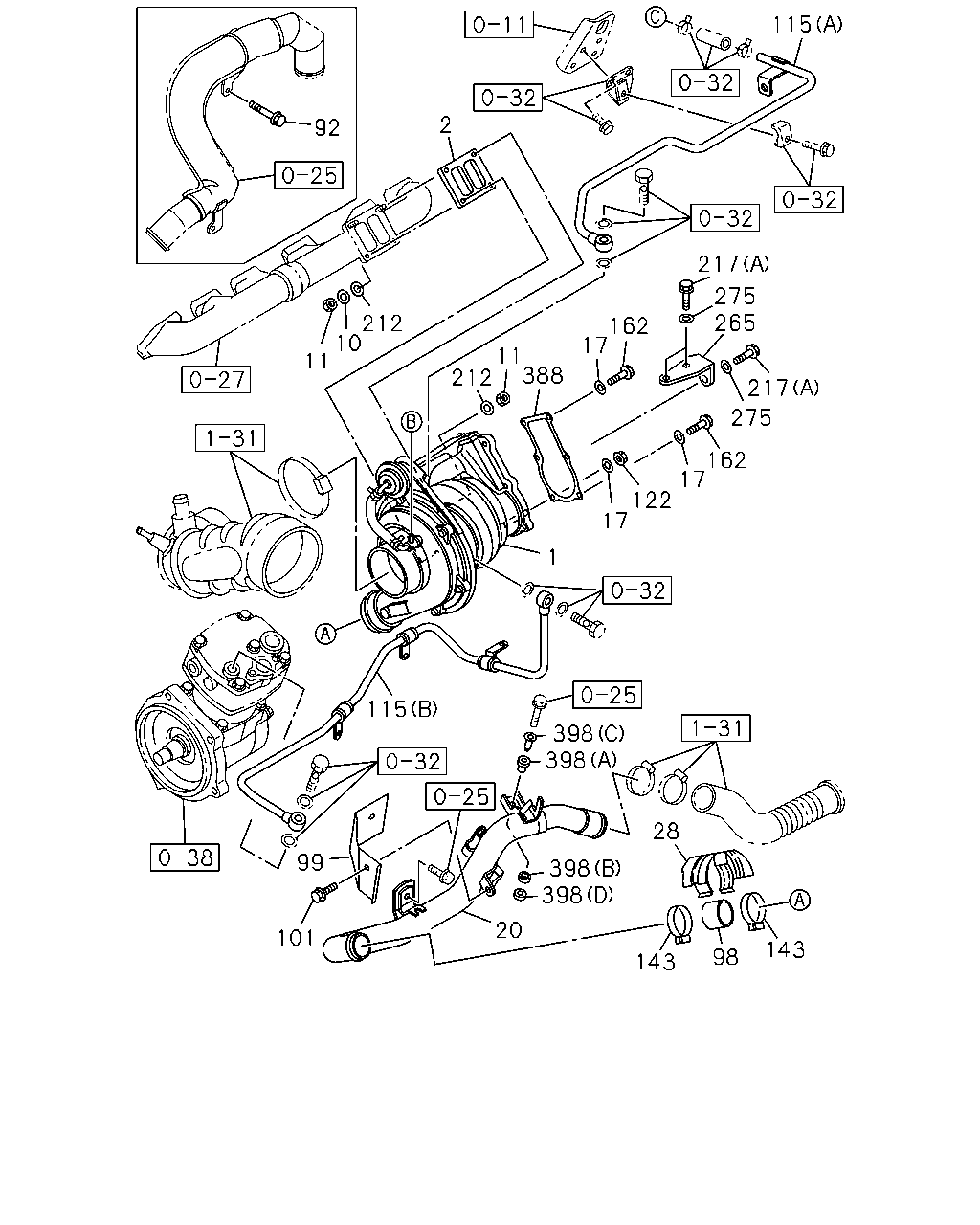

[036A] FIXING;TURBOCHARGER ASM (29 parça)
▶
217
236
237
535
277
277
79
87
79
217
287
536
79
79
535
79
79
276
276
115
537
535
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
79
CLIP; RUBBER HOSE
(A) ID=10.5 THA
8-97019-473-0
04
1
1304-
79
CLIP; RUBBER HOSE
(B)
8-98060-842-0
02
1
1304-
87
CLIP; RUBBER HOSE FIX
ID=12 & 6.8
8-97125-842-0
01
1
1304-
115
PIPE; WATER,TURBOCHARGER OUT
(C)
8-94395-454-4
01
1
1304-
115
PIPE; WATER,TURBOCHARGER OUT
(B)
8-97618-807-0
01
1
1304-
115
PIPE; WATER,TURBOCHARGER OUT
(A)
8-98090-286-1
01
1
1304-
217
BOLT; BRKT
(B) M8X16 FLANGE THA
0-28050-816-0
01
1
1304-
217
BOLT; BRKT
(C) M8X20 FLANGE THA
0-28050-820-0
02
1
1304-
217
BOLT; BRKT
(A) M12X30
8-94394-324-0
03
1
1304-
236
BOLT; VSV
M6X12 FLANGE THA
0-28050-612-0
01
1
1304-
237
VALVE; VAC SWITCH
8-98015-029-0
01
1
1304-
276
CLIP; PIPE
(A)
8-97330-118-3
02
1
1304-
276
CLIP; PIPE
(B)
8-97330-119-3
02
1
1304-
277
BOLT; CLIP
M6X40 FLANGE
0-28050-640-0
02
1
1304-
287
BRACKET; PIPE CLIP
8-98118-536-0
01
1
1304-
535
HOSE; VSV TO PIPE
(B) L=220 SERVICED BY L=3000
0-04730-300-0
01
1
1304-
535
HOSE; VSV TO PIPE
(A) L=90 SERVICED BY L=3000
0-04770-300-0
02
1
1304-
536
BRACKET; PIPE,VSV
8-98080-435-1
01
1
1304-
537
PIPE; AIR,BOOST
8-98080-436-0
01
1
1304-
92
2
212
10
11
99
101
115
398
398
28
398
398
20
143
98
143
115
217
275
265
162
17
388
11
212
122
17
1
17
162
275
217
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-98128-918-0
01
1
1304-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94390-044-0
01
1
1304-
10
WASHER; LK,TURBOCHARGER
T=2.2
1-09556-015-0
02
1
1304-
11
NUT; TURBOCHARGER
M10
1-09420-005-0
04
1
1304-
17
WASHER; PL,ADAPTER
T=1.9
5-09500-012-0
06
1
1304-
20
PIPE; INL,TURBOCHARGER OUT
8-98136-425-0
01
1
1304-
28
PROTECTOR; HEAT,HOSE,AIR DUCT
8-94393-182-0
01
1
1304-
92
BOLT; INL PIPE
M10X25 FLANGE THA
0-28151-025-0
01
1
1304-
98
HOSE; RUBBER,TURBOCHARGER OUTLET
1-09360-797-1
01
1
1304-1408
98
HOSE; RUBBER,TURBOCHARGER OUTLET
8-98245-240-0
01
1
1409-
99
PROTECTOR; HEAT
8-98094-172-0
01
1
1304-
101
BOLT; HEAT PROTECTOR
M8X16 FLANGE THA
0-28050-816-0
02
1
1304-
115
PIPE; WATER,TURBOCHARGER OUT
(C)
8-94395-454-4
01
1
1304-
115
PIPE; WATER,TURBOCHARGER OUT
(B)
8-97618-807-0
01
1
1304-
115
PIPE; WATER,TURBOCHARGER OUT
(A)
8-98090-286-1
01
1
1304-
122
NUT; ADAPTER
M8
1-09400-118-1
01
1
1304-
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79
8-94126-771-0
02
1
1304-
162
BOLT; ADAPTER
M8X57
5-09000-275-0
05
1
1304-
212
WASHER; PL,TURBOCHARGER
ID=10
1-09503-033-1
04
1
1304-
217
BOLT; BRKT
(B) M8X16 FLANGE THA
0-28050-816-0
01
1
1304-
217
BOLT; BRKT
(C) M8X20 FLANGE THA
0-28050-820-0
02
1
1304-
217
BOLT; BRKT
(A) M12X30
8-94394-324-0
03
1
1304-
265
BRACKET; EXH PIPE
8-94395-764-2
01
1
1304-
275
WASHER; PL
ID=12.2
1-09503-008-0
03
1
1304-
388
GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94394-248-2
01
1
1304-
398
MOUNTING
(B)
8-94160-177-0
02
1
1304-
398
MOUNTING
(C)
8-94390-551-1
02
1
1304-
398
MOUNTING
(D)
8-94394-504-0
02
1
1304-
398
MOUNTING
(A)
8-94394-529-0
02
1
1304-
