◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10876 - EXZ RHD FUEL TANK 200L+200L ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#12227) — 59 parça

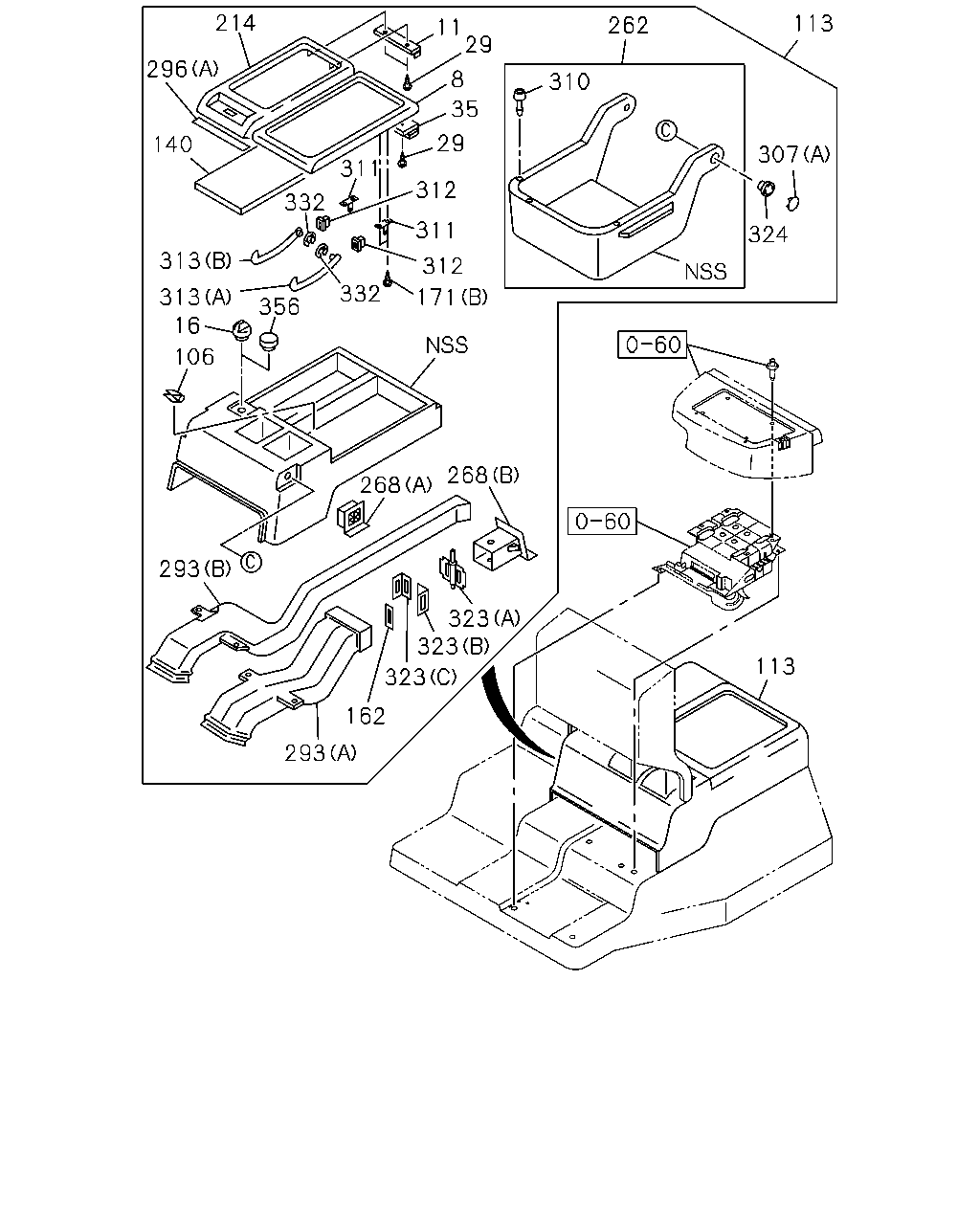

çizim 22758
214 113 262 11 29 296 8 310 35 29 140 307 311 312 332 311 324 313 312 332 313 171 356 16 106 268 268 293 323 323 113 323 162 293
BalonParca AdiParca NoAdetTipApplied Date
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-185-0 01 1 0105-
11 HINGE; CONSOLE LID
CENTER SEAT DELETE(SP9) 		1-72537-070-2 01 1 0105-
16 KNOB ASM
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-189-0 01 1 0105-
29 SCREW; HINGE
CENTER SEAT DELETE(SP9) M5X14 BINDING HEAD 		1-72537-168-0 08 1 0105-
29 SCREW; HINGE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> M5X14 FLAT HEAD 		1-72537-169-0 06 1 0105-
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-182-1 01 1 0105-
106 LOCK; CONSOLE LID
CENTER SEAT DELETE(SP9) 		1-72537-079-0 02 1 0105-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-180-0 01 1 0105-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU> 		1-72537-220-0 01 1 0105-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-181-0 01 1 0105-
140 SHEET
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-093-1 01 1 0105-
162 CUSHION; PARCEL BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-128-0 03 1 0105-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0105-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0105-
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-186-0 01 1 0105-
262 TABLE ASM
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-187-1 01 1 0105-
268 COVER; DUCT
CENTER SEAT DELETE(SP9) (B) 		1-72537-183-0 01 1 0105-
268 COVER; DUCT
CENTER SEAT DELETE(SP9) (A) 		1-72537-184-0 01 1 0105-
293 DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-081-3 01 1 0105-
293 DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-083-2 01 1 0105-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 02 1 0105-
296 SEAL
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) 		1-72537-094-1 01 1 0105-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-76337-461-0 04 1 0105-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) 		1-72537-188-0 02 1 0105-
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-187-0 02 1 0105-
311 HOLDER; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-188-2 03 1 0105-
312 STOPPER; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-186-1 03 1 0105-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72538-184-3 01 1 0105-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-72538-185-3 02 1 0105-
323 SHUTTER
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) 		1-72537-126-0 01 1 0105-
323 SHUTTER
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-084-1 01 1 0105-
323 SHUTTER
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (C) 		1-72537-127-0 01 1 0105-
324 BUSHING
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-116-0 02 1 0105-
332 RING; SNAP,CONSOLE BOX
CENTER SEAT DELETE(SP9) 		1-72537-170-0 03 1 0105-
356 COVER; KNOB
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72537-155-0 01 1 0105-

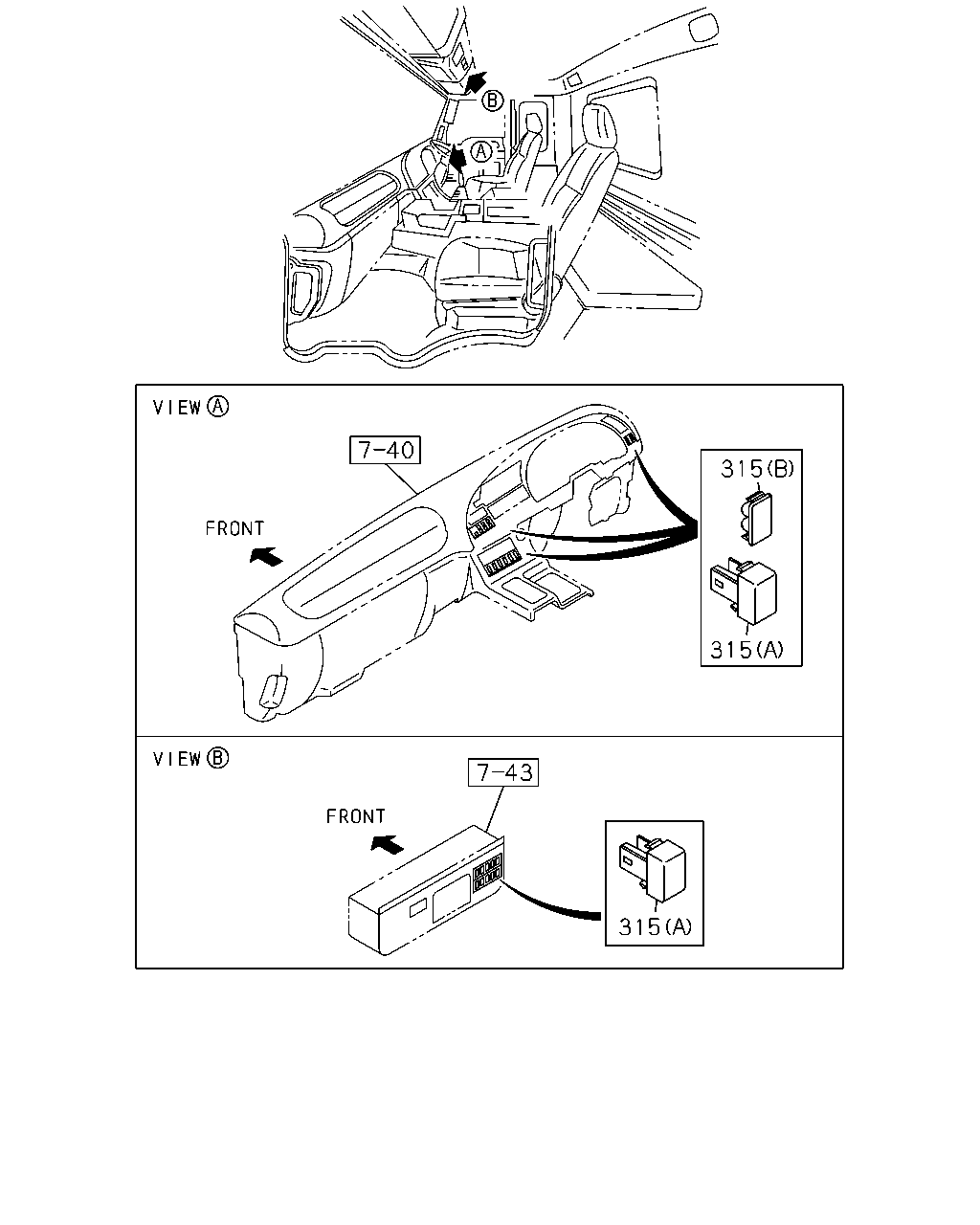

çizim 24030
315 315 315
BalonParca AdiParca NoAdetTipApplied Date
315 COVER; HOLE,SW
(A) 		1-82359-069-2 16 1 0105-
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0105-
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0105-
315 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-82359-069-2 01 1 0105-
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0105-
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0105-
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0105-
315 COVER; HOLE,SW
EXC. MIR STAY O/S W/REMOTE<TBA> (A) 		1-82359-069-2 01 1 0105-
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0105-
315 COVER; HOLE,SW
(B) 		8-97043-732-1 04 1 0105-

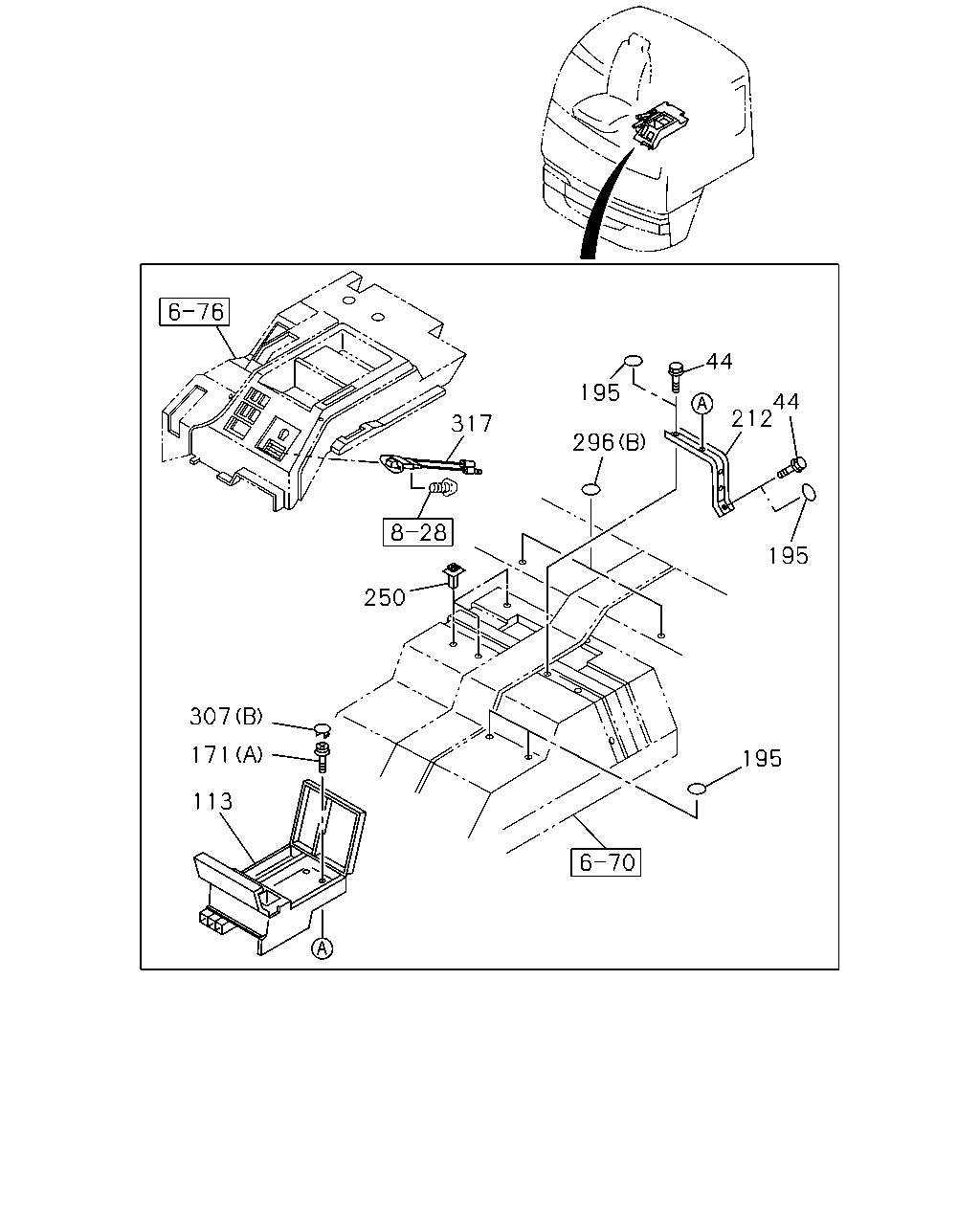

çizim 80729
44 195 44 212 317 296 195 250 307 171 195 113
BalonParca AdiParca NoAdetTipApplied Date
44 BOLT; SUPPORT,CTR CONSOLE
CENTER SEAT DELETE(SP9) M8X20 W/LK&PL WASHER 		8-94279-208-0 02 1 0105-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-180-0 01 1 0105-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU> 		1-72537-220-0 01 1 0105-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-181-0 01 1 0105-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0105-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0105-
195 SEAL; CENTER CONSOLE
EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 05 1 0105-
212 SUPPORT; CONSOLE TO COMPT
CENTER SEAT DELETE(SP9) 		1-72537-095-1 01 1 0105-
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 0105-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 02 1 0105-
296 SEAL
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) 		1-72537-094-1 01 1 0105-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-76337-461-0 04 1 0105-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) 		1-72537-188-0 02 1 0105-
317 CONSENT 1-82523-020-2 01 1 0105-
