0-12 — CYLINDER BLOCK (#122256) — 47 parça

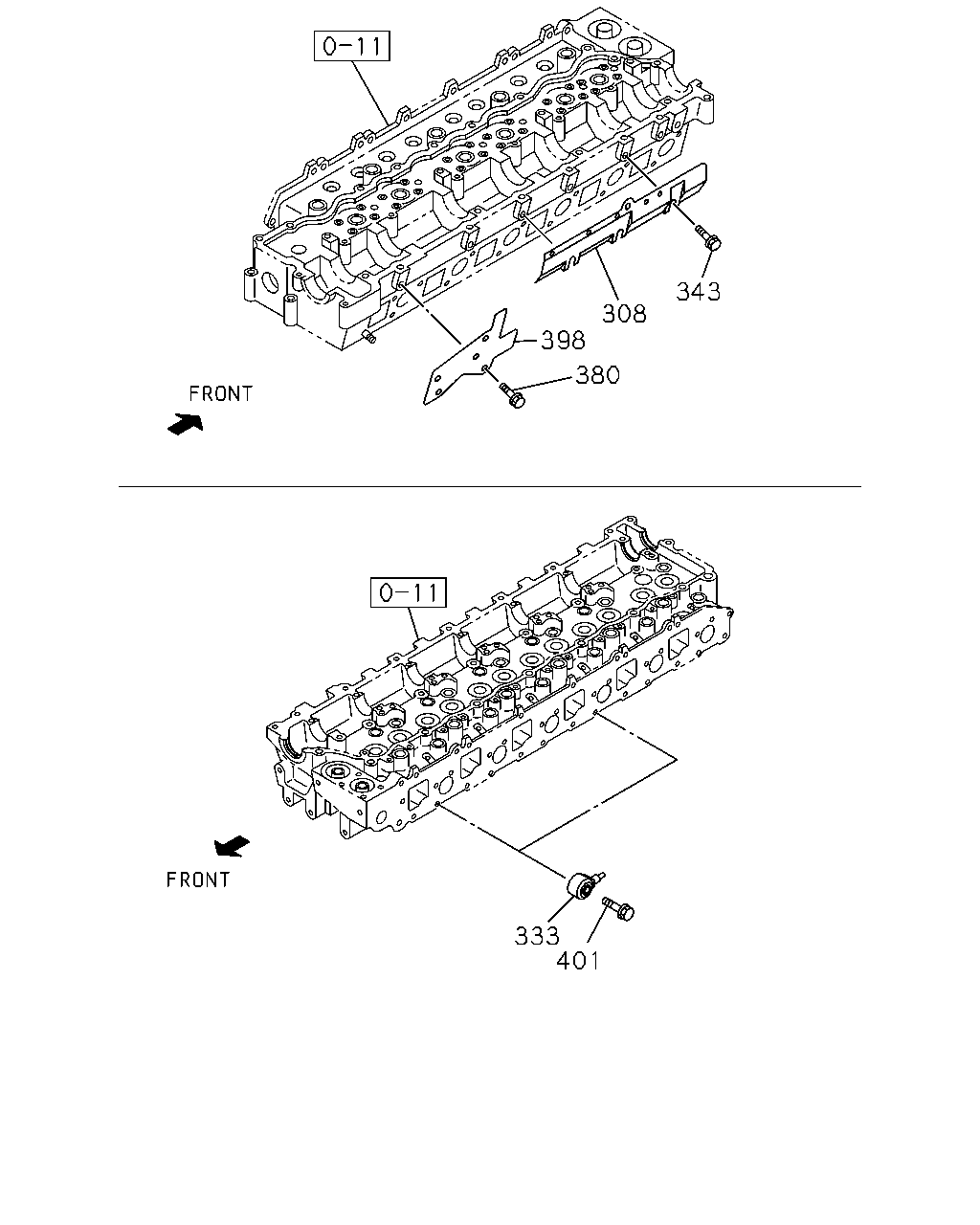

398 308 343 380 333 401

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
308	PROTECTOR; HEAT,HD COVER	8-94390-997-0	01	1	1304-
333	SENSOR; KNOCK	8-98016-911-0	02	1	1304-
343	BOLT; HEAT PROTECTOR M8X12 FLANGE THA	0-28050-812-0	03	1	1304-
380	BOLT; BRKT,HEAT PROTECTOR M8X16 FLANGE THA	0-28050-816-0	02	1	1304-
398	BRACKET; HEAT PROTECTOR	8-98036-391-1	01	1	1304-
401	BOLT; SENSOR M8X30 FLANGE	0-28660-830-0	02	1	1304-

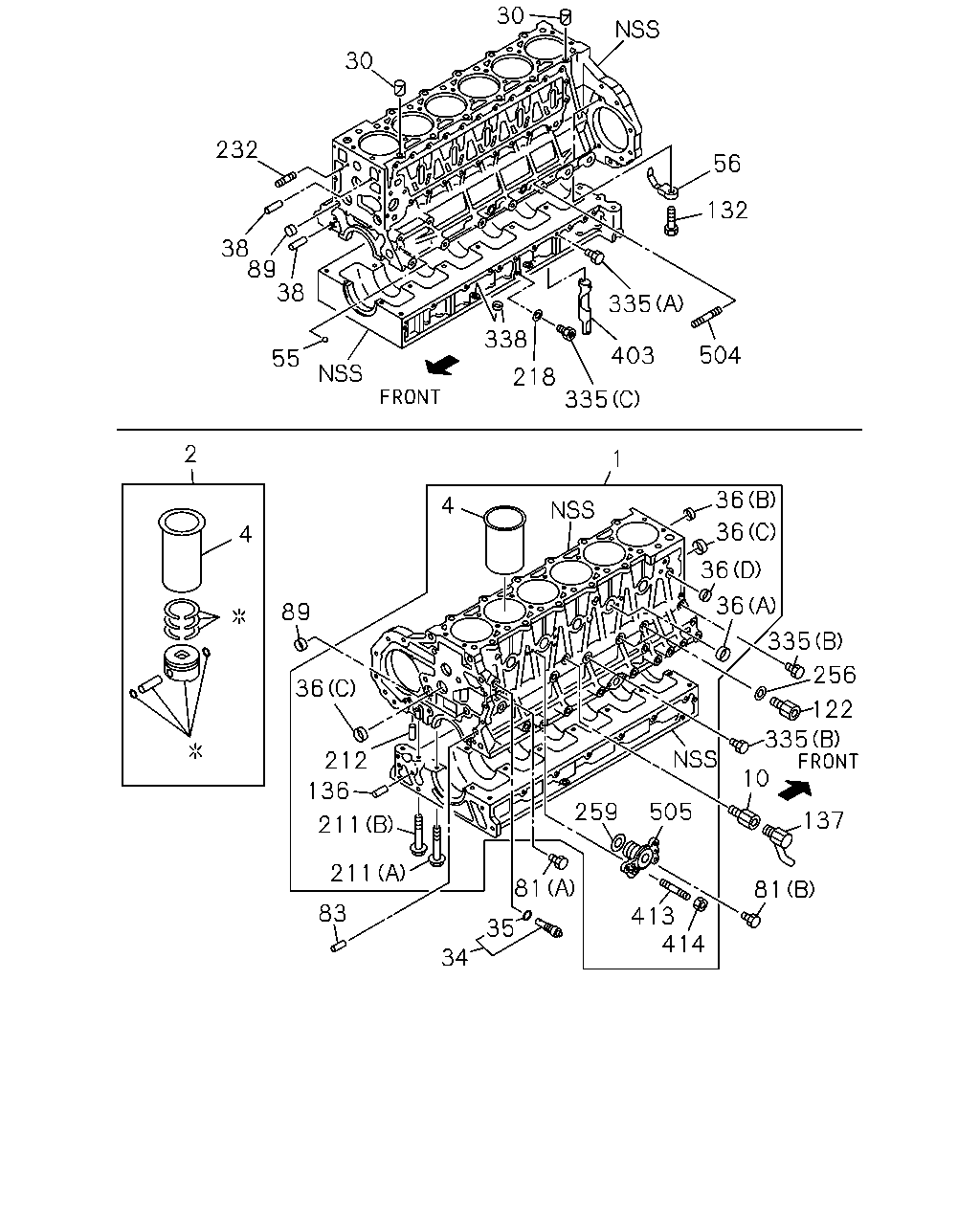

30 30 232 38 38 55 338 335 218 403 504 335 132 56 1 4 89 4 2 36 212 136 211 211 83 34 81 35 259 505 413 414 81 137 10 122 335 256 335 36 36 36 36 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOCK ASM; CYL	8-98240-739-0	01	1	1401-
2	LINER SET; ENG CYL GRADE=1X	1-87814-016-0	06	1	1304-
2	LINER SET; ENG CYL GRADE=3X	1-87814-017-0	06	1	1304-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	1304-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	1304-
10	CONNECTOR; WATER DRAIN	8-94396-378-0	01	1	1304-
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	1304-
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	1304-
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	1304-
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	1304-
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	1304-
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	1304-
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	1304-
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	1304-
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	01	1	1304-
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1304-
81	PLUG; WATER JACKET (B) PT3/8	8-94397-338-0	01	1	1304-
81	PLUG; WATER JACKET (A) M14	8-94399-225-0	01	1	1304-
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	1304-
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	1304-
122	ADAPTER; OIL PRESSURE SWITCH	8-97603-667-0	01	1	1304-
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	1304-
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	1304-
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	1304-
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	1304-
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	1304-
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	1304-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	01	1	1304-1312
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	8-98251-344-0	01	1	1401-
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	1304-
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	1304-
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	1304-
335	PLUG; C/BL,SIDE (C) M12X10	5-13265-001-0	01	1	1304-
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	02	1	1304-
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	1304-
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	1304-
403	GUIDE; GALLERY	8-94395-351-1	01	1	1304-
413	STUD; ADAPTER M8X30 L=41	0-41010-830-0	02	1	1304-
414	NUT; ADAPTER M8 FLANGE THA	0-91180-208-0	02	1	1304-
504	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	1304-
505	ADAPTER; WATER FEED	8-97611-854-0	01	1	1304-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
