8-65 — CONTROL LEVER; HEATER AND AIR CON (#122235) — 22 parça

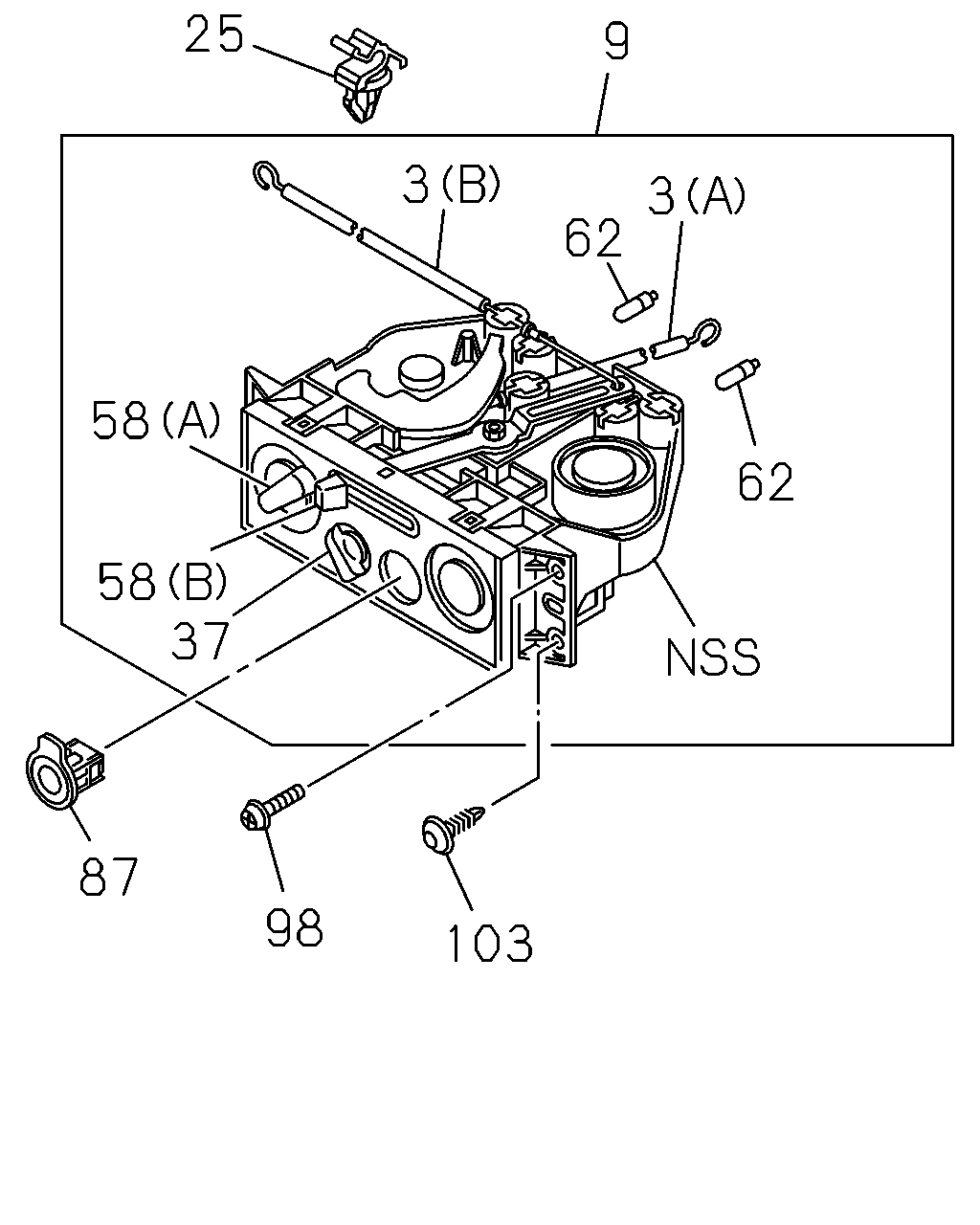

çizim 357142
25 9 3 62 3 62 58 58 37 87 98 103
BalonParca AdiParca NoAdetTipApplied Date
3 CABLE; HTR CONT LVR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) MODE 		8-98041-503-1 01 1 1306-1306
3 CABLE; HTR CONT LVR
(A) MODE 		8-98041-503-1 01 1 1307-
3 CABLE; HTR CONT LVR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) R/F 		8-98041-505-2 01 1 1306-1306
3 CABLE; HTR CONT LVR
(B) R/F 		8-98041-505-2 01 1 1307-
9 LEVER ASM; HTR & A/C CONT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98062-807-1 01 1 1306-1306
9 LEVER ASM; HTR & A/C CONT 8-98062-807-1 01 1 1307-
25 CLIP; CABLE,CONT LEVER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) ID=4.8 MAL 		8-94128-483-0 03 1 1306-1306
25 CLIP; CABLE,CONT LEVER
ID=4.8 MAL 		8-94128-483-0 03 1 1307-
37 KNOB; SW,HTR CONT LVR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL 		8-98037-368-0 01 1 1306-1306
37 KNOB; SW,HTR CONT LVR
MAL 		8-98037-368-0 01 1 1307-
58 KNOB; LVR,HTR CONT LVR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) MAL 		8-98037-369-0 01 1 1306-1306
58 KNOB; LVR,HTR CONT LVR
(A) MAL 		8-98037-369-0 01 1 1307-
58 KNOB; LVR,HTR CONT LVR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) MAL 		8-98037-370-0 01 1 1306-1306
58 KNOB; LVR,HTR CONT LVR
(B) MAL 		8-98037-370-0 01 1 1307-
62 BULB; HTR CONT LVR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 1.1W MAL 		8-98037-371-0 02 1 1306-1306
62 BULB; HTR CONT LVR
24V 1.1W MAL 		8-98037-371-0 02 1 1307-
87 CAP; A/C SWITCH
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98006-089-0 01 1 1306-1306
87 CAP; A/C SWITCH 8-98006-089-0 01 1 1307-
98 SCREW; CONT PANEL
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 TAPPING HEXALOBULAR MAL 		0-72180-520-0 01 1 1306-1306
98 SCREW; CONT PANEL
M5X20 TAPPING HEXALOBULAR MAL 		0-72180-520-0 01 1 1307-
103 CLIP
VENTILATOR & DEFROSTER WO/HEATER(SAZ) DARK GRAY MAL 		8-97098-326-0 01 1 1306-1306
103 CLIP
DARK GRAY MAL 		8-97098-326-0 01 1 1307-
