Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#122220) — 321 parça

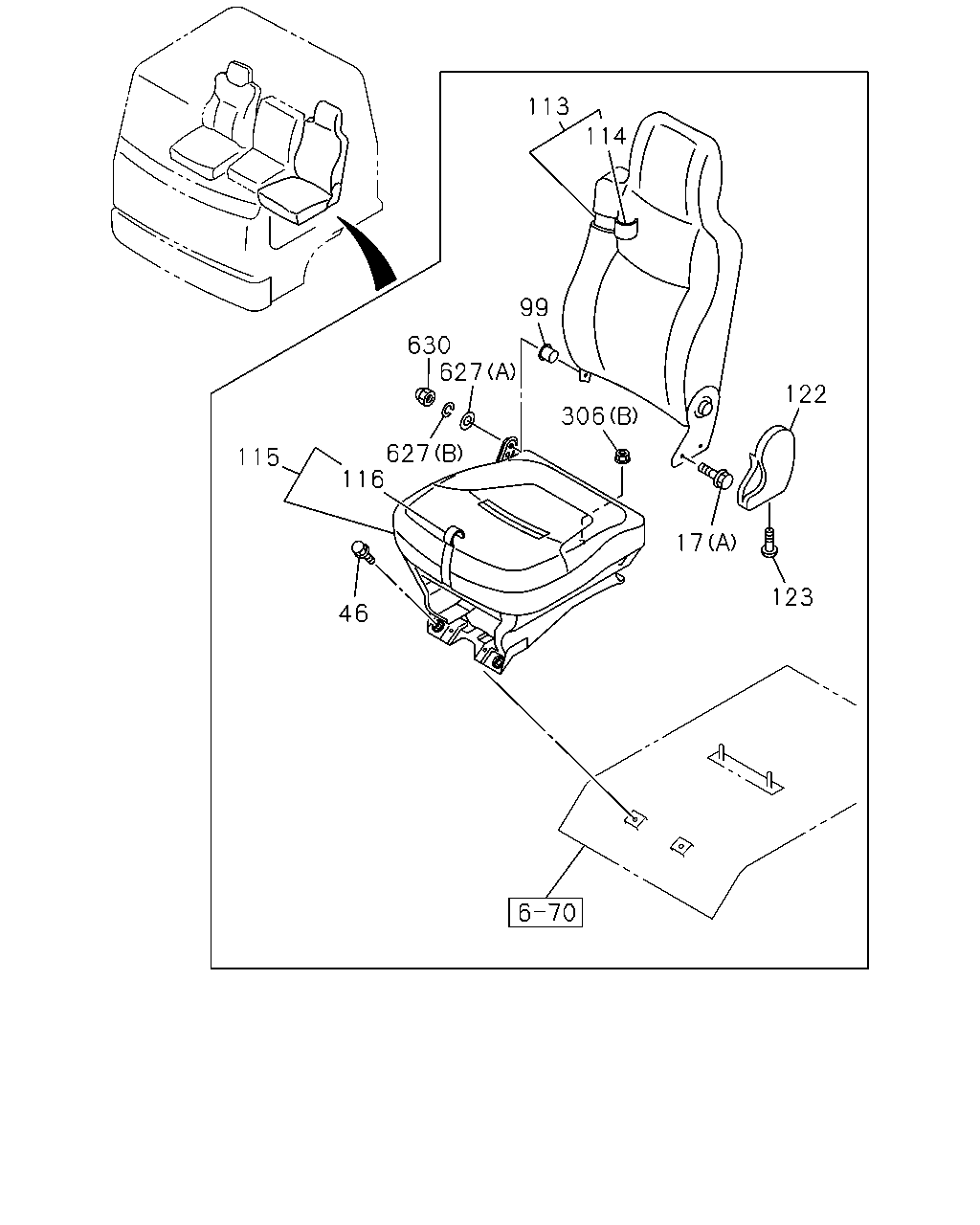

113 99 630 627 627 116 115 46 17 122 123 306 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; RECLINING (B) M10X20 MAL	8-98062-661-0	02	1	1306-1502
17	BOLT; RECLINING SEAT CLOTH<7FL> (B) M10X20 MAL	8-98062-661-0	02	1	1503-1508
17	BOLT; RECLINING (B) M10X20 MAL	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	1306-
19	SCREW; COVER M5 MAL	8-98062-663-0	01	1	1306-1502
19	SCREW; COVER SEAT CLOTH<7FL> M5 MAL	8-98062-663-0	01	1	1503-1508
19	SCREW; COVER M5 MAL	8-98062-663-0	01	1	1510-
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	1306-
99	BUSHING; SEAT BACK MAL	8-98112-751-0	01	1	1306-
113	BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-422-0	01	1	1306-
113	BACK ASM; SEAT VINYL SEAT<A83> DARK GRAY	8-97409-966-1	01	1	1306-
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-424-0	01	1	1306-
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83> DARK GRAY	8-97411-916-0	01	1	1306-
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-418-2	01	1	1306-
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83> DARK GRAY	8-97409-965-1	01	1	1306-
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97421-420-1	01	1	1306-
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83> DARK GRAY	8-97411-915-0	01	1	1306-
122	COVER; ADJ,RECLINING GRAY	8-97409-967-0	01	1	1306-
123	SCREW; COVER,RECLINING M5	8-98070-026-0	01	1	1306-
306	NUT; SEAT ADJ (B) M10 FLANGE MAL	0-91180-110-0	02	1	1306-
306	NUT; SEAT ADJ (A) M8 FLANGE	1-75538-207-0	06	1	1306-1502
306	NUT; SEAT ADJ SEAT CLOTH<7FL> (A) M8 FLANGE	1-75538-207-0	06	1	1503-1508
306	NUT; SEAT ADJ (A) M8 FLANGE	1-75538-207-0	06	1	1510-
627	WASHER; FRT SEAT (A) MAL	8-98063-223-0	01	1	1306-
627	WASHER; FRT SEAT (B) MAL	8-98063-224-0	01	1	1306-
630	NUT; CAP M8 MAL	8-98063-225-0	01	1	1306-

175 176 188 188 403 179 182 403 126 359 360 506 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING	1-75418-062-1	01	1	1306-
19	SCREW; COVER M5 MAL	8-98062-663-0	01	1	1306-1502
19	SCREW; COVER SEAT CLOTH<7FL> M5 MAL	8-98062-663-0	01	1	1503-1508
19	SCREW; COVER M5 MAL	8-98062-663-0	01	1	1510-
126	BUSHING; HINGE,RECLINING (B) MAL	8-97854-900-0	01	1	1306-
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1306-1502
126	BUSHING; HINGE,RECLINING SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1503-1508
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING (A)	8-98286-007-0	01	1	1601-
175	BACK ASM; PASSENGER CENTER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-434-1	01	1	1306-
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> DARK GRAY	8-97409-975-1	01	1	1306-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-435-1	01	1	1306-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83> DARK GRAY	8-97409-976-1	01	1	1306-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT CLOTH<7FL> DARK GRAY	8-97421-432-1	01	1	1306-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> DARK GRAY	8-97409-974-1	01	1	1306-
182	CUSHION ASM; CENTER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-430-3	01	1	1306-
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83> DARK GRAY	8-97409-973-3	01	1	1306-
188	BOLT; BACK TO CUSHION M10X16 FLANGE	1-75198-053-0	04	1	1306-
359	BOX; PARCEL GRAY	8-97417-261-0	01	1	1306-
360	SCREW; PARCEL (B) M4X16	0-70040-416-0	06	1	1306-
360	SCREW; PARCEL (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1306-
360	SCREW; PARCEL (C) M5 MAL	8-98062-663-0	04	1	1306-
403	NUT; CENTER SEAT M8 FLANGE MAL	0-91180-108-0	04	1	1306-
506	CAP; PARCEL BOX GRAY	8-97409-980-1	02	1	1306-

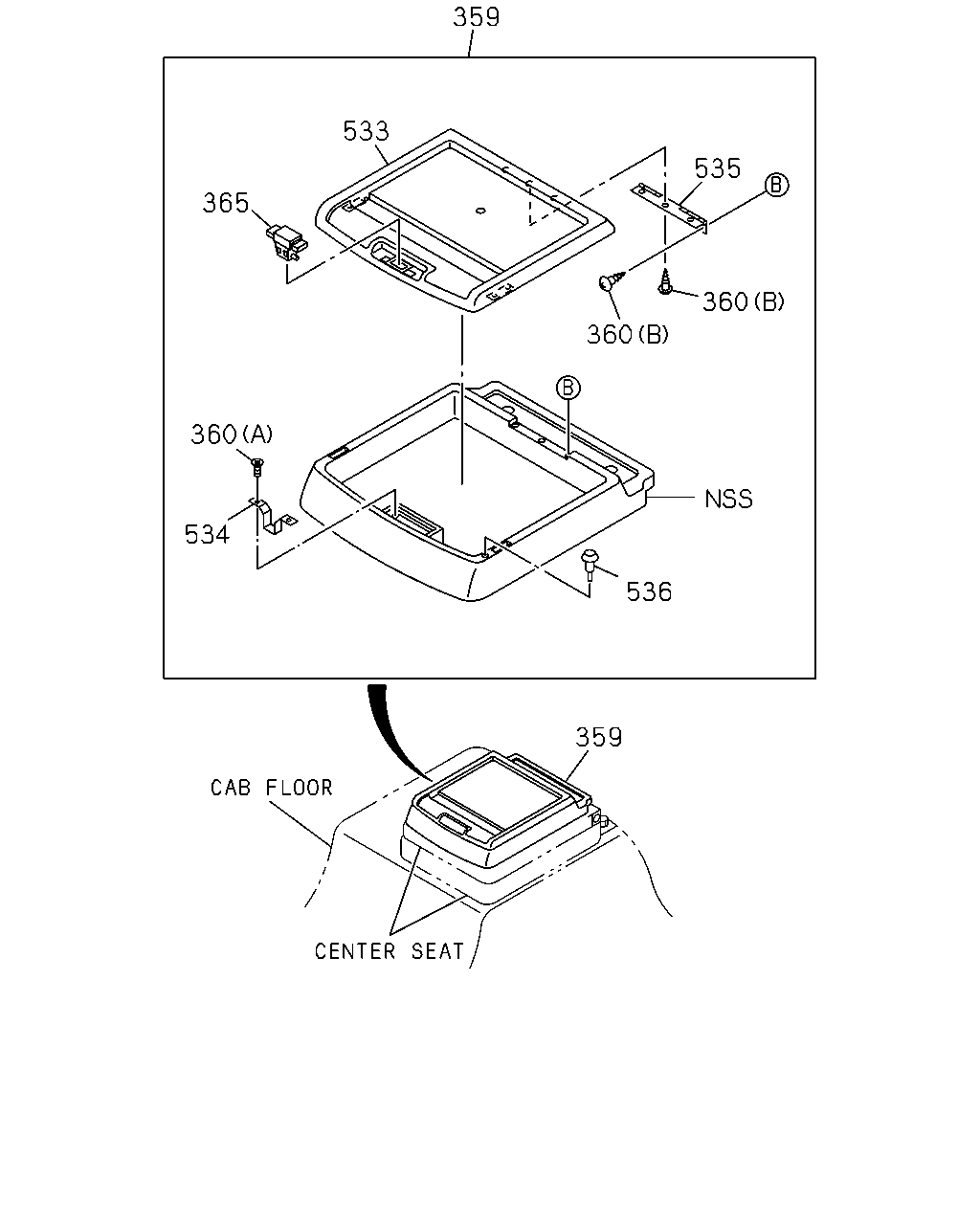

359 533 365 360 534 536 360 360 535 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	SCREW; COVER M5 MAL	8-98062-663-0	01	1	1306-1502
19	SCREW; COVER SEAT CLOTH<7FL> M5 MAL	8-98062-663-0	01	1	1503-1508
19	SCREW; COVER M5 MAL	8-98062-663-0	01	1	1510-
359	BOX; PARCEL GRAY	8-97417-261-0	01	1	1306-
360	SCREW; PARCEL (B) M4X16	0-70040-416-0	06	1	1306-
360	SCREW; PARCEL (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1306-
360	SCREW; PARCEL (C) M5 MAL	8-98062-663-0	04	1	1306-
365	LOCK ASM; SEAT	1-72538-312-0	01	1	1306-
533	LID; PARCEL BOX GRAY	8-97417-263-0	01	1	1306-
534	STRIKER; PARCEL BOX	1-72538-190-0	01	1	1306-
535	HINGE; PARCEL BOX	1-72447-391-1	01	1	1306-
536	RUBBER; CUSHION	1-72538-187-0	02	1	1306-

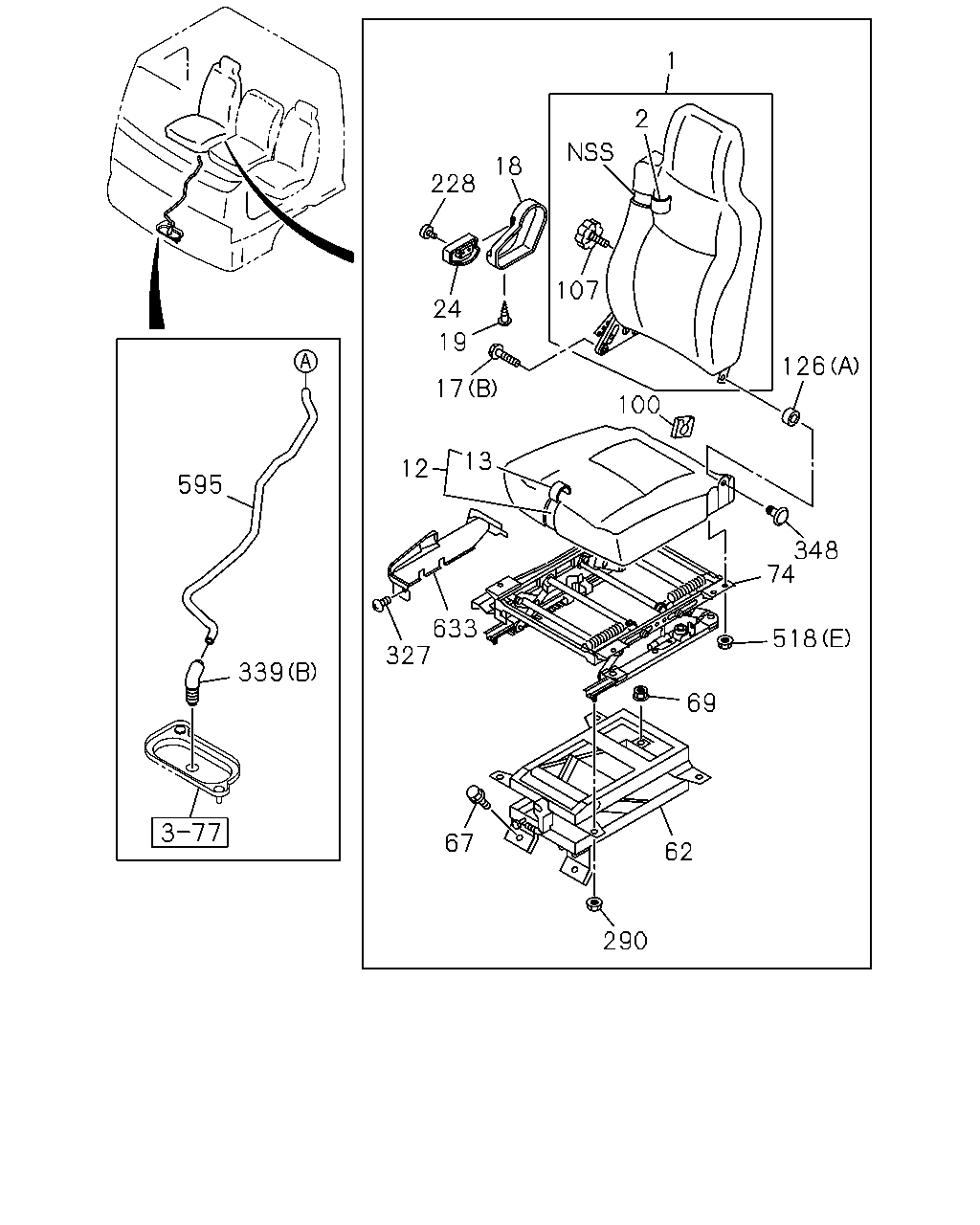

1 2 126 100 107 24 17 12 327 595 339 67 290 62 69 74 13 633 228 18 348 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-406-0	01	1	1306-1308
1	BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-407-1	01	1	1309-1512
1	BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97466-622-0	01	1	1601-
1	BACK ASM; SEAT VINYL SEAT<A83> DARK GRAY	8-97409-955-5	01	1	1306-1502
1	BACK ASM; SEAT VINYL SEAT<A83> DARK GRAY	8-97409-955-5	01	1	1510-1512
1	BACK ASM; SEAT VINYL SEAT<A83> DARK GRAY	8-97466-618-0	01	1	1601-
2	COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-411-0	01	1	1306-1308
2	COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-412-0	01	1	1309-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> DARK GRAY	8-97411-910-2	01	1	1306-1502
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> DARK GRAY	8-97411-910-2	01	1	1510-
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> DARK GRAY	8-97421-397-2	01	1	1306-1512
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> DARK GRAY	8-97466-610-0	01	1	1601-
12	CUSHION; SEAT,FRT VINYL SEAT<A83> DARK GRAY	8-97409-954-2	01	1	1306-1502
12	CUSHION; SEAT,FRT VINYL SEAT<A83> DARK GRAY	8-97409-954-2	01	1	1510-1512
12	CUSHION; SEAT,FRT VINYL SEAT<A83> DARK GRAY	8-97466-606-0	01	1	1601-
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97421-401-2	01	1	1306-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> DARK GRAY	8-97411-909-1	01	1	1306-1502
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> DARK GRAY	8-97411-909-1	01	1	1510-
17	BOLT; RECLINING (B) M10X20 MAL	8-98062-661-0	02	1	1306-1502
17	BOLT; RECLINING SEAT CLOTH<7FL> (B) M10X20 MAL	8-98062-661-0	02	1	1503-1508
17	BOLT; RECLINING (B) M10X20 MAL	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	1306-
18	COVER; RECLINING GRAY MAL	8-97409-332-0	01	1	1306-1502
18	COVER; RECLINING SEAT CLOTH<7FL> GRAY MAL	8-97409-332-0	01	1	1503-1509
18	COVER; RECLINING GRAY MAL	8-97409-332-0	01	1	1510-
19	SCREW; COVER M5 MAL	8-98062-663-0	01	1	1306-1502
19	SCREW; COVER SEAT CLOTH<7FL> M5 MAL	8-98062-663-0	01	1	1503-1508
19	SCREW; COVER M5 MAL	8-98062-663-0	01	1	1510-
24	KNOB; RECLINING,FRT,SEAT GRAY MAL	8-97409-333-0	01	1	1306-1502
24	KNOB; RECLINING,FRT,SEAT SEAT CLOTH<7FL> GRAY MAL	8-97409-333-0	01	1	1503-1509
24	KNOB; RECLINING,FRT,SEAT GRAY MAL	8-97409-333-0	01	1	1510-
62	DAMPER ASM; SEAT SUSP	1-75538-183-8	01	1	1306-1403
62	DAMPER ASM; SEAT SUSP	8-98261-448-0	01	1	1404-1502
62	DAMPER ASM; SEAT SUSP SEAT CLOTH<7FL>	8-98261-448-0	01	1	1503-1508
62	DAMPER ASM; SEAT SUSP	8-98261-448-0	01	1	1510-
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1306-
69	NUT; FRT SEAT M10 FLANGE MAL	0-91180-110-0	02	1	1306-

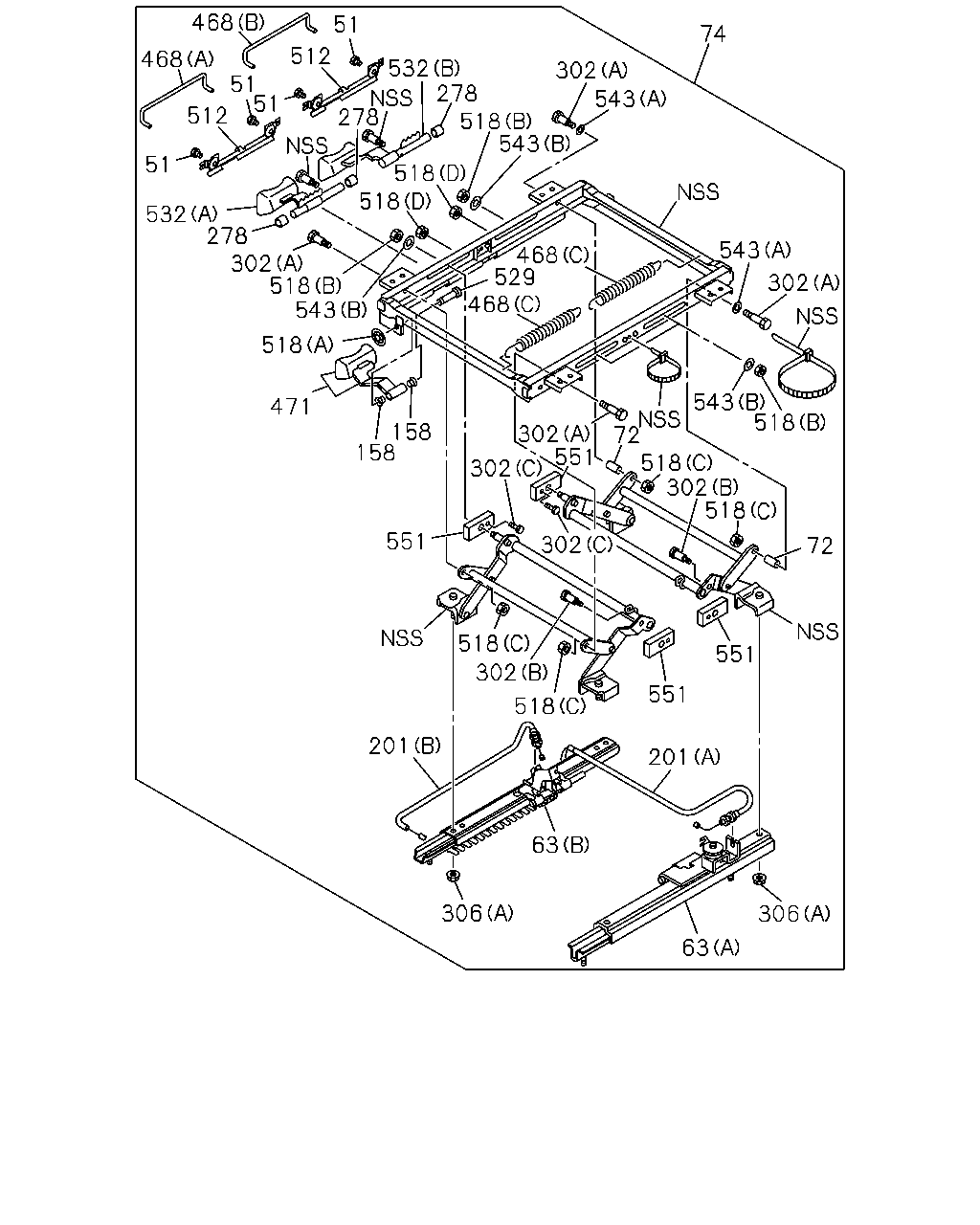

74	ADJUSTER; FRT SEAT,HEIGHT CONT	8-98003-678-0	01	1	1306-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT SEAT CLOTH<7FL>	8-98291-640-0	01	1	1503-1508
74	ADJUSTER; FRT SEAT,HEIGHT CONT	8-98291-640-0	01	1	1510-
100	COVER; HINGE	8-98203-070-0	01	1	1306-1502
100	COVER; HINGE SEAT CLOTH<7FL>	8-98203-070-0	01	1	1503-1508
100	COVER; HINGE	8-98203-070-0	01	1	1510-1512
100	COVER; HINGE	8-98286-009-0	01	1	1601-
107	DIAL; SEAT RECLINING SEAT CLOTH<7FL>	8-98063-174-0	01	1	1309-1508
107	DIAL; SEAT RECLINING SEAT CLOTH<7FL>	8-98063-174-0	01	1	1510-
126	BUSHING; HINGE,RECLINING (B) MAL	8-97854-900-0	01	1	1306-
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1306-1502
126	BUSHING; HINGE,RECLINING SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1503-1508
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING (A)	8-98286-007-0	01	1	1601-
228	SCREW; KNOB M4 MAL	8-98062-662-0	01	1	1306-1502
228	SCREW; KNOB SEAT CLOTH<7FL> M4 MAL	8-98062-662-0	01	1	1503-1508
228	SCREW; KNOB M4 MAL	8-98062-662-0	01	1	1510-
290	NUT; ADJ TO SUSP M8 FLANGE	1-75538-207-0	04	1	1306-1502
290	NUT; ADJ TO SUSP SEAT CLOTH<7FL> M8 FLANGE	1-75538-207-0	04	1	1503-1508
290	NUT; ADJ TO SUSP M8 FLANGE	1-75538-207-0	04	1	1510-
327	CLIP; COVER	1-09987-273-0	01	1	1306-
339	UNION; DRIVER SEAT (A)	1-75538-131-3	01	1	1306-1502
339	UNION; DRIVER SEAT SEAT CLOTH<7FL> (A)	1-75538-131-3	01	1	1503-1508
339	UNION; DRIVER SEAT (A)	1-75538-131-3	01	1	1510-
339	UNION; DRIVER SEAT (B)	8-98014-971-0	01	1	1306-
348	BOLT; HINGE,SEAT	8-98286-008-0	01	1	1601-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1306-1502
518	NUT; TILT ADJ SEAT CLOTH<7FL> (A)	1-75518-263-0	01	1	1503-1508
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1510-
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	1306-1502
518	NUT; TILT ADJ SEAT CLOTH<7FL> (C) M8	1-75518-264-0	04	1	1503-1508
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ (E) M8 FLANGE	1-75538-207-0	04	1	1306-1502
518	NUT; TILT ADJ SEAT CLOTH<7FL> (E) M8 FLANGE	1-75538-207-0	04	1	1503-1508
518	NUT; TILT ADJ (E) M8 FLANGE	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	1306-1502
518	NUT; TILT ADJ SEAT CLOTH<7FL> (D) M6 LOCK NUT	5-09984-020-0	02	1	1503-1508
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	1306-1502
518	NUT; TILT ADJ SEAT CLOTH<7FL> (B) M8 FLANGE	8-94152-886-0	04	1	1503-1508
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	1510-
595	TUBE; NYLON	8-98041-300-0	01	1	1306-
633	COVER; ADJ,TILT GRAY	8-97409-956-0	01	1	1306-1502
633	COVER; ADJ,TILT SEAT CLOTH<7FL> GRAY	8-97409-956-0	01	1	1503-1509
633	COVER; ADJ,TILT GRAY	8-97409-956-0	01	1	1510-

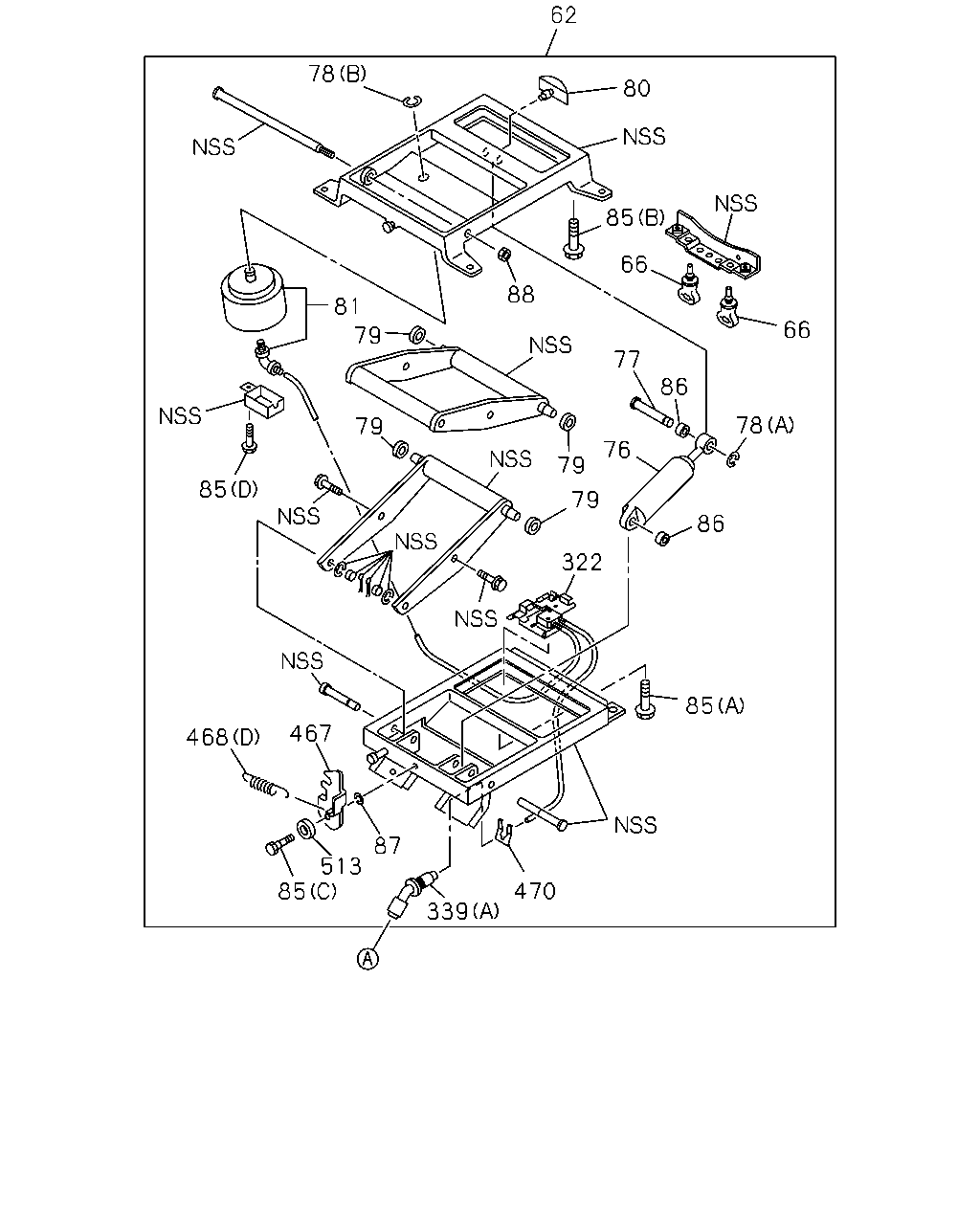

62 78 80 85 66 66 78 76 86 77 79 86 79 322 85 470 81 88 85 467 87 513 85 339 468 79 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	SCREW; COVER M5 MAL	8-98062-663-0	01	1	1306-1502
19	SCREW; COVER SEAT CLOTH<7FL> M5 MAL	8-98062-663-0	01	1	1503-1508
19	SCREW; COVER M5 MAL	8-98062-663-0	01	1	1510-
62	DAMPER ASM; SEAT SUSP	1-75538-183-8	01	1	1306-1403
62	DAMPER ASM; SEAT SUSP	8-98261-448-0	01	1	1404-1502
62	DAMPER ASM; SEAT SUSP SEAT CLOTH<7FL>	8-98261-448-0	01	1	1503-1508
62	DAMPER ASM; SEAT SUSP	8-98261-448-0	01	1	1510-
66	RUBBER; LWR STOPPER	1-75538-145-0	02	1	1306-1502
66	RUBBER; LWR STOPPER SEAT CLOTH<7FL>	1-75538-145-0	02	1	1503-1508
66	RUBBER; LWR STOPPER	1-75538-145-0	02	1	1510-
76	DAMPER; AIR SUSP	1-75538-139-0	01	1	1306-1502
76	DAMPER; AIR SUSP SEAT CLOTH<7FL>	1-75538-139-0	01	1	1503-1508
76	DAMPER; AIR SUSP	1-75538-139-0	01	1	1510-
77	PIN; DAMPER	1-75538-138-2	01	1	1306-1502
77	PIN; DAMPER SEAT CLOTH<7FL>	1-75538-138-2	01	1	1503-1508
77	PIN; DAMPER	1-75538-138-2	01	1	1510-
78	RING; SNAP (A) ID=8	9-09185-408-0	01	1	1306-1502
78	RING; SNAP SEAT CLOTH<7FL> (A) ID=8	9-09185-408-0	01	1	1503-1508
78	RING; SNAP (A) ID=8	9-09185-408-0	01	1	1510-
78	RING; SNAP (B) ID=15	9-09185-415-0	01	1	1306-1502
78	RING; SNAP SEAT CLOTH<7FL> (B) ID=15	9-09185-415-0	01	1	1503-1508
78	RING; SNAP (B) ID=15	9-09185-415-0	01	1	1510-
79	ROLLER ASM; AIR SUSP	1-75538-159-0	04	1	1306-1403
79	ROLLER ASM; AIR SUSP	8-98261-489-0	04	1	1404-1502
79	ROLLER ASM; AIR SUSP SEAT CLOTH<7FL>	8-98261-489-0	04	1	1503-1508
79	ROLLER ASM; AIR SUSP	8-98261-489-0	04	1	1510-
80	RUBBER; STOPPER	1-09987-123-0	01	1	1306-1502
80	RUBBER; STOPPER SEAT CLOTH<7FL>	1-09987-123-0	01	1	1503-1508
80	RUBBER; STOPPER	1-09987-123-0	01	1	1510-
81	SPRING; AIR	1-75538-151-2	01	1	1306-1312
81	SPRING; AIR	8-98242-816-0	01	1	1401-1502
81	SPRING; AIR SEAT CLOTH<7FL>	8-98242-816-0	01	1	1503-1508
81	SPRING; AIR	8-98242-816-0	01	1	1510-
85	BOLT; AIR SUSP (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-1502
85	BOLT; AIR SUSP SEAT CLOTH<7FL> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1503-1508
85	BOLT; AIR SUSP (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1510-
85	BOLT; AIR SUSP (C)	1-09980-577-1	01	1	1306-1502
85	BOLT; AIR SUSP SEAT CLOTH<7FL> (C)	1-09980-577-1	01	1	1503-1508
85	BOLT; AIR SUSP (C)	1-09980-577-1	01	1	1510-
85	BOLT; AIR SUSP (A) M6X12	1-75538-208-1	02	1	1306-1502
85	BOLT; AIR SUSP SEAT CLOTH<7FL> (A) M6X12	1-75538-208-1	02	1	1503-1508
85	BOLT; AIR SUSP (A) M6X12	1-75538-208-1	02	1	1510-
85	BOLT; AIR SUSP (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	1306-1312
85	BOLT; AIR SUSP (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-1502
85	BOLT; AIR SUSP SEAT CLOTH<7FL> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1503-1508
85	BOLT; AIR SUSP (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1510-
86	BUSHING; GUIDE OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1306-1502
86	BUSHING; GUIDE SEAT CLOTH<7FL> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1503-1508
86	BUSHING; GUIDE OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1510-
87	WASHER; AIR SUSP ID=8.2	0-91510-508-0	01	1	1306-1502
87	WASHER; AIR SUSP SEAT CLOTH<7FL> ID=8.2	0-91510-508-0	01	1	1503-1508
87	WASHER; AIR SUSP ID=8.2	0-91510-508-0	01	1	1510-
88	NUT; AIR SUSP M10	1-75537-273-1	01	1	1306-1502
88	NUT; AIR SUSP SEAT CLOTH<7FL> M10	1-75537-273-1	01	1	1503-1508
88	NUT; AIR SUSP M10	1-75537-273-1	01	1	1510-
322	VALVE; AIR SPRING	1-75538-186-3	01	1	1306-1502
322	VALVE; AIR SPRING SEAT CLOTH<7FL>	1-75538-186-3	01	1	1503-1508
322	VALVE; AIR SPRING	1-75538-186-3	01	1	1510-
339	UNION; DRIVER SEAT (A)	1-75538-131-3	01	1	1306-1502
339	UNION; DRIVER SEAT SEAT CLOTH<7FL> (A)	1-75538-131-3	01	1	1503-1508
339	UNION; DRIVER SEAT (A)	1-75538-131-3	01	1	1510-
339	UNION; DRIVER SEAT (B)	8-98014-971-0	01	1	1306-
467	LEVER; LOCK	1-75538-134-0	01	1	1306-1502
467	LEVER; LOCK SEAT CLOTH<7FL>	1-75538-134-0	01	1	1503-1508
467	LEVER; LOCK	1-75538-134-0	01	1	1510-
468	SPRING; RETURN (A)	1-75518-206-0	01	1	1306-1502
468	SPRING; RETURN SEAT CLOTH<7FL> (A)	1-75518-206-0	01	1	1503-1508
468	SPRING; RETURN (A)	1-75518-206-0	01	1	1510-
468	SPRING; RETURN (B)	1-75518-207-0	01	1	1306-1502
468	SPRING; RETURN SEAT CLOTH<7FL> (B)	1-75518-207-0	01	1	1503-1508
468	SPRING; RETURN (B)	1-75518-207-0	01	1	1510-
468	SPRING; RETURN (C)	1-75518-208-0	02	1	1306-1502
468	SPRING; RETURN SEAT CLOTH<7FL> (C)	1-75518-208-0	02	1	1503-1508
468	SPRING; RETURN (C)	1-75518-208-0	02	1	1510-
468	SPRING; RETURN (D)	1-75538-132-0	01	1	1306-1502
468	SPRING; RETURN SEAT CLOTH<7FL> (D)	1-75538-132-0	01	1	1503-1508
468	SPRING; RETURN (D)	1-75538-132-0	01	1	1510-
470	CLIP; HOSE	1-75538-137-0	01	1	1306-1502
470	CLIP; HOSE SEAT CLOTH<7FL>	1-75538-137-0	01	1	1503-1508
470	CLIP; HOSE	1-75538-137-0	01	1	1510-
513	SPACER; LEVER	1-75538-133-0	01	1	1306-1502
513	SPACER; LEVER SEAT CLOTH<7FL>	1-75538-133-0	01	1	1503-1508
513	SPACER; LEVER	1-75538-133-0	01	1	1510-

468 468 51 532 278 302 518 543 518 471 158 158 551 201 512 51 51 278 532 278 518 518 518 543 302 543 74 543 302 543 518 518 302 72 551 551 201 518 302 306 518 63 306 551 302 302 468 529 468 72 302 512 51 518 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	SCREW; COVER M5 MAL	8-98062-663-0	01	1	1306-1502
19	SCREW; COVER SEAT CLOTH<7FL> M5 MAL	8-98062-663-0	01	1	1503-1508
19	SCREW; COVER M5 MAL	8-98062-663-0	01	1	1510-
51	SCREW; COVER	1-75518-325-1	04	1	1306-1502
51	SCREW; COVER SEAT CLOTH<7FL>	1-75518-325-1	04	1	1503-1508
51	SCREW; COVER	1-75518-325-1	04	1	1510-
63	ADJUSTER; SEAT SLIDE (A)	1-75518-199-1	01	1	1306-1502
63	ADJUSTER; SEAT SLIDE SEAT CLOTH<7FL> (A)	1-75518-199-1	01	1	1503-1508
63	ADJUSTER; SEAT SLIDE (A)	1-75518-199-1	01	1	1510-
63	ADJUSTER; SEAT SLIDE (B)	1-75518-323-0	01	1	1306-1502
63	ADJUSTER; SEAT SLIDE SEAT CLOTH<7FL> (B)	1-75518-323-0	01	1	1503-1508
63	ADJUSTER; SEAT SLIDE (B)	1-75518-323-0	01	1	1510-
72	SPACER; SEAT ADJ	1-75518-334-1	02	1	1306-1502
72	SPACER; SEAT ADJ SEAT CLOTH<7FL>	8-98291-668-0	02	1	1503-1508
72	SPACER; SEAT ADJ	8-98291-668-0	02	1	1510-
74	ADJUSTER; FRT SEAT,HEIGHT CONT	8-98003-678-0	01	1	1306-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT SEAT CLOTH<7FL>	8-98291-640-0	01	1	1503-1508
74	ADJUSTER; FRT SEAT,HEIGHT CONT	8-98291-640-0	01	1	1510-
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1306-1502
158	BUSHING; LINK ARM SEAT CLOTH<7FL>	1-75518-209-0	02	1	1503-1508
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1510-
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1306-1502
201	CABLE; ADJ SEAT CLOTH<7FL> (A) L=667	1-75518-288-0	01	1	1503-1508
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1510-
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1306-1502
201	CABLE; ADJ SEAT CLOTH<7FL> (B) L=605	1-75518-289-1	01	1	1503-1508
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1510-
278	COLLAR; FRT SEAT	1-75518-244-0	03	1	1306-1502
278	COLLAR; FRT SEAT SEAT CLOTH<7FL>	1-75518-244-0	03	1	1503-1508
278	COLLAR; FRT SEAT	1-75518-244-0	03	1	1510-
302	BOLT; ADJ,HEIGHT CONT (B)	1-75518-266-2	02	1	1306-1502
302	BOLT; ADJ,HEIGHT CONT SEAT CLOTH<7FL> (B)	1-75518-266-2	02	1	1503-1508
302	BOLT; ADJ,HEIGHT CONT (B)	1-75518-266-2	02	1	1510-
302	BOLT; ADJ,HEIGHT CONT (A)	1-75518-270-1	04	1	1306-1502
302	BOLT; ADJ,HEIGHT CONT SEAT CLOTH<7FL> (A)	8-98291-667-0	04	1	1503-1508
302	BOLT; ADJ,HEIGHT CONT (A)	8-98291-667-0	04	1	1510-
302	BOLT; ADJ,HEIGHT CONT (C)	1-75518-336-1	02	1	1306-1502
302	BOLT; ADJ,HEIGHT CONT SEAT CLOTH<7FL> (C)	1-75518-336-1	02	1	1503-1508
302	BOLT; ADJ,HEIGHT CONT (C)	1-75518-336-1	02	1	1510-
306	NUT; SEAT ADJ (B) M10 FLANGE MAL	0-91180-110-0	02	1	1306-
306	NUT; SEAT ADJ (A) M8 FLANGE	1-75538-207-0	06	1	1306-1502
306	NUT; SEAT ADJ SEAT CLOTH<7FL> (A) M8 FLANGE	1-75538-207-0	06	1	1503-1508
306	NUT; SEAT ADJ (A) M8 FLANGE	1-75538-207-0	06	1	1510-
468	SPRING; RETURN (A)	1-75518-206-0	01	1	1306-1502
468	SPRING; RETURN SEAT CLOTH<7FL> (A)	1-75518-206-0	01	1	1503-1508
468	SPRING; RETURN (A)	1-75518-206-0	01	1	1510-
468	SPRING; RETURN (B)	1-75518-207-0	01	1	1306-1502
468	SPRING; RETURN SEAT CLOTH<7FL> (B)	1-75518-207-0	01	1	1503-1508
468	SPRING; RETURN (B)	1-75518-207-0	01	1	1510-
468	SPRING; RETURN (C)	1-75518-208-0	02	1	1306-1502
468	SPRING; RETURN SEAT CLOTH<7FL> (C)	1-75518-208-0	02	1	1503-1508
468	SPRING; RETURN (C)	1-75518-208-0	02	1	1510-
468	SPRING; RETURN (D)	1-75538-132-0	01	1	1306-1502
468	SPRING; RETURN SEAT CLOTH<7FL> (D)	1-75538-132-0	01	1	1503-1508
468	SPRING; RETURN (D)	1-75538-132-0	01	1	1510-
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1306-1502
471	LEVER; SEAT ADJ SEAT CLOTH<7FL>	8-98107-869-0	01	1	1503-1508
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1510-
512	COVER; LEVER	1-75518-243-1	02	1	1306-1502
512	COVER; LEVER SEAT CLOTH<7FL>	1-75518-243-1	02	1	1503-1508
512	COVER; LEVER	1-75518-243-1	02	1	1510-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1306-1502
518	NUT; TILT ADJ SEAT CLOTH<7FL> (A)	1-75518-263-0	01	1	1503-1508
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1510-
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	1306-1502
518	NUT; TILT ADJ SEAT CLOTH<7FL> (C) M8	1-75518-264-0	04	1	1503-1508
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ (E) M8 FLANGE	1-75538-207-0	04	1	1306-1502
518	NUT; TILT ADJ SEAT CLOTH<7FL> (E) M8 FLANGE	1-75538-207-0	04	1	1503-1508
518	NUT; TILT ADJ (E) M8 FLANGE	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	1306-1502
518	NUT; TILT ADJ SEAT CLOTH<7FL> (D) M6 LOCK NUT	5-09984-020-0	02	1	1503-1508
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	1306-1502
518	NUT; TILT ADJ SEAT CLOTH<7FL> (B) M8 FLANGE	8-94152-886-0	04	1	1503-1508
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	1510-
529	PIN; LINK	1-75518-262-0	01	1	1306-1502
529	PIN; LINK SEAT CLOTH<7FL>	1-75518-262-0	01	1	1503-1508
529	PIN; LINK	1-75518-262-0	01	1	1510-
532	LEVER ASM; TILT (A)	1-75518-203-0	01	1	1306-1502
532	LEVER ASM; TILT SEAT CLOTH<7FL> (A)	1-75518-203-0	01	1	1503-1508
532	LEVER ASM; TILT (A)	1-75518-203-0	01	1	1510-
532	LEVER ASM; TILT (B)	1-75518-204-1	01	1	1306-1502
532	LEVER ASM; TILT SEAT CLOTH<7FL> (B)	1-75518-204-1	01	1	1503-1508
532	LEVER ASM; TILT (B)	1-75518-204-1	01	1	1510-
543	WASHER; HEIGHT ADJUSTER (A)	1-75518-335-0	02	1	1306-1502
543	WASHER; HEIGHT ADJUSTER SEAT CLOTH<7FL> (A) ID=13 OD=19	8-98291-669-0	02	1	1503-1508
543	WASHER; HEIGHT ADJUSTER (A) ID=13 OD=19	8-98291-669-0	02	1	1510-
543	WASHER; HEIGHT ADJUSTER (B) ID=8.4	9-09160-508-0	04	1	1306-1502
543	WASHER; HEIGHT ADJUSTER SEAT CLOTH<7FL> (B) ID=8.4	9-09160-508-0	04	1	1503-1508
543	WASHER; HEIGHT ADJUSTER (B) ID=8.4	9-09160-508-0	04	1	1510-
551	SLIDER; HEIGHT ADJ	1-75518-265-0	04	1	1306-1502
551	SLIDER; HEIGHT ADJ SEAT CLOTH<7FL>	1-75518-265-0	04	1	1503-1508
551	SLIDER; HEIGHT ADJ	1-75518-265-0	04	1	1510-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
