Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#12222) — 668 parça

170 171 170 172 172 165 118 169 63 46 151 168 63 66 164 201 118 173 200 165 30 46 46 166 66 14 63 58 58 66 49 66 167 135 13 63 21 72 85 87 66 25 190 85 189 86 164 166 66 58 26 63 118 30 90 71 76 86 66 67 86 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

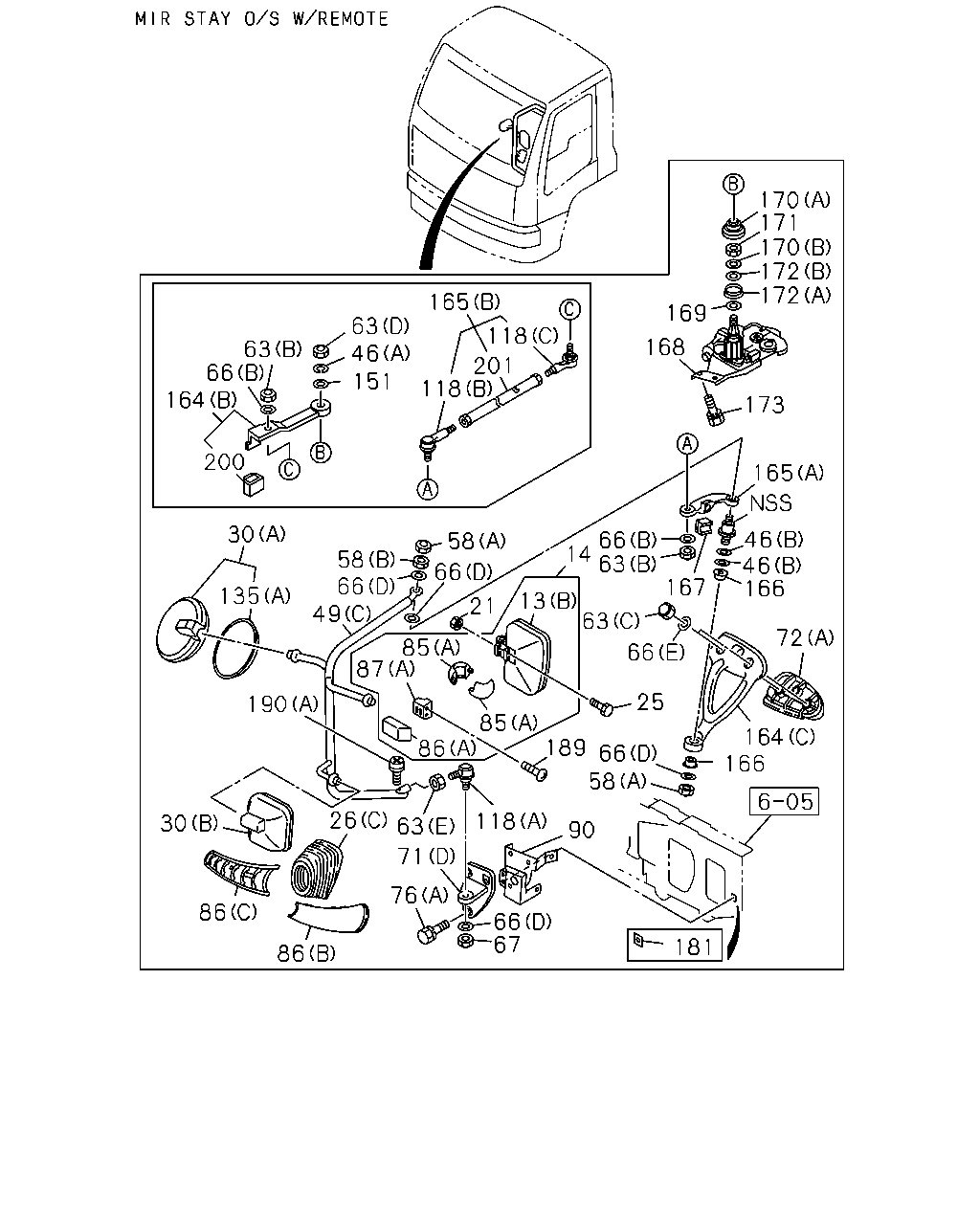

13	MIRROR ASM; OUTSIDE RR VIEW MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-917-3	01	1	0105-

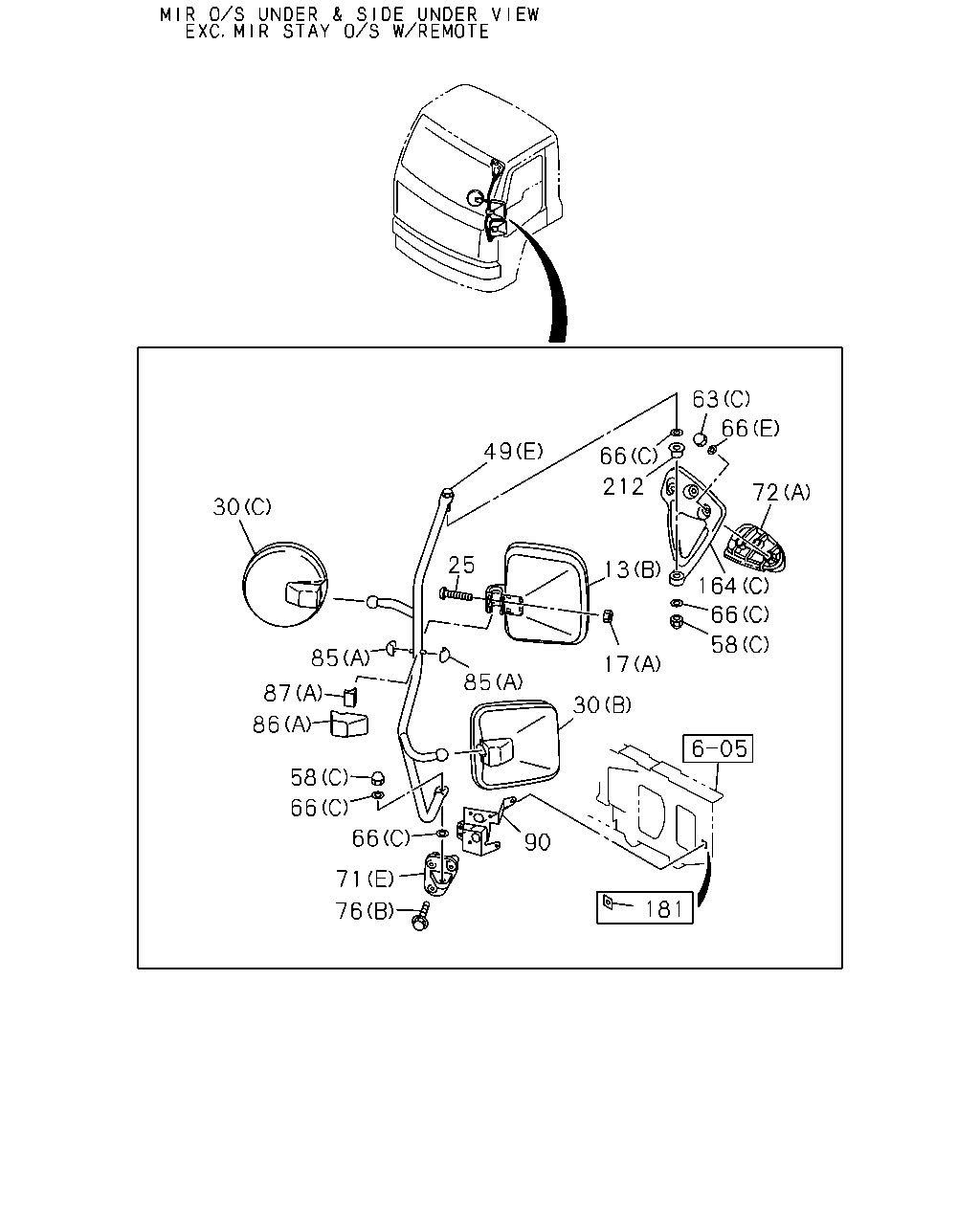

13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-917-3	01	1	0105-

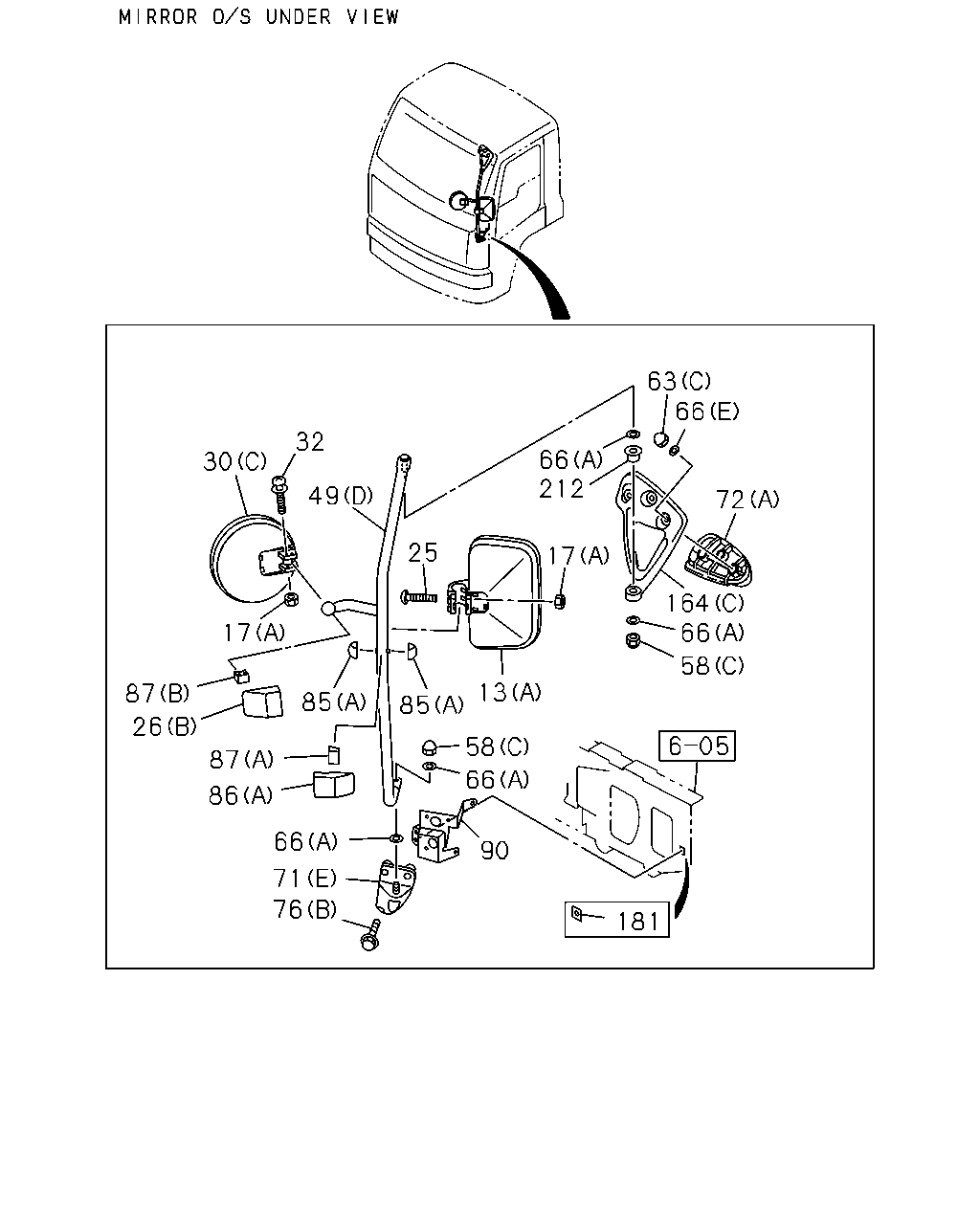

13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0105-

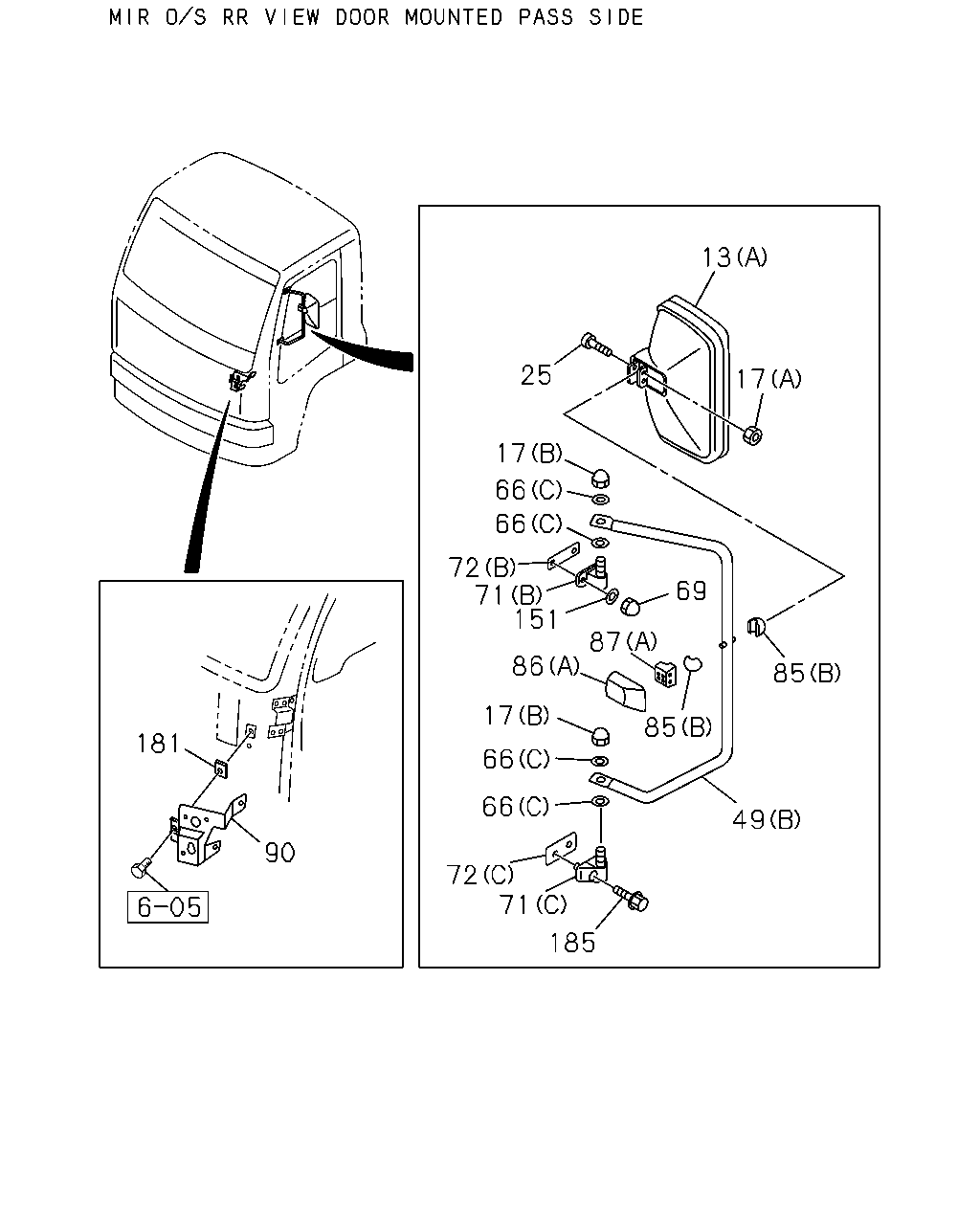

13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-918-3	01	1	0105-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0105-
14	MIRROR ASM; OUTSIDE MIR STAY O/S W/REMOTE<TBA> PIVOT ID=22.2	1-71707-152-1	01	1	0105-
21	NUT; MIRROR MIR STAY O/S W/REMOTE<TBA> M5	1-09984-124-0	06	1	0105-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> M5X50	1-09981-444-0	02	1	0105-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M5X50	1-09981-444-0	02	1	0105-
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> M5X50	1-09981-444-0	02	1	0105-
25	SCREW; OUTSIDE MIRROR M5X50	1-09981-444-0	02	1	0105-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) BLACK	1-71737-652-1	01	1	0105-
26	COVER; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-316-2	01	1	0105-
26	COVER; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (B) BLACK	1-71737-649-1	01	1	0105-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B) BLACK	1-71737-649-1	01	1	0105-
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (A)	1-71797-853-1	01	1	0105-
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-592-1	01	1	0105-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-592-1	01	1	0105-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (C)	1-71798-591-1	01	1	0105-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-591-1	01	1	0105-
46	WASHER; LK,STAY MIR STAY O/S W/REMOTE<TBA> (B) ID=16.7 OD=22.5 WAVE WASHER	9-61166-107-0	02	1	0105-
46	WASHER; LK,STAY MIR STAY O/S W/REMOTE<TBA> (A) ID=10	1-09985-180-0	01	1	0105-0206
46	WASHER; LK,STAY MIR STAY O/S W/REMOTE<TBA> (A) ID=10	1-09985-345-0	01	1	0207-
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-491-2	01	1	0105-

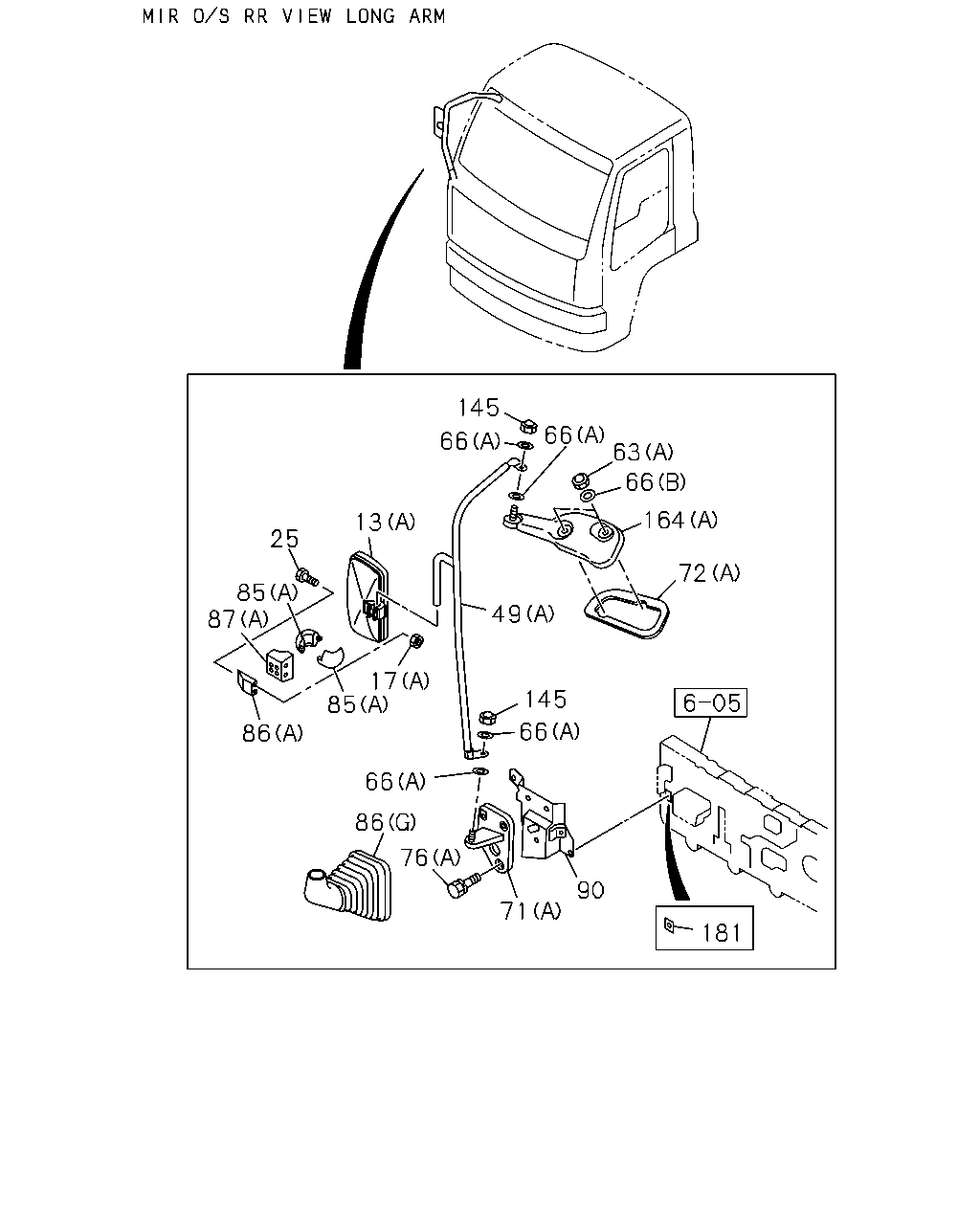

49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> (A)	1-71798-599-0	01	1	0105-

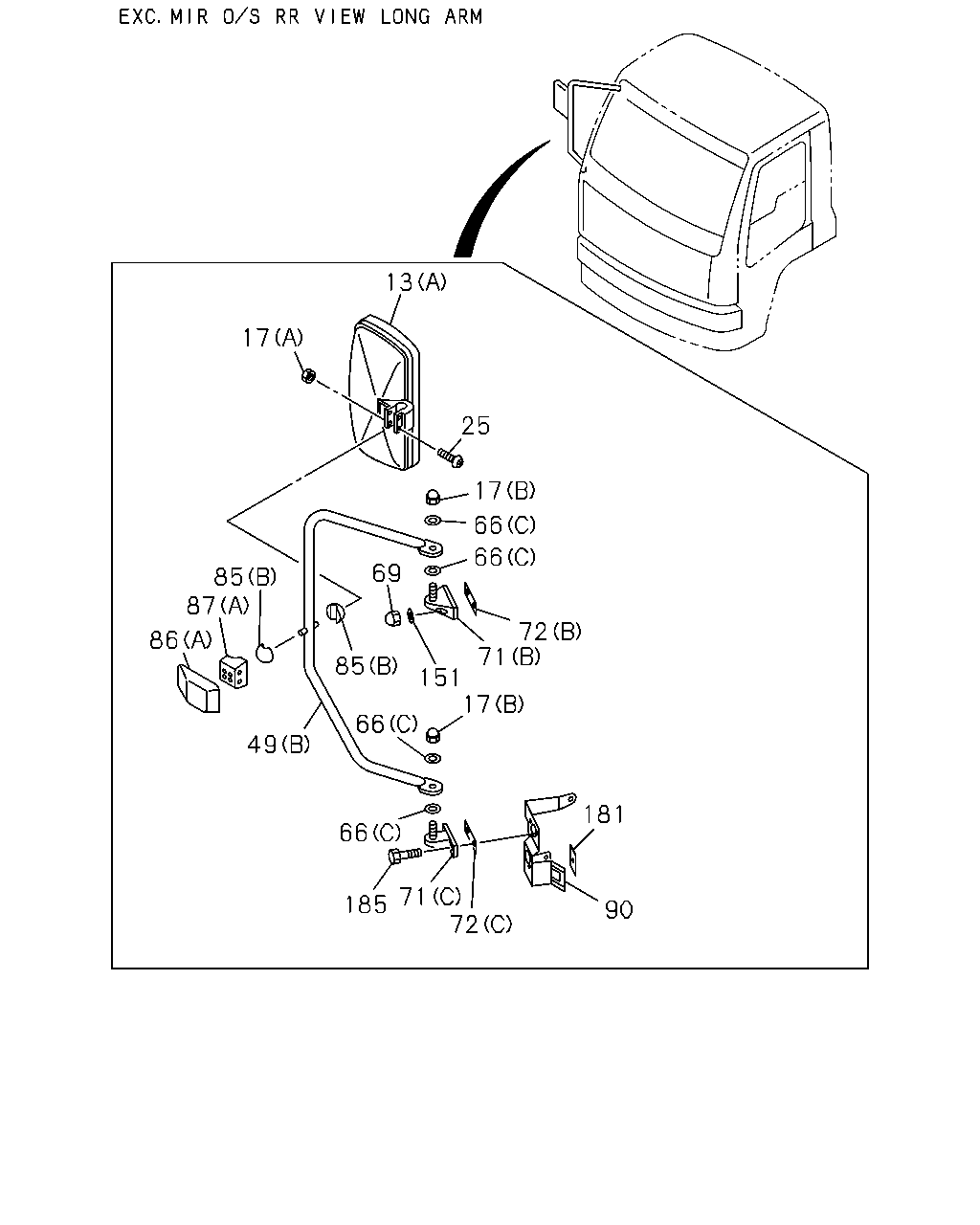

49	STAY; MIRROR SIDE EXC. MIR O/S RR VIEW LONG ARM<DH2> (B)	1-71798-490-2	01	1	0105-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (E)	1-71797-896-2	01	1	0105-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> (C)	1-71707-087-0	01	1	0105-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (D)	1-71797-856-1	01	1	0105-
58	NUT; MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) M10	1-09984-134-0	02	1	0105-0105
58	NUT; MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) M10	1-09985-342-0	02	1	0106-
58	NUT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M12	1-09984-178-1	02	1	0105-
58	NUT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M12	1-09984-184-1	01	1	0105-
63	NUT; STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) M8	1-09984-187-0	03	1	0105-
63	NUT; STAY MIR O/S RR VIEW LONG ARM<DH2> (A) M8	1-09984-187-0	02	1	0105-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (E) M14	9-99110-414-0	01	1	0105-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (B) M8	1-71798-603-1	02	1	0105-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (D) M10	1-71798-833-0	01	1	0105-0206
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (D) M10 CAP NUT	1-71798-859-0	01	1	0207-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-0105
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-0105
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0105-0105
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0105-0105
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0105-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (E) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0105-
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0105-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0105-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (D) ID=12.5	1-09985-334-0	01	1	0105-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (D) ID=12.5	1-09985-334-0	03	1	0105-
67	NUT; STAY MIR STAY O/S W/REMOTE<TBA> M12	1-09984-178-1	01	1	0105-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (E)	1-71798-581-3	01	1	0105-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2> (A)	1-71798-309-4	01	1	0105-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW LONG ARM<DH2> (B)	1-71798-484-1	01	1	0105-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-484-1	01	1	0105-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW LONG ARM<DH2> (C)	1-71798-486-2	01	1	0105-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-486-2	01	1	0105-
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D)	1-71797-809-2	01	1	0105-
72	SHEET HIGH ROOF<S2F> (A)	1-71797-799-1	01	1	0105-0111
72	SHEET MIRROR O/S RR VIEW<D37> HIGH ROOF<S2F> (A)	1-71797-799-1	01	1	0112-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2> HIGH ROOF<S2F> (A)	1-71797-798-1	01	1	0105-
72	SHEET EXC. MIR O/S RR VIEW LONG ARM<DH2> (B)	1-71798-487-3	01	1	0105-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-487-3	01	1	0105-
72	SHEET EXC. MIR O/S RR VIEW LONG ARM<DH2> (C)	1-71798-488-1	01	1	0105-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-488-1	01	1	0105-
76	BOLT; STAY BRKT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (B) M8X30 W/LK WASHER	8-94279-183-1	03	1	0105-
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> (A) M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	0105-
76	BOLT; STAY BRKT MIR O/S RR VIEW LONG ARM<DH2> (A) M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	0105-
85	PIVOT; MAIN MIRROR EXC. MIR O/S RR VIEW LONG ARM<DH2> (B) ID=19.1	1-71737-633-2	02	1	0105-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=19.1	1-71737-633-2	02	1	0105-
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9> (A) ID=22.2	1-71736-489-2	02	1	0105-
85	PIVOT; MAIN MIRROR MIR STAY O/S W/REMOTE<TBA> (A) ID=22.2	1-71736-489-2	02	1	0105-
85	PIVOT; MAIN MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) ID=22.2	1-71736-489-2	02	1	0105-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW LONG ARM<DH2> (A) ID=22.2	1-71736-489-2	02	1	0105-
86	COVER; STAY,OUTSIDE MIRROR HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (F)	1-73317-322-0	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2> (G)	1-71798-695-0	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D) BLACK	1-71737-649-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (E) BLACK	1-71737-652-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-732-0	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-733-0	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (A) BLACK	1-71737-760-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) BLACK	1-71737-760-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (A) BLACK	1-71737-760-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) BLACK	1-71737-760-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-1	01	1	0105-
87	SPACER MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	02	1	0105-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	02	1	0105-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-704-0	01	1	0105-
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-704-0	01	1	0105-
87	SPACER MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-704-0	01	1	0105-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-704-0	01	1	0105-
87	SPACER (A)	1-71737-704-0	01	1	0105-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0105-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0105-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0105-
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (A)	1-71797-805-1	01	1	0105-
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (C) RH THREAD	1-71798-819-2	01	1	0105-
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (B) LH THREAD	1-71798-820-2	01	1	0105-
135	LENS; MIRROR,SIDE UNDER MIR STAY O/S W/REMOTE<TBA> (A)	1-71707-130-0	01	1	0105-
135	LENS; MIRROR,SIDE UNDER MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-929-0	01	1	0105-
135	LENS; MIRROR,SIDE UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-929-0	01	1	0105-
151	WASHER; PL,MIRROR EXC. MIR O/S RR VIEW LONG ARM<DH2> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0105-
151	WASHER; PL,MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0105-
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	0105-
164	STAY; ROOF EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-299-4	01	1	0105-
164	STAY; ROOF MIR O/S RR VIEW LONG ARM<DH2> (A)	1-71798-300-5	01	1	0105-
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-602-1	01	1	0105-
165	LINK; POWER MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-600-1	01	1	0105-
165	LINK; POWER MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-782-2	01	1	0105-
166	BUSHING; STAY MIR STAY O/S W/REMOTE<TBA>	1-09983-179-0	02	1	0105-
167	RUBBER; STOPPER MIR STAY O/S W/REMOTE<TBA>	1-71798-308-0	01	1	0105-
168	POWER UNIT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA>	1-86855-031-0	01	1	0105-0202
168	POWER UNIT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA>	1-86855-035-0	01	1	0203-0204
168	POWER UNIT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA>	1-86855-031-0	01	1	0205-
169	WASHER; PL,POWER UNIT MIR STAY O/S W/REMOTE<TBA>	1-86855-011-1	01	1	0105-
170	CAP; POWER UNIT MIR STAY O/S W/REMOTE<TBA> (A)	1-86855-012-0	01	1	0105-
170	CAP; POWER UNIT MIR STAY O/S W/REMOTE<TBA> (B)	1-86855-014-1	01	1	0105-
171	NUT; POWER UNIT MIR STAY O/S W/REMOTE<TBA>	1-86855-013-1	01	1	0105-
172	SEAL; RUBBER,POWER UNIT MIR STAY O/S W/REMOTE<TBA> (A)	1-79928-003-1	01	1	0105-
172	SEAL; RUBBER,POWER UNIT MIR STAY O/S W/REMOTE<TBA> (B)	1-86855-015-0	01	1	0105-
173	BOLT; POWER UNIT MIR STAY O/S W/REMOTE<TBA> M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	0105-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0105-
189	SCREW; PIVOT MIR STAY O/S W/REMOTE<TBA> M5X50	1-09981-444-0	02	1	0105-
190	SCREW; COVER HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (B) M5X16 W/PL WASHER TAPPING	8-94279-123-0	03	1	0105-
190	SCREW; COVER MIR STAY O/S W/REMOTE<TBA> (A) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	0105-
200	STOPPER; STAY MIR STAY O/S W/REMOTE<TBA>	1-71798-597-0	01	1	0105-
201	ROD; MIRROR MIR STAY O/S W/REMOTE<TBA>	1-71798-821-0	01	1	0105-

145 66 63 66 66 164 13 25 72 85 87 49 17 85 145 66 86 66 86 76 90 71 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-917-3	01	1	0105-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-917-3	01	1	0105-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0105-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-918-3	01	1	0105-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0105-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M5	1-09984-124-0	02	1	0105-
17	NUT; CAP,MIRROR STAY (A) M5	1-09984-124-0	02	1	0105-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M10	1-09984-134-0	02	1	0105-
17	NUT; CAP,MIRROR STAY (B) M10	1-09984-134-0	02	1	0105-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) M5	1-09984-124-0	06	1	0105-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (A) M5	1-09984-124-0	04	1	0105-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> M5X50	1-09981-444-0	02	1	0105-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M5X50	1-09981-444-0	02	1	0105-
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> M5X50	1-09981-444-0	02	1	0105-
25	SCREW; OUTSIDE MIRROR M5X50	1-09981-444-0	02	1	0105-
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-491-2	01	1	0105-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> (A)	1-71798-599-0	01	1	0105-
49	STAY; MIRROR SIDE EXC. MIR O/S RR VIEW LONG ARM<DH2> (B)	1-71798-490-2	01	1	0105-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (E)	1-71797-896-2	01	1	0105-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> (C)	1-71707-087-0	01	1	0105-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (D)	1-71797-856-1	01	1	0105-
63	NUT; STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) M8	1-09984-187-0	03	1	0105-
63	NUT; STAY MIR O/S RR VIEW LONG ARM<DH2> (A) M8	1-09984-187-0	02	1	0105-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (E) M14	9-99110-414-0	01	1	0105-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (B) M8	1-71798-603-1	02	1	0105-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (D) M10	1-71798-833-0	01	1	0105-0206
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (D) M10 CAP NUT	1-71798-859-0	01	1	0207-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-0105
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-0105
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0105-0105
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0105-0105
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0105-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (E) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0105-
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0105-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0105-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (D) ID=12.5	1-09985-334-0	01	1	0105-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (D) ID=12.5	1-09985-334-0	03	1	0105-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (E)	1-71798-581-3	01	1	0105-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2> (A)	1-71798-309-4	01	1	0105-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW LONG ARM<DH2> (B)	1-71798-484-1	01	1	0105-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-484-1	01	1	0105-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW LONG ARM<DH2> (C)	1-71798-486-2	01	1	0105-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-486-2	01	1	0105-
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D)	1-71797-809-2	01	1	0105-
72	SHEET HIGH ROOF<S2F> (A)	1-71797-799-1	01	1	0105-0111
72	SHEET MIRROR O/S RR VIEW<D37> HIGH ROOF<S2F> (A)	1-71797-799-1	01	1	0112-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2> HIGH ROOF<S2F> (A)	1-71797-798-1	01	1	0105-
72	SHEET EXC. MIR O/S RR VIEW LONG ARM<DH2> (B)	1-71798-487-3	01	1	0105-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-487-3	01	1	0105-
72	SHEET EXC. MIR O/S RR VIEW LONG ARM<DH2> (C)	1-71798-488-1	01	1	0105-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-488-1	01	1	0105-
76	BOLT; STAY BRKT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (B) M8X30 W/LK WASHER	8-94279-183-1	03	1	0105-
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> (A) M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	0105-
76	BOLT; STAY BRKT MIR O/S RR VIEW LONG ARM<DH2> (A) M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	0105-
85	PIVOT; MAIN MIRROR EXC. MIR O/S RR VIEW LONG ARM<DH2> (B) ID=19.1	1-71737-633-2	02	1	0105-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=19.1	1-71737-633-2	02	1	0105-
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9> (A) ID=22.2	1-71736-489-2	02	1	0105-
85	PIVOT; MAIN MIRROR MIR STAY O/S W/REMOTE<TBA> (A) ID=22.2	1-71736-489-2	02	1	0105-
85	PIVOT; MAIN MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) ID=22.2	1-71736-489-2	02	1	0105-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW LONG ARM<DH2> (A) ID=22.2	1-71736-489-2	02	1	0105-
86	COVER; STAY,OUTSIDE MIRROR HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (F)	1-73317-322-0	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2> (G)	1-71798-695-0	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D) BLACK	1-71737-649-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (E) BLACK	1-71737-652-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-732-0	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-733-0	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (A) BLACK	1-71737-760-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) BLACK	1-71737-760-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (A) BLACK	1-71737-760-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) BLACK	1-71737-760-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-1	01	1	0105-
87	SPACER MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	02	1	0105-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	02	1	0105-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-704-0	01	1	0105-
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-704-0	01	1	0105-
87	SPACER MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-704-0	01	1	0105-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-704-0	01	1	0105-
87	SPACER (A)	1-71737-704-0	01	1	0105-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0105-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0105-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0105-
145	NUT; CAP,SUB STAY MIR O/S RR VIEW LONG ARM<DH2> M10	1-09984-183-0	02	1	0105-
164	STAY; ROOF EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-299-4	01	1	0105-
164	STAY; ROOF MIR O/S RR VIEW LONG ARM<DH2> (A)	1-71798-300-5	01	1	0105-
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-602-1	01	1	0105-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0105-

13 17 25 17 66 66 69 85 87 72 71 86 85 151 17 66 49 181 66 71 72 185 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-917-3	01	1	0105-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-917-3	01	1	0105-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0105-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-918-3	01	1	0105-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0105-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M5	1-09984-124-0	02	1	0105-
17	NUT; CAP,MIRROR STAY (A) M5	1-09984-124-0	02	1	0105-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M10	1-09984-134-0	02	1	0105-
17	NUT; CAP,MIRROR STAY (B) M10	1-09984-134-0	02	1	0105-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) M5	1-09984-124-0	06	1	0105-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (A) M5	1-09984-124-0	04	1	0105-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> M5X50	1-09981-444-0	02	1	0105-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M5X50	1-09981-444-0	02	1	0105-
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> M5X50	1-09981-444-0	02	1	0105-
25	SCREW; OUTSIDE MIRROR M5X50	1-09981-444-0	02	1	0105-
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-491-2	01	1	0105-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> (A)	1-71798-599-0	01	1	0105-
49	STAY; MIRROR SIDE EXC. MIR O/S RR VIEW LONG ARM<DH2> (B)	1-71798-490-2	01	1	0105-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (E)	1-71797-896-2	01	1	0105-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> (C)	1-71707-087-0	01	1	0105-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (D)	1-71797-856-1	01	1	0105-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-0105
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-0105
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0105-0105
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0105-0105
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0105-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (E) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0105-
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0105-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0105-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (D) ID=12.5	1-09985-334-0	01	1	0105-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (D) ID=12.5	1-09985-334-0	03	1	0105-
69	NUT; CAP EXC. MIR O/S RR VIEW LONG ARM<DH2> M8	1-09984-187-0	02	1	0105-
69	NUT; CAP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8	1-09984-187-0	02	1	0105-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (E)	1-71798-581-3	01	1	0105-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2> (A)	1-71798-309-4	01	1	0105-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW LONG ARM<DH2> (B)	1-71798-484-1	01	1	0105-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-484-1	01	1	0105-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW LONG ARM<DH2> (C)	1-71798-486-2	01	1	0105-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-486-2	01	1	0105-
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D)	1-71797-809-2	01	1	0105-
72	SHEET HIGH ROOF<S2F> (A)	1-71797-799-1	01	1	0105-0111
72	SHEET MIRROR O/S RR VIEW<D37> HIGH ROOF<S2F> (A)	1-71797-799-1	01	1	0112-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2> HIGH ROOF<S2F> (A)	1-71797-798-1	01	1	0105-
72	SHEET EXC. MIR O/S RR VIEW LONG ARM<DH2> (B)	1-71798-487-3	01	1	0105-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-487-3	01	1	0105-
72	SHEET EXC. MIR O/S RR VIEW LONG ARM<DH2> (C)	1-71798-488-1	01	1	0105-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-488-1	01	1	0105-
85	PIVOT; MAIN MIRROR EXC. MIR O/S RR VIEW LONG ARM<DH2> (B) ID=19.1	1-71737-633-2	02	1	0105-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=19.1	1-71737-633-2	02	1	0105-
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9> (A) ID=22.2	1-71736-489-2	02	1	0105-
85	PIVOT; MAIN MIRROR MIR STAY O/S W/REMOTE<TBA> (A) ID=22.2	1-71736-489-2	02	1	0105-
85	PIVOT; MAIN MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) ID=22.2	1-71736-489-2	02	1	0105-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW LONG ARM<DH2> (A) ID=22.2	1-71736-489-2	02	1	0105-
86	COVER; STAY,OUTSIDE MIRROR HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (F)	1-73317-322-0	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2> (G)	1-71798-695-0	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D) BLACK	1-71737-649-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (E) BLACK	1-71737-652-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-732-0	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-733-0	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (A) BLACK	1-71737-760-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) BLACK	1-71737-760-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (A) BLACK	1-71737-760-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) BLACK	1-71737-760-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-1	01	1	0105-
87	SPACER MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	02	1	0105-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	02	1	0105-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-704-0	01	1	0105-
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-704-0	01	1	0105-
87	SPACER MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-704-0	01	1	0105-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-704-0	01	1	0105-
87	SPACER (A)	1-71737-704-0	01	1	0105-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0105-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0105-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0105-
151	WASHER; PL,MIRROR EXC. MIR O/S RR VIEW LONG ARM<DH2> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0105-
151	WASHER; PL,MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0105-
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	0105-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0105-
185	BOLT; BRKT EXC. MIR O/S RR VIEW LONG ARM<DH2> M8X35 FLANGE	0-28690-835-0	02	1	0105-
185	BOLT; BRKT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	0-28690-835-0	02	1	0105-

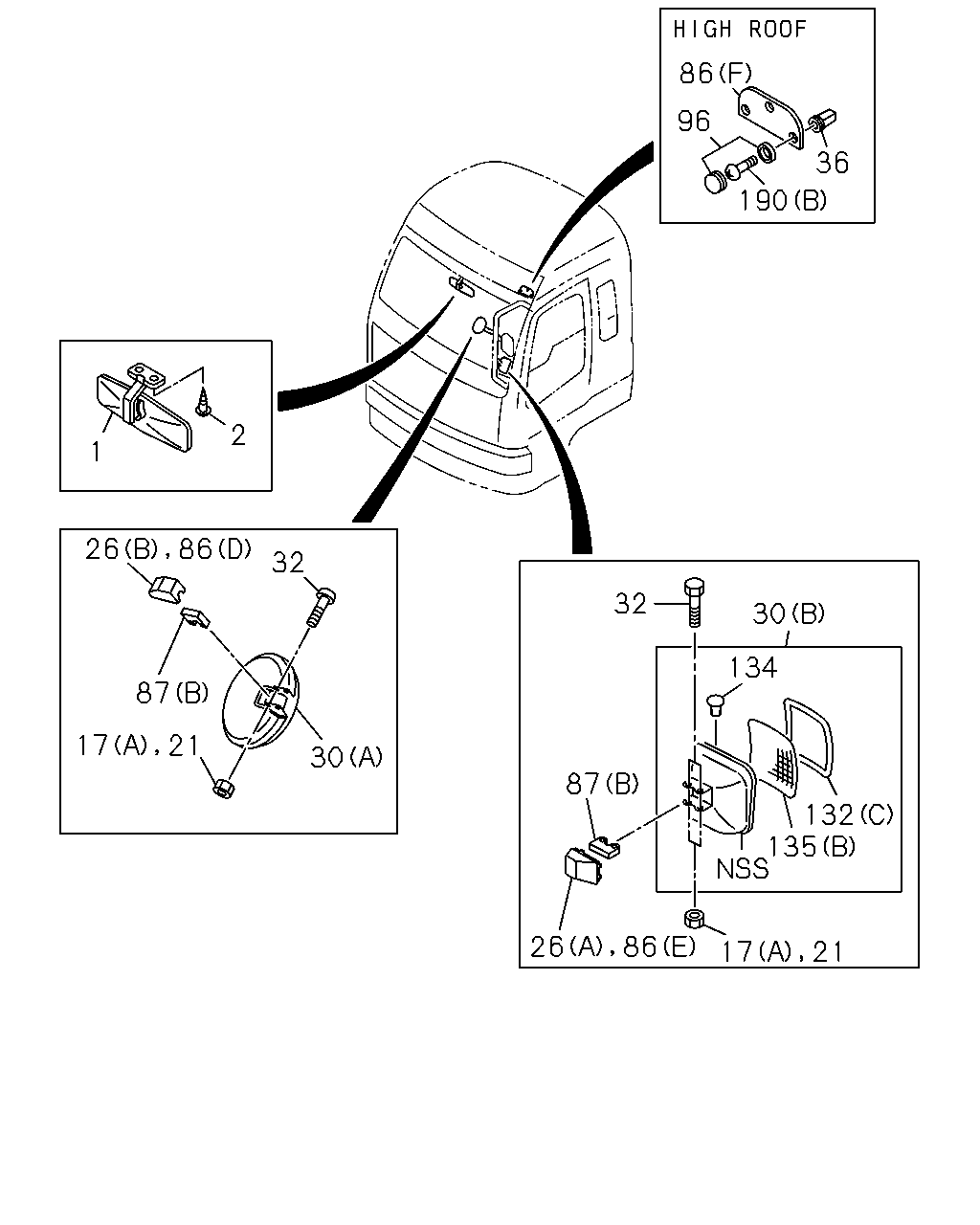

86 96 36 190 2 1 32 32 30 134 87 21 17 30 87 132 135 26 86 17 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM	1-73117-033-1	01	1	0105-
2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	0105-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M5	1-09984-124-0	02	1	0105-
17	NUT; CAP,MIRROR STAY (A) M5	1-09984-124-0	02	1	0105-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M10	1-09984-134-0	02	1	0105-
17	NUT; CAP,MIRROR STAY (B) M10	1-09984-134-0	02	1	0105-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) M5	1-09984-124-0	06	1	0105-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (A) M5	1-09984-124-0	04	1	0105-
21	NUT; MIRROR MIR STAY O/S W/REMOTE<TBA> M5	1-09984-124-0	06	1	0105-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) BLACK	1-71737-652-1	01	1	0105-
26	COVER; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-316-2	01	1	0105-
26	COVER; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (B) BLACK	1-71737-649-1	01	1	0105-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B) BLACK	1-71737-649-1	01	1	0105-
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (A)	1-71797-853-1	01	1	0105-
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-592-1	01	1	0105-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-592-1	01	1	0105-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (C)	1-71798-591-1	01	1	0105-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-591-1	01	1	0105-
32	SCREW; UNDER MIRROR MIR STAY O/S W/REMOTE<TBA> M5X40 W/PL WASHER	1-71737-797-0	04	1	0105-
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> M5X40 W/PL WASHER	1-71737-797-0	04	1	0105-
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> M5X40 W/PL WASHER	1-71737-797-0	02	1	0105-
36	GROMMET; MIRROR HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> M5 SCREW GROMMET	1-09983-131-0	03	1	0105-
86	COVER; STAY,OUTSIDE MIRROR HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (F)	1-73317-322-0	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2> (G)	1-71798-695-0	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D) BLACK	1-71737-649-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (E) BLACK	1-71737-652-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-732-0	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-733-0	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (A) BLACK	1-71737-760-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) BLACK	1-71737-760-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (A) BLACK	1-71737-760-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) BLACK	1-71737-760-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-1	01	1	0105-
87	SPACER MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	02	1	0105-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	02	1	0105-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-704-0	01	1	0105-
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-704-0	01	1	0105-
87	SPACER MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-704-0	01	1	0105-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-704-0	01	1	0105-
87	SPACER (A)	1-71737-704-0	01	1	0105-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0105-
96	CAP; MIRROR STAY HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA>	1-73317-324-0	03	1	0105-
132	RING; MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71737-935-0	01	1	0105-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (C)	1-71737-935-0	01	1	0105-
132	RING; MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-933-0	01	1	0105-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-933-0	01	1	0105-
132	RING; MIRROR MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-934-0	01	1	0105-
132	RING; MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-934-0	01	1	0105-
132	RING; MIRROR (A)	1-71737-934-0	01	1	0105-
134	CLIP; MIRROR LENS MIR STAY O/S W/REMOTE<TBA>	1-71737-936-0	02	1	0105-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>	1-71737-936-0	02	1	0105-
134	CLIP; MIRROR LENS MIRROR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0105-
134	CLIP; MIRROR LENS MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71737-936-0	01	1	0105-
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0105-
135	LENS; MIRROR,SIDE UNDER MIR STAY O/S W/REMOTE<TBA> (A)	1-71707-130-0	01	1	0105-
135	LENS; MIRROR,SIDE UNDER MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-929-0	01	1	0105-
135	LENS; MIRROR,SIDE UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-929-0	01	1	0105-
190	SCREW; COVER HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (B) M5X16 W/PL WASHER TAPPING	8-94279-123-0	03	1	0105-
190	SCREW; COVER MIR STAY O/S W/REMOTE<TBA> (A) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	0105-

13 133 132 134 13 132 133 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-917-3	01	1	0105-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-917-3	01	1	0105-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0105-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-918-3	01	1	0105-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0105-
132	RING; MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71737-935-0	01	1	0105-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (C)	1-71737-935-0	01	1	0105-
132	RING; MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-933-0	01	1	0105-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-933-0	01	1	0105-
132	RING; MIRROR MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-934-0	01	1	0105-
132	RING; MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-934-0	01	1	0105-
132	RING; MIRROR (A)	1-71737-934-0	01	1	0105-
133	LENS; MIRROR,OUTSIDE MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-926-0	01	1	0105-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-926-0	01	1	0105-
133	LENS; MIRROR,OUTSIDE MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-927-0	01	1	0105-
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-927-0	01	1	0105-
133	LENS; MIRROR,OUTSIDE (A)	1-71737-927-0	01	1	0105-
134	CLIP; MIRROR LENS MIR STAY O/S W/REMOTE<TBA>	1-71737-936-0	02	1	0105-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>	1-71737-936-0	02	1	0105-
134	CLIP; MIRROR LENS MIRROR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0105-
134	CLIP; MIRROR LENS MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71737-936-0	01	1	0105-
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0105-

63 66 49 66 212 72 30 164 25 13 66 58 85 17 85 87 30 86 58 66 66 90 71 181 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-917-3	01	1	0105-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-917-3	01	1	0105-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0105-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-918-3	01	1	0105-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0105-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M5	1-09984-124-0	02	1	0105-
17	NUT; CAP,MIRROR STAY (A) M5	1-09984-124-0	02	1	0105-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M10	1-09984-134-0	02	1	0105-
17	NUT; CAP,MIRROR STAY (B) M10	1-09984-134-0	02	1	0105-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) M5	1-09984-124-0	06	1	0105-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (A) M5	1-09984-124-0	04	1	0105-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> M5X50	1-09981-444-0	02	1	0105-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M5X50	1-09981-444-0	02	1	0105-
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> M5X50	1-09981-444-0	02	1	0105-
25	SCREW; OUTSIDE MIRROR M5X50	1-09981-444-0	02	1	0105-
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (A)	1-71797-853-1	01	1	0105-
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-592-1	01	1	0105-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-592-1	01	1	0105-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (C)	1-71798-591-1	01	1	0105-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-591-1	01	1	0105-
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-491-2	01	1	0105-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> (A)	1-71798-599-0	01	1	0105-
49	STAY; MIRROR SIDE EXC. MIR O/S RR VIEW LONG ARM<DH2> (B)	1-71798-490-2	01	1	0105-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (E)	1-71797-896-2	01	1	0105-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> (C)	1-71707-087-0	01	1	0105-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (D)	1-71797-856-1	01	1	0105-
58	NUT; MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) M10	1-09984-134-0	02	1	0105-0105
58	NUT; MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) M10	1-09985-342-0	02	1	0106-
58	NUT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M12	1-09984-178-1	02	1	0105-
58	NUT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M12	1-09984-184-1	01	1	0105-
63	NUT; STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) M8	1-09984-187-0	03	1	0105-
63	NUT; STAY MIR O/S RR VIEW LONG ARM<DH2> (A) M8	1-09984-187-0	02	1	0105-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (E) M14	9-99110-414-0	01	1	0105-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (B) M8	1-71798-603-1	02	1	0105-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (D) M10	1-71798-833-0	01	1	0105-0206
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (D) M10 CAP NUT	1-71798-859-0	01	1	0207-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-0105
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-0105
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0105-0105
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0105-0105
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0105-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (E) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0105-
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0105-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0105-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (D) ID=12.5	1-09985-334-0	01	1	0105-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (D) ID=12.5	1-09985-334-0	03	1	0105-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (E)	1-71798-581-3	01	1	0105-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2> (A)	1-71798-309-4	01	1	0105-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW LONG ARM<DH2> (B)	1-71798-484-1	01	1	0105-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-484-1	01	1	0105-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW LONG ARM<DH2> (C)	1-71798-486-2	01	1	0105-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-486-2	01	1	0105-
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D)	1-71797-809-2	01	1	0105-
72	SHEET HIGH ROOF<S2F> (A)	1-71797-799-1	01	1	0105-0111
72	SHEET MIRROR O/S RR VIEW<D37> HIGH ROOF<S2F> (A)	1-71797-799-1	01	1	0112-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2> HIGH ROOF<S2F> (A)	1-71797-798-1	01	1	0105-
72	SHEET EXC. MIR O/S RR VIEW LONG ARM<DH2> (B)	1-71798-487-3	01	1	0105-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-487-3	01	1	0105-
72	SHEET EXC. MIR O/S RR VIEW LONG ARM<DH2> (C)	1-71798-488-1	01	1	0105-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-488-1	01	1	0105-
76	BOLT; STAY BRKT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (B) M8X30 W/LK WASHER	8-94279-183-1	03	1	0105-
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> (A) M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	0105-
76	BOLT; STAY BRKT MIR O/S RR VIEW LONG ARM<DH2> (A) M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	0105-
85	PIVOT; MAIN MIRROR EXC. MIR O/S RR VIEW LONG ARM<DH2> (B) ID=19.1	1-71737-633-2	02	1	0105-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=19.1	1-71737-633-2	02	1	0105-
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9> (A) ID=22.2	1-71736-489-2	02	1	0105-
85	PIVOT; MAIN MIRROR MIR STAY O/S W/REMOTE<TBA> (A) ID=22.2	1-71736-489-2	02	1	0105-
85	PIVOT; MAIN MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) ID=22.2	1-71736-489-2	02	1	0105-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW LONG ARM<DH2> (A) ID=22.2	1-71736-489-2	02	1	0105-
86	COVER; STAY,OUTSIDE MIRROR HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (F)	1-73317-322-0	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2> (G)	1-71798-695-0	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D) BLACK	1-71737-649-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (E) BLACK	1-71737-652-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-732-0	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-733-0	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (A) BLACK	1-71737-760-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) BLACK	1-71737-760-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (A) BLACK	1-71737-760-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) BLACK	1-71737-760-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-1	01	1	0105-
87	SPACER MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	02	1	0105-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	02	1	0105-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-704-0	01	1	0105-
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-704-0	01	1	0105-
87	SPACER MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-704-0	01	1	0105-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-704-0	01	1	0105-
87	SPACER (A)	1-71737-704-0	01	1	0105-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0105-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0105-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0105-
164	STAY; ROOF EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-299-4	01	1	0105-
164	STAY; ROOF MIR O/S RR VIEW LONG ARM<DH2> (A)	1-71798-300-5	01	1	0105-
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-602-1	01	1	0105-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0105-
212	BUSHING; MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA>	1-09983-175-1	01	1	0105-

63 66 32 66 212 30 49 72 25 17 164 66 17 58 13 87 85 85 26 58 87 66 86 66 90 71 76 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-917-3	01	1	0105-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-917-3	01	1	0105-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0105-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-918-3	01	1	0105-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0105-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M5	1-09984-124-0	02	1	0105-
17	NUT; CAP,MIRROR STAY (A) M5	1-09984-124-0	02	1	0105-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M10	1-09984-134-0	02	1	0105-
17	NUT; CAP,MIRROR STAY (B) M10	1-09984-134-0	02	1	0105-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) M5	1-09984-124-0	06	1	0105-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (A) M5	1-09984-124-0	04	1	0105-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> M5X50	1-09981-444-0	02	1	0105-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M5X50	1-09981-444-0	02	1	0105-
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> M5X50	1-09981-444-0	02	1	0105-
25	SCREW; OUTSIDE MIRROR M5X50	1-09981-444-0	02	1	0105-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) BLACK	1-71737-652-1	01	1	0105-
26	COVER; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-316-2	01	1	0105-
26	COVER; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (B) BLACK	1-71737-649-1	01	1	0105-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B) BLACK	1-71737-649-1	01	1	0105-
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (A)	1-71797-853-1	01	1	0105-
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-592-1	01	1	0105-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-592-1	01	1	0105-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (C)	1-71798-591-1	01	1	0105-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-591-1	01	1	0105-
32	SCREW; UNDER MIRROR MIR STAY O/S W/REMOTE<TBA> M5X40 W/PL WASHER	1-71737-797-0	04	1	0105-
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> M5X40 W/PL WASHER	1-71737-797-0	04	1	0105-
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> M5X40 W/PL WASHER	1-71737-797-0	02	1	0105-
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-491-2	01	1	0105-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> (A)	1-71798-599-0	01	1	0105-
49	STAY; MIRROR SIDE EXC. MIR O/S RR VIEW LONG ARM<DH2> (B)	1-71798-490-2	01	1	0105-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (E)	1-71797-896-2	01	1	0105-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> (C)	1-71707-087-0	01	1	0105-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (D)	1-71797-856-1	01	1	0105-
58	NUT; MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) M10	1-09984-134-0	02	1	0105-0105
58	NUT; MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) M10	1-09985-342-0	02	1	0106-
58	NUT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M12	1-09984-178-1	02	1	0105-
58	NUT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M12	1-09984-184-1	01	1	0105-
63	NUT; STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) M8	1-09984-187-0	03	1	0105-
63	NUT; STAY MIR O/S RR VIEW LONG ARM<DH2> (A) M8	1-09984-187-0	02	1	0105-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (E) M14	9-99110-414-0	01	1	0105-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (B) M8	1-71798-603-1	02	1	0105-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (D) M10	1-71798-833-0	01	1	0105-0206
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (D) M10 CAP NUT	1-71798-859-0	01	1	0207-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-0105
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-0105
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0105-0105
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0105-0105
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0105-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (E) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0105-
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0105-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0105-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (D) ID=12.5	1-09985-334-0	01	1	0105-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (D) ID=12.5	1-09985-334-0	03	1	0105-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (E)	1-71798-581-3	01	1	0105-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2> (A)	1-71798-309-4	01	1	0105-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW LONG ARM<DH2> (B)	1-71798-484-1	01	1	0105-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-484-1	01	1	0105-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW LONG ARM<DH2> (C)	1-71798-486-2	01	1	0105-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-486-2	01	1	0105-
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D)	1-71797-809-2	01	1	0105-
72	SHEET HIGH ROOF<S2F> (A)	1-71797-799-1	01	1	0105-0111
72	SHEET MIRROR O/S RR VIEW<D37> HIGH ROOF<S2F> (A)	1-71797-799-1	01	1	0112-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2> HIGH ROOF<S2F> (A)	1-71797-798-1	01	1	0105-
72	SHEET EXC. MIR O/S RR VIEW LONG ARM<DH2> (B)	1-71798-487-3	01	1	0105-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-487-3	01	1	0105-
72	SHEET EXC. MIR O/S RR VIEW LONG ARM<DH2> (C)	1-71798-488-1	01	1	0105-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-488-1	01	1	0105-
76	BOLT; STAY BRKT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (B) M8X30 W/LK WASHER	8-94279-183-1	03	1	0105-
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> (A) M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	0105-
76	BOLT; STAY BRKT MIR O/S RR VIEW LONG ARM<DH2> (A) M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	0105-
85	PIVOT; MAIN MIRROR EXC. MIR O/S RR VIEW LONG ARM<DH2> (B) ID=19.1	1-71737-633-2	02	1	0105-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=19.1	1-71737-633-2	02	1	0105-
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9> (A) ID=22.2	1-71736-489-2	02	1	0105-
85	PIVOT; MAIN MIRROR MIR STAY O/S W/REMOTE<TBA> (A) ID=22.2	1-71736-489-2	02	1	0105-
85	PIVOT; MAIN MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) ID=22.2	1-71736-489-2	02	1	0105-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW LONG ARM<DH2> (A) ID=22.2	1-71736-489-2	02	1	0105-
86	COVER; STAY,OUTSIDE MIRROR HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (F)	1-73317-322-0	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2> (G)	1-71798-695-0	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D) BLACK	1-71737-649-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (E) BLACK	1-71737-652-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-732-0	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-733-0	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (A) BLACK	1-71737-760-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) BLACK	1-71737-760-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (A) BLACK	1-71737-760-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) BLACK	1-71737-760-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-1	01	1	0105-
87	SPACER MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	02	1	0105-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	02	1	0105-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-704-0	01	1	0105-
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-704-0	01	1	0105-
87	SPACER MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-704-0	01	1	0105-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-704-0	01	1	0105-
87	SPACER (A)	1-71737-704-0	01	1	0105-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0105-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0105-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0105-
164	STAY; ROOF EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-299-4	01	1	0105-
164	STAY; ROOF MIR O/S RR VIEW LONG ARM<DH2> (A)	1-71798-300-5	01	1	0105-
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-602-1	01	1	0105-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0105-
212	BUSHING; MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA>	1-09983-175-1	01	1	0105-

13 25 17 17 66 66 72 71 151 69 87 86 85 17 85 181 66 66 49 90 72 71 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-917-3	01	1	0105-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-917-3	01	1	0105-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0105-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-918-3	01	1	0105-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0105-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M5	1-09984-124-0	02	1	0105-
17	NUT; CAP,MIRROR STAY (A) M5	1-09984-124-0	02	1	0105-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M10	1-09984-134-0	02	1	0105-
17	NUT; CAP,MIRROR STAY (B) M10	1-09984-134-0	02	1	0105-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) M5	1-09984-124-0	06	1	0105-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (A) M5	1-09984-124-0	04	1	0105-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> M5X50	1-09981-444-0	02	1	0105-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M5X50	1-09981-444-0	02	1	0105-
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> M5X50	1-09981-444-0	02	1	0105-
25	SCREW; OUTSIDE MIRROR M5X50	1-09981-444-0	02	1	0105-
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-491-2	01	1	0105-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> (A)	1-71798-599-0	01	1	0105-
49	STAY; MIRROR SIDE EXC. MIR O/S RR VIEW LONG ARM<DH2> (B)	1-71798-490-2	01	1	0105-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (E)	1-71797-896-2	01	1	0105-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> (C)	1-71707-087-0	01	1	0105-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (D)	1-71797-856-1	01	1	0105-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-0105
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-0105
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0105-0105
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0105-0105
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0105-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (E) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0105-
66	WASHER; PL MIR O/S RR VIEW LONG ARM<DH2> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0105-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0105-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (D) ID=12.5	1-09985-334-0	01	1	0105-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (D) ID=12.5	1-09985-334-0	03	1	0105-
69	NUT; CAP EXC. MIR O/S RR VIEW LONG ARM<DH2> M8	1-09984-187-0	02	1	0105-
69	NUT; CAP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8	1-09984-187-0	02	1	0105-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA> (E)	1-71798-581-3	01	1	0105-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2> (A)	1-71798-309-4	01	1	0105-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW LONG ARM<DH2> (B)	1-71798-484-1	01	1	0105-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-484-1	01	1	0105-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW LONG ARM<DH2> (C)	1-71798-486-2	01	1	0105-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-486-2	01	1	0105-
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D)	1-71797-809-2	01	1	0105-
72	SHEET HIGH ROOF<S2F> (A)	1-71797-799-1	01	1	0105-0111
72	SHEET MIRROR O/S RR VIEW<D37> HIGH ROOF<S2F> (A)	1-71797-799-1	01	1	0112-
72	SHEET MIR O/S RR VIEW LONG ARM<DH2> HIGH ROOF<S2F> (A)	1-71797-798-1	01	1	0105-
72	SHEET EXC. MIR O/S RR VIEW LONG ARM<DH2> (B)	1-71798-487-3	01	1	0105-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-487-3	01	1	0105-
72	SHEET EXC. MIR O/S RR VIEW LONG ARM<DH2> (C)	1-71798-488-1	01	1	0105-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-488-1	01	1	0105-
85	PIVOT; MAIN MIRROR EXC. MIR O/S RR VIEW LONG ARM<DH2> (B) ID=19.1	1-71737-633-2	02	1	0105-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=19.1	1-71737-633-2	02	1	0105-
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9> (A) ID=22.2	1-71736-489-2	02	1	0105-
85	PIVOT; MAIN MIRROR MIR STAY O/S W/REMOTE<TBA> (A) ID=22.2	1-71736-489-2	02	1	0105-
85	PIVOT; MAIN MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) ID=22.2	1-71736-489-2	02	1	0105-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW LONG ARM<DH2> (A) ID=22.2	1-71736-489-2	02	1	0105-
86	COVER; STAY,OUTSIDE MIRROR HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (F)	1-73317-322-0	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW LONG ARM<DH2> (G)	1-71798-695-0	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D) BLACK	1-71737-649-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (E) BLACK	1-71737-652-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-732-0	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-733-0	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (A) BLACK	1-71737-760-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) BLACK	1-71737-760-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (A) BLACK	1-71737-760-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A) BLACK	1-71737-760-1	01	1	0105-
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-1	01	1	0105-
87	SPACER MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	02	1	0105-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	02	1	0105-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-704-0	01	1	0105-
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-704-0	01	1	0105-
87	SPACER MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-704-0	01	1	0105-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-704-0	01	1	0105-
87	SPACER (A)	1-71737-704-0	01	1	0105-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0105-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0105-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0105-
151	WASHER; PL,MIRROR EXC. MIR O/S RR VIEW LONG ARM<DH2> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0105-
151	WASHER; PL,MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0105-
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	0105-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0105-
185	BOLT; BRKT EXC. MIR O/S RR VIEW LONG ARM<DH2> M8X35 FLANGE	0-28690-835-0	02	1	0105-
185	BOLT; BRKT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	0-28690-835-0	02	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
