Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11544 - FVZ(MALAYSIA)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-43 - SUN VISOR AND ASSIST GRIP
▶
7-43 — SUN VISOR AND ASSIST GRIP
(#122218) — 62 parça
◀
[743A] ASSIST GRIP NO.1 (15 parça)
[743A] ASSIST GRIP NO.2 (7 parça)
[743A] SUN VISOR AND OTHER PARTS (16 parça)
[743A] TRAY;HEADER ROOF (24 parça)
▶
53
59
39
66
53
69
72
48
48
72
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
39
HANDLE; ASSIST,A-POST
DARK GRAY
8-97407-943-2
01
1
1306-
39
HANDLE; ASSIST,A-POST
DARK GRAY
8-97407-942-2
01
1
1306-
48
BOLT; ASSIST GRIP
(B) M8X16 FLANGE
0-28060-816-0
04
1
1306-
48
BOLT; ASSIST GRIP
(A) M8X30 FLANGE
0-28660-830-0
04
1
1306-
53
SCREW; ASSIST HANDLE
M8X20 FLANGE MAL
0-28650-820-0
04
1
1306-
59
COVER; ASSIST GRIP
(B)
1-71998-789-2
02
1
1306-
59
COVER; ASSIST GRIP
(A)
1-71998-790-2
02
1
1306-
59
COVER; ASSIST GRIP
(C) DARK GRAY
8-97407-417-1
02
1
1306-
66
BOLT; ASSIST GRIP BRKT
(B) M8X16 FLANGE MAL
0-28050-816-0
04
1
1306-
66
BOLT; ASSIST GRIP BRKT
(A) M6X12 FLANGE
8-97108-669-0
06
1
1306-
69
BRACKET; ASSIST GRIP
(A)
8-98014-094-0
02
1
1306-
69
BRACKET; ASSIST GRIP
(B)
8-98057-972-2
01
1
1306-
69
BRACKET; ASSIST GRIP
(B)
8-98057-971-2
01
1
1306-
72
GRIP; ASSIST,CAB ENTRY,BACK
8-97386-939-0
02
1
1306-1510
72
GRIP; ASSIST,CAB ENTRY,BACK
8-98315-144-0
02
1
1511-

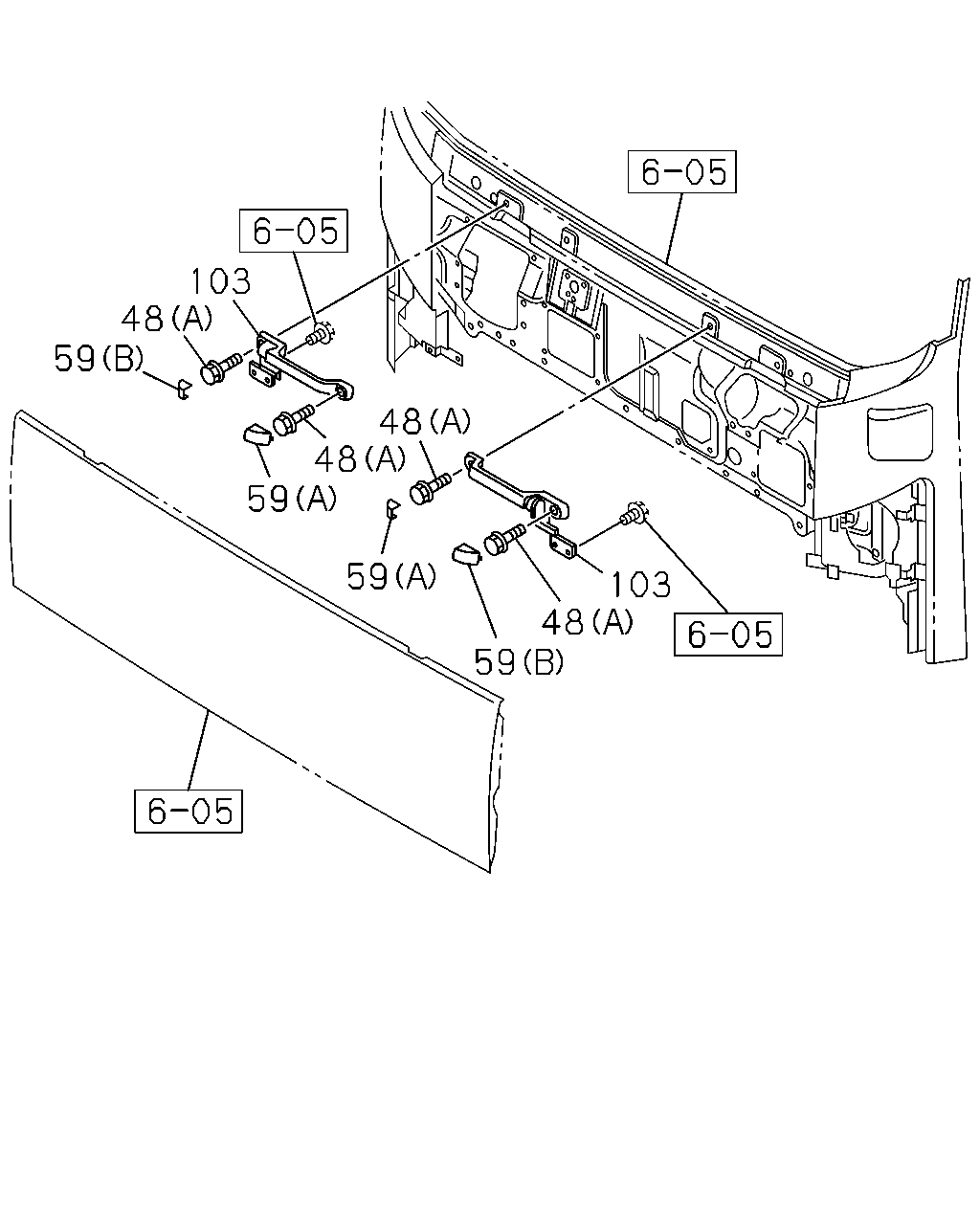

103
48
59
59
48
59
48
103
48
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(B) M8X16 FLANGE
0-28060-816-0
04
1
1306-
48
BOLT; ASSIST GRIP
(A) M8X30 FLANGE
0-28660-830-0
04
1
1306-
59
COVER; ASSIST GRIP
(B)
1-71998-789-2
02
1
1306-
59
COVER; ASSIST GRIP
(A)
1-71998-790-2
02
1
1306-
59
COVER; ASSIST GRIP
(C) DARK GRAY
8-97407-417-1
02
1
1306-
103
GRIP; ASSIST,FRT PNL
8-98036-565-1
01
1
1306-
103
GRIP; ASSIST,FRT PNL
8-98036-566-1
01
1
1306-

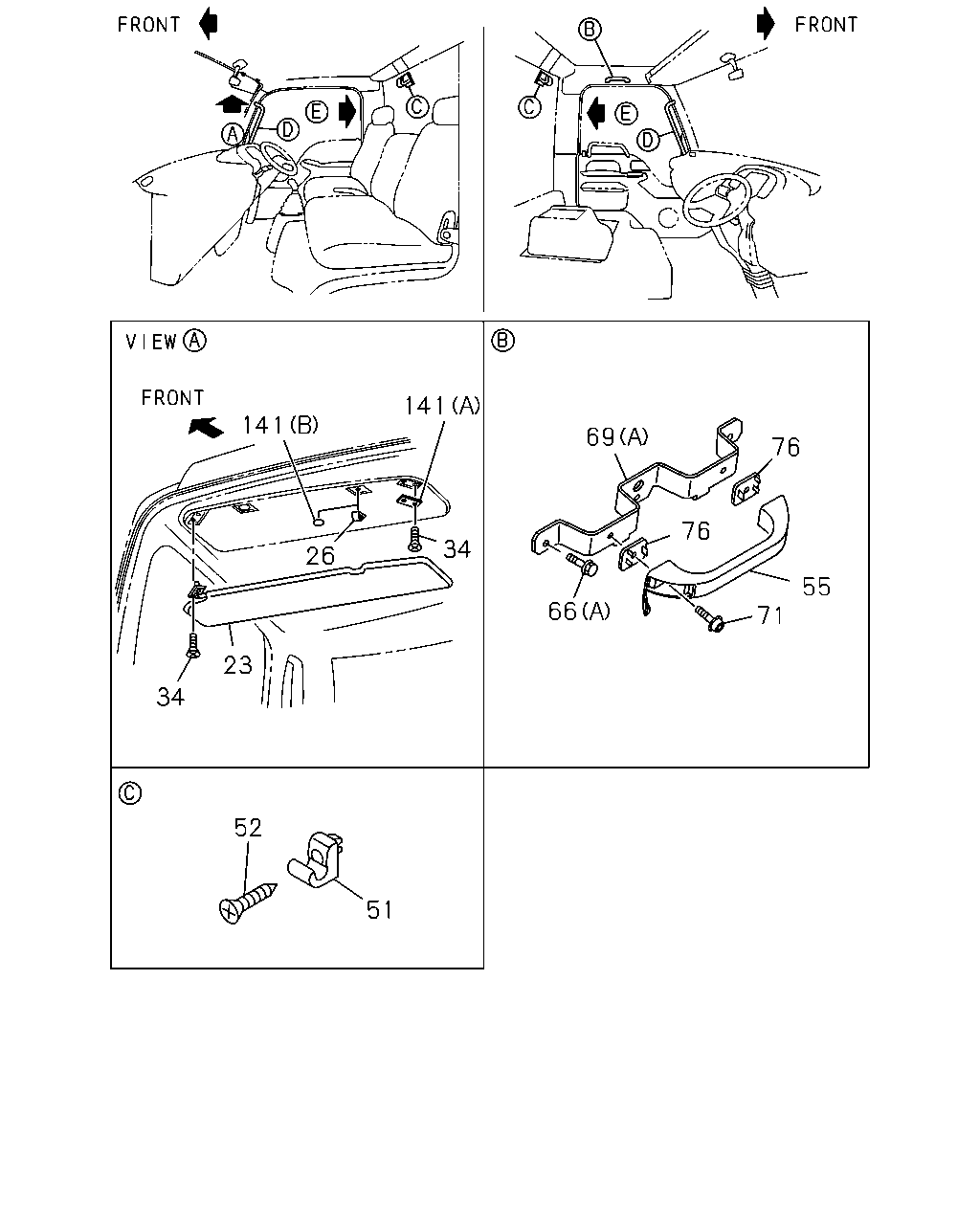

141
141
26
34
23
34
52
51
69
76
55
76
66
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
SUN VISOR
DARK GRAY
8-97407-373-2
01
1
1306-
26
HOLDER; SUN VISOR
DARK GRAY MAL
8-97405-171-0
01
1
1306-
34
SCREW; SUN VISOR
M6X26
8-98033-674-0
04
1
1306-
51
HOOK; COAT HANGER
DARK GRAY
8-97409-845-0
02
1
1306-
52
SCREW; HOOK
M4X20 TAPPING OVAL-HEAD
0-70540-420-0
02
1
1306-
55
GRIP; ASSIST,CAB SIDE UPR
DARK GRAY
8-97405-285-2
01
1
1306-
66
BOLT; ASSIST GRIP BRKT
(B) M8X16 FLANGE MAL
0-28050-816-0
04
1
1306-
66
BOLT; ASSIST GRIP BRKT
(A) M6X12 FLANGE
8-97108-669-0
06
1
1306-
69
BRACKET; ASSIST GRIP
(A)
8-98014-094-0
02
1
1306-
69
BRACKET; ASSIST GRIP
(B)
8-98057-972-2
01
1
1306-
69
BRACKET; ASSIST GRIP
(B)
8-98057-971-2
01
1
1306-
71
SCREW
M6X28
8-98004-344-0
02
1
1306-
76
SPACER; ASSIST GRIP
DARK GRAY
8-97405-286-0
02
1
1306-
141
COVER; SUN VISOR
(A) L=66 B=30 DARK GRAY
8-97408-029-0
01
1
1306-
141
COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
01
1
1306-1402
141
COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
02
1
1403-

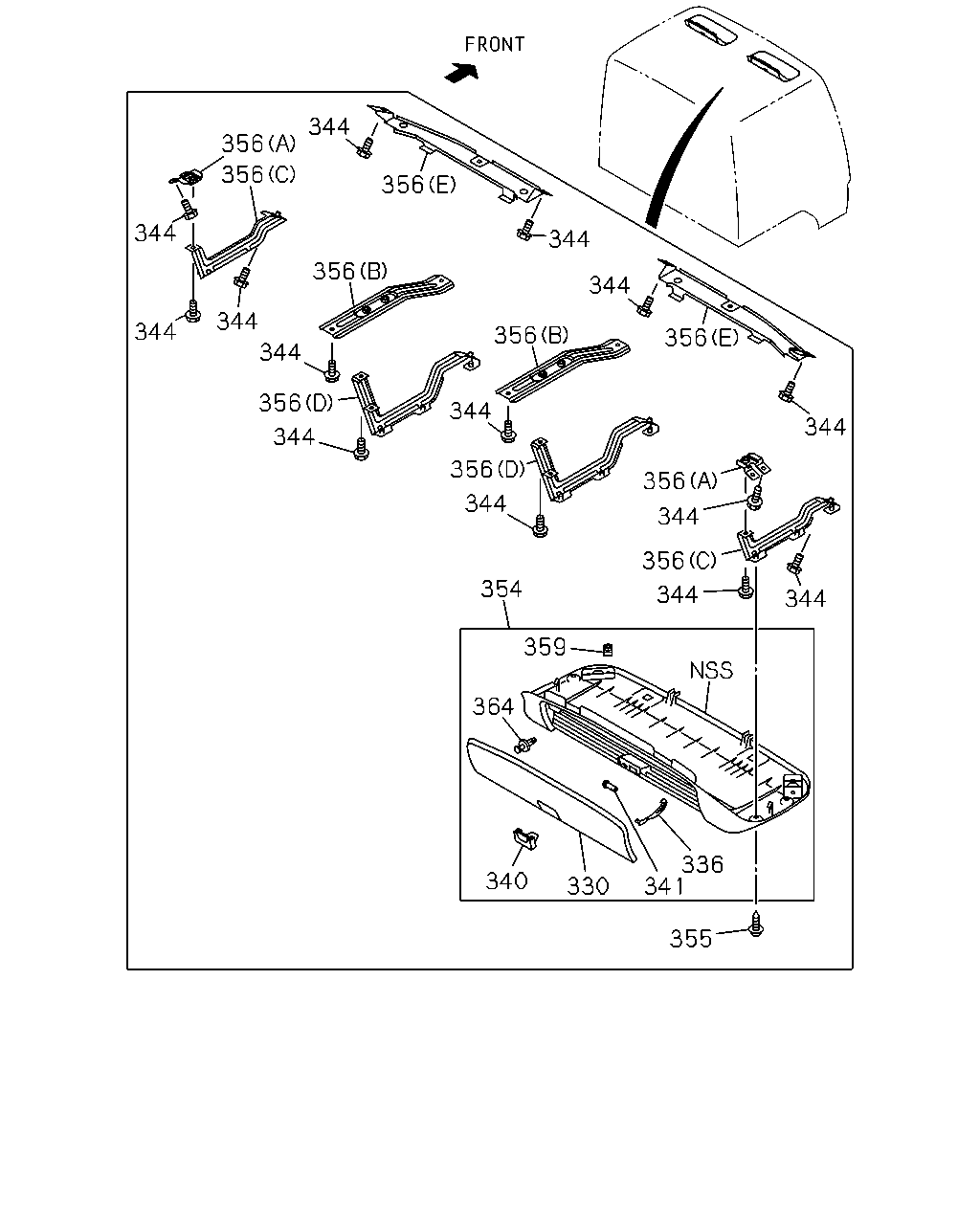

344
356
356
356
344
356
344
344
344
356
344
344
356
344
344
356
356
344
354
356
344
344
356
344
344
359
364
340
330
341
336
355
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
330
LID; HEADER SHELF
DARK GRAY
8-97407-834-1
01
1
1306-1308
330
LID; HEADER SHELF
DARK GRAY
8-97407-834-1
01
1
1309-
336
STAY; LID
1-72448-379-3
02
1
1306-1308
336
STAY; LID
1-72448-379-3
02
1
1309-
340
LOCK; HEADER SHELF
1-72448-376-0
01
1
1306-1308
340
LOCK; HEADER SHELF
1-72448-376-0
01
1
1309-
341
HINGE; LID,HEADER SHELF
8-98025-428-2
02
1
1306-1308
341
HINGE; LID,HEADER SHELF
8-98025-428-2
02
1
1309-
344
BOLT; BRKT,FRT
M6X12 FLANGE
8-97108-669-0
12
1
1306-
354
TRAY; HEADER ROOF
DARK GRAY
8-97407-386-5
01
1
1306-1308
354
TRAY; HEADER ROOF
DARK GRAY
8-97407-386-5
01
1
1309-1402
354
TRAY; HEADER ROOF
DARK GRAY
8-97428-821-0
01
1
1403-
355
SCREW; TRAY
M5X16 TAPPING HEXALOBULAR
0-72380-516-0
04
1
1306-1308
355
SCREW; TRAY
M5X16 TAPPING HEXALOBULAR
0-72380-516-0
04
1
1309-
356
BRACKET; ROOF OUTER
(A)
8-97386-874-1
01
1
1306-
356
BRACKET; ROOF OUTER
(B)
8-98010-059-0
01
1
1306-
356
BRACKET; ROOF OUTER
(C)
8-98014-088-3
01
1
1306-
356
BRACKET; ROOF OUTER
(D)
8-98023-257-2
01
1
1306-
356
BRACKET; ROOF OUTER
(E)
8-98042-015-3
01
1
1306-
356
BRACKET; ROOF OUTER
(E)
8-98042-016-3
01
1
1306-
359
HOLDER; HEADER TRAY
8-98041-754-0
04
1
1306-1308
359
HOLDER; HEADER TRAY
8-98041-754-0
04
1
1309-
364
STOPPER; LID
8-98010-867-1
03
1
1306-1308
364
STOPPER; LID
8-98010-867-1
03
1
1309-
