7-10 — CAUTION PLATE AND LABEL (#12221) — 62 parça

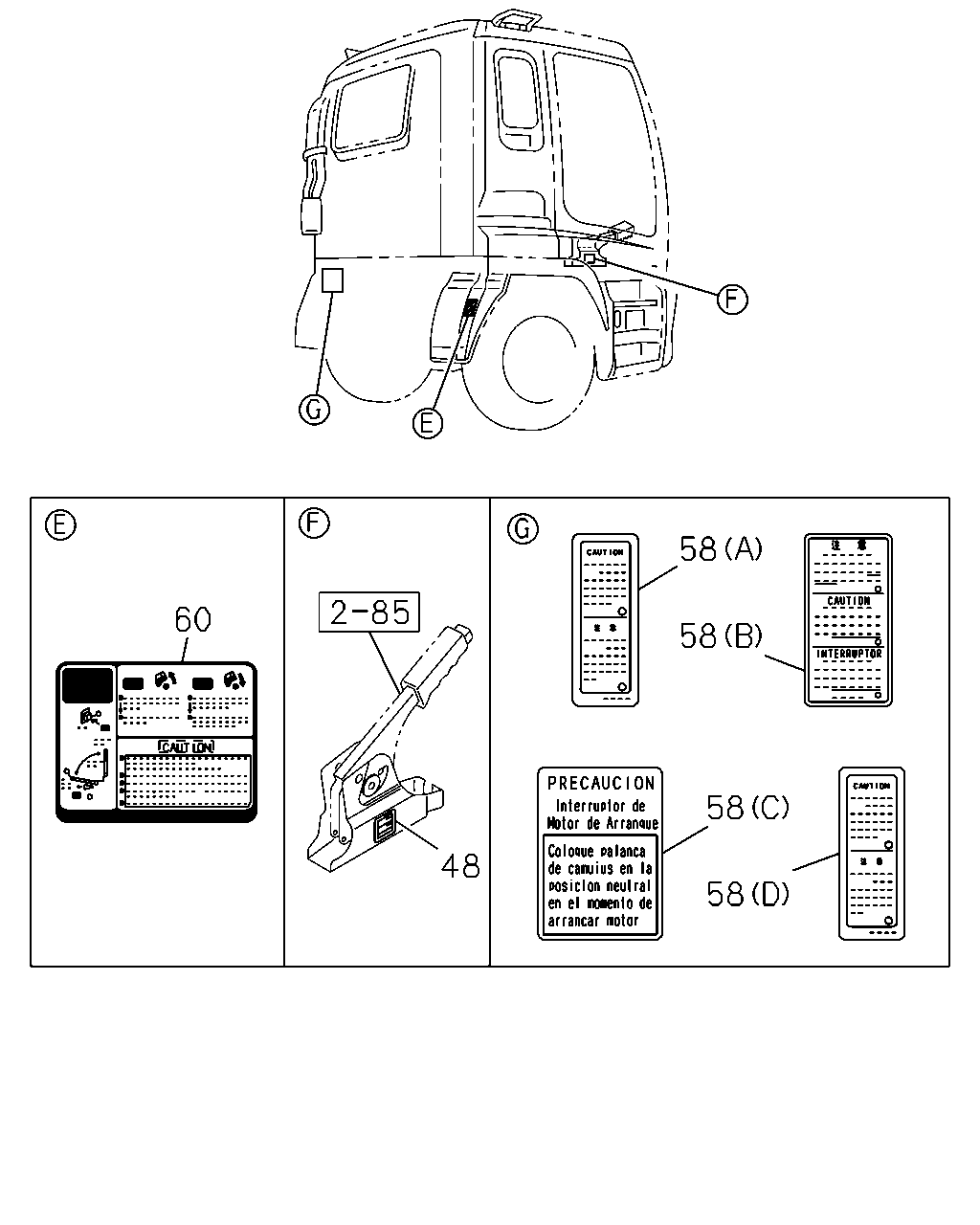

çizim 23419
58 60 58 58 48 58
BalonParca AdiParca NoAdetTipApplied Date
48 PLATE; CAUTION,PTO
DUMP CONTROL LEVER<RC4> 		1-85881-254-0 01 1 0105-
58 PLATE; CAUTION,ENG START
CAUTIONS ARABIAN<WJ7> (A) 		1-85887-537-0 01 1 0105-
58 PLATE; CAUTION,ENG START
CAUTIONS CHINESE<SL7> (D) 		1-85887-536-0 01 1 0105-0204
58 PLATE; CAUTION,ENG START
CAUTIONS FRENCH<WJ8> (A) 		1-85887-535-0 01 1 0105-0112
58 PLATE; CAUTION,ENG START
CAUTIONS PORTUGUESE<NAT> (A) 		1-85878-007-0 01 1 0105-
58 PLATE; CAUTION,ENG START
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> (B) 		1-85887-457-0 01 1 0105-0112
58 PLATE; CAUTION,ENG START
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (B) 		1-85887-457-0 01 1 0201-0204
58 PLATE; CAUTION,ENG START
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS ARABIAN<WJ7> ,CAUTIONS SPANISH<YN1> (B) 		1-85887-457-0 01 1 0205-
58 PLATE; CAUTION,ENG START
CAUTIONS SPANISH<YN1> (C) 		9-83999-419-0 01 1 0105-
60 PLATE; CAUTION,CAB TILT
CAUTIONS ARABIAN<WJ7> 		1-85883-181-0 01 1 0105-
60 PLATE; CAUTION,CAB TILT
CAUTIONS CHINESE<SL7> 		1-85883-175-0 01 1 0105-0204
60 PLATE; CAUTION,CAB TILT
CAUTIONS FRENCH<WJ8> 		1-85883-176-0 01 1 0105-0112
60 PLATE; CAUTION,CAB TILT
CAUTIONS PORTUGUESE<NAT> 		1-85883-182-0 01 1 0105-
60 PLATE; CAUTION,CAB TILT
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		1-85883-174-0 01 1 0105-0112
60 PLATE; CAUTION,CAB TILT
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		1-85883-174-0 01 1 0201-0204
60 PLATE; CAUTION,CAB TILT
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS ARABIAN<WJ7> ,CAUTIONS SPANISH<YN1> 		1-85883-174-0 01 1 0205-
60 PLATE; CAUTION,CAB TILT
CAUTIONS SPANISH<YN1> 		1-85883-177-0 01 1 0105-

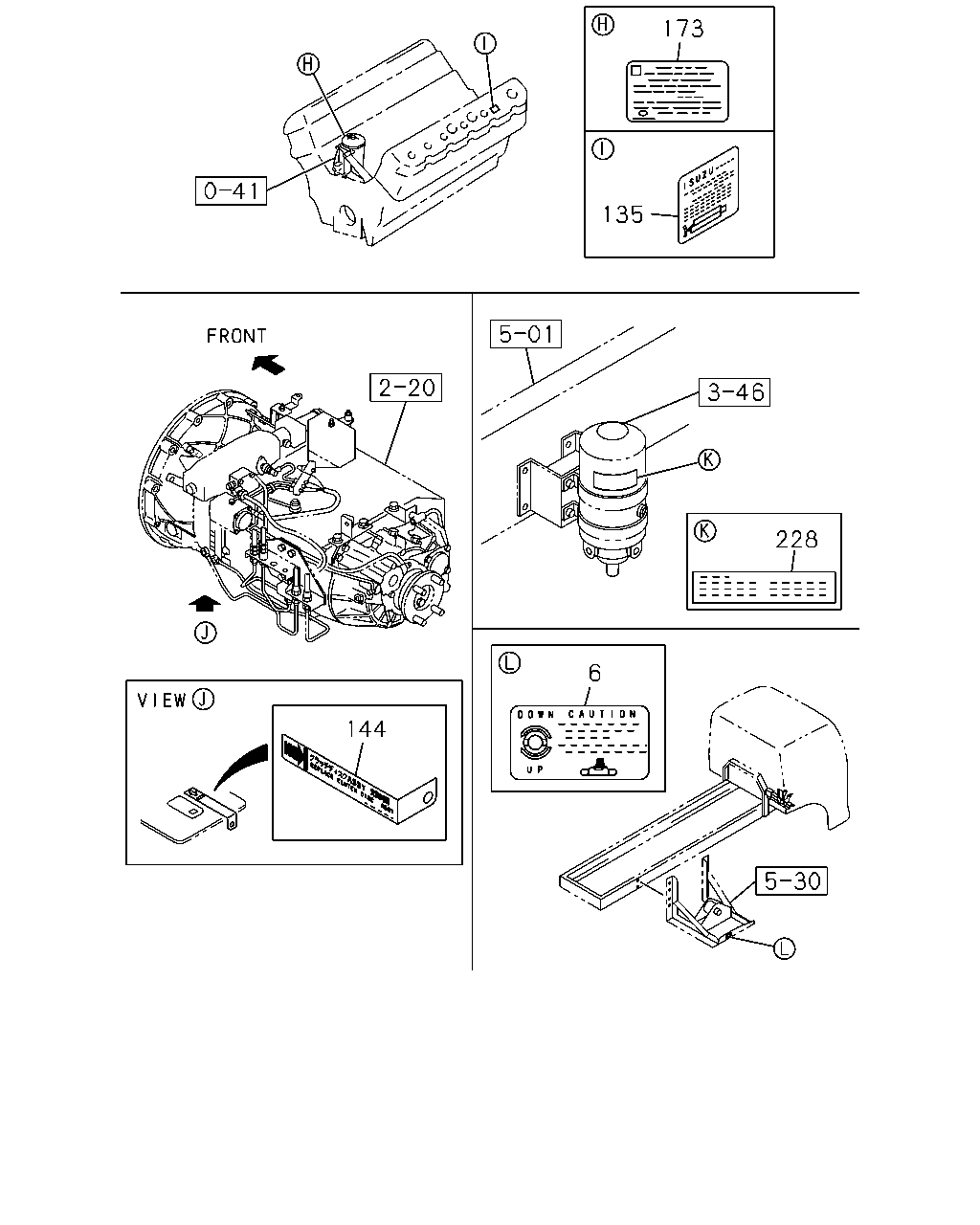

çizim 78955
173 135 228 6 144
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
CAUTIONS PORTUGUESE<NAT> SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53639-045-0 01 1 0105-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ARABIAN<WJ7> 		1-85883-114-0 01 1 0105-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7> 		1-85883-113-0 01 1 0105-0204
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS FRENCH<WJ8> 		1-85883-108-0 01 1 0105-0112
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		1-53639-004-0 01 1 0105-0112
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		1-53639-004-0 01 1 0201-0204
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS ARABIAN<WJ7> ,CAUTIONS SPANISH<YN1> 		1-53639-004-0 01 1 0205-
135 PLATE; CAUTION,ENGINE 1-85886-804-0 01 1 0105-
144 PLATE; CAUTION,CLU
TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> 		1-85888-690-0 01 1 0105-
173 PLATE; CAUTION,FUEL FILTER 1-85886-176-0 01 1 0105-
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> CAUTIONS ARABIAN<WJ7> 		1-85877-948-0 01 1 0105-
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> CAUTIONS CHINESE<SL7> 		1-85887-934-0 01 1 0105-0204
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> CAUTIONS FRENCH<WJ8> 		1-85887-936-0 01 1 0105-0112
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-85887-935-0 01 1 0105-0112
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7> 		1-85887-935-0 01 1 0201-0204
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS ARABIAN<WJ7> 		1-85887-935-0 01 1 0205-
228 PLATE; CAUTION,AIR DRYER
CAUTIONS PORTUGUESE<NAT> AIR DRYER<PS7> 		1-85877-998-0 01 1 0105-

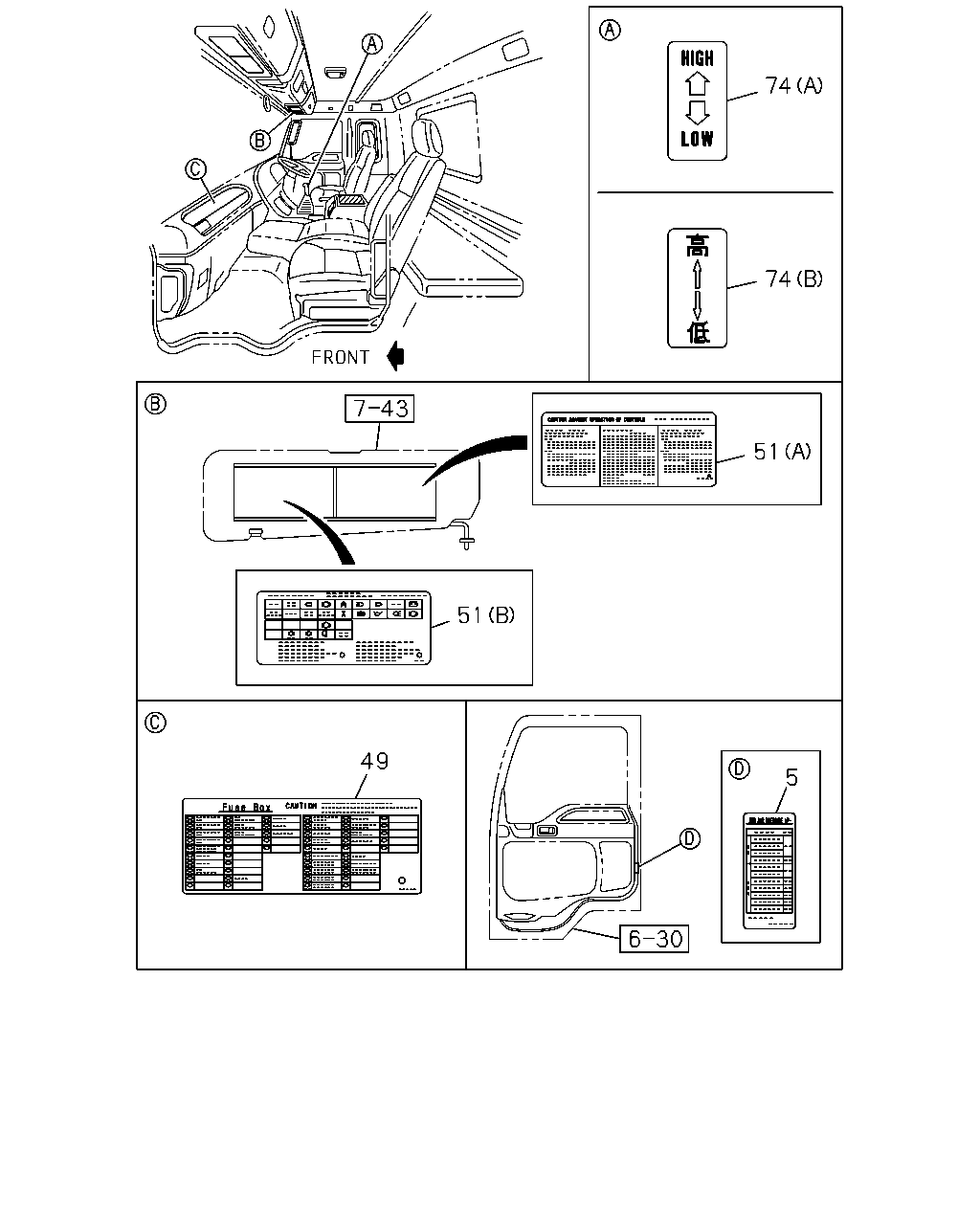

çizim 81367
74 74 51 51 49 5
BalonParca AdiParca NoAdetTipApplied Date
5 LABEL; TIRE AIR PRESSURE 1-85880-763-0 01 1 0105-0105
5 LABEL; TIRE AIR PRESSURE 1-85880-764-0 01 1 0106-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ARABIAN<WJ7> 		1-85878-331-0 01 1 0105-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS CHINESE<SL7> 		1-85878-329-0 01 1 0105-0105
49 PLATE; CAUTION,FUSE BOX
CAUTIONS CHINESE<SL7> 		1-85878-359-0 01 1 0106-0204
49 PLATE; CAUTION,FUSE BOX
CAUTIONS FRENCH<WJ8> 		1-85878-330-0 01 1 0105-0112
49 PLATE; CAUTION,FUSE BOX
CAUTIONS PORTUGUESE<NAT> 		1-85878-332-0 01 1 0105-
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		1-85878-327-0 01 1 0105-0112
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		1-85878-327-0 01 1 0201-0204
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS ARABIAN<WJ7> ,CAUTIONS SPANISH<YN1> 		1-85878-327-0 01 1 0205-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS SPANISH<YN1> 		1-85878-328-0 01 1 0105-
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (B) 		1-85878-335-1 01 1 0105-
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (A) 		1-85880-758-0 01 1 0105-
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7> (A) 		1-85880-727-0 01 1 0105-0204
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8> (B) 		1-85878-334-1 01 1 0105-0112
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7> (B) 		1-85878-334-1 01 1 0201-0204
51 PLATE; CAUTION,WARNING
CAUTIONS FRENCH<WJ8> (A) 		1-85880-726-0 01 1 0105-0112
51 PLATE; CAUTION,WARNING
CAUTIONS PORTUGUESE<NAT> (B) 		1-85878-336-1 01 1 0105-
51 PLATE; CAUTION,WARNING
CAUTIONS PORTUGUESE<NAT> (A) 		1-85880-759-0 01 1 0105-
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B) 		1-85878-333-1 01 1 0105-0112
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7> (B) 		1-85878-333-1 01 1 0201-0204
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS ARABIAN<WJ7> (B) 		1-85878-333-1 01 1 0205-
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (A) 		1-85880-725-0 01 1 0105-0112
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7> (A) 		1-85880-725-0 01 1 0201-0204
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS ARABIAN<WJ7> (A) 		1-85880-725-0 01 1 0205-
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-ZF 16S151 OD(Y2N) CAUTIONS CHINESE<SL7> (B) 		1-85881-666-2 01 1 0105-0204
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-ZF 16S151 OD(Y2N) EXC. CAUTIONS CHINESE<SL7> (A) 		1-85881-736-1 01 1 0105-0204
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-ZF 16S151 OD(Y2N) (A) 		1-85881-736-1 01 1 0205-
