◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11544 - FVZ(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#122204) — 63 parça

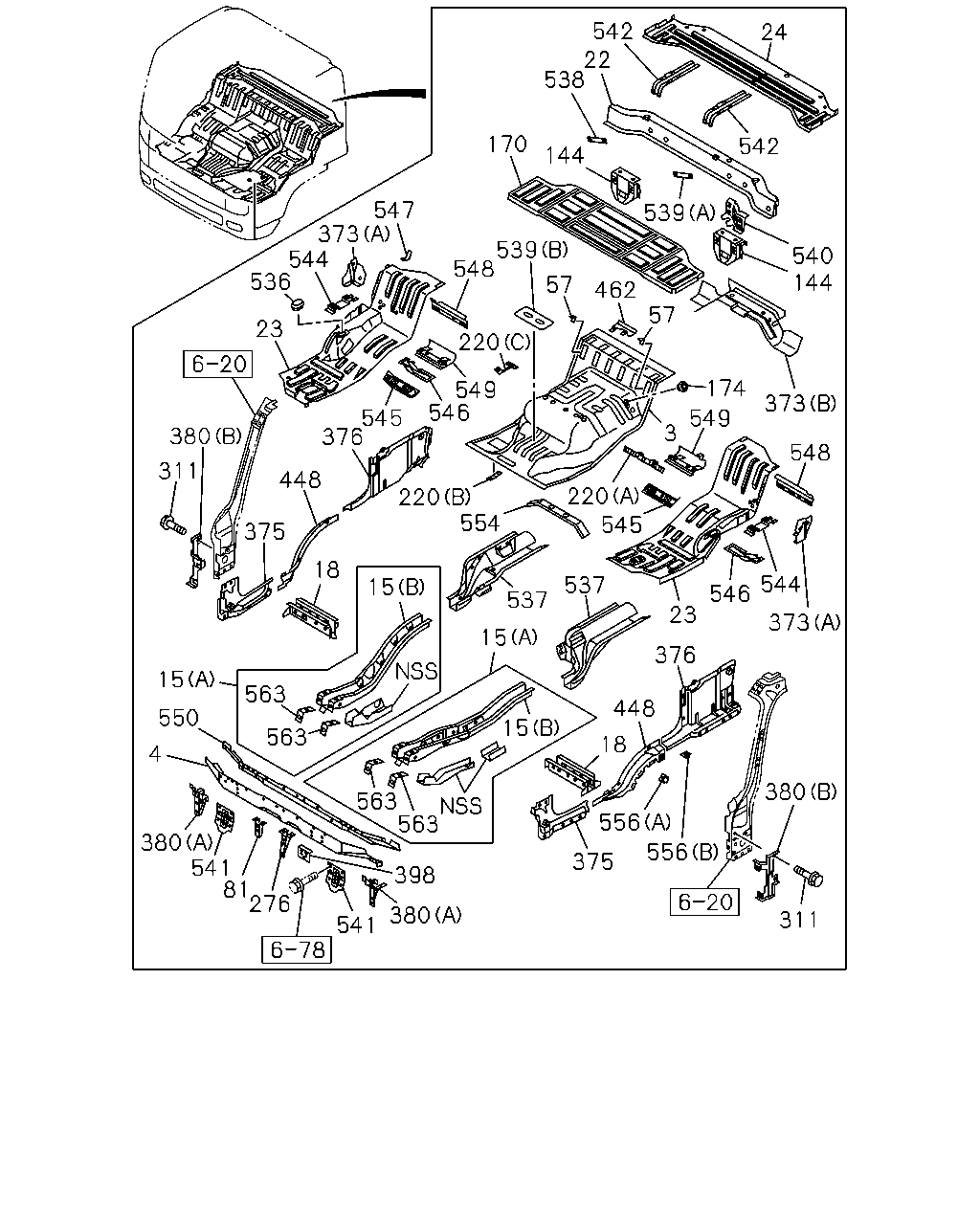

çizim 358103
536 544 373 547 23 380 448 311 375 376 545 548 539 170 538 22 542 24 542 144 57 539 462 174 144 540 373 549 3 548 220 554 220 546 549 220 57 544 373 546 23 376 537 537 15 18 15 550 4 563 563 15 380 541 81 276 541 398 380 375 15 563 563 556 18 380 311 556 448 545
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG 8-98167-036-0 01 1 1306-
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1306-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1306-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1306-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1306-
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1306-
18 FRAME; FLOOR,CENTER SIDE 8-97584-398-4 01 1 1306-
18 FRAME; FLOOR,CENTER SIDE 8-97584-421-4 01 1 1306-
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1306-
23 PANEL; FLOOR,SIDE 8-97584-372-7 01 1 1306-
23 PANEL; FLOOR,SIDE 8-98073-691-1 01 1 1306-
24 PANEL; BED PAN 8-97584-378-6 01 1 1306-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1306-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1306-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1306-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1306-
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1306-
174 GROMMET; AIR PIPE
OD=35 MAL 		8-94122-971-0 01 1 1306-
220 PATCH
(A) 		8-97588-840-4 01 1 1306-
220 PATCH
(B) 		8-97589-603-3 01 1 1306-
220 PATCH
(C) 		8-97589-627-2 01 1 1306-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1306-
311 BOLT; BRKT
M6X16 FLANGE MAL 		0-28650-616-0 04 1 1306-
373 REINFORCEMENT; SEAT BELT
(B) 		8-97584-345-9 01 1 1306-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1306-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1306-
375 CLOSING; PILLAR 8-98044-897-3 01 1 1306-
375 CLOSING; PILLAR 8-98044-898-3 01 1 1306-
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1306-1403
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404-
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1306-
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1306-
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1306-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1306-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1306-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1306-
448 CLOSING; ROCKER 8-97589-551-2 01 1 1306-
448 CLOSING; ROCKER 8-97589-552-2 01 1 1306-
462 BRACKET; EXTINGUISHER 8-97585-688-1 01 1 1306-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1306-
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1306-
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1306-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1306-
539 PATCH ASM; SAFTY HOOK
(B) 		8-98131-661-0 01 1 1306-
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 1306-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1306-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1306-
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1306-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1306-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1306-
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1306-
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1306-
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 1306-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1306-
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1306-
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1306-
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1306-
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1306-
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1306-
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1306-
556 BRACKET; TILT HANDLE
(A) 		8-98077-605-1 01 1 1306-
556 BRACKET; TILT HANDLE
(B) 		8-98077-606-1 01 1 1306-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1306-
