Isuzu WW
▶
TRUCKS
▶
FVR
▶
10631 - FVR-LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-50 - EXHAUST PIPE AND SILENCER
▶

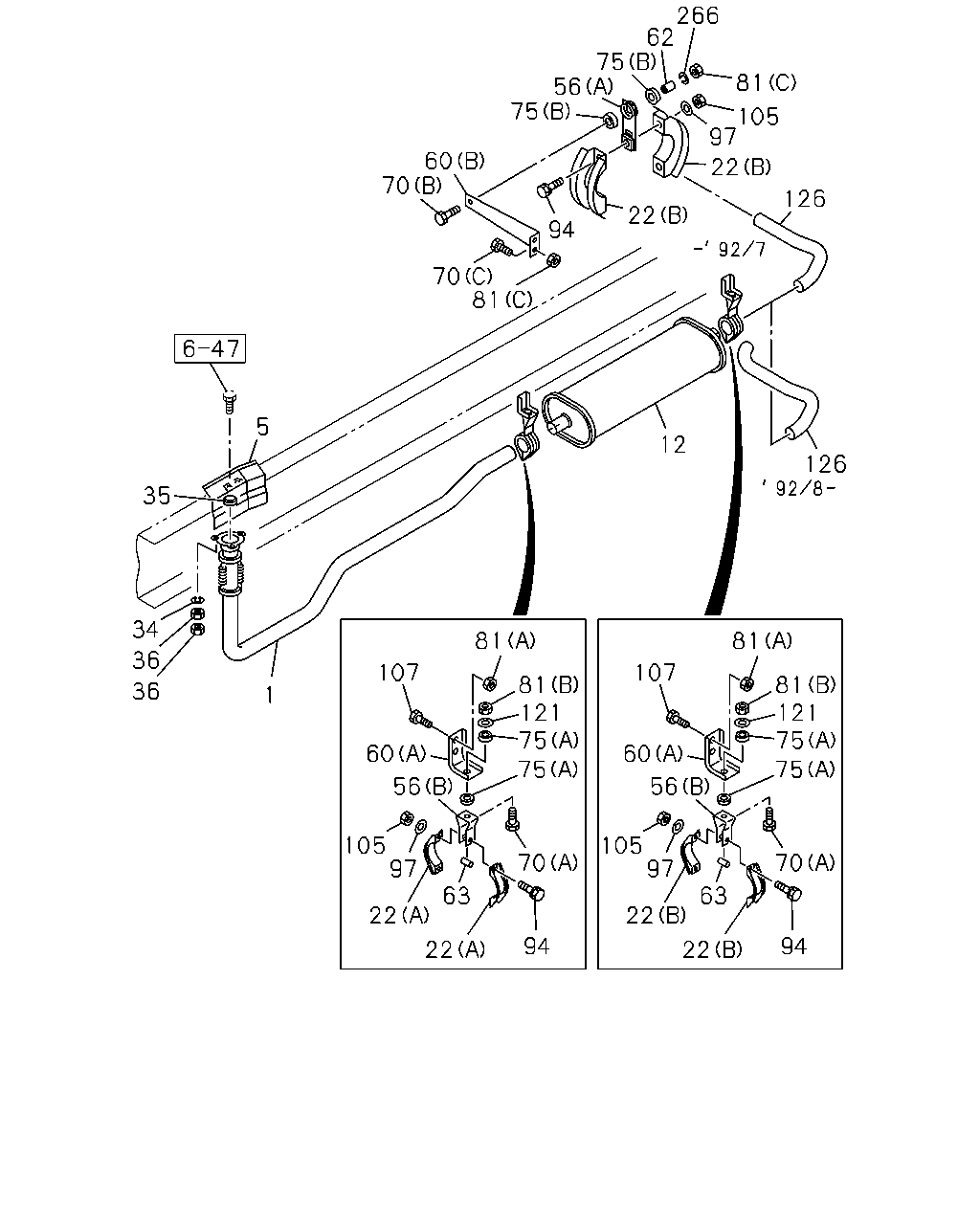

1-50 — EXHAUST PIPE AND SILENCER
(#1222) — 96 parça
Tümü
A - 6SA1 STD ENG
B - 6SA1TC ENG
C - 6HE1 STD ENG
◀
[150A] 6HE1 ENG (50 parça)
[150A] 6SA1 ENG (46 parça)
▶
266
62
75
56
75
81
105
97
60
70
22
126
22
94
70
81
5
12
126
35
34
81
81
36
107
107
81
121
75
75
81
121
75
75
36
1
56
56
60
60
105
97
105
97
70
70
63
63
22
22
94
94
22
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
PIPE; EXH
1-22122-158-2
01
1
9202-9207
●
1
PIPE; EXH
EXC. ANTI NOISE EQUIPMENT ECE<SLK>
1-22122-158-2
01
1
9208-
●
1
PIPE; EXH
1-22122-158-2
01
1
9208-
●
1
PIPE; EXH
ANTI NOISE EQUIPMENT ECE<SLK>
1-22122-355-0
01
1
9301-
●
1
PIPE; EXH
1-22122-085-1
01
1
9202-
●
5
PROTECTOR; HEAT
1-33659-167-1
01
1
9202-
●
12
SILENCER ASM; EXH
1-22140-606-3
01
1
9202-
●
12
SILENCER ASM; EXH
1-22140-715-2
01
1
9202-
●
12
SILENCER ASM; EXH
1-22140-649-0
01
1
9307-
●
22
CLAMP; EXH PIPE
ID=80-84
1-22133-233-0
04
1
9202-
●
●
22
CLAMP; EXH PIPE
(A) L=120
1-22133-231-0
02
1
9202-
●
22
CLAMP; EXH PIPE
(B) ID=75-78
1-22133-232-0
04
1
9202-
●
34
WASHER; EXH PIPE
ID=13 OD=26 DISH
1-09556-002-0
03
1
9202-
●
●
●
35
GASKET; EXH PIPE TO MANIF
EXC. EXHAUST BRAKE<NF8>
1-22116-024-0
01
1
9202-
●
36
NUT; EXH PIPE
M12
1-09400-010-0
03
1
9202-
●
●
36
NUT; EXH PIPE
M12
1-09400-010-0
06
1
9202-
●
56
BRACKET; CLAMP,EXH PIPE
H=92
1-22139-076-0
02
1
9202-
●
●
56
BRACKET; CLAMP,EXH PIPE
(A) L=174
1-22131-517-1
01
1
9202-
●
56
BRACKET; CLAMP,EXH PIPE
(B) H=107
1-22139-047-0
02
1
9202-
●
60
BRACKET; FRAME TO BRKT
(A)
1-22151-512-2
02
1
9202-
●
●
●
60
BRACKET; FRAME TO BRKT
(B)
1-22131-435-1
01
1
9202-
●
62
TUBE; DIST,BRKT
L=22
9-22159-024-0
01
1
9202-
●
63
TUBE; DIST,BRKT
L=11
1-22139-026-0
02
1
9202-
●
●
●
70
BOLT; BRKT
(A) M10X50
0-10806-050-0
02
1
9202-
●
●
●
70
BOLT; BRKT
(B) M10X55
0-10806-055-0
01
1
9202-
●
70
BOLT; BRKT
(C) M10X30 W/LK WASHER
0-50041-030-0
02
1
9202-9307
●
70
BOLT; BRKT
(C) M10X30 FLANGE
0-28081-030-0
02
1
9308-
●
75
RUBBER; SUPPORT,BRKT
(A) OD=30
1-22159-106-1
04
1
9202-
●
●
●
75
RUBBER; SUPPORT,BRKT
(B)
1-22159-119-0
02
1
9202-
●
81
NUT; BRKT
(A) M10
9-09110-510-0
04
1
9202-
●
●
●
81
NUT; BRKT
(B) M10 LOCK NUT
9-09131-510-0
02
1
9202-
●
●
●
81
NUT; BRKT
(C) M10
9-09110-410-0
03
1
9202-9406
●
81
NUT; BRKT
(C) M10
9-09110-410-0
01
1
9407-9407
●
81
NUT; BRKT
(C) M10
9-09110-510-0
01
1
9408-
●
81
NUT; BRKT
(C) M10
9-09110-510-0
02
1
9407-
●
94
BOLT; CLAMP
M10X45 W/LK&PL WASHER
0-50141-045-0
04
1
9202-
●
●
94
BOLT; CLAMP
M10X45 W/LK&PL WASHER
0-50141-045-0
06
1
9202-
●
97
WASHER; PL,CLAMP
ID=10.5
9-09164-510-0
04
1
9202-
●
●
97
WASHER; PL,CLAMP
ID=10.5
9-09164-510-0
06
1
9202-
●
105
NUT; CLAMP
M10
9-09110-410-0
04
1
9202-9407
●
●
105
NUT; CLAMP
M10
9-09110-510-0
04
1
9408-
●
●
105
NUT; CLAMP
M10
9-09110-410-0
06
1
9202-9407
●
105
NUT; CLAMP
M10
9-09110-510-0
06
1
9408-
●
107
BOLT; BRKT
M10X30 W/LK WASHER
0-50041-030-0
04
1
9202-9307
●
●
●
107
BOLT; BRKT
M10X30 FLANGE
0-28081-030-0
04
1
9308-
●
●
●
121
WASHER; PL,BRKT
ID=10.5 OD=32
9-09164-810-0
02
1
9202-
●
●
●
126
PIPE; EXH,RR
1-22112-981-1
01
1
9202-
●
●
126
PIPE; EXH,RR
1-22112-777-2
01
1
9202-9207
●
126
PIPE; EXH,RR
1-22126-073-0
01
1
9208-
●
266
WASHER; LK,BRKT
ID=10.2
9-09150-510-0
01
1
9202-
●
12
126
34
36
1
81
81
121
75
107
60
75
70
105
97
56
22
63
94
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
PIPE; EXH
1-22122-158-2
01
1
9202-9207
●
1
PIPE; EXH
EXC. ANTI NOISE EQUIPMENT ECE<SLK>
1-22122-158-2
01
1
9208-
●
1
PIPE; EXH
1-22122-158-2
01
1
9208-
●
1
PIPE; EXH
ANTI NOISE EQUIPMENT ECE<SLK>
1-22122-355-0
01
1
9301-
●
1
PIPE; EXH
1-22122-085-1
01
1
9202-
●
12
SILENCER ASM; EXH
1-22140-606-3
01
1
9202-
●
12
SILENCER ASM; EXH
1-22140-715-2
01
1
9202-
●
12
SILENCER ASM; EXH
1-22140-649-0
01
1
9307-
●
22
CLAMP; EXH PIPE
ID=80-84
1-22133-233-0
04
1
9202-
●
●
22
CLAMP; EXH PIPE
(A) L=120
1-22133-231-0
02
1
9202-
●
22
CLAMP; EXH PIPE
(B) ID=75-78
1-22133-232-0
04
1
9202-
●
34
WASHER; EXH PIPE
ID=13 OD=26 DISH
1-09556-002-0
03
1
9202-
●
●
●
36
NUT; EXH PIPE
M12
1-09400-010-0
03
1
9202-
●
●
36
NUT; EXH PIPE
M12
1-09400-010-0
06
1
9202-
●
56
BRACKET; CLAMP,EXH PIPE
H=92
1-22139-076-0
02
1
9202-
●
●
56
BRACKET; CLAMP,EXH PIPE
(A) L=174
1-22131-517-1
01
1
9202-
●
56
BRACKET; CLAMP,EXH PIPE
(B) H=107
1-22139-047-0
02
1
9202-
●
60
BRACKET; FRAME TO BRKT
(A)
1-22151-512-2
02
1
9202-
●
●
●
60
BRACKET; FRAME TO BRKT
(B)
1-22131-435-1
01
1
9202-
●
63
TUBE; DIST,BRKT
L=11
1-22139-026-0
02
1
9202-
●
●
●
70
BOLT; BRKT
(A) M10X50
0-10806-050-0
02
1
9202-
●
●
●
70
BOLT; BRKT
(B) M10X55
0-10806-055-0
01
1
9202-
●
70
BOLT; BRKT
(C) M10X30 W/LK WASHER
0-50041-030-0
02
1
9202-9307
●
70
BOLT; BRKT
(C) M10X30 FLANGE
0-28081-030-0
02
1
9308-
●
75
RUBBER; SUPPORT,BRKT
(A) OD=30
1-22159-106-1
04
1
9202-
●
●
●
75
RUBBER; SUPPORT,BRKT
(B)
1-22159-119-0
02
1
9202-
●
81
NUT; BRKT
(A) M10
9-09110-510-0
04
1
9202-
●
●
●
81
NUT; BRKT
(B) M10 LOCK NUT
9-09131-510-0
02
1
9202-
●
●
●
81
NUT; BRKT
(C) M10
9-09110-410-0
03
1
9202-9406
●
81
NUT; BRKT
(C) M10
9-09110-410-0
01
1
9407-9407
●
81
NUT; BRKT
(C) M10
9-09110-510-0
01
1
9408-
●
81
NUT; BRKT
(C) M10
9-09110-510-0
02
1
9407-
●
94
BOLT; CLAMP
M10X45 W/LK&PL WASHER
0-50141-045-0
04
1
9202-
●
●
94
BOLT; CLAMP
M10X45 W/LK&PL WASHER
0-50141-045-0
06
1
9202-
●
97
WASHER; PL,CLAMP
ID=10.5
9-09164-510-0
04
1
9202-
●
●
97
WASHER; PL,CLAMP
ID=10.5
9-09164-510-0
06
1
9202-
●
105
NUT; CLAMP
M10
9-09110-410-0
04
1
9202-9407
●
●
105
NUT; CLAMP
M10
9-09110-510-0
04
1
9408-
●
●
105
NUT; CLAMP
M10
9-09110-410-0
06
1
9202-9407
●
105
NUT; CLAMP
M10
9-09110-510-0
06
1
9408-
●
107
BOLT; BRKT
M10X30 W/LK WASHER
0-50041-030-0
04
1
9202-9307
●
●
●
107
BOLT; BRKT
M10X30 FLANGE
0-28081-030-0
04
1
9308-
●
●
●
121
WASHER; PL,BRKT
ID=10.5 OD=32
9-09164-810-0
02
1
9202-
●
●
●
126
PIPE; EXH,RR
1-22112-981-1
01
1
9202-
●
●
126
PIPE; EXH,RR
1-22112-777-2
01
1
9202-9207
●
126
PIPE; EXH,RR
1-22126-073-0
01
1
9208-
●
